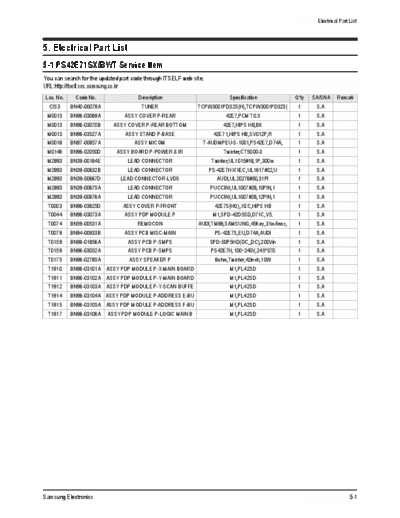

Image preview - the first page of the document
>> Download Список электрических деталей documenatation <<
Text preview - extract from the document
Electrical Part List
5. Electrical Part List
5-1 PS42E71SX/BWT Service Item
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS3 BN40-00079A TUNER TCPW3001PD32S(H),TCPW3001PD32S( 1 S.A
M0013 BN96-03069A ASSY COVER P-REAR 42E7,PCM T0.5 1 S.A
M0013 BN96-03070B ASSY COVER P-REAR BOTTOM 42E7,HIPS HB,BK 1 S.A
M0013 BN96-03527A ASSY STAND P-BASE 42E71,HIPS HB,SV012P,R 1 S.A
M0018 BN97-00857A ASSY MICOM T-AUDMPEU-S-1001,PS42E7,D74A, 1 S.A
M0146 BN96-02050D ASSY BOARD P-POWER & IR Twister,CT5000-3 1 S.A
M2893 BN39-00164E LEAD CONNECTOR Twister,UL1015#18,1P,300m 1 S.A
M2893 BN39-00632B LEAD CONNECTOR PS-42E7HX/XEC,UL1617#22,U 1 S.A
M2893 BN39-00667D LEAD CONNECTOR-LVDS AUDI,UL20276#30,31PI 1 S.A
M2893 BN39-00675A LEAD CONNECTOR PUCCINI,UL1007#26,10PIN,1 1 S.A
M2893 BN39-00676A LEAD CONNECTOR PUCCINI,UL1007#26,12PIN,1 1 S.A
T0003 BN96-03625D ASSY COVER P-FRONT 42E7S(HQ),XEC,HIPS HB 1 S.A
T0044 BN96-03073A ASSY PDP MODULE P M1,SPD-42D5SD,D71C,V5. 1 S.A
T0074 BN59-00531A REMOCON AUDI,TM86,SAMSUNG,45Key,31mArms, 1 S.A
T0079 BN94-00933B ASSY PCB MISC-MAIN PS-42E7S,EU,D74A,AUDI 1 S.A
T0159 BN96-01856A ASSY PCB P-SMPS SPD-50P5HD(DC_DC),200Vin 1 S.A
T0159 BN96-03052A ASSY PCB P-SMPS PS42E7H,100~240V,245*370 1 S.A
T0175 BN96-02785A ASSY SPEAKER P 8ohm,Twister,42inch,10W 1 S.A
T1910 BN96-03101A ASSY PDP MODULE P-X-MAIN BOARD M1,PL42SD 1 S.A
T1911 BN96-03102A ASSY PDP MODULE P-Y-MAIN BOARD M1,PL42SD 1 S.A
T1912 BN96-03103A ASSY PDP MODULE P-Y-SCAN BUFFE M1,PL42SD 1 S.A
T1914 BN96-03104A ASSY PDP MODULE P-ADDRESS E-BU M1,PL42SD 1 S.A
T1915 BN96-03105A ASSY PDP MODULE P-ADDRESS F-BU M1,PL42SD 1 S.A
T1917 BN96-03106A ASSY PDP MODULE P-LOGIC MAIN B M1,PL42SD 1 S.A
Samsung Electronics 5-1
MEMO
5-2 Samsung Electronics
