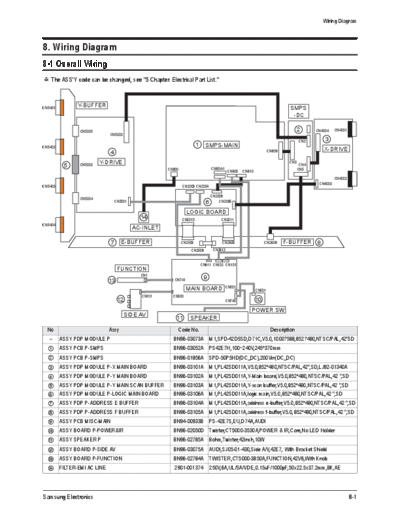

Image preview - the first page of the document
>> Download Схема электрических соединений documenatation <<
Text preview - extract from the document
Wiring Diagram
8. Wiring Diagram
8-1 Overall Wiring
The ASS'Y code can be changed, see "5 Chapter. Electrical Part List."
CN5401 Y-BUFFER SMPS
-DC
CN5005 2 CN4004 CN4001
CN5000
CN2 3
CN5402 1 SMPS-MAIN
CN809 X-DRIVE
4
Y-DRIVE CN3
5 CN5003
CN804-1
CN4
CN800 CN803 CN810 CN5
CN4002
CN4003
CN5403 CN2008 CN2004
CN2009
CN5004
CN5001 6 CN2085
LOGIC BOARD
14 CN2010 CN2011
CN5404
AC-INLET
7 E-BUFFER CN2508 CN2608 CN2609 F-BUFFER 8
CN2509 CN2612
CN611 CN102 CN101
FUNCTION
CN1
9
13 CN741
CN501
MAIN BOARD CN001
CN101 CN330
12 CN740 10
POWER SW
SIDE AV
11 SPEAKER
No Assy Code No. Description
- ASSY PDP MODULE P BN96-03073A M1,SPD-42D5SD,D71C,V5.0,1000?588,852?480,NTSC/PAL,42"SD
ASSY PCB P-SMPS BN96-03052A PS42E7H,100~240V,245*370mm
ASSY PCB P-SMPS BN96-01856A SPD-50P5HD(DC_DC),200Vin(DC_DC)
ASSY PDP MODULE P-X MAIN BOARD BN96-03101A M1,PL42SD011A,V5.0,852*480,NTSC/PAL,42",SD,LJ92-01340A
ASSY PDP MODULE P-Y MAIN BOARD BN96-03102A M1,PL42SD011A,Y-Main board,V5.0,852*480,NTSC/PAL,42 ",SD
ASSY PDP MODULE P-Y MAIN SCAN BUFFER BN96-03103A M1,PL42SD011A,Y-scan buffer,V5.0,852*480,NTSC/PAL,42 ",SD
ASSY PDP MODULE P-LOGIC MAIN BOARD BN96-03106A M1,PL42SD011A,logic main,V5.0,852*480,NTSC/PAL,42 ",SD
ASSY PDP P-ADDRESS E BUFFER BN96-03104A M1,PL42SD011A,address e-buffer,V5.0,852*480,NTSC/PAL,42 ",SD
ASSY PDP P-ADDRESS F BUFFER BN96-03105A M1,PL42SD011A,address f-buffer,V5.0,852*480,NTSC/PAL,42 ",SD
ASSY PCB MISC-MAIN BN94-00933B PS-42E7S,EU,D74A,AUDI
ASSY BOARD P-POWER&IR BN96-02050D Twister,CT5000-3530A,POWER & IR,Core,No LED Holder
ASSY SPEAKER P BN96-02785A 8ohm,Twister,42inch,10W
ASSY BOARD P-SIDE AV BN96-03075A AUDI,SJ05-01-430,Side A/V,42E7, With Bracket Shield
ASSY BOARD P-FUNCTION BN96-02784A TWISTER,CT5000-3850A,FUNCTION,42V6,With Knob
FILTER-EMI AC LINE 2901-001374 250V,6A,UL/SA/VDE,0.15uF/1000pF,50x22.5x37.2mm,BK,AE
Samsung Electronics 8-1
Wiring Diagram
8-2 Partial Wiring
8-2-1 PDP Module SMPS Wiring
CN809(Main SMPS) CN2(DC-DC SMPS) CN4(DC-DC SMPS) CN6(DC-DC SMPS) CN810(Main SMPS)
CN3(DC-DC SMPS) CN5007(Y B'D) CN4001(X B'D) CN2509(E-Buffer) CN2013(Logic B'D)
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 D5.3V 1 Vs 1 D5.3V 1 RTN 1 STD_5V
2 Vg 2 Vs 2 Vg 2 N.C 2 VS_ON
3 RTN 3 RTN 3 RTN 3 D5.3V 3 N/C
4 RTN 4 RTN 4 RTN 4 N/C 4 PS_ON
5 RTN 5 Vset 5 Ve 5 Va 5 RTN
6 RTN 6 RTN 6 RTN 6 D5.3V
7 RTN 7 Vscan 7 RTN 7 RTN
8 Va 8 RTN 8 Vs 8 RTN
9 Va 9 Vg 9 Vs 9 D5.3V
10 N/C 10 D5.3V 10 D5.3V
11 Vs
12 Vs
8-2 Samsung Electronics
Wiring Diagram
8-2-2 Connect Cables
The code number of cable(Lead-connector) can be changed, see "5 Chapter. Electrical Part List."
Use SMPS 12P LVDS 31P POWER 10P
Code BN39-00632B BN39-00667D BN39-00675A
Use POWER 12P EMI ONEPOINT WIRE
Code BN39-00676A BN39-00164E
Samsung Electronics 8-3
MEMO
8-4 Samsung Electronics
