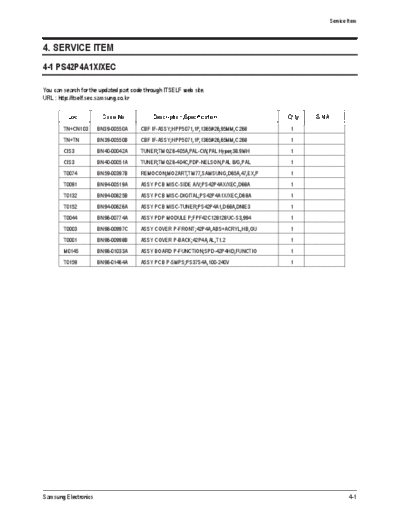

Image preview - the first page of the document
>> Download Electrical Part List documenatation <<
Text preview - extract from the document
Service Item
4. SERVICE ITEM
4-1 PS42P4A1X/XEC
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
Loc. Code No Description;Specification Q'ty S.N.A
TN+CN103 BN39-00550A CBF IF-ASSY;HPP5071,1P,1365#26,95MM,C268 1
TN+TN BN39-00550B CBF IF-ASSY;HPP5071,1P,1365#26,65MM,C268 1
CIS3 BN40-00042A TUNER;TMQZ6-405A,PAL-CW,PAL Hyper,38.9MH 1
CIS3 BN40-00051A TUNER;TMQZ6-404C,PDP-NELSON,PAL B/G,PAL 1
T0074 BN59-00397B REMOCON;MOZART,TM77,SAMSUNG,D65A,47,EX,P 1
T0091 BN94-00519A ASSY PCB MISC-SIDE A/V;PS42P4AX/XEC,D68A 1
T0132 BN94-00625B ASSY PCB MISC-DIGITAL;PS42P4A1X/XEC,D68A 1
T0152 BN94-00626A ASSY PCB MISC-TUNER;PS42P4A1,D68A,DNIE3 1
T0044 BN96-00774A ASSY PDP MODULE P;FPF42C128128UC-S3,994 1
T0003 BN96-00997C ASSY COVER P-FRONT;42P4A,ABS+ACRYL,HB,GU 1
T0001 BN96-00998B ASSY COVER P-BACK;42P4A,AL,T1.2 1
M0145 BN96-01033A ASSY BOARD P-FUNCTION;SPD-42P4HD,FUNCTIO 1
T0159 BN96-01464A ASSY PCB P-SMPS;PS37S4A,100-240V 1
Samsung Electronics 4-1
Service Item
MEMO
4-2 Samsung Electronics
