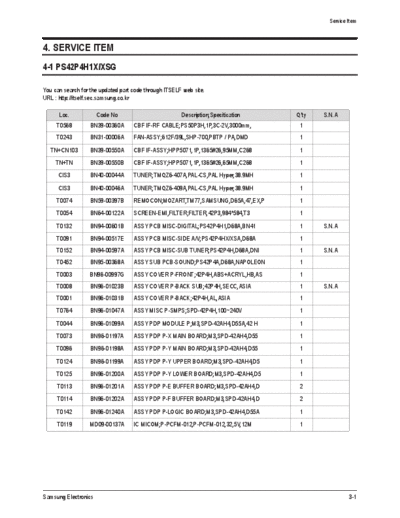

Image preview - the first page of the document
05_Electrical Part List


>> Download 05_Electrical Part List documenatation <<

Text preview - extract from the document
                                                                                            Service Item



4. SERVICE ITEM
4-1 PS42P4H1X/XSG

You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr

      Loc.            Code No                          Description;Specitication   Q'ty   S.N.A
     T0568        BN39-00360A       CBF IF-RF CABLE;PS50P3H,1P,3C-2V,3000mm,        1
     T0243        BN31-00006A       FAN-ASSY;612F/39L,SHP-700,PBTP / PA,DMD         1
   TN+CN103       BN39-00550A       CBF IF-ASSY;HPP5071,1P,1365#26,95MM,C268        1
     TN+TN        BN39-00550B       CBF IF-ASSY;HPP5071,1P,1365#26,65MM,C268        1
      CIS3        BN40-00044A       TUNER;TMQZ6-407A,PAL-CS,PAL Hyper,38.9MH        1
      CIS3        BN40-00046A       TUNER;TMQZ6-409A,PAL-CS,PAL Hyper,38.9MH        1
     T0074        BN59-00397B       REMOCON;MOZART,TM77,SAMSUNG,D65A,47,EX,P        1
     T0054        BN64-00122A       SCREEN-EMI,FILTER;FILTER,42P3,984*584,T3        1
     T0132        BN94-00601B       ASSY PCB MISC-DIGITAL;PS42P4H1,D68A,BN41        1     S.N.A
     T0091        BN94-00517E       ASSY PCB MISC-SIDE A/V;PS42P4HX/XSA,D68A        1
     T0152        BN94-00597A       ASSY PCB MISC-SUB TUNER;PS42P4H,D68A,DNI        1     S.N.A
     T0452        BN95-00368A       ASSY SUB PCB-SOUND;PS42P4A,D68A,NAPOLEON        1
     T0003        BN96-00997G       ASSY COVER P-FRONT;42P4H,ABS+ACRYL,HB,AS        1
     T0008        BN96-01023B       ASSY COVER P-BACK SUB;42P4H,SECC,ASIA           1     S.N.A
     T0001        BN96-01031B       ASSY COVER P-BACK;42P4H,AL,ASIA                 1
     T0764        BN96-01047A       ASSY MISC P-SMPS;SPD-42P4H,100~240V             1
     T0044        BN96-01099A       ASSY PDP MODULE P;M3,SPD-42AH4,D55A,42 H        1
     T0073         BN96-01197A      ASSY PDP P-X MAIN BOARD;M3,SPD-42AH4,D55        1
     T0096         BN96-01198A      ASSY PDP P-Y MAIN BOARD;M3,SPD-42AH4,D55        1
     T0124         BN96-01199A      ASSY PDP P-Y UPPER BOARD;M3,SPD-42AH4,D5        1
     T0125        BN96-01200A       ASSY PDP P-Y LOWER BOARD;M3,SPD-42AH4,D5        1
     T0113        BN96-01201A       ASSY PDP P-E BUFFER BOARD;M3,SPD-42AH4,D        2
     T0114        BN96-01202A       ASSY PDP P-F BUFFER BOARD;M3,SPD-42AH4,D        2
     T0142        BN96-01240A       ASSY PDP P-LOGIC BOARD;M3,SPD-42AH4,D55A        1
     T0119        MD09-00137A       IC MICOM;P-PCFM-012,P-PCFM-012,32,5V,12M        1




Samsung Electronics                                                                                 3-1
Service Item



               MEMO




4-2                   Samsung Electronics
