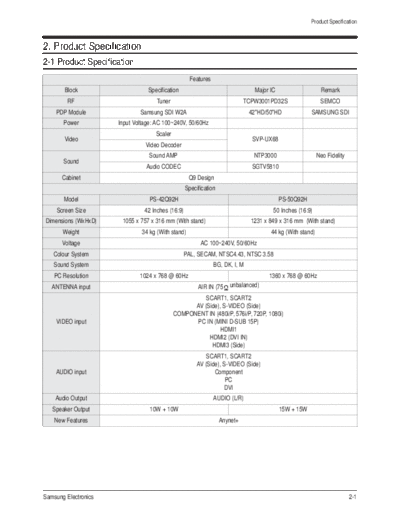

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
RF Tuner TCPW3001PD32S SEMCO
PDP Module Samsung SDI W2A 42"HD/50"HD SAMSUNG SDI
Power Input Voltage: AC 100~240V, 50/60Hz
Scaler
Video SVP-UX68
Video Decoder
Sound AMP NTP3000 Neo Fidelity
Sound
Audio CODEC SGTV5810
Cabinet Q9 Design
Specification
Model PS-42Q92H PS-50Q92H
Screen Size 42 Inches (16:9) 50 Inches (16:9)
Dimensions (WxHxD) 1055 x 757 x 316 mm (With stand) 1231 x 849 x 316 mm (With stand)
Weight 34 kg (With stand) 44 kg (With stand)
Voltage AC 100~240V, 50/60Hz
Colour System PAL, SECAM, NTSC4.43, NTSC 3.58
Sound System BG, DK, I, M
PC Resolution 1024 x 768 @ 60Hz 1360 x 768 @ 60Hz
ANTENNA input AIR IN (75 unbalanced)
SCART1, SCART2
AV (Side), S-VIDEO (Side)
COMPONENT IN (480i/P, 576i/P, 720P, 1080i)
VIDEO input PC IN (MINI D-SUB 15P)
HDMI1
HDMI2 (DVI IN)
HDMI3 (Side)
SCART1, SCART2
AV (Side), S-VIDEO (Side)
AUDIO input Component
PC
DVI
Audio Output AUDIO (L/R)
Speaker Output 10W + 10W 15W + 15W
New Features Anynet+
Samsung Electronics 2-1
Product Specification
New Features explanation
- Anynet+ : Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with your
Samsung TV's remote.
To directly connect to TV
Connect the [HDMI 1], [HDMI
TV 2] or [HDMI 3] jack on the TV
Anynet+ Device 1 Anynet+ Device 2 Anynet+ Device 3
and the HDMI OUT jack of the
corresponding Anynet+ device
using the HDMI cable.
HDMI Cable
HDMI Cable
HDMI Cable
To connect to Home Theater
TV 1 Connect the [HDMI 1],
[HDMI 2] or [HDMI 3]
jack on the TV and the
Anynet+ Device 1 Anynet+ Device 2 HDMI OUT jack of the
corresponding Anynet+
device using the HDMI
cable.
2 Connect the HDMI IN jack
of the home theater and
HDMI Cable the HDMI OUT jack of the
HDMI Cable
corresponding Anynet+
Home Theater Anynet+ Device 3 device using the HDMI
cable.
HDMI Cable HDMI Cable
Connect only one receiver.
You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support
Anynet+ functions.
Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
Anynet+ supports up to 8 AV devices in total.
2-2 Samsung Electronics
Product Specification
2-2 Specifications Analysis
: application, X: non-application
Model PS-42Q92H (Calla-42HD) PS-50Q92H (Calla-50HD) PS-42P7HD (Alps-42HD)
Design
Display Type PDP TV PDP TV PDP TV
Built-In Tuner O O O
PC Resolution 1024 x 768 @ 60Hz 1360 x 768 @ 60Hz 1024 x 768 @75Hz
PDP Module W2A W2A V5.1
Basic
Screen Size 42 inches 50 inches 42 inches
Aspect Ratio 16 : 9 16 : 9 16 : 9
Dimensions (WxHxD) 1055 x 757 x 316 mm (With stand) 1231 x 849 x 316 mm (With stand) 1055 x 775 x 341 mm (With stand)
Weight 34 kg (With stand) 44 kg (With stand) 40.4 kg (With stand)
Brightness 1,500 Cd/m2 1,300 Cd/m2 1,100 Cd/m2
Picture Contrast Ratio 10000:1 10000:1 10000:1
Image Enhacer FBE2X FBE2X FBE
Equalizer O O O
Auto Volume O O O
Audio Surround Sound SRS TruSurround SRS TruSurround SRS TruSurround
Speaker Output 10 W + 10 W 15 W + 15 W 15 W + 15 W
Speaker 2CH 2.2CH (2Way) Included
PIP O O O
Double Screen O O X
Caption X X X
Still Image O O O
Features
My Color Control O O X
Color Weakness X X X
Energy Saving O O O
Screen Burn Protection O O O
Antenna 1 Input 1 Input 1 Input
CVBS 1AV(Side) 1AV(Side) 1AV(Rear)
S-Video O O 1 Input
Component(Y/PB/PR) 1 Input 1 Input 1 Input
PC(D-SUB) 1 Input 1 Input 1 Input
Connections
DVI O O O
HDMI 3 Input 3 Input 2 Input
Scart 2 Input 2 Input 2 Input
Optical O O O
Coaxial X X X
For the power supply and power consumption, refer to the label attached to the product.
Samsung Electronics 2-3
Product Specification
2-3 Accessories
Accessories Item Item code Remark
Remote Control BN59-00602A
Batteries 4301-000103
Power Cord 3903-000145
Owner's Instructions BN68-01171Q
Warranty Card BN68-00514C
Supplied Accessories
Registration Card AA68-03575A
Safety Guide Manual AA68-03242E
Samsung Service center
Cloth-Clean BN63-01798A
Ferrite Core for
3301-001110
Earphone/Power Cord
Ferrite Core for
3301-001305
S-VIDEO/Power Cord
Cover-Bottom BN63-03055A
Screws (2ea) 6003-001621
S-VIDEO Cable
BN39-00149A
1200mm
Accessories that can be purchased
HDMI Cable
BN39-00641A
3000mm
additionally
HDMI/DVI cable Electronics Store/
BN39-00643A
3000mm Internal shopping mall
Component Cables (RCA)
BN39-00279A
1500mm
Scart Cable None
2-4 Samsung Electronics
Product Specification
Accessories Item Item code Remark
Accessories that can be purchased
PC Cable
BN39-00115A
1830mm
additionally
PC Audio Cable Electronics Store/
BN39-00061B
2000mm Internal shopping mall
Antenna Cable
BN39-00333A
3000mm
Samsung Electronics 2-5
