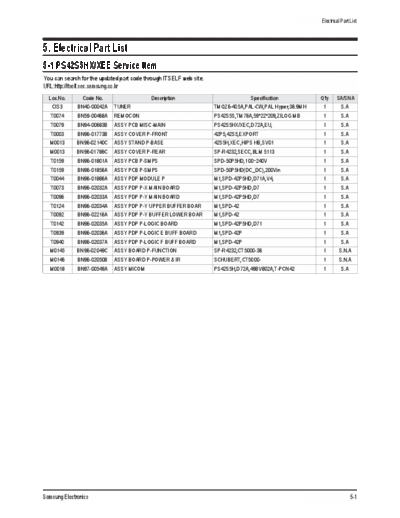

Image preview - the first page of the document
>> Download 20051117095655078_d72a-eplit-5 documenatation <<
Text preview - extract from the document
Electrical Part List
5. Electrical Part List
5-1 PS42S5HX/XEE Service Item
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA
CIS3 BN40-00042A TUNER TMQZ6-405A,PAL-CW,PAL Hyper,38.9MH 1 S.A
T0074 BN59-00468A REMOCON PS42S5S,TM76A,59*22*209,ZILOG MB 1 S.A
T0079 BN94-00683B ASSY PCB MISC-MAIN PS42S5HX/XEC,D72A,EU, 1 S.A
T0003 BN96-01773B ASSY COVER P-FRONT 42P5,42S5,EXPORT 1 S.A
M0013 BN96-02140C ASSY STAND P-BASE 42S5H,XEC,HIPS HB,SV01 1 S.A
M0013 BN96-01786C ASSY COVER P-REAR SP-R4232,SECC,BLM 5113 1 S.A
T0159 BN96-01801A ASSY PCB P-SMPS SPD-50P5HD,100~240V 1 S.A
T0159 BN96-01856A ASSY PCB P-SMPS SPD-50P5HD(DC_DC),200Vin 1 S.A
T0044 BN96-01886A ASSY PDP MODULE P M1,SPD-42P5HD,D71A,V4, 1 S.A
T0073 BN96-02032A ASSY PDP P-X MAIN BOARD M1,SPD-42P5HD,D7 1 S.A
T0096 BN96-02033A ASSY PDP P-Y MAIN BOARD M1,SPD-42P5HD,D7 1 S.A
T0124 BN96-02034A ASSY PDP P-Y UPPER BUFFER BOAR M1,SPD-42 1 S.A
T0092 BN96-02216A ASSY PDP P-Y BUFFER LOWER BOAR M1,SPD-42 1 S.A
T0142 BN96-02035A ASSY PDP P-LOGIC BOARD M1,SPD-42P5HD,D71 1 S.A
T0939 BN96-02036A ASSY PDP P-LOGIC E BUFF BOARD M1,SPD-42P 1 S.A
T0940 BN96-02037A ASSY PDP P-LOGIC F BUFF BOARD M1,SPD-42P 1 S.A
M0145 BN96-02049C ASSY BOARD P-FUNCTION SP-R4232,CT5000-36 1 S.N.A
M0146 BN96-02050B ASSY BOARD P-POWER & IR SCHUBERT,CT5000- 1 S.N.A
M0018 BN97-00549A ASSY MICOM PS42S5H,D72A,49BV802A,T-PCN42 1 S.A
Samsung Electronics 5-1
Electrical Part List
5-2 PS42S5HX/XEU Service Item
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA
CIS3 BN40-00042A TUNER TMQZ6-405A,PAL-CW,PAL Hyper,38.9MH 1 S.A
T0074 BN59-00468A REMOCON PS42S5S,TM76A,59*22*209,ZILOG MB 1 S.A
T0079 BN94-00683B ASSY PCB MISC-MAIN PS42S5HX/XEC,D72A,EU, 1 S.A
T0003 BN96-01773B ASSY COVER P-FRONT 42P5,42S5,EXPORT 1 S.A
M0013 BN96-02140C ASSY STAND P-BASE 42S5H,XEC,HIPS HB,SV01 1 S.A
M0013 BN96-01786C ASSY COVER P-REAR SP-R4232,SECC,BLM 5113 1 S.A
T0159 BN96-01801A ASSY PCB P-SMPS SPD-50P5HD,100~240V 1 S.A
T0159 BN96-01856A ASSY PCB P-SMPS SPD-50P5HD(DC_DC),200Vin 1 S.A
T0044 BN96-01886A ASSY PDP MODULE P M1,SPD-42P5HD,D71A,V4, 1 S.A
T0073 BN96-02032A ASSY PDP P-X MAIN BOARD M1,SPD-42P5HD,D7 1 S.A
T0096 BN96-02033A ASSY PDP P-Y MAIN BOARD M1,SPD-42P5HD,D7 1 S.A
T0124 BN96-02034A ASSY PDP P-Y UPPER BUFFER BOAR M1,SPD-42 1 S.A
T0092 BN96-02216A ASSY PDP P-Y BUFFER LOWER BOAR M1,SPD-42 1 S.A
T0142 BN96-02035A ASSY PDP P-LOGIC BOARD M1,SPD-42P5HD,D71 1 S.A
T0939 BN96-02036A ASSY PDP P-LOGIC E BUFF BOARD M1,SPD-42P 1 S.A
T0940 BN96-02037A ASSY PDP P-LOGIC F BUFF BOARD M1,SPD-42P 1 S.A
M0145 BN96-02049C ASSY BOARD P-FUNCTION SP-R4232,CT5000-36 1 S.N.A
M0146 BN96-02050B ASSY BOARD P-POWER & IR SCHUBERT,CT5000- 1 S.N.A
M0018 BN97-00549A ASSY MICOM PS42S5H,D72A,49BV802A,T-PCN42 1 S.A
5-2 Samsung Electronics
Electrical Part List
5-3 PS42S5HX/XEH Service Item
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA
CIS3 BN40-00042A TUNER TMQZ6-405A,PAL-CW,PAL Hyper,38.9MH 1 S.A
T0074 BN59-00468A REMOCON PS42S5S,TM76A,59*22*209,ZILOG MB 1 S.A
T0079 BN94-00683B ASSY PCB MISC-MAIN PS42S5HX/XEC,D72A,EU, 1 S.A
T0003 BN96-01773B ASSY COVER P-FRONT 42P5,42S5,EXPORT 1 S.A
M0013 BN96-02140C ASSY STAND P-BASE 42S5H,XEC,HIPS HB,SV01 1 S.A
M0013 BN96-01786C ASSY COVER P-REAR SP-R4232,SECC,BLM 5113 1 S.A
T0159 BN96-01801A ASSY PCB P-SMPS SPD-50P5HD,100~240V 1 S.A
T0159 BN96-01856A ASSY PCB P-SMPS SPD-50P5HD(DC_DC),200Vin 1 S.A
T0044 BN96-01886A ASSY PDP MODULE P M1,SPD-42P5HD,D71A,V4, 1 S.A
T0073 BN96-02032A ASSY PDP P-X MAIN BOARD M1,SPD-42P5HD,D7 1 S.A
T0096 BN96-02033A ASSY PDP P-Y MAIN BOARD M1,SPD-42P5HD,D7 1 S.A
T0124 BN96-02034A ASSY PDP P-Y UPPER BUFFER BOAR M1,SPD-42 1 S.A
T0092 BN96-02216A ASSY PDP P-Y BUFFER LOWER BOAR M1,SPD-42 1 S.A
T0142 BN96-02035A ASSY PDP P-LOGIC BOARD M1,SPD-42P5HD,D71 1 S.A
T0939 BN96-02036A ASSY PDP P-LOGIC E BUFF BOARD M1,SPD-42P 1 S.A
T0940 BN96-02037A ASSY PDP P-LOGIC F BUFF BOARD M1,SPD-42P 1 S.A
M0145 BN96-02049C ASSY BOARD P-FUNCTION SP-R4232,CT5000-36 1 S.N.A
M0146 BN96-02050B ASSY BOARD P-POWER & IR SCHUBERT,CT5000- 1 S.N.A
M0018 BN97-00549A ASSY MICOM PS42S5H,D72A,49BV802A,T-PCN42 1 S.A
Samsung Electronics 5-3
MEMO
5-4 Samsung Electronics
