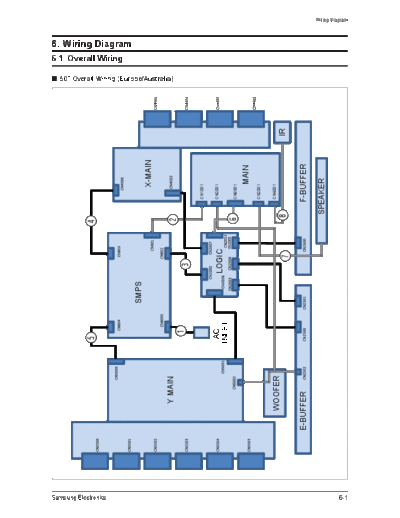

Image preview - the first page of the document
>> Download f76a-p-c7xxx-6-wiring documenatation <<
Text preview - extract from the document
Wiring Diagram
6.WiringDiagram
6-1 OverallWiring
50"OverallWiring(Europe/Australia)
IR
X-MAIN
F-BUFFER
MAIN
SPEAKER
CN1001
CN2001
CN9301
CN2001
CN4001
8
6
2
4
CN2005
LOGIC
7
3
SMPS
INLET
AC
1
5
WOOFER
Y MAIN
E-BUFFER
Samsung Electronics 6-1
6-2
Wiring Diagram
5 4
CN5400
CN5003
CN804 CN803
CN4001
CN4410
CN5412
SMPS
58"OverallWiring(Australia)
CN801 X-MAIN CN4409
CN5413
CN800S CN802
CN4002
2 CN4408
Y MAIN 1
CN5505
3
CN1001 CN4407
CN2000 CN2007
CN5506 AC CN2013 CN2001
CN5002 CN2006
INLET LOGIC CN4406
CN2003 CN2004 CN2005
CN5004 6 CN9301
MAIN
CN5507
CN4405
CN2001
CN4001
WOOFER
7 8 IR
CN2508 CN2501 CN2601
E-BUFFER CN2701 G-BUFFER
F-BUFFER
SPEAKER
Samsung Electronics
5 4
CN5400
Samsung Electronics
CN5003
CN804 CN803
CN4001
CN4510
CN5412
SMPS
CN801 X-MAIN CN4502
CN5413
CN800S CN802
CN4002
63"OverallWiring(Europe/Australia)
2 CN4603
Y MAIN 1
CN5505 3
CN1001 CN4605
CN2000 CN2007
CN5506 CN2013 CN2001
AC CN2006
CN5002 LOGIC
INLET CN2003 CN4606
CN2004 CN2005
CN5004 6 CN9301
MAIN
CN5507
CN4604
CN2001
CN4001
WOOFER
7 8 IR
CN2508 CN2501 CN2601
E-BUFFER CN2701 G-BUFFER
F-BUFFER
SPEAKER
6-3
Wiring Diagram
Wiring Diagram
The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."
50"/58"/63"Cable(Lead-connector)
Use 2 POWER 18P 6 LVDS FFC 82P 1 FILTER-EMI AC LINE
50" - BN39-01267H 50" - BN96-12723U
50" - 2901-001615
Code 58" - BN39-01267A 58" - BN96-12723S
58"/63" - 2901-001617
63" - BN39-01267E 63" - BN96-12723T
6-4 Samsung Electronics
Wiring Diagram
6-1-1 PinConnection
1 2
CN800S(SMPS) CN801 (SMPS) CN1001 (Main Board)
AC Inlet socket
PinNo. Signal PinNo. Signal
PinNo. Signal
1 PS_ON 10 18V
1 L
2 STD5V 11 18V
2 N
3 5.3V 12 5.3V
4 GND 13 5.3V
5 GND 14 GND
6 GND 15 GND
7 GND 16 15V
8 N/C 17 15V
9 N/C 18 15V
3 4 5
CN802(SMPS) CN803(SMPS) CN804 (SMPS)
CN2000 (Logic Board) CN4006 (X Board) CN5005 (Y Board)
PinNo. Signal PinNo. Signal PinNo. Signal
1 D5.3V 1 Vg 1 Vs
2 D5.3V 2 GND 2 Vs
3 GND 3 GND 3 GND
4 GND 4 Vs 4 Vg
5 PS_ON 5 Vs 5 GND
6 VS_ON 6 Va
Samsung Electronics 6-5
Wiring Diagram
6
CN9301 (MAIN Board) CN2013 (Logic Board)
PinNo. Signal PinNo. Signal PinNo. Signal
1 GND 29 Ch1[4]+ 57 Ch2[2]-
2 UART Tx 30 Ch1[4]- 58 Ch2[2]+
3 GND 31 Ch1[3]+ 59 GND
4 UART Rx 32 Ch1[3]- 60 Ch2CLK-
5 GND 33 GND 61 Ch2CLK+
6 N/C 34 Ch1CLK+ 62 GND
7 GND 35 Ch1CLK- 63 Ch2[3]-
8 SDA 36 GND 64 Ch2[3]+
9 GND 37 Ch1[2]+ 65 Ch2[4]-
10 N/C 38 Ch1[2]- 66 Ch2[4]+
11 GND 39 Ch1[1]+ 67 GND
12 SCL 40 Ch1[1]- 68 Ch4[0]-
13 GND 41 Ch1[0]+ 69 Ch4[0]+
14 Ch3[4]+ 42 Ch1[0]- 70 Ch4[1]-
15 Ch3[4]- 43 GND 71 Ch4[1]+
16 Ch3[3]+ 44 GND 72 Ch4[2]-
17 Ch3[3]- 45 GND 73 Ch4[2]+
18 GND 46 N/C 74 GND
19 Ch3CLK+ 47 GND 75 Ch4CLK-
20 Ch3CLK- 48 GND 76 Ch4CLK+
21 GND 49 3D_SYNC 77 GND
22 Ch3[2]+ 50 GND 78 Ch4[3]-
23 Ch3[2]- 51 PDP_GO 79 Ch4[3]+
24 Ch3[1]+ 52 GND 80 Ch4[4]-
25 Ch3[1]- 53 Ch2[0]- 81 Ch4[4]+
26 Ch3[0]+ 54 Ch2[0]+ 82 GND
27 Ch3E[0]- 55 Ch2[1]-
28 GND 56 Ch2[1]+
6-6 Samsung Electronics
Wiring Diagram
7 8
CN2001 (MAIN Board) CN4001 (MAIN Board) POWER&IR
SPEAKER
PinNo. Signal PinNo. Signal
PinNo. Signal
1 IR 6 KEY_INPUT1
1 R+_OUT
2 AGND_IN 7 KEY_INPUT2
2 R-_OUT
3 A5V 8 AGND_IN
3 L+_OUT
4 LED_STB 9 A5V
4 L-_OUT
5 BUZZER 10 LED_CTRL
Samsung Electronics 6-7
Wiring Diagram
6-1-2 Connectorrole
Loc.No. Description
CN800S AC Power input connect from AC-inlet
CN801 Power input connect for main board
CN802 power input connect for Logic board
CN803 Power input connect for X-MAIN
CN804 Power input connect for Y-MAIN
CN1001 Power input connect from SMPS
CN9301 Image signal connect of Logic from Main Board
CN2001 Sound signal for speaker from Main Board
CN2002 Sound signal for Woofer from Main Board
CN4001 IR control signal
6-8 Samsung Electronics
