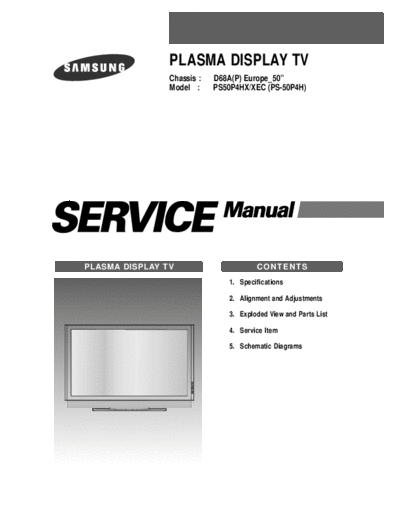

Image preview - the first page of the document
>> Download ps50p4hx_784 documenatation <<
Text preview - extract from the document
PLASMA DISPLAY TV
Chassis : D68A(P) Europe_50"
Model : PS50P4HX/XEC (PS-50P4H)
PLASMA DISPLAY TV CONTENTS
1. Specifications
2. Alignment and Adjustments
3. Exploded View and Parts List
4. Service Item
5. Schematic Diagrams
Specifications
1. Specifications
MODEL PS-50P4H
Screen Size 127 Cm / 50 Inches (16:9)
Display 1257(W) x 84(D) x 740(H)mm
Dimensions
Remote Control 59(W) x 22(D) x 209(H)mm
Display 44 Kg
Weight
Remote Control 164g (Including batteries)
Voltage AC 110V~, 240V/50,60Hz
Power Consumption 460 W
Number of Pixels 1366(H) X 768(V)
ANTENNA input VHF, UHF (75 unbalanced)
Ext.1 Ext.2 Ext.3
AV1, AV2, AV3(Side)
S-VIDEO1, S-VIDEO2(Side)
VIDEO Input
COMPONENT1 (480i/480p/576i/576p/720p/1080i)
COMPONENT2 (480i/480p/576i/576p/720p/1080i)
PC (MINI D-SUB 15P)
DVI-D
AV1
AV2 / S-VIDEO1
AUDIO Intput
AV3(Side) / S-VIDEO2(Side)
COMPONENT1, COMPONENT2
PC
DVI-D
Monitor Output VIDEO, AUDIO(L/R)
Speaker Output 15W + 15W (8)
Remote Control/AAA Batteries, Power Cord
Accessory
Antenna Cable, Owner's Instructions
Samsung Electronics 1-1
MEMO
1-2 Samsung Electronics
Alignment and Adjustments
2. Alignment and Adjustments
2-1 Service Mode
2-1-1 SERVICE MODE Entry Method (General Transmitter)
s Using the Customer Remote
1. Turn the power off and set to stand-by mode.
2. Press the remote bottons in this order; INFO-MENU-MUTE-POWER ON to turn the set on.
3. The set turns on and enters service mode.
2-1-2 Initial SERVICE MODE DISPLAY State
2-1-2(A) OSD DISPLAY
Factory Mode Current Input Mode Indicates selected input mode
01. Picture Improvement Picture Adjustment
02. Initial Setting Setting the Initial Values
03. PIP/Test Pattern Setting the Special Features
04. Option-1 Options-1 : Particular Product Options
05. Option-2 Options-2 : PDP Properties Options
06. Reset Initializing after saving the adjustments
Software Version Information
Release : 2004-04-06-17:00
Version : T_NPL50PEU-0010
2-1-2(B) Button Operations in SERVICE MODE
Menu Displays all menus
UP/DOWN Cursor moves to select items
LEFT/RIGHT To increase and decrease the data of the selected items
(ENTER) Confirm your choice(Store OR Enter)
SOURCE button Change input source
While in Tuner mode, the direct access buttons can be used to select and change channels.
Samsung Electronics 2-1
Alignment and Adjustments
2-2 WHITE Balance Coordinates
2-2-1 PS-50P4H White Balance Adjustment
1. W/B Adjustment is required for the following six modes :
