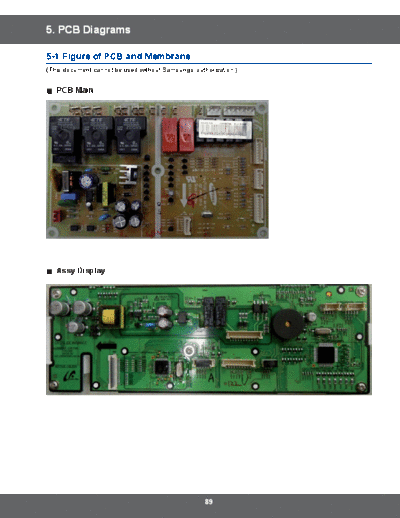

Image preview - the first page of the document

>> Download 6.PCB_Diagrams documenatation <<

Text preview - extract from the document

PCB Main

89
1. Touch control panel allows user to operate the oven, oven light, warming drawer and Convection heater, and
clock and timer operation by touching the control panel in the front.

2. The marking on the front of touch glass acts as a guide for where the panel should be touched to select and
program that function. If touch control stops working, replace the Control panel.

3. Touch glass tail connects the Keypad to PCB.

90
No

This is relay which control source of DLB,BAKE,BROIL, W/
1 RY501 RY-Source Relay
Drawer relay.
Circuit is designed to have broil relay or convection relay
2 RY502 DLB Relay worked after DLB relay is being worked by Double line break.

3 RY503 Broil-Heater Relay
4 RY504 Bake-Heater Relay will be on-off
working by mi-com signal after DLB relay is worked.

5 RY505 Conv-Heater Relay

6 RY506 WD-Heater Relay This is Relay to control Warming Drawer-Heater.
7 RY507 WC-Heater Relay This is Relay to control Cooling motor.
8 RY508 Conv-Fan-U Relay This is relay which is connected with Conv. Fan.
9 RY509 Conv-Lamp-U Relay This is relay which is connected with Conv-Lamp-Upper
10 RY510 Door Lock Relay This is relay which is connected with door lock motor.
11 RY511 Oven-Fan-L Relay This is Relay to control Cooling motor.
12 RY512 Oven-Lamp-L Relay This is Relay to control Cooling motor.
13 CN101 Power Connector This is to supply power with SMPS.

91
No

This is connector which is connected with Sub PCB to commu-
14 CN201 Sub Communication Connector
nicate.
15 CN202 MICOM Writing Connector This is connector is for writing MICOM
16 CN301 Oven Sensing Connector This connector which is connected with oven sensor.
This is connector which is connected with Door plunger switch
17 CN401 Door Lock, Divider Connector
and Door lock switch, divider switch.
This connector which have Door lock motor, Lamp, Convection
18 CN501 Relay Connector
fan, Cooling motor connected.
This connector which have lower lamp and relay of lower con-
19 CN502 Relay Connector
vection fan connected
20 T510
21 T501
DLB Terminal This is terminal to connect harness with DLB relay.
22 T502
23 T511
24 T503
Broil Terminal This is terminal to connect harness with Broil relay.
25 T504
26 T505 Bake Terminal This is terminal to connect harness with Bake relay.
27 T506
Convection-Heater Terminal This is terminal to connect harness with convection-heater relay.
28 T507
This is terminal to connect harness with relay to get heater on
29 T508 WD-Heater Terminal
warming drawer work.
This is terminal to connect harness with relay to get cooling
30 T509 WC-Heater Termainal
motor work.

92
No

1 RY400 VFD Power Relay This is Relay to control VFD Power
2 RY401 Cooling Motor Relay This is Relay to control Cooling Motor
3 CN200 Touch IC Writing Connector This is connector for writing Touch IC
4 CN201 Touch Glass Connector This connector is connected with Touch Glass
5 CN300 Rotary Switch Connector This connector is connected with Rotary switch
6 CN400 Option Connector This is connector for model option
VFD Power, Cooling Motor Re- This connector is connected with Cooling Motor, Cooktop sens-
7 CN401
lay, Cook-top Sensing Connector ing parts and power of VFD SMPS.
8 CN402 MICOM Writing Connector This is connector for writing MICOM
9 CN403 Main Communication Connector This connector is connected with Main PCB to communicate.
