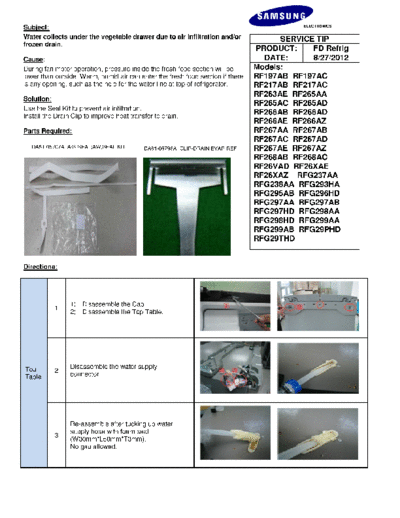

Image preview - the first page of the document

>> Download Water Collects Under Vegetable Drawer documenatation <<

Text preview - extract from the document

ELECTRONICS
Subject:
Water collects under the vegetable drawer due to air infiltration and/or SERVICE TIP
frozen drain.
PRODUCT: FD Refrig
Cause: DATE: 8/27/2012
During fan motor operation, pressure inside the fresh food section will be Models:
lower than outside. Warm, humid air can enter the fresh food section if there RF197AB RF197AC
is any opening, such as the hole for the water line at top of refrigerator. RF217AB RF217AC
RF263AE RF265AA
Solution:
RF265AC RF265AD
Use the Seal Kit to prevent air infiltration.
Install the Drain Clip to improve heat transfer to drain.
RF266AB RF266AD
RF266AE RF266AZ
Parts Required: RF267AA RF267AB
RF267AC RF267AD
DA81-05707A A/S-SEAL;AW,SEAL KIT DA61-06796A CLIP-DRAIN EVAP REF RF267AE RF267AZ
RF268AB RF268AC
RF26VAD RF26XAE
RF26XAZ RFG237AA
RFG238AA RFG293HA
RFG295AB RFG296HD
RFG297AA RFG297AB
RFG297HD RFG298AA
RFG298HD RFG299AA
RFG299AB RFG29PHD
RFG29THD

Directions:

1) Disassemble the Cap.
1
2) Disassemble the Top Table.

Top Disassemble the water supply
2
Table connector.

Re-assemble after tucking up water
supply hose with foam seal
3
(W30mm*L50mm*T3mm).
No gap allowed.
4
Tuck up whole area of hose with foam
seal (W50mm*L80mm*T5mm).
Make sure it is tight.

Tuck up inlet and outlet of the water
hose with OJC seal
(W40mm*L80mm*T5mm), and then re-
Water assemble.
1
Tank
The sealed hose should be inserted into
the hole located inside of the liner.

Install drain clip

Drain
1
hole
Remove the evaporator
cover. Check for
condensation:
A. On the fan motor case
1 B. On the back of the
evaporator cover
aluminum plate
C. Behind the drain plate.

Remove the aluminum tape
on the drain pan.

Remove 4 screws in the case
of the fan motor, and then
remove the motor and shroud
assembly.
Cover
Be careful not to damage the
Evap
tape.
3
Attach the foam strip with the
center hole onto the
Styrofoam as shown.
Reassemble evaporator
cover.

Attach foam seal (W15mm) to bottom of evaporator cover.
