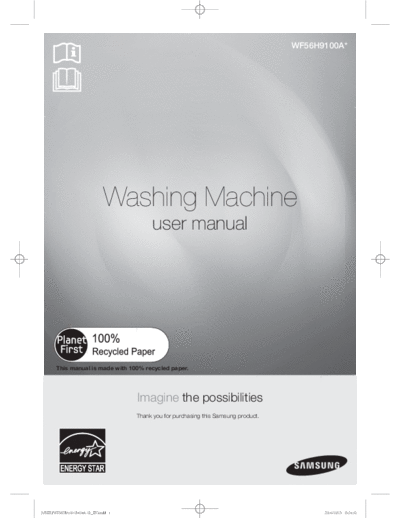

Image preview - the first page of the document
>> Download WF9100_USER_WF56H9100_DC68-03404A-02_XAA documenatation <<
Text preview - extract from the document
WF56H9100A*
Washing Machine
user manual
This manual is made with 100% recycled paper.
Imagine the possibilities
Thank you for purchasing this Samsung product.
contents
insTalling your washer 11 Unpacking your washer
11
11 Overview of your washer
12 Electrical
12 Grounding
12 Water
13 Drain facility
13 Flooring
13 Location considerations
13 Alcove or closet installation
13 Undercounter installation (washer only)
14 With optional pedestal base or stacking kit
15 Important note to installer
15 Installation flow chart
operaTing insTrucTions 18 Loading your washer
18
18 Washing clothes: Basic Instructions
washing a load of laundry 19 Overview of the control panel
19
21 Child Lock
22 Spin Only
22 Garment+
22 Delay End
22 Drum Light
23 My Cycle
23 Smart Care
24 Washing clothes using the cycle selector
25 Using steam wash
25 ATC (Auto Temperature Control)
26 Detergent use
26 Features
mainTaining your washer 28 Cleaning the exterior
28
28 Cleaning the interior
28 Cleaning the dispensers
28 Storing your washer
29 Cleaning the debris filter
30 Cleaning the door seal/bellow
30 Preserving the top cover and the front frame
31 Self Clean+
TroubleshooTing 32 Check these solutions if your washer...
32
34 Information codes
appendix 36 Fabric care chart
36
37 Cycle chart
appendix 38 Helping the environment
38
38 Declaration of conformity
38 Specification
2_ English
safety information
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use, and care of your appliance. Please take time
to read this manual to take full advantage of your washer's many benefits and
features.
WHAt you need to knoW About sAFety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your washer.
importAnt sAFety symbols And precAutions
What the icons and signs in this user manual mean:
Hazards or unsafe practices that may result in severe personal injury
or death.
warning To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
Hazards or unsafe practices that may result in minor personal injury or
cauTion property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
these warning signs are here to prevent injury to you and others.
please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
saVe These insTrucTions
English _3
safety information
warning: To reduce the risk of fire, electric shock, or injury to persons when using your
WARNING appliance, follow basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances
as they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the
washing or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in the published user-
repair instructions that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances
to the wash water. These substances give off vapors that could ignite or explode.
10. Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a period, before using a washer or combination
washer-dryer, turn on all hot water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do
not smoke or use an open flame during this time.
state of california proposition 65 warnings:
WARNING
WARNING: This product contains chemicals known to the State of California to cause
cancer and reproductive toxicity.
saVe These insTrucTions
4_ English
WARNING seVere WArninG siGns For instAllAtion
Plug the power cord into an AC 120 V / 60 Hz / 15 A wall socket or higher and use the
socket for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or fire.
- Do not use an electric transformer. It may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as those of the
product specifications. Failing to do so may result in electric shock or fire.
The installation of this appliance must be performed by a qualified technician or service
company.
- Failing to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product.
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install this appliance near a heater or flmmable material.
Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct
sunlight and water (rain drops).
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug,
damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
Do not pull the power cord when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failing to do so may result in electric shock or fire.
saVe These insTrucTions
English _5
safety information
When the power plug or power cord is damaged, contact your nearest service center.
CAUTION cAution siGns For instAllAtion
This appliance should be positioned in such a way that it is accessible to the power plug.
- Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failing to do so may result in electric shock or fire.
WARNING seVere WArninG siGns For usinG
If the appliance is flooded, cut the power immediately and contact your nearest service
center.
If the appliance generates a strange noise, a burning smell or smoke, unplug the power
plug immediately and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without
touching the power plug. Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Do not open the washer door by force while it is operating (high-temperature washing/
drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Opening the door by force may result in damage to the product or injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
- This may result in injury.
saVe These insTrucTions
6_ English
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while an operation is in
progress.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over their head, they may result in suffocation.
Do not let children or infirm persons use this washer unsupervised.
- Failing to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Make sure the detergent drawer is closed before you put laundry into the washer or remove
laundry from the washer.
- If the detergent drawer is open, you could strike the drawer with your head and injure
yourself.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service
center.
- Failing to do so may result in electric shock, fire, problems with the product, or injury.
If any foreign substance such as water has entered the appliance, unplug the power plug
and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
When the water supply hose comes loose from the faucet and floods the appliance, unplug
the power plug.
- Failing to do so may result in electric shock or fire.
If any foreign substance enters the appliance, unplug the power plug and contact you
nearest service center.
- Failing to do so my result in electric shock or fire.
saVe These insTrucTions
English _7
safety information
CAUTION cAution siGns For usinG
When the washer is contaminated by a foreign substance such as detergent, dirt, food
waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.
- Failing to do so may result in discoloration, deformation, damage or rust.
The front glass may be broken by a strong impact. Take care when using the washer.
- When the glass is broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
- If the washer is used when it is flooded because of a draining problem, it may result in
electric shock or fire due to electric leakage.
Insert the laundry into the washer completely so that laundry does not get caught in the
door.
- If laundry gets caught in the door, it may result in damage to the laundry or the washer,
or result in water leakage.
Ensure that the faucet is turned off when the washer is not being used.
- Ensure that the screw on the water supply hose connector is properly tightened.
- Failing to do so may result in property damage or injury.
Take care that the rubber seal and the front door glass are not contaminated by a foreign
substance (e.g. waste, thread, hair, etc.).
- If a foreign substance is caught in the door or the door is not completely closed, it may
cause a water leak.
Open the faucet and check if the water supply hose connector is firmly tightened and that
there is no water leaking before using the product.
- If the screws or the water supply hose connector are loose, it may result in water
leakage.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifies as product misuse. In this case, the product will not
be covered by the standard warranty provided by Samsung and no responsibility can be
attributed to Samsung for malfunctions or damages resulting from such misuse.
If the wash is not started and the laundry is left for a period of time after you have added
detergent or applied stain remover or pre-treatment onto the laundry, the laundry may be
discolored.
Select the recommended cycle and temperature on the basis of the laundry items, sort the
laundry by color on the basis of its colorfastness and select the appropriate cycle.
Make sure that foreign objects such as pins, buttons and coins are removed from clothing
items when adding laundry to the washer. Wash dirty laundry separately from relatively
clean items and wash fragile items separately from tougher textiles.
If an item is stained, wash it as soon as possible. Use stain remover or detergent only after
testing the colorfastness of the item by applying a small quantity to an inside seam.
saVe These insTrucTions
8_ English
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
- This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems
with the product.
Do not place an object that generates an electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
- This may result in burns or injury.
Do not wash, spin or dry waterproof seats, mats or clothing (*).
- Do not wash thick, hard mats even if the washer mark is on the care label.
- This may result in injury or damage to the washer, walls, floor or clothing due to
abnormal vibrations.
* Woolen Bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,
sweat suits, and bicycle, motorcycle, car covers, etc.
Do not operate the washer when the detergent dispenser is removed.
- This may result in electric shock or injury due to water leakage.
Do not insert your hand into the detergent dispenser after opening it.
- This may result in injury as your hand may be caught.
Do not place any objects (such as shoes, food waste, animals) other than laundry into the
washer.
- This may result in damage to the washer, or injury and death in the case of pets due to
the abnormal vibrations.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long
periods of time.
- This may cause the tub to rust.
- If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the
surface and use a sponge to clean it. Never use a metal brush.
saVe These insTrucTions
English _9
safety information
Do not use dry cleaning detergent directly on clothing and do not wash, rinse, or spin
laundry contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to heat and oxidation of the
oil in the detergent.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
Do not use natural hand-washing soap for the washer.
- If it hardens and accumulates inside the washer, it may result in problems with the
product, discoloration, rust or bad odors.
Do not wash large laundry items such as Bedding in the washing net.
- Failing to do so may result in injury due to abnormal vibrations.
- Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
- If it accumulates inside the washer, it may result in water leakage.
Do not wash throw rugs or doormats.
- If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in error such as no draining.
Take care that children's fingers are not caught in the door when closing it. This may result
in injury.
WARNING seVere WArninG siGns For cleAninG
Do not clean the appliance by spraying water directly onto it.
Do not use a strong acid cleaning agent.
Do not use benzene, paint thinner, or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in electric shock or fire.
saVe These insTrucTions
10_ English
installing your washer
unpAckinG your WAsHer
Unpack your washer and inspect it for shipping damage. Make sure you have received all the items
shown below. If your washer was damaged during shipping, or you do not have all of the items, contact
1-800-SAMSUNG (726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.
01 installing your washer
Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,
warning
etc.) well out of the reach of children.
oVerVieW oF your WAsHer
hot water supply cold water supply
hose hose
detergent drawer
control panel
door
drain hose
Tub
debris filter
drain tube
filter cover adjustable legs
parts supplied
wrench bolt hole covers water supply hoses hose guide plastic Zip hose Tie
parts needed (sold separately)
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
