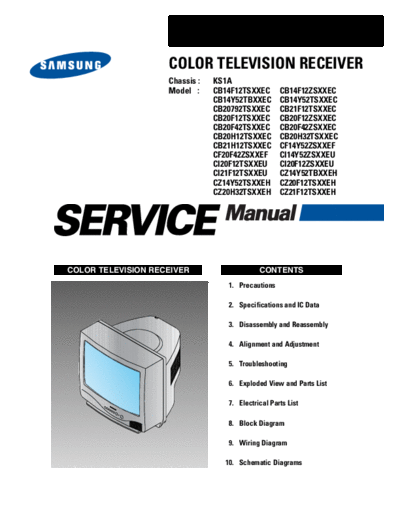

                    COLOR TELEVISION RECEIVER
                    Chassis :   KS1A
                    Model :     CB14F12TSXXEC       CB14F12ZSXXEC
                                CB14Y52TBXXEC       CB14Y52TSXXEC
                                CB20792TSXXEC       CB21F12TSXXEC
                                CB20F12TSXXEC       CB20F12ZSXXEC
                                CB20F42TSXXEC       CB20F42ZSXXEC
                                CB20H12TSXXEC       CB20H32TSXXEC
                                CB21H12TSXXEC       CF14Y52ZSXXEF
                                CF20F42ZSXXEF       CI14Y52ZSXXEU
                                CI20F12TSXXEU       CI20F12ZSXXEU
                                CI21F12TSXXEU       CZ14Y52TBXXEH
                                CZ14Y52TSXXEH       CZ20F12TSXXEH
                                CZ20H32TSXXEH       CZ21F12TSXXEH




COLOR TELEVISION RECEIVER                    CONTENTS
                                   1. Precautions

                                   2. Specifications and IC Data

                                   3. Disassembly and Reassembly

                                   4. Alignment and Adjustment

                                   5. Troubleshooting

                                   6. Exploded View and Parts List

                                   7. Electrical Parts List

                                   8. Block Diagram

                                   9. Wiring Diagram

                                  10. Schematic Diagrams
