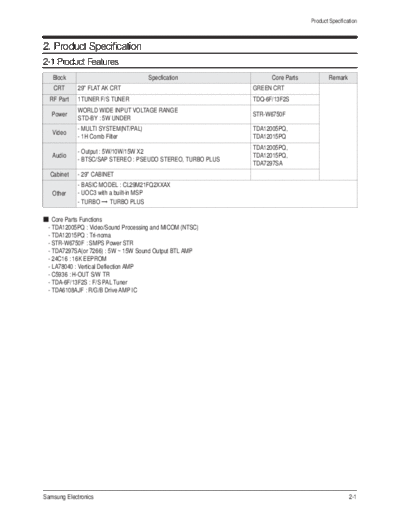

Image preview - the first page of the document
>> Download 03_Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Features
Block Specfication Core Parts Remark
CRT 29" FLAT AK CRT GREEN CRT
RF Part 1TUNER F/S TUNER TDQ-6F/13F2S
WORLD WIDE INPUT VOLTAGE RANGE
Power STR-W6750F
STD-BY : 5W UNDER
- MULTI SYSTEM(NT/PAL) TDA12005PQ,
Video
- 1H Comb Filter TDA12015PQ
TDA12005PQ,
- Output : 5W/10W/15W X2
Audio TDA12015PQ,
- BTSC/SAP STEREO : PSEUDO STEREO, TURBO PLUS
TDA7297SA
Cabinet - 29" CABINET
- BASIC MODEL : CL29M21FQ2XXAX
Other - UOC3 with a built-in MSP
- TURBO TURBO PLUS
Core Parts Functions
- TDA12005PQ : Video/Sound Processing and MICOM (NTSC)
- TDA12015PQ : Tri-noma
- STR-W6750F : SMPS Power STR
- TDA7297SA(or 7266) : 5W ~ 15W Sound Output BTL AMP
- 24C16 : 16K EEPROM
- LA78040 : Vertical Deflection AMP
- C5936 : H-OUT S/W TR
- TDA-6F/13F2S : F/S PAL Tuner
- TDA6108AJF : R/G/B Drive AMP IC
Samsung Electronics 2-1
Product Specification
2-2 Key Features
Model CL29K5MQ
Voltage AC100-240V
Frequency of Operation 50/60 Hz
Power Consumption 110 Watts
766 X 558 X 586/
Dimensions (mm/inches)
30.16 X 21.97 X 23.07
Weight (Kg/ lbs) 41/90.39
Hardware Configuration
- 1 Chip : UOC3 TDA12005PQ(CHROMA, IF+Deflection, MICOM, MSP)
- Tuner : TDA-6F/13F2S
- SOUND AMP : TDA7297SA(ZIP, 15P, -, DUAL, 32dB, PLASTIC, 20V, 30W)
- SMPS Controller : STR-W6750F(6P, TO-3P-F7L)
- Vertical AMP : LA78045(TO220, 7P, 15V)
- Flyback Trans : FOK14B001(11P, 27KV)
- CRT : A51QDX993X(A) (AK, 1H Single Focus)
Software Configuration
- MCU : 80C51-controller core
- Data Capture for US Closed Caption
- 0.4883s machine cycle
- Enhance : DNIe Jr.(Digital Natural Image Engine)
- System : NTSC3.58
- Interlaced(60Hz)
- AKB(Auto Kinetic Bais)
- Comb Filter : 1H Comb Filter
- 4:3/Zoom
Sound
- BTSC/SAP-STEREO
- Output : 5/10/15W X 2CH
- Auto Stereo, Sound Equalizer, Auto Mute, Auto Volume Limit, PSEUDO STEREO, TURBO PLUS
Feature
- Composite (RCA A/V, DVD), S-Video(Y/C)
- Picture Size : Zoom/4:3
- Auto Serch
- Sleep Timer : 180 Min
- Clock Setting
- Blue Screen, Melody On-Off, Picture Mode Select
In/Out Terminals
- Rear : 2RCA/DVD/S-VHS
- Front or Side A/V Input(Side A/V Preferability)
Remocon
- Universal Interface TM75
Power Consumption : 105W
2-2 Samsung Electronics
Product Specification
2-3 Specifications Analysis
Model CL29M21PQ CL29K5MQ
Chassis KS7A K16A
Design
Screen Size 29" 29"
Pure Flat CRT
DNIe Jr.
Comb Filter 1H 1H
