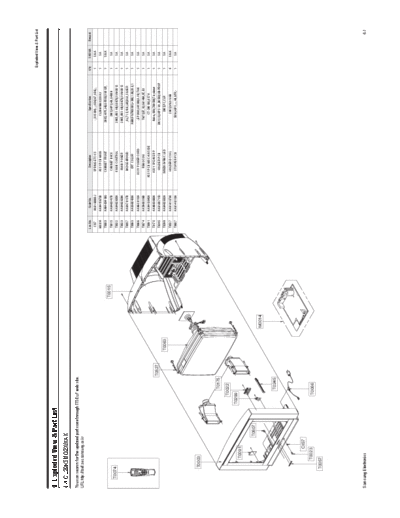

Image preview - the first page of the document
05_Exploded View & Part List


>> Download 05_Exploded View & Part List documenatation <<

Text preview - extract from the document
                                                                                                                                                                                           Exploded View & Part List



4. Exploded View & Part List
4-1 CL29K5MQ2X/XAX
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
                                                                                                    Loc.No.     Code No.          Description                  Specification          Q'ty       SA/SNA     Remark
                                                                                                     CIS7     AA61-60003J       SPRING ETC-CS           -,SUS304,-,-,OD6,N7,OD6,-,     1         S.N.A
                                                                                                    M0014     AA94-15672B       ASSY PCB MAIN              CL29M16MQ2XXAX              1          S.A
                                                                                                    T0003     AA64-03418G      CABINET FRONT           29K5,HIPS,HB,GR503,SV012P,      1         S.N.A
                                                                                            T0015   T0015     AA64-03417B       CABINET BACK               29K5,HIPS,HB,G4309          1          S.A
     T0074                                                                                          T0022     AA64-02635A      KNOB CONTROL           29K5,ABS HB,G3676,SVM-3012       1          S.A
                                                                                                    T0023     AA64-02629A       KNOB POWER            29K5,ABS HB,G3676,SVM-3012       1          S.A
                                                                                                    T0057     AA64-70117B       BADGE-BRAND            ,AL,T1.5,10.6,L65,BLK,SILVER    1          S.A
                                                                                                    T0063     AA03-00420A        CRT COLOR           A68QFN793X001,+380,1.09,20.0,1    1          S.A
                                                                                                    T0066     AA96-20112A     ASSY POWER CORD           -,EP2/NO,H/C300,KJ10,THA       1          S.A
                                                                                                    T0074     AA59-00316B         REMOCON               TM75,ET,32,G6148A,NT,EX        1          S.A
                                                                                                    T0091     AA94-13842A   ASSY PCB MISC-A/V SIDE          CT-29K10G,KS7A             1          S.A
                                                                                                    T0175     AA96-03683A      ASSY SPEAKER P          8ohm,10W,700/500,Tinydome       1          S.A
                                                                    T0527
                                                                                                    T0245     AA61-00711D        HOLDER-PCB          29U1,U2,HIPS VO,BK502(HB-PROP     1          S.A
                                                                            T0063                   T0299     AA64-02632A     WINDOW-RMC LED                  29K5,PC,CLR              1          S.A
                                                                                                    T0527     AA61-01373A       HOLDER-D COIL                29K5,NYLON 66             4         S.N.A
                                                                                                    T0607     AA61-40113A       STOPPER-PCB               501H,HIPS,-,-,HB,NTR,-       1          S.A




           T0003



                                                         T0175

                                                     T0022
                                                T0299
                 T0091


                              T0607
                                                                                    M0014


                                                         T0245




                      CIS7
                T0023                                 T0066
          T0057




Samsung Electronics                                                                                                                                                                                             4-1
