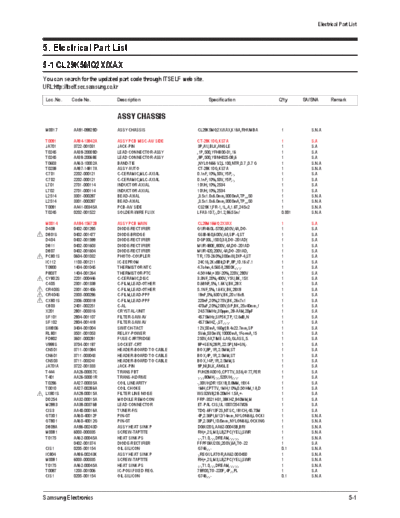

Image preview - the first page of the document
>> Download 06_Electrical Part List documenatation <<
Text preview - extract from the document
Electrical Part List
5. Electrical Part List
5-1 CL29K5MQ2X/XAX
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
ASSY CHASSIS
M0017 AA91-09829D ASSY CHASSIS CL29K5MQ2X/XAX,K16A,RHUMBA 1 S.N.A
T0091 AA94-13842A ASSY PCB MISC-A/V SIDE CT-29K10G,KS7A 1 S.A
JA701 3722-001031 JACK-PIN 3P,AU,BLK,ANGLE 1 S.A
T0245 AA39-20009D LEAD CONNECTOR-ASSY ,1P,500,YFH800-01,16 1 S.A
T0245 AA39-20068E LEAD CONNECTOR-ASSY ,8P,500,YBNH025-08,6 1 S.A
T0603 AA63-10002A BAND-TIE ,NYLON66 V2,L100,NTR,0.7 ,0.7 G 1 S.N.A
T0238 AA97-14817A ASSY AUTO CT-29K10G,KS7A 1 S.N.A
C701 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C702 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
L701 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L702 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
T0091 AA41-00345A PCB-A/V SIDE CS29K1,FR-1,1L,A,1.6T,245x2 1 S.N.A
T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.001 S.N.A
M0014 AA94-15672B ASSY PCB MAIN CL29M16MQ2XXAX 1 S.A
D408 0402-001295 DIODE-RECTIFIER GUR460L-5700,600V,4A,DO- 1 S.A
D801S 0402-001477 DIODE-BRIDGE GSIB460,600V,4A,SIP-4,ST 1 S.A
D404 0402-001599 DIODE-RECTIFIER DGP30L,1500,3A,DO-201AD( 1 S.A
D811 0402-001603 DIODE-RECTIFIER MUR480E,800V,4A,DO-201AD 1 S.A
D807 0402-001604 DIODE-RECTIFIER MUR420,200V,4A,DO-201AD, 1 S.A
PC801S 0604-001032 PHOTO-COUPLER TR,170-260%,300mW,DIP-4,ST 1 S.A
IC112 1103-001211 IC-EEPROM 24C16,2Kx8Bit,DIP,8P,10.16x7.1 1 S.A
T0900 1404-001045 THERMISTOR-NTC 4.7ohm,4.565A,2900K,-,-,- 1 S.A
P803T 1404-001264 THERMISTOR-PTC 4.5OHM,+30/-20%,220V,290V 1 S.A
CY802S 2201-000446 C-CERAMIC,DISC 3.3NF,20%,400V,Y5U,BK,15X 1 S.A
C405 2301-001338 C-FILM,LEAD-OTHER 0.68NF,5%,1.6KV,BK,28X 1 S.A
CR403S 2301-001456 C-FILM,LEAD-OTHER 5.1NF,5%,1.6KV,BK,29X9 1 S.A
CR404S 2303-000296 C-FILM,LEAD-PPF 18nF,5%,630V,BK,20x16x9. 1 S.A
CX801S 2306-000318 C-FILM,LEAD-PPF 220nF,20%,275V,BK,26x7x1 1 S.A
C803 2401-002251 C-AL 470uF,20%,200V,GP,BK,25x40mm,1 1 S.A
X201 2801-003316 CRYSTAL-UNIT 24.576MHz,30ppm,28-AAM,20pF 1 S.A
SF101 2904-001107 FILTER-SAW AV 45.75MHz,SIP5K,TP,12.6dB,N 1 S.A
SF102 2904-001418 FILTER-SAW AV 45.75MHZ,-,ST,-,-,- 1 S.A
SW906 3404-001004 SWITCH-TACT 12V,50mA,160gf,8.4x22.7mm,SP 1 S.A
RL801 3501-001053 RELAY-POWER 5Vdc,530mW,10000mA,1FormA,15 1 S.A
FD802 3601-000281 FUSE-CARTRIDGE 250V,4A,TIME-LAG,GLASS,5. 1 S.A
V999S 3704-001197 SOCKET-CRT 8P+SEN,29PI,22.5PI,NI+SN,- 1 S.A
CN501 3711-001084 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A
CN601 3711-003043 HEADER-BOARD TO CABLE BOX,4P,1R,2.5MM,ST 1 S.A
CN503 3711-003241 HEADER-BOARD TO CABLE BOX,14P,1R,2.5MM,S 1 S.A
JA701A 3722-001333 JACK-PIN 9P,NI,BLK,ANGLE 1 S.A
T444 AA26-00057C TRANS FBT FUH29A001G,CPTTV,3.56,4177,FER 1 S.A
T401 AA26-50001R TRANS-H.DRIVE -,-,-,80MH,-,-,520UH,-,-,- 1 S.A
T0296 AA27-00035A COIL LINEARITY -,30UH,DR15X18,0.8MM,19X4 1 S.A
T0010 AA27-00286A COIL CHOKE 1MH,CPTTV,1MH,10%,0.5OHM,1A,D 1 S.A
LX801S AA29-00015A FILTER LINE NOISE WS32W8,28-20MH 1.5A,+- 1 S.A
D0254 AA32-00015A MODULE REMOCON FRP-3521H31,38KHZ,940MM,M 1 S.A
M2893 AA39-00376B LEAD CONNECTOR ET-PAL CIS,UL1007/2547#26 1 S.A
CIS3 AA40-00016A TUNER-F/S TDQ-6F/13F2S,NTSC,181CH,45.75M 1 S.A
GT301 AA60-40012F PIN-GT 4P,2.36PI,6/12/14mm,NYLON66,LOCKI 1 S.N.A
GT801 AA60-40012G PIN-GT 3P,2.36PI,10/5mm,NYLON66,LOCKING 1 S.N.A
D809A AA96-00243D ASSY HEAT SINK P D06U20S,AA62-00045B,BRI 1 S.N.A
M0081 6003-000335 SCREW-TAPTITE RH,+,2S,M3,L8,ZPC(YEL),SWR 1 S.N.A
T0175 AA62-00045A HEAT SINK-PS -,-,T1.0,-,-,DREAM,-,-,-,-, 1 S.N.A
0402-001374 DIODE-RECTIFIER FFPF06U20S,200V,6A,TO-22 1 S.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
IC804 AA96-00243K ASSY HEAT SINK P -,REGULATOR,AA62-000450 1 S.N.A
M0081 6003-000335 SCREW-TAPTITE RH,+,2S,M3,L8,ZPC(YEL),SWR 1 S.N.A
T0175 AA62-00045A HEAT SINK-PS -,-,T1.0,-,-,DREAM,-,-,-,-, 1 S.N.A
T0087 1203-001006 IC-POSI.FIXED REG. 78R05,TO-220F,4P,-,PL 1 S.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
Samsung Electronics 5-1
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
IC802 AA96-00243Q ASSY HEAT SINK P SCREW,AA62-00045A,1203- 1 S.N.A
M0081 6003-000335 SCREW-TAPTITE RH,+,2S,M3,L8,ZPC(YEL),SWR 1 S.N.A
T0175 AA62-00045A HEAT SINK-PS -,-,T1.0,-,-,DREAM,-,-,-,-, 1 S.N.A
T0087 1203-001944 IC-POSI.FIXED REG. 78RM33,TO-220,3P,-,PL 1 S.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
IC803 AA96-00243R ASSY HEAT SINK P AA62-00045A,KA78R08,TVD 1 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
M0081 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SW 1 S.N.A
T0175 AA62-00045A HEAT SINK-PS -,-,T1.0,-,-,DREAM,-,-,-,-, 1 S.N.A
T0087 1203-004010 IC-POSI.FIXED REG. KA78R08CTU,TO-220F,4P 1 S.A
LD901 AA96-00555A ASSY LED GUIDE -,-,UEX-LD-030,GREEN 1 S.N.A
IC301 AA96-00623F ASSY HEAT SINK P LA78045,SCREW,AA62-0005 1 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 1 S.N.A
T0175 AA62-00056A HEAT SINK-PS -,-,T1.0,-,41*35*70,D2,-,-, 1 S.N.A
T0088 1204-002183 IC-VERTICAL PROCESSO LA78045,TO220,7P,15 1 S.A
Q404 AA96-00624G ASSY HEAT SINK P SCREW,AA62-00057B,FQP63 1 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A
T0175 AA62-00057B HEAT SINK-PS CT-29K12P,A1050S,1.0,41,60, 1 S.N.A
M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 1 S.N.A
Q409 0505-001723 FET-SILICON FQP630TSTU,N,200V,9A,0.4OHM, 1 S.A
Q401 AA96-00624J ASSY HEAT SINK P SCREW,AA62-00057A,C5936 1 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A
M0081 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SW 1 S.N.A
T0105 AA60-30001A WASHER-PLATE M3,ID3.5,15X8.5,T1.0,SBHG 1 S.N.A
T0175 AA62-00057A HEAT SINK-PS -,-,T1.0,-,41*20*60,D2,-,-, 1 S.N.A
H/S 0502-001264 TR-POWER 2SC5936,NPN,40000mW,TOP-3E,ST,5 1 S.A
IC801S AA96-50373P ASSY HEAT SINK P AA62-30181K,STR-W6750F, 1 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A
M0081 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SW 1 S.N.A
T0066 AA62-30181V HEAT SINK-ES CT-29M16V,AL6063,T2.0,64,40 1 S.N.A
IC063 AA13-00116A IC HYBRID STR-W6750F,6,-20 to +115,TO-3P 1 S.A
M0014 AA97-16238B ASSY AUTO-MAIN 29M16,K16A,XAX,LATIN,W/O 1 S.N.A
D101 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D201 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D305 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D409 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D510 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D511 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D512 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D513 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D606 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D630 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D631 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
DZ403 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
DZ816 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D501 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D502 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D503 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D804 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D805 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D402 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D403 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D808 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D813 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A
D405 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A
D401 0402-000537 DIODE-RECTIFIER RH1A,600V,0.6A,DO-204AC, 1 S.A
D406 0402-000540 DIODE-RECTIFIER RU20A,600V,1.5A,-,TP 1 S.A
D407 0402-000540 DIODE-RECTIFIER RU20A,600V,1.5A,-,TP 1 S.A
D303 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D504 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D803 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
DZ804 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500mW,DO 1 S.A
DZ810 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500mW,DO 1 S.A
DZ903 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500mW,DO 1 S.A
DZ904 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500mW,DO 1 S.A
DZ306 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ811 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ812 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ605 0403-000714 DIODE-ZENER MTZJ3.3B,3.32-3.53V,500mW,DO 1 S.A
DZ819 0403-000714 DIODE-ZENER MTZJ3.3B,3.32-3.53V,500mW,DO 1 S.A
DZ510 0403-000716 DIODE-ZENER MTZJ4.7B,4.59-4.77V,500mW,DO 1 S.A
DZ802 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ807 0403-000718 DIODE-ZENER MTZJ6.8B,6.52-6.79V,500mW,DO 1 S.A
DZ901 0403-000719 DIODE-ZENER MTZJ7.5B,7.11-7.44V,500mW,DO 1 S.A
DZ902 0403-000719 DIODE-ZENER MTZJ7.5B,7.11-7.44V,500mW,DO 1 S.A
DZ501 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
5-2 Samsung Electronics
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
DZ502 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ503 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ701 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ702 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ703 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ704 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ705 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ707 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ708 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ712 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ713 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ714 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ813 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ818 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ303 0403-001221 DIODE-ZENER UZ39BSB,35.36-37.19V,500mW,D 1 S.A
DZ905 0403-001317 DIODE-ZENER MTZJ3.0B,3.01-3.22V,500mW,DO 1 S.A
DZ814 0403-001320 DIODE-ZENER MTZJ6.2C,6.16-6.4V,500mW,DO- 1 S.A
DZ815 0403-001321 DIODE-ZENER MTZJ6.8C,6.7-6.97V,500mW,DO- 1 S.A
DZ301 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A
DZ302 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A
DZ305 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A
Q207 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q261 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q903 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q904 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q262 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q501 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q502 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q802 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q805 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q806 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q902 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q905 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q403 0502-001007 TR-POWER KSC2073-H2,NPN,25W,TO-220,ST,6 1 S.A
IC012 1203-001217 IC-POSI.ADJUST REG. 431,TO-92,3P,4.58MIL 1 S.A
VP801 1405-000152 VARISTOR 560V,2500A,14x8.5mm,TP 1 S.A
VX801S 1405-000187 VARISTOR 615Vdc,1250A,12.5x7mm,TP 1 S.A
JP105 2001-000005 R-CARBON 390ohm,5%,1/8W,AA,TP,1.8x3.2mm 1 S.A
R913 2001-000005 R-CARBON 390ohm,5%,1/8W,AA,TP,1.8x3.2mm 1 S.A
R833 2001-000007 R-CARBON 3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R930 2001-000007 R-CARBON 3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R905 2001-000008 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R919 2001-000008 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R424 2001-000012 R-CARBON 680KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R306 2001-000016 R-CARBON(S) 1OHM,5%,1/2W,AA,TP,2.4X6.4MM 1 S.A
R406 2001-000028 R-CARBON(S) 100OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R807 2001-000037 R-CARBON(S) 330OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R621 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R622 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R428 2001-000258 R-CARBON 1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
C501 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
C502 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
C503 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
JP104 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
L101 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
L108 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R123 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R215 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R216 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R217 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R301 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R307 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R419 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R501 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R504 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R505 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R551 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R603 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R609 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R610 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R726 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R727 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R728 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R729 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R730 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R906 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R908 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
Samsung Electronics 5-3
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
R910 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R920 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R933 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R935 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R936 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R941 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RP101 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RP102 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R218 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R311 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R312 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R620 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R623 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R208 2001-000302 R-CARBON 10OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R927 2001-000302 R-CARBON 10OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R928 2001-000302 R-CARBON 10OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R114 2001-000319 R-CARBON 120KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R105 2001-000331 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R422 2001-000331 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R929 2001-000331 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R911 2001-000347 R-CARBON 13KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R912 2001-000347 R-CARBON 13KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R917 2001-000347 R-CARBON 13KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R262 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R263 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R902 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R918 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R901 2001-000440 R-CARBON 1OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R925 2001-000440 R-CARBON 1OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R914 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R124 2001-000515 R-CARBON 220OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R939 2001-000522 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R429 2001-000563 R-CARBON 27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R163 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R924 2001-000591 R-CARBON 3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R926 2001-000591 R-CARBON 3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R205 2001-000613 R-CARBON 3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R915 2001-000613 R-CARBON 3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R403 2001-000622 R-CARBON 300KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R113 2001-000645 R-CARBON 330KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R521 2001-000679 R-CARBON 36KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R318 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R520 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R522 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R523 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R841 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R903 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R921 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R109 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R427 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R923 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R932 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
L202 2001-000793 R-CARBON 47OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R607 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R608 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R706 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R707 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R708 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R709 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R719 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R720 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R721 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R722 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R606 2001-000837 R-CARBON 51KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R211 2001-000857 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R210 2001-000878 R-CARBON 6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R916 2001-000878 R-CARBON 6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R213 2001-000908 R-CARBON 62KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R167 2001-000924 R-CARBON 680OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R934 2001-000924 R-CARBON 680OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RP100 2001-000924 R-CARBON 680OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R106 2001-000947 R-CARBON 7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R701 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R702 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R703 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R704 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R705 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
5-4 Samsung Electronics
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
R710 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R711 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R712 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R514 2001-001062 R-CARBON(S) 10MOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R402 2001-001070 R-CARBON(S) 120OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R401 2001-001072 R-CARBON(S) 12OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R829 2001-001078 R-CARBON(S) 15KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R830 2001-001078 R-CARBON(S) 15KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R831 2001-001078 R-CARBON(S) 15KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R832 2001-001079 R-CARBON(S) 15OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R805 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R817 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R820 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R810 2001-001097 R-CARBON(S) 2.4KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R404 2001-001114 R-CARBON(S) 270OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R818 2001-001131 R-CARBON(S) 33KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R836 2001-001138 R-CARBON(S) 390OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R808 2001-001150 R-CARBON(S) 470KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R809 2001-001150 R-CARBON(S) 470KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R895 2001-001152 R-CARBON(S) 47KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R405 2001-001153 R-CARBON(S) 47ohm,5%,1/2W,AA,TP,2.4x6.4m 1 S.A
R411 2001-001174 R-CARBON 62KOHM,5%,1/2W,AA,TP,2.4X6.4MM 1 S.A
RP801S 2002-001010 R-COMPOSITION 1.8Mohm,5%,1/2W,AA,TP,3.7x 1 S.A
RY801S 2002-001012 R-COMPOSITION 8.2Mohm,5%,1/2W,AA,TP,3.7x 1 S.A
R501H 2002-001017 R-COMPOSITION 1Kohm,10%,1/2W,AA,TP,3.7x9 1 S.A
R502H 2002-001017 R-COMPOSITION 1Kohm,10%,1/2W,AA,TP,3.7x9 1 S.A
R511 2002-001017 R-COMPOSITION 1Kohm,10%,1/2W,AA,TP,3.7x9 1 S.A
R426 2003-000540 R-METAL OXIDE(S) 1Kohm,5%,2W,AF,TP,4x12m 1 S.A
R802 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A
R803 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A
R804 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A
R423 2003-001042 R-METAL OXIDE(S) 5.6Kohm,5%,2W,AF,TP,3.9 1 S.A
R823 2003-002020 R-METAL OXIDE(S) 56Kohm,5%,2W,AF,TP,3.9x 1 S.A
RP16 2003-002064 R-METAL OXIDE(S) 7.5OHM,5%,2W,AF,TP,3.9X 1 S.A
RP17 2003-002064 R-METAL OXIDE(S) 7.5OHM,5%,2W,AF,TP,3.9X 1 S.A
R407 2003-002151 R-METAL OXIDE 18KOHM,5%,2W,AG,TP,6X16MM 1 S.A
R309 2003-002205 R-METAL OXIDE(S) 330ohm,5%,2W,AG,TP,3.9X 1 S.A
R310 2003-002205 R-METAL OXIDE(S) 330ohm,5%,2W,AG,TP,3.9X 1 S.A
R425 2004-000433 R-METAL 1Kohm,1%,1/8W,AA,TP,1.8x3.2mm 1 S.A
R302 2004-001371 R-METAL(S) 1.5Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R305 2004-001371 R-METAL(S) 1.5Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R821 2004-001377 R-METAL(S) 120Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R408 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R816 2004-001891 R-METAL(S) 133Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A
R169 2004-001914 R-METAL 39Kohm,2%,1/8W,AA,TP,1.8x3.5mm 1 S.A
R410 2004-001971 R-METAL(S) 6.2Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A
R819 2004-001983 R-METAL(S) 2.49Kohm,1%,1/2W,AA,TP,2.4x6. 1 S.A
R409 2004-004015 R-METAL(S) 9.1Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A
R413 2008-000253 R-FUSIBLE(S) 0.47ohm,5%,1W,AF,TP,3.9x10m 1 S.A
R414 2008-000264 R-FUSIBLE(S) 1ohm,5%,1W,AF,TP,3.9x10mm 1 S.A
R815 2008-000266 R-FUSIBLE(S) 1ohm,5%,2W,AF,TP,3.9x10mm 1 S.A
R418 2008-000292 R-FUSIBLE(S) 3.3ohm,5%,2W,AF,TP,3.9x10mm 1 S.A
R827 2008-001011 R-FUSIBLE(S) 0.18ohm,10%,2W,AF,TP,3.9x10 1 S.A
R304 2008-001015 R-FUSIBLE(S) 1.5ohm,5%,2W,AF,TP,3.9x10mm 1 S.A
R303 2008-001076 R-FUSIBLE(S) 1.8ohm,5%,2W,AF,TP,3.9x10mm 1 S.A
C306 2201-000003 C-CERAMIC,DISC 0.068NF,10%,2KV,SL,TP,7X5 1 S.A
C424 2201-000132 C-CERAMIC,DISC 0.1NF,10%,500V,Y5P,TP,6.5 1 S.A
C302 2201-000192 C-CERAMIC,DISC 0.01nF,0.25pF,500V,C0G,-, 1 S.A
C823 2201-000291 C-CERAMIC,DISC 1NF,10%,500V,Y5P,TP,7.5X3 1 S.A
C828 2201-000374 C-CERAMIC,DISC 0.22NF,5%,50V,C0G,TP,10.5 1 S.A
C820 2201-000406 C-CERAMIC,DISC 0.27NF,10%,2KV,Y5P,TP,6.3 1 S.A
C408 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C411 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C413 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C818 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C888 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C403 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C845 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C508 2201-000723 C-CERAMIC,DISC 4.7NF,20%,3KV,Y5U,TP,16X5 1 S.A
C509 2201-002147 C-CERAMIC,DISC 2.7NF,10%,500V,Y5P,TP,10X 1 S.A
C510 2201-002147 C-CERAMIC,DISC 2.7NF,10%,500V,Y5P,TP,10X 1 S.A
C144 2202-000127 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,25V,Y5V 1 S.A
CV113 2202-000127 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,25V,Y5V 1 S.A
CV114 2202-000127 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,25V,Y5V 1 S.A
C143 2202-000222 C-CERAMIC,MLC-AXIAL 3.3nF,20%,16V,Y5P,TP 1 S.A
C607 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C608 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
Samsung Electronics 5-5
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
C627 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C629 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C638 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C642 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C643 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C644 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C701 2202-000243 C-CERAMIC,MLC-AXIAL 33pF,5%,50V,SL,TP,3. 1 S.A
C702 2202-000243 C-CERAMIC,MLC-AXIAL 33pF,5%,50V,SL,TP,3. 1 S.A
C703 2202-000243 C-CERAMIC,MLC-AXIAL 33pF,5%,50V,SL,TP,3. 1 S.A
C704 2202-000243 C-CERAMIC,MLC-AXIAL 33pF,5%,50V,SL,TP,3. 1 S.A
C705 2202-000243 C-CERAMIC,MLC-AXIAL 33pF,5%,50V,SL,TP,3. 1 S.A
C312 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C313 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C417 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C902 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C147 2202-000807 C-CERAMIC,MLC-AXIAL 22nF,+80-20%,25V,Y5V 1 S.A
C505 2202-000825 C-CERAMIC,MLC-AXIAL 680pF,10%,50V,Y5P,TP 1 S.A
C101 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C103 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C106 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C110 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C125 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C204 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C205 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C219 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C723 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C724 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C725 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C904 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C907 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C909 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C911 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C913 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C914 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C916 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C917 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C920 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C924 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C926 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C931 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C809 2301-000111 C-FILM,LEAD-PEF 1.8nF,5%,50V,TP,6.5x3.0x 1 S.A
C843 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A
C610 2301-000289 C-FILM,LEAD-PEF 5.6nF,5%,50V,TP,7x6x3mm, 1 S.A
C611 2301-000289 C-FILM,LEAD-PEF 5.6nF,5%,50V,TP,7x6x3mm, 1 S.A
C929 2301-000301 C-FILM,LEAD-PEF 6.8nF,5%,50V,TP,6.5X5.5X 1 S.A
C301 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A
C844 2301-000356 C-FILM,LEAD-PEF 47nF,5%,50V,TP,7.5x4.0x6 1 S.A
C401 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C801 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C810 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C928 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C414 2301-001083 C-FILM,LEAD-PPF 27nF,5%,400V,TP,20x7.5x1 1 S.A
C504 2301-001259 C-FILM,LEAD-PPF 100nF,5%,400V,TP,19x8x16 1 S.A
C807 2301-001342 C-FILM,LEAD-PPF 1.5nF,5%,800V,TP,15x6.5x 1 S.A
C498 2305-000237 C-FILM,LEAD-PEF 1uF,5%,63V,TP,7.5x15.5mm 1 S.A
C305 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A
C148 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C713 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C715 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C717 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C719 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C824 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C404 2305-000382 C-FILM,LEAD-PEF 4.7nF,5%,400V,TP,-,5mm 1 S.A
C130 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A
C131 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A
C132 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A
C830 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A
C133 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C140 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C419 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C620 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C145 2306-000134 C-FILM,LEAD-PPF 150nF,5%,400V,TP,19x17x1 1 S.A
C206 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 1 S.A
C218 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 1 S.A
C906 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 1 S.A
C925 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 1 S.A
C821 2401-000262 C-AL 100uF,20%,160V,HR,TP,16x25,7.5 1 S.A
5-6 Samsung Electronics
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
C822 2401-000262 C-AL 100uF,20%,160V,HR,TP,16x25,7.5 1 S.A
C104 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A
C402 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A
C826 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A
C304 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A
C506 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C507 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C105 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C146 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C511 2401-000553 C-AL 1uF,10%,50V,GP,TP,5x11,5 1 S.A
C930 2401-000553 C-AL 1uF,10%,50V,GP,TP,5x11,5 1 S.A
C137 2401-000660 C-AL 2.2uF,20%,50V,GP,TP,5x11,5 1 S.A
C139 2401-000660 C-AL 2.2uF,20%,50V,GP,TP,5x11,5 1 S.A
C721 2401-000660 C-AL 2.2uF,20%,50V,GP,TP,5x11,5 1 S.A
C722 2401-000660 C-AL 2.2uF,20%,50V,GP,TP,5x11,5 1 S.A
C846 2401-000698 C-AL 2200uF,20%,16V,WT,TP,12.5x25,5 1 S.A
C817 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A
C409 2401-001397 C-AL 470uF,20%,25V,GP,TP,10x16,5 1 S.A
C412 2401-001527 C-AL 47uF,20%,250V,HR,TP,13x25mm,5m 1 S.A
C601 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C602 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C612 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C613 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C812 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A
C901 2401-002144 C-AL 47uF,20%,16V,GP,TP,5x11,5 1 S.A
C407 2401-002268 C-AL 2.2uF,20%,250V,LZ,TP,8X11,5 1 S.A
C410 2401-002288 C-AL 470uF,20%,25V,WT,TP,10x20,5 1 S.A
C811 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C905 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C109 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C903 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C908 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C910 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C912 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C915 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C918 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C919 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C922 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C927 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C808 2401-003046 C-AL 47uF,20%,50V,WT,TP,6.3x11,2.5 1 S.A
C621 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm 1 S.A
C819 2401-003141 C-AL 2200uF,20%,25V,WT,TP,13x25,5mm 1 S.A
C815 2401-003224 C-AL 470uF,20%,16V,WT,TP,8X11.5,5mm 1 S.A
C825 2401-003224 C-AL 470uF,20%,16V,WT,TP,8X11.5,5mm 1 S.A
C202 2401-003517 C-AL 22uF,20%,50V,LZ,TP,5x11mm,5 1 S.A
C102 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
C921 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
L102 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L103 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L201 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L204 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L902 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L903 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L906 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L907 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L908 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L909 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L910 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L911 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L424 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L702 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L704 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L707 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L708 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L709 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L710 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L107 2701-000159 INDUCTOR-AXIAL 22UH,10%,4298 1 S.A
L605 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L606 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L607 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L608 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L705 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L706 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L808 2701-001030 INDUCTOR-AXIAL 43UH,10%,4514 1 S.A
L303B 2701-001040 INDUCTOR-AXIAL 10UH,10%,4514 1 S.A
L503A 2702-001092 INDUCTOR-RADIAL 2.2uH,10%,4x6mm 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A
Samsung Electronics 5-7
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
SW901 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A
SW902 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A
SW903 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A
SW904 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A
SW905 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A
FD802S 3601-001163 FUSE-AXIAL LEAD 125V,7A,-,EPOXY,2.4X7.1M 1 S.A
FD801A 3601-001228 FUSE-AXIAL LEAD 125V,10A,FAST-ACTING,EPO 1 S.A
F801A 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A
F801B 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A
CN900 3711-002643 HEADER-BOARD TO CABLE BOX,4P,1R,2.5mm,ST 1 S.A
CN502 3711-002645 HEADER-BOARD TO CABLE BOX,6P,1R,2.5mm,ST 1 S.A
T0310 4715-000001 SURGE ABSORBER 1000V,+50-10%,-,-,- 1 S.A
T0310 4715-000001 SURGE ABSORBER 1000V,+50-10%,-,-,- 1 S.A
T0310 4715-000001 SURGE ABSORBER 1000V,+50-10%,-,-,- 1 S.A
T0310 4715-000001 SURGE ABSORBER 1000V,+50-10%,-,-,- 1 S.A
EL501 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL502 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL800 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL801 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL803 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL804 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL805 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL806 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL807 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL808 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL809 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EY422 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY600 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY601 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY602 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY603 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY800 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY801 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY802 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY803 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY804 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY820 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY821 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY823 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY825 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY826 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY827 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY828 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY829 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY831 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY832 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY833 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY834 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY835 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY836 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY837 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY838 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY839 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY840 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY841 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY842 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY843 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY844 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY845 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY846 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY847 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY848 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY849 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY850 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY851 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY852 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY853 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
5-8 Samsung Electronics
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
EY854 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY855 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY856 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY857 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY858 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY859 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY860 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY861 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY862 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY863 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY864 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY865 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY866 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY867 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY868 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY869 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY870 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY871 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY872 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY873 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY874 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY875 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY876 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY877 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY878 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY879 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY880 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY881 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY882 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY883 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY887 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY890 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY893 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY898 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY899 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY982 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY983 6042-000002 EYELET ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
