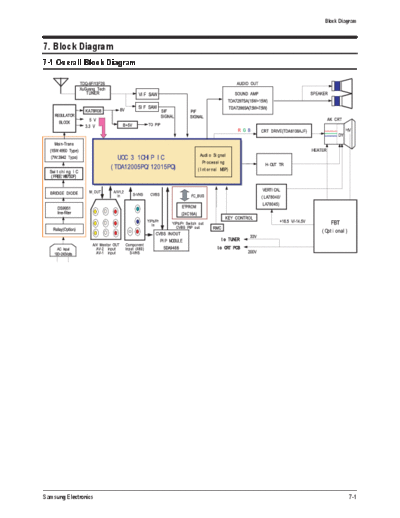

Image preview - the first page of the document



>> Download 08_Block Diagram documenatation <<

Text preview - extract from the document

                            Block Diagram



7. Block Diagram
7-1 Overall Block Diagram




Samsung Electronics                  7-1
Block Diagram


7-2 Partial Block Diagram
7-2-1 Deflection Block Diagram




7-2-2 Power Block Diagram
    Switching IC                            15V
                                                   SOUND AMP IC B+
  (FREEW6750F)

                                                     EEPROM
                                                                     8V
                                            13V
  BRIDGE DIODE                                     IC-REG.(78R08)                         UOC3 IC
                           Mai n -Tr an s                            3.3V
                        (15W:4950 Type)            IC-REG.(78R33)                          KEY MATRIX
                         (7W:3942 Type)
                                                     H.D.T B+                              PIP MODULE
        DS9951
        line-filter                         6V                               5V
                                                   IC-REG.(78R05)                          TUNER


                                                                            14.5V
                                            125V                                           VERTICAL IC
      Relay(Option)                                                         -13.5V
                                                                                            VIDEO AMP

         AC Input                                    FBT                     180V
       100~240Volts                                                                        CRT HEATER

                                                                             6.25Vrms     CRT H.V,Focus,
                                                                                            Screen Vol.




7-2                                                                                     Samsung Electronics
                                                                                                                                                        Block Diagram


7-2-2 Micom & Tuner Block Diagram

                                        IF                                                                                           PIP MODULE
      TUNER                                                                                                                           (TDA9488X)
   (TDQ-6F/13F2S)
                                  VIDEO-SAW          SOUND-
                                    (M3953)           SAW             AV1,AV2,S-VIDEO,MOMITOR OUT                                                        5V
                                                     (M9370)                                                                                          S-CASTLE
         5V     33V
                                                                                                  CVBS OUT                                     V_sync
                                 V-IF               S-IF           CVBS1    CVBS2    Y   C
                                                                   R/L IN   R/L IN                 R/L OUT

                                                                                                                                                    R/G/B
          SCL/SDA                                                                                                                                  (Y/Pb/Pr)
                                                                                                                   PIP CVBS OUT
                                                                 UOC3 IC                                                                           Y
                                                        (TDA 12005PQ/TDA 12015PQ)                                                                  Pb       COMPONE
                                                    CHROMA /SOUND/MICOM/DEFL ECTION                                                                Pr           NT
                                                                                                                                                              (480i)
     EEPROM
      (24C16)
                                                                                                                  R/L OUT
                      SCL/SDA
                                                                                                                                SOUND AMP
    5V                                                                                                                           TDA7297SA
                                                                                                                                (TDA7266SA)
                         KEY1           KEY3                            5V 8V 3.3V 1.8V

                                                                                                               SENCE                                        SPEAKER

         KEY1 MATRIX              KEY3 MATRIX
                                                                                                                                                         HEAD-PHONE
        (CH UP/DOWN,              POWER KEY
     VOL UP/DOWN, MENU)                               H-DRIVE/S-CASTLE
                                                                                              R/ G / B O U T
                                                        V-DRIVE/V-sync




7-2-3 CRT Drive Block Diagram

                                                                                                               CRT
                                                                       RK/GK/BK
                                  VIDEO AMP                                                                            DY HV
                                 (TDA6108AJF)
                                                                    B+180V           Heater
                                                                                                         SCREEN
                                                                                                          FOCUS
                                R G          B             SENCE




                                             UOC3                                            FBT
                                                                                                                               H.V




Samsung Electronics                                                                                                                                                   7-3
      MEMO




7-4          Samsung Electronics
