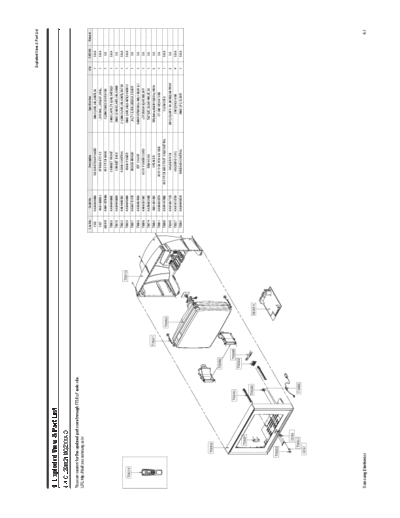

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
Exploded View & Part List
4. Exploded View & Part List
4-1 CL29M21MQ2XXAO
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CIS3 AA64-04048A DECORATION-POWER 29M21,ABS,HB,G3676,AL 1 S.N.A
CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A
M0014 AA94-15798M ASSY PCB MAIN CL29M21MQ2XXAP,K16A 1 S.A
T0003 AA64-04080K CABINET FRONT 29M21,HIPS,T3.0,HB,GR503,D 1 S.N.A
T0015 AA64-04083A CABINET BACK 29M21,SAMEX,HIPS,HB,G4309 1 S.A
T0022 AA64-04050C KNOB-CONTROL 21,29M21,ABS,HB,G3676,DG703 1 S.N.A
T0015 T0023 AA64-04049A KNOB POWER 29M21,ABS,HB,G3676,SVM3012 1 S.N.A
T0074
T0057 AA64-70117B BADGE-BRAND ,AL,T1.5,10.6,L65,BLK,SILVER 1 S.A
T0063 AA03-00420A CRT COLOR A68QFN793X001,+380,1.09,20.0,1 1 S.A
T0066 AA96-20109C ASSY POWER CORD -,CP2/NO(4.0),H/C300,KKP 1 S.A
T0074 AA59-00316B REMOCON TM75,ET,32,G6148A,NT,EX 1 S.A
T0527 T0082 3001-001592 SPEAKER 15W,8ohm,92dB/1W,0.5m,140Hz 2 S.A
T0091 AA95-03257A ASSY SUB PCB-A/V SIDE CT-29K12P,A/V SIDE 1 S.A
T0063 T0098 AA94-14788E ASSY PCB MISC-TACT S/W,CONTROL CL21M21EQ 1 S.N.A
T0245 AA61-00711D HOLDER-PCB 29U1,U2,HIPS VO,BK502(HB-PROP 2 S.A
T0527 AA61-01373A HOLDER-D COIL 29K5,NYLON 66 4 S.N.A
T0592 AA64-04051A WINDOW-CONTROL 29M21,PC,CLEAR 1 S.N.A
T0003
T0082
T0245 T0098
T0022
T0091
T0592
M0014
T0023
CIS3
T0057 T0066
CIS7
Samsung Electronics 4-1
