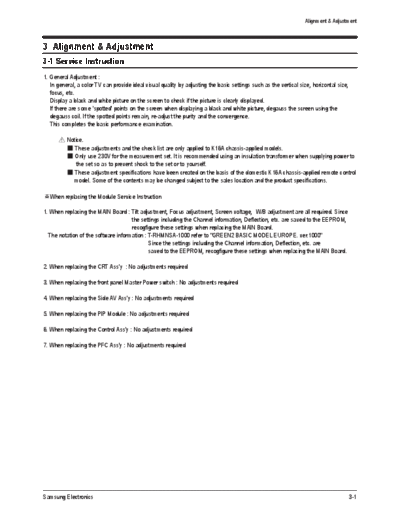

Image preview - the first page of the document
>> Download CL29M21MQ2XXAO documenatation <<
Text preview - extract from the document
Alignment & Adjustment
3. Alignment & Adjustment
3-1 Service Instruction
1. General Adjustment :
In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,
focus, etc.
Display a black and white picture on the screen to check if the picture is clearly displayed.
If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the
degauss coil. If the spotted points remain, re-adjust the purity and the convergence.
This completes the basic performance examination.
Notice.
These adjustments and the check list are only applied to K16A chassis-applied models.
Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to
the set so as to prevent shock to the set or to yourself.
These adjustment specifications have been created on the basis of the domestic K16A chassis-applied remote control
model. Some of the contents may be changed subject to the sales location and the product specifications.
When replacing the Module Service Instruction
1. When replacing the MAIN Board : Tilt adjustment, Focus adjustment, Screen voltage, W/B adjustment are all required. Since
the settings including the Channel information, Deflection, etc. are saved to the EEPROM,
recogfigure these settings when replacing the MAIN Board.
The notation of the software information : T-RHMNSA-1000 refer to "GREEN2 BASIC MODEL EUROPE. ver.1000"
Since the settings including the Channel information, Deflection, etc. are
saved to the EEPROM, recogfigure these settings when replacing the MAIN Board.
2. When replacing the CRT Ass'y : No adjustments required
3. When replacing the front panel Master Power switch : No adjustments required
4. When replacing the Side AV Ass'y : No adjustments required
5. When replacing the PIP Module : No adjustments required
6. When replacing the Control Ass'y : No adjustments required
7. When replacing the PFC Ass'y : No adjustments required
Samsung Electronics 3-1
Alignment & Adjustment
3-2 How to Access Service Mode
1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)
Mute 1 8 2 Power On
When failing to enter Service Mode, repeat the procedure above.
2. The initial screen of Service Mode.
Option1 XX XX XX XX XX
Option2
Deflection
Video Adjust1
Video Adjust2
Video Adjust3
Video Adjust4
Video Adjust5
YC Delay
Others
Bus Stop Off
CHECKSUM 0000
G2 Adjust
RESET
T-RHMNSA-XXXX 20XX/XX/XX
3. Functions of the Keys within Service Mode.
MENU Show all menus
/ Move the cursor to select an item.
/ Adjust the selected configuration value
3-2 Samsung Electronics
Alignment & Adjustment
3-3 Factory Data The underlined are items applied during the service adjustment. None of the others should be adjusted.
1. Option1
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 System Var. CL CL CL
2 Video Mute Var. 400msec 400msec 400msec
3 AV Jack Var. 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD
4 Sound Var. Stereo Stereo Stereo
5 Volume Curve Var. Large Large Large
6 Initial Lang. Var. Engilsh Engilsh Engilsh
7 Tilt Var. Off Off On
8 DNIe Jr Var. Off On On
9 PIP Var. Off Off 2-Tuner
10 Auto Power On Var. Off Off Off
11 Caption Var. On On On
12 Vchip Var. Off Off Off
13 Child Look Var. Off Off Off
14 Plug Play Var. On On On
15 StandBy LED Var. Off Off Off
2. Option2
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 X-Ray Protect Var. Off Off Off
2 High Deviation Var. Off Off Off
3 V-Guard Var. On On On
4 ACS Var. Off Off Off
5 CRT Var. 4:3 Zoom 4:3 Zoom 4:3 Zoom
6 LNA Var. Off Off On
7 Hotel Mode Var. Off Off Off
8 Philippines Var. Off Off Off
Samsung Electronics 3-3
Alignment & Adjustment
3. Deflection(NTSC 60Hz)
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 V Amp Var. 47 47 47
2 V Shift Var. 24 24 24
3 H EW Var. 48 48 48
4 H Shift Var. 49 49 49
5 V Linearity Var. 30 30 30
6 V S-Correction Fixed 32 32 32
7 V Slope Fixed 30 30 30
8 V Scroll Fixed 25 25 25
9 V Zoom Fixed 48 48 48
10 H Parabola Var. 45 45 45
11 Upper Corner Var. 51 51 51
12 Lower Corner Var. 54 54 54
13 H Trapezium Var. 22 22 22
14 Bow Var. 26 26 26
15 Angle Var. 29 29 29
4. Deflection(PAL N 50Hz)
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 V Amp Var. 0 0 0
2 V Shift Var. 0 0 0
3 H EW Var. 0 0 0
4 H Shift Var. -6 -6 -6
5 V Linearity Fixed 0 0 0
6 V S-Correction Fixed 0 0 0
7 V Slope Fixed 0 0 0
8 V Scroll Fixed 0 0 0
9 V Zoom Fixed 0 0 0
10 H Parabola Fixed 0 0 0
11 Upper Corner Fixed 0 0 0
12 Lower Corner Fixed 0 0 0
13 H Trapezium Fixed 0 0 0
14 Bow Fixed 0 0 0
15 Angle Fixed 0 0 0
3-4 Samsung Electronics
Alignment & Adjustment
Samsung Electronics 3-5
Alignment & Adjustment
5. Video Adjust1
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 R Cutoff Var. 20 20 20
2 B Cutoff Var. 49 49 49
3 R Drive Var. 29 29 29
4 G Drive Fixed 15 15 15
5 B Drive Var. 21 21 21
6 Sub Bright Var. 17 17 17
7 Sub Contrast Var. 7 7 7
8 PAL/SECAM Sub Color Fixed 23 23 23
9 NTSC Sub Color Fixed 21 21 21
10 NTSC Sub Tint Fixed 15 15 15
11 YUV Sub Tint Fixed 32 32 32
12 AKB Option Fixed 0 0 0
13 Peaking CFO & Delay Mode Fixed 1 1 1
14 Sub Sharpness-RF Fixed 10 10 10
6. Video Adjust2
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 Melody Volume Fixed 25 25 25
2 RF AGC Var. 24 24 24
3 IF AGC Speed Fixed 1 1 1
4 VM Mode Fixed 0 0 0
5 VM Gain Fixed 0 0 0
6 VM Delay Fixed 0 0 0
7 Blue Stretch Fixed 0 0 0
8 G2 Adjust Bright Fixed 48 48 48
9 Soft Clipping Level Fixed 1 1 1
10 Peak White Limit Fixed 8 8 8
11 Cathode Drive Level Fixed 4 4 4
12 IF Demodulator Fixed 30 30 30
13 Fast Filter IF PLL Fixed 0 0 0
14 FOAB Fixed 3 3 3
3-6 Samsung Electronics
Alignment & Adjustment
7. Video Adjust3
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 PIP Contrast Fixed 10 10 10
2 PIP Bright Fixed 4 4 4
3 PIP Tint Fixed 3 3 3
4 PIP Color Fixed 8 8 8
5 PIP YC Delay Fixed 12 12 12
6 PIP PAL V.Pos Fixed 1 1 1
7 PIP NTSC V. Pos Fixed 1 1 1
8 PIP H. Pos Fixed 2 2 2
9 PIP R Cutoff Fixed 7 7 7
10 PIP G Cutoff Fixed 6 6 6
11 PIP B Cutoff Fixed 7 7 7
12 PIP R Drive Fixed 139 139 139
13 PIP G Drive Fixed 152 152 152
14 PIP B Drive Fixed 142 142 142
15 PIP AGC Mode Fixed 3 3 3
8. Video Adjust4
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 IF Preset Value 1 Fixed 32 32 32
2 IF Preset Value 2 Fixed 32 32 32
3 IF PLL Osc Preset Value Fixed 0 0 0
4 Preset Gain R Fixed 20 20 20
5 Preset Gain G Fixed 20 20 20
6 Preset Gain B Fixed 20 20 20
7 Turbo Center Frequency Fixed 0 0 0
8 DCXO Caps/NICAM Center Fixed 59 59 59
9 DCXO Scaning Control Gain Fixed 3 3 3
10 Component H-Shift Offset Fixed -4 -4 -4
Samsung Electronics 3-7
Alignment & Adjustment
9. Video Adjust5
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 System I Output Signal AMP Fixed 0 0 0
2 Bypass of Chroma Base Band Fixed 1 1 1
3 Fixed Beam Current Fixed 0 0 0
4 Fixed Beam Current 1 Fixed 0 0 0
5 IF Sensitivity Fixed 0 0 0
6 Forced Digital Interface Fixed 0 0 0
7 Enable Digital Interface Fixed 0 0 0
8 Sync Performance Trick Mode Fixed 0 0 0
9 Vertical Overscan Fixed 0 0 0
10 Beam Current Limiting Fixed 0 0 0
11 Comb filter Fixed 0 0 0
12 De Interlace Fixed 0 0 0
13 Chroma Trap Mode Fixed 0 0 0
14 Black Current Measure Line Fixed 0 0 0
15 EHT Tracking Mode Fixed 1 1 1
10. YC Delay
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 PAL Delay Fixed 8 8 8
2 NTSC Delay Fixed 8 8 8
3 PAL AV Delay Fixed 8 8 8
4 NTSC AV Delay Fixed 8 8 8
3-8 Samsung Electronics
Alignment & Adjustment
11. Others
Model
No Item Var./Fixed CL29M21FQ
CL29M16MQ CL29M2MQ
CL29T21FQ
1 Service Blanking Fixed 0 0 0
2 High Current Level Fixed 1 1 1
3 Black Area Fixed 2 2 2
4 Black Stretch Fixed 2 2 2
5 OSD Brightness Fixed 10 10 10
6 PWL Active Fixed 1 1 1
7 Bypass Peaking Delay Fixed 0 0 0
8 Ratio Pre. & After Shoot Fixed 2 2 2
9 Ratio Posi. & Nega Peaks Fixed 1 1 1
10 Dynamic Skin Fixed 0 0 0
11 Gamma & White Stretch Fixed 1 1 1
12 Video Depandent Coring Fixed 2 2 2
13 PAL/NTSC Ident Sensitivity Fixed 1 1 1
14 Comb Filter Diode Clamp Fixed 1 1 1
15 DC Transfer Ratio Fixed 1 1 1
12. Bus Stop : Off
13. Checksum : 0000
14. G2 Adjust : Screen Adjust OK/NG/Obove
15. Reset
Item DATA
MICOM(UOC3) T-RHMNSA-**** T-RHMNSA-**** T-RHMNSA-****
Version NO. 2005/**/** 2005/**/** 2005/**/**
White Balance 275/275/40ft 275/275/40ft 275/275/40ft
(NTSC/PAL N-M) 265/265/2.0ft 265/265/2.0ft 265/265/2.0ft
Samsung Electronics 3-9
Alignment & Adjustment
3-4 Service Adjustment
3-4-1 Adjusting the Picture Size
Since the K16A chassis includes a deflection adjustment of the Factory Data, adjustments must be performed according to the
following procedures when replacing the Main Board.
1. Display the Lion pattern. 2. Press "Power Off Mute 1 8 2 Power On"
using the remote control and enter Factory Mode.
3. Enter Deflection Mode. 4. Adjust the V-AMP, V-SHIFT, H-AMP and H-SHIFT items so
that the width becomes 5 and the height becomes 4.
3-10 Samsung Electronics
Alignment & Adjustment
3-4-2 Adjusting the Picture Straight Lines
1. Display the Cross Hatch pattern.
2. Adjust settings other than V-AMP, V-SHIFT, H-AMP and H-SHIFT so that straight lines are displayed without curves.
3. Adjust BOW and the Angle settings so that the center line 4. Adjust the H-Parabola and H-Trapezium settings so that
becomes a straight line. the left and right lines become straight.
5. Adjust the Upper Corner and the Low Corner settings so that 6. Adjust the V-Linearity and V-SC settings so that the
the end of the lines become straight. intervals of the horizontal lines become uniform.
7. When the adjustments are complete, display the Lion pattern and check that the picture size has not been changed.
If there is no change, finish the adjustments.
Samsung Electronics 3-11
Alignment & Adjustment
3-5 Software Upgrade
3-5-1 Checking the Version of the Software (Analog SW)
1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)
Mute 1 8 2 Power On
2. When entering Service mode, the software information is displayed at the top of the service mode menu OSD.
ex) T-RHMNSA-1000 20XX/XX/XX
3-12 Samsung Electronics
Alignment & Adjustment
3-5-2 Service Download Procedure
1. Double click the your desktop "WISP" icon.
2. Check the standard
- Check the appoint "Picasso N2"
- Check the "Flash selection" item is appoint "Manual"
- You can adjust program delay time for program speed but we use the normal "5[ms]"
- Check the green lamp if this is sometime red lamp you can not programming
Samsung Electronics 3-13
Alignment & Adjustment
3. Check the IIC line
- Click the "Enter ISP Mode" button For IIC bus line problem or not
- Change the "Press Send to enter ISP Mode"
- Click the "Send" button
4. Erase before program
- Click the "Erase Flash" button for before program erase
- You can select flash selection item but we use normal "All" mode
- Change the "Select flash ROM to erase. When ready press Send."
- Click the "Send" button
3-14 Samsung Electronics
Alignment & Adjustment
5. Write new program
- Click the "Write Flash" button for new program download
- Change the "Load.hex file to program flashes."
- Click the "Browse" button and find the new program folder in your computer
- Click the "Send" button
6. Verify new program
- Click the "Verify Flash" button
- Change the "Select flash to verify correct programming. When ready press Send."
- Click the "Send" button
Samsung Electronics 3-15
Alignment & Adjustment
3-6 Replacements & Calibration
3-6-1 Adjusting the Focus
Adjustments must be performed according to the following procedures when replacing the K16A chassis, CRT PCB, FBT or
CRT.
1. Display the Cross Hatch pattern.
2. Set the Screen Adjustment to "Standard".
3. Turn the Static Focus VR clockwise to the maximum position.
(End of clockwise direction)
4. Slowly turn the Static Focus VR counter clockwise so that the center vertical line
is the most clearly displayed. [adjusted point : Center(2/1)]
After Adjustment
Single
5. Check the entire screen focus and repeat steps 3 to 4, if necessary. Focus VR
3-16 Samsung Electronics
Alignment & Adjustment
3-6-2 Adjusting the Screen Voltage
1. Select "Power Off Mute 1 8 2 Power On" to enter Service Mode.
2. Initialize all settings to the values appropriate to the corresponding model.
3. Display the Toshiba pattern.
4. First check IBRM in "G2 Adjust" of Factory and adjust Screen VR until the color of IBRM item turns green.
Screen
VR
Samsung Electronics 3-17
Alignment & Adjustment
3-6-3 Adjusting the White Balance
1. Select "Power Off Mute 1 8 2 Power On" to enter Service Mode.
2. Initialize all settings to the values appropriate to the corresponding model.
3. Display the Toshiba pattern and adjust the White Balance using CA100 with the coordinates of the corresponding model.
4. Enter Video Adjust1 of Service Mode. Adjust Low/Light.
- Adjust Sub Bright to set Y.
- Adjust B Cutoff to set y.
- Adjust R Cutoff to set x.
5. Enter Video Adjust1 of Service Mode. Adjust High/Light.
- Adjust Sub Contrast to set Y.
- Adjust B Drive to set y.
- Adjust R Drive to set x.
6. Check Low/Light and readjust it if its value has been changed.
7. If you have readjusted Low/Light, readjust High/Light until the two values are identical to the coordinates of the corresponding
model.
White Balance Standard Data
Model
No Item CL21M21EQ2XXAX CL21M21MQ2 Required Adjustment
CL21M21MQ2XXAZ CL21M6MQ2X/XAZ
CL21T21EQ2 CL21M2MQ2
275/275/50ft 275/275/50ft 275/275/47ft 275/275/47ft White Balance
1 White Balance
265/265/2.5ft 265/265/2.5ft 265/265/2.3ft 265/265/2.3ft (Standard Data)
3-6-4 Check List for the Screen Voltage and White Balance Adjustment
1. The Screen Voltage and White Balance are connected each other, and both of them have to be configured to the correct values.
2. Adjust the White Balance after the Screen Voltage was adjusted, and check if the Screen Voltage is normal after adjusting the
White Balance.
3. If the White Balance is readjusted, check the Screen Voltage again.
4. When the adjustment is finished, check the following checklist.
- If there is a spot on the screen when turning the TV set off/on, adjust the Screen Voltage again.
- If there is a ghost line on the screen, adjust the Screen Voltage again.
3-18 Samsung Electronics
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
