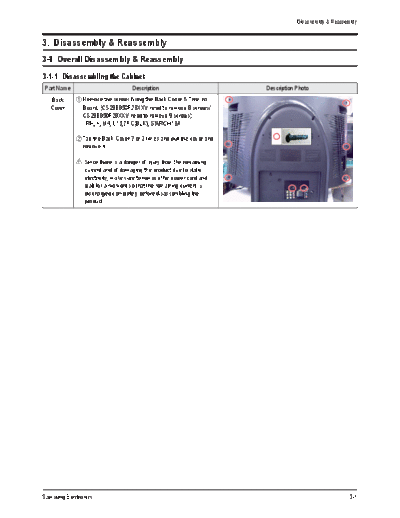

Image preview - the first page of the document
>> Download Disassembly & Reassembly documenatation <<
Text preview - extract from the document
Disassembly & Reassembly
3. Disassembly&Reassembly
3-1 OverallDisassembly&Reassembly
3-1-1 DisassemblingtheCabinet
Part Name Description Description Photo
Back Remove the screws fixing the Back Cover & Terminal
Cover Board. (CS29B850F28XXV need to remove 8 screws/
CS29B850F28XXV need to remove 9 screws)
: RH, +, M4, L15,ZPC(BLK), SWRCH18A
Tap the Back Cover 2 or 3 times and pull the cover and
remove it.
Since there is a danger of injury from the remaining
current and of damaging the product due to static
electricity, make sure to remove the power cord and
wait for a moment so that the remaining current is
discharged completely before disassembling the
product.
Samsung Electronics 3-1
Pull the c
clip fixin
Disassembly & Reassembly th
3-1-2 DisassemblingtheCRTandChassis
Part Name Description Description Photo
Chassis Separate the Ass'y Holder chassis from the Front
Holder Cabinet.
Pull the Holder Chassis while pushing the catch up.
you pull it with excessive power, it may cause damage
If Pull the c
clip fixin
to the catch or connector.Therefore, pull it until the Pull the chassis while pushing the
th
catch is out of the hole. clip fixing the Front Cabinet and
the Holder Chassis.
Separate the CRT connection, the TBC wire,and the the
speaker connection.
Since there is a hinge fixing the Wire Connector and
Connector Header, if the wire is pulled with excessive
power, it may damage the catch or connector. Pull the chassis while pushing the
clip fixing the Front Cabinet and
Therefore, pull it only after pressing the hinge down the Holder Chassis.
completely.
Separate the D-Coil, DY-Cable and power cord from the
Front Cabinet and Main Board.
Separate the power cord, DY-Cable by pushing the
fixing catch to the side and pulling the wire up.
Separate the CRT Ass'y from the CRT.
Separate the TBC wire, GND cables from the CRT Ass'
y sequentially.
3-2 Samsung Electronics
Disassembly & Reassembly
Part Name Description Description Photo
Chassis Separate the cable connecting the FBT and CRT from
Holder the CRT.
Since a high voltage current resides inside the CRT, do
not to touch the CRT hole with metal or your body when
separating the cable.
3-1-3 DisassemblingtheCRTAss'y
Part Name Description Description Photo
CRT Separate the cables connecting the Main Ass'y and the
Ass'y CRT Ass'y.
Separate the wires from the FBT of the Main Board and
the CRT Ass'y. Pull the wires while
pressing on the fixing clip.
Pull the wires while
To separate thick wire, pull the wires while pressing the
push-type clip at the connector. pressing on the fixing clip.
Take care when separating the wires because pulling
the wires by force may damage the socket. In addition,
separate
the wires on a flat and clean surface so as to prevent
scratching of the material and the PCB.
Samsung Electronics 3-3
