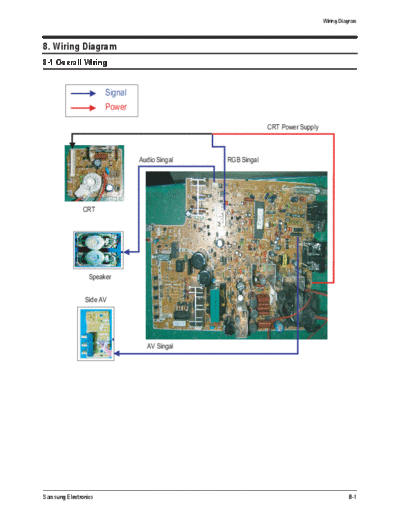

Wiring Diagram
8. Wiring Diagram
8-1 Overall Wiring
Signal
Power
CRT Power Supply
Audio Singal RGB Singal
CRT
Speaker
Side AV
AV Singal
Samsung Electronics 8-1
Wiring Diagram
8-2 Pin Connection
MAIN
CN901
1 ST D- LED
2 T IME- LED CN902
1 KEY- IN2
3 GND
4 VCC- 5V(A) 2 KEY- IN1
5 IR 3 GND
4 KEY- IN3
CN602
1 R+
2 R-
3 GND
4 L+
5 L-
PIP Module
CNP01 CNP02
1 B+ 8V 1 OSD- R
2 B+ 5V 2 OSD- G
3 GND 3 OSD- B
CN501 4 SCL 4 OSD- F/ B
1 B- OUT 5 SDA 5 SUb- CVBS
2 G- OUT 6 GND 6 GND
3 R- OUT 7 H- SYNC 7 PIP- CVBS
4 GND 8 V- SYNC 8 C- IN
CNP12
5 SENSE 9 PIP- F/ B
1 GND
6 GND 10 PIP- B
2 PIP- CVBS 7 VM 11 PIP- G
3 GND 8 GND 12 PIP- R
CNV702A CNV701
1 C- IN 1 V- OUT
2 GND 2 GND
3 Y- IN 3 V- IN
4 GND 4 GND
5 C- OUT 5 L- OUT
6 GND 6 R- OUT
7 Y- OUT 7 L- IN
8 R- IN
TU01S
CN502
1 - 16.5V T
2 NC
U
3 + 16.5V
N
4 GND
5 HEAT ER E
6 NC R
7 B+ 200V 2 SC T
AR
8-2 Samsung Electronics
