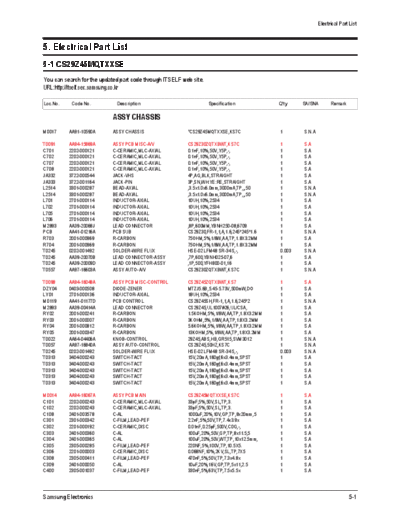

Image preview - the first page of the document
>> Download 20061023162847421_ks7c-p-eplit-5 documenatation <<
Text preview - extract from the document
Electrical Part List
5. Electrical Part List
5-1 CS29Z45MQTXXSE
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
ASSY CHASSIS
M0017 AA91-10590A ASSY CHASSIS "CS29Z45MQTXXSE,KS7C 1 S.N.A
T0091 AA94-15869A ASSY PCB MISC-A/V CS29Z30ZQTXBWT,KS7C 1 S.A
C701 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C702 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C707 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C708 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
JA332 3722-000544 JACK-VHS 4P,AG,BLK,STRAIGHT 1 S.A
JA333 3722-001164 JACK-PIN 3P,SN,WH:YE:RE,STRAIGHT 1 S.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L701 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L702 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L705 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L706 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
M2893 AA39-20068J LEAD CONNECTOR ,8P,600MM,YBNH250-08,6709 1 S.A
PCB AA41-01216A PCB SUB CS29Z30,FR-1,1,A,1.6,245*245*1.6 1 S.N.A
R703 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R704 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
T0245 0202-001492 SOLDER-WIRE FLUX HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
T0245 AA39-20070B LEAD CONNECTOR-ASSY ,7P,600,YBNH025-07,6 1 S.A
T0245 AA39-20009D LEAD CONNECTOR-ASSY ,1P,500,YFH800-01,16 1 S.A
T0557 AA97-16603A ASSY AUTO-A/V CS29Z30ZQTXBWT,KS7C 1 S.N.A
T0098 AA94-16048A ASSY PCB MISC-CONTROL CS29Z45ZQTXBWT,KS7 1 S.A
DZY04 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500mW,DO 1 S.A
LY01 2701-000136 INDUCTOR-AXIAL 18UH,10%,2534 1 S.A
M0119 AA41-01177D PCB CONTROL CS29Z45SH,FR-1,1,A,1.6,245*2 1 S.N.A
M2893 AA39-00414A LEAD CONNECTOR CS29Z45,UL1007#26,UL/CSA, 1 S.A
RY02 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY03 2001-000007 R-CARBON 3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY04 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY05 2001-000347 R-CARBON 13KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
T0022 AA64-04406A KNOB-CONTROL 29Z45,ABS,HB,GR515,SVM3012 1 S.N.A
T0057 AA97-16840A ASSY AUTO-CONTROL CS29Z45,50HZ,KS7C 1 S.N.A
T0245 0202-001492 SOLDER-WIRE FLUX HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
M0014 AA94-16067A ASSY PCB MAIN CS29Z45MQTXXSE,KS7C 1 S.A
C101 2202-000243 C-CERAMIC,MLC-AXIAL 33pF,5%,50V,SL,TP,3. 1 S.A
C102 2202-000243 C-CERAMIC,MLC-AXIAL 33pF,5%,50V,SL,TP,3. 1 S.A
C108 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
C301 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A
C302 2201-000192 C-CERAMIC,DISC 0.01nF,0.25pF,500V,C0G,-, 1 S.A
C303 2401-000360 C-AL 100uF,20%,50V,GP,TP,8x11.5,5 1 S.A
C304 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A
C305 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A
C306 2201-000003 C-CERAMIC,DISC 0.068NF,10%,2KV,SL,TP,7X5 1 S.A
C308 2305-000411 C-FILM,LEAD-PEF 470nF,5%,50V,TP,7.3x4.8x 1 S.A
C309 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 1 S.A
C400 2305-001037 C-FILM,LEAD-PEF 330nF,5%,63V,TP,7.5x5.5x 1 S.A
Samsung Electronics 5-1
Electrical Part List
Loc.No. Code No. Description Specification
C401 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C402 2401-002597 C-AL 220uF,20%,35V,GP,TP,10x12.5,5 1 S.A
C403 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C404 2305-000382 C-FILM,LEAD-PEF 4.7nF,5%,400V,TP,-,5mm 1 S.A
C405 2301-001338 C-FILM,LEAD-OTHER 0.68NF,5%,1.6KV,BK,28X 1 S.A
C406 2301-001185 C-FILM,LEAD-PPF 620nF,5%,400V,BK,14.5x26 1 S.A
C407 2401-002268 C-AL 2.2uF,20%,250V,LZ,TP,8X11,5 1 S.A
C408 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C409 2401-001397 C-AL 470uF,20%,25V,GP,TP,10x16,5 1 S.A
C410 2401-002288 C-AL 470uF,20%,25V,WT,TP,10x20,5 1 S.A
C411 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C412 2401-001527 C-AL 47uF,20%,250V,HR,TP,13x25mm,5m 1 S.A
C413 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C415 2306-000127 C-FILM,LEAD-PPF 120nF,5%,400V,TP,21.5x17 1 S.A
C424 2201-000132 C-CERAMIC,DISC 0.1NF,10%,500V,Y5P,TP,6.5 1 S.A
C430 2301-001440 C-FILM,LEAD-PEF 1000nF,5%,100V,TP,18x8x1 1 S.A
C504 2301-001259 C-FILM,LEAD-PPF 100nF,5%,400V,TP,19x8x16 1 S.A
C506 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C507 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C508 2201-000723 C-CERAMIC,DISC 4.7NF,20%,3KV,Y5U,TP,16X5 1 S.A
C509 2201-000723 C-CERAMIC,DISC 4.7NF,20%,3KV,Y5U,TP,16X5 1 S.A
C607 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C608 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C610 2301-000254 C-FILM,LEAD-PEF 39nF,5%,50V,TP,7.5x3.5x6 1 S.A
C611 2301-000254 C-FILM,LEAD-PEF 39nF,5%,50V,TP,7.5x3.5x6 1 S.A
C612 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C613 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C617 2401-000493 C-AL 10uF,20%,50V,LZ,TP,5x11mm,5mm 1 S.A
C620 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C621 2401-001998 C-AL 1000uF,20%,25V,GP,TP,10x20,5mm 1 S.A
C623 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C624 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C627 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C629 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C638 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C642 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C644 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C800 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A
C801 2401-001652 C-AL 680uF,20%,250V,GP,BK,25x50mm,1 1 S.A
C803 2401-001652 C-AL 680uF,20%,250V,GP,BK,25x50mm,1 1 S.A
C807 2303-000147 C-FILM,LEAD-PPF 1NF,5%,2KV,TP,23X13X8MM, 1 S.A
