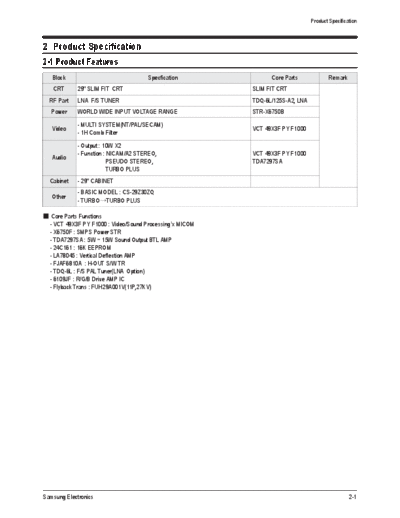

Image preview - the first page of the document
>> Download 20061023162847421_ks7c-p-spec-2 documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Features
Block Specfication Core Parts Remark
CRT 29" SLIM FIT CRT SLIM FIT CRT
RF Part LNA F/S TUNER TDQ-6L/125S-A2, LNA
Power WORLD WIDE INPUT VOLTAGE RANGE STR-X6750B
- MULTI SYSTEM(NT/PAL/SECAM)
Video VCT 49X3F PY F1000
- 1H Comb Filter
- Output : 10W X2
- Function : NICAM/A2 STEREO, VCT 49X3F PY F1000
Audio
PSEUDO STEREO, TDA7297SA
TURBO PLUS
Cabinet - 29" CABINET
- BASIC MODEL : CS-29Z30ZQ
Other
- TURBOTURBO PLUS
Core Parts Functions
- VCT 49X3F PY F1000 : Video/Sound Processing1x MICOM
- X6750F : SMPS Power STR
- TDA7297SA : 5W ~ 15W Sound Output BTL AMP
- 24C161 : 16K EEPROM
- LA78045 : Vertical Deflection AMP
- FJAF6810A : H-OUT S/W TR
- TDQ-6L : F/S PAL Tuner(LNA Option)
- 6109JF : R/G/B Drive AMP IC
- Flyback Trans : FUH29A001V(11P,27KV)
Samsung Electronics 2-1
Product Specification
2-2 Key Features
Country EU CIS ASIA
COLOR PAL-BG / DK/ I PAL-BG / DK / I PAL-BG / DK / I
demodulation NT4.43, SECAM-L / L' NTSC-M (CS SYSTEM) NTSC-M (CS SYSTEM)
Sound receving way QSS (Quasi Split) QSS (Quasi Split) QSS (Quasi Split)
Sound demodulation INTER CARRIER (Virtual Dolby / Nicam / A2 Stereo)
Antemma 75 ohm Din-Jack
Channel search F/S
Channel numbers AIR (100Ch)
Input voltage AC 220V ~ 240V AC 160V - 300V AC 100V ~ 240V
Power system STR-X6750F
Power insulation SMPS / COLD
VHF LOW : 2 ~ 4
VHF HIGH : 5 ~ 13
receving(P/G) CH
UHF : 14 ~ 69
CATV : S1 ~ 41
TTX TTX, LNA+ TTX
Melody on/off Melody on/off Melody on/off
Turbo Sound Turbo Sound Turbo Sound
Character Auto Volume Auto Volume Auto Volume
Pre-Ch' Pre-Ch' Pre-Ch'
LNA+ (Option) LNA+ (Option) LNA+ (Option)
Led : Red Led : Red Led : Red
Feature
- AKB(Auto Kinetic Bais)
- Comb Filter : 1H Comb Filter
- Picture Size : 4:3/Zoom
- NICAM / STEREO / Line-STEREO
- Auto STEREO, Sound Equalizer, Auto Mute, Auto Volume Limit, PSEUDO STEREO, TURBO PLUS
- Composite (RCA A/V, DVD)
- Rear : 42P Scart Input/Output (Scart1 R/G/B Input)
- Front or Side A/V Input (Side A/V Preferability)
2-2 Samsung Electronics
Product Specification
2-3 Specifications Analysis
Model CL-29M21FQ CS-29Z45MQ
Chassis KS7B KS7C
Design
Product Type FLAT CRT FLAT CRT
Digital Display -
Basic
Screen Size 29 29
Aspect Ratio 4:3 4:3
Broadcasting System PAL/SECAM/NT PAL/SECAM
System Tuner Programmable F/S Programmable F/S
CH Memory 100CH 100CH
Supply 230V 110-250V
Power Stand-by 3W 3W
Picture ON Master S/W Master S/W
1H Comb-Filter O O
SCAN 50HZ 60HZ
Sharpness O O
CTI O X
VM X OPTION
AKB O O
P.STD O O
PIP X OPTION
Digital NR O O
Color Tone(W/B) O O
Black Level Expantion O O
Screen Mode 5 Mode 4 Mode
SPK System A11 Semi Dome/Direct Direct
Sound Output Power(Max) 5W+5W 10W+10W
MDB X X
Virtual Dolby X X
MSE X X
Sound Melody O O
Turbo Sound O O
A2 Stereo A2 or Nicam A2 or Nicam
Auto Stereo O O
AVL O O
Equalizer O O
Front/Side AV Jack O O
PC Input(VGA) X X
Scart Jack 2Scart RCA9P
Back A/V Monitor Out O O
Jack
S-VHS Jack(Front only) O O
Head/Earphone Jack O X
Common Interface O O
Service Port X X
I/B O O
Normal Remocon O O
Accessory Battery O O
Matching Trans O X
Rod ANT O X
Samsung Electronics 2-3
Product Specification
2-4 Accessories
Accessories Item Item code Remark
Remote Control AA59-00399D
Batteries 4301-000121
Supplied Accessories
Owner's Instructions AA68-03796A Samsung Service center
Warranty Card AA68-00145A
Safety Guide Manual AA68-03242G
Registration Card -
RF Cable -
Accessories that can be purchased
Video Cable
-
Audio Cable
additionally
Internet shopping mall
S-VIDEO Cable -
Component Cable(RCA) -
2-4 Samsung Electronics
