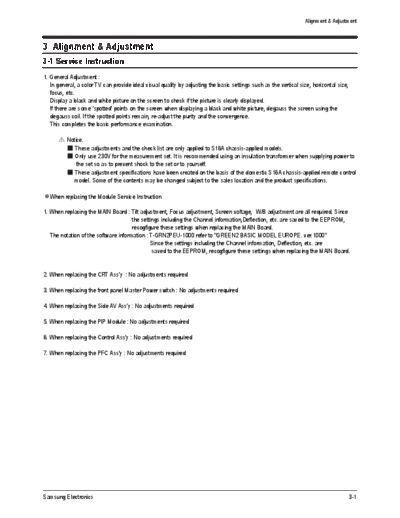

Image preview - the first page of the document



>> Download CW29M164N2XXEC_SERVICE MANUAL documenatation <<

Text preview - extract from the document

                                                                                                                  Alignment & Adjustment



3. Alignment & Adjustment
3-1 Service Instruction
1. General Adjustment :
   In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,
   focus, etc.
   Display a black and white picture on the screen to check if the picture is clearly displayed.
   If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the
   degauss coil. If the spotted points remain, re-adjust the purity and the convergence.
   This completes the basic performance examination.

          Notice.
           These adjustments and the check list are only applied to S16A chassis-applied models.
           Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to
              the set so as to prevent shock to the set or to yourself.
           These adjustment specifications have been created on the basis of the domestic S16A chassis-applied remote control
             model. Some of the contents may be changed subject to the sales location and the product specifications.

When replacing the Module Service Instruction

1. When replacing the MAIN Board : Tilt adjustment, Focus adjustment, Screen voltage, W/B adjustment are all required. Since
                                      the settings including the Channel information,Deflection, etc. are saved to the EEPROM,
                                      recogfigure these settings when replacing the MAIN Board.
   The notation of the software information : T-GRN2PEU-1000 refer to "GREEN2 BASIC MODEL EUROPE. ver.1000"
                                              Since the settings including the Channel information, Deflection, etc. are
                                               saved to the EEPROM, recogfigure these settings when replacing the MAIN Board.


2. When replacing the CRT Ass'y : No adjustments required

3. When replacing the front panel Master Power switch : No adjustments required

4. When replacing the Side AV Ass'y : No adjustments required

5. When replacing the PIP Module : No adjustments required

6. When replacing the Control Ass'y : No adjustments required

7. When replacing the PFC Ass'y : No adjustments required




Samsung Electronics                                                                                                                      3-1
Alignment & Adjustment


3-2 How to Access Service Mode
1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)

          Info  Menu  Mute  Power On

   When failing to enter Service Mode, repeat the procedure above.

2. The initial screen of Service Mode.

            Option1 XX XX XX XX XX
            Option2
            Deflection
            WSS Deflection
            Video Adjust1
            Video Adjust2
            Video Adjust3
            Video Adjust4
            Video Adjust5
            YC Delay
            Others
            Bus Stop Off
            CHECKSUM 0000
            G2 Adjust
            RESET
            T-GRN2PEU-1000 2005/0X/XX



3. Functions of the Keys within Service Mode.
             MENU                                                Show all menus
              /                                      Move the cursor to select an item.
             /                                     Adjust the selected configuration value


4. W/B Setting
  No              Item                              Data                                      Required Adjustment
                  White                   x:272
