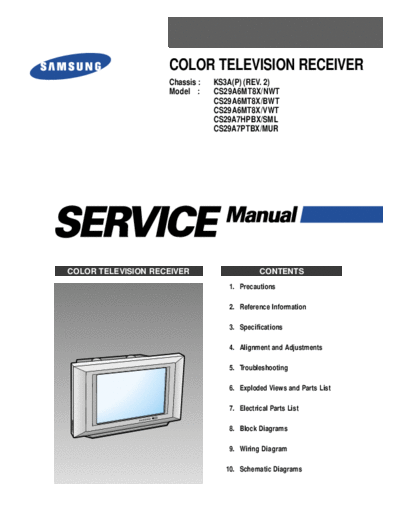

Image preview - the first page of the document
KS3A CS29A6wt8xbwt


>> Download KS3A CS29A6wt8xbwt documenatation <<

Text preview - extract from the document
                    COLOR TELEVISION RECEIVER
                    Chassis :   KS3A(P) (REV. 2)
                    Model :     CS29A6MT8X/NWT
                                CS29A6MT8X/BWT
                                CS29A6MT8X/VWT
                                CS29A7HPBX/SML
                                CS29A7PTBX/MUR




COLOR TELEVISION RECEIVER                    CONTENTS
                                   1. Precautions

                                   2. Reference Information

                                   3. Specifications

                                   4. Alignment and Adjustments

                                   5. Troubleshooting

                                   6. Exploded Views and Parts List

                                   7. Electrical Parts List

                                   8. Block Diagrams

                                   9. Wiring Diagram

                                   10. Schematic Diagrams
                                                                                                              Precautions



1. Precautions
    Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
    hazards such as electrical shock and X-rays.


1-1 Safety Precautions

1. Be sure that all of the built-in protective
   devices are replaced. Restore any missing                                                            (READING SHOULD
                                                                                                          NOT BE ABOVE
   protective shields.                                            DEVICE
                                                                                              LEAKAGE
                                                                                              CURRENT        0.5mA)
                                                                  UNDER                        TESTER
                                                                   TEST
2. When reinstalling the chassis and its                                         TEST ALL
   assemblies, be sure to restore all protective                              EXPOSED METAL
                                                                                SURFACES
   devices, including: nonmetallic control knobs
                                                                       2-WIRE CORD
   and compartment covers.
                                                                       ALSO TEST WITH
                                                                        PLUG REVERSED
3. Make sure that there are no cabinet openings                      (USING AC ADAPTER                        EARTH
                                                                      PLUG AS REQUIRED)                      GROUND
   through which people--particularly
   children--might insert fingers and contact
   dangerous voltages. Such openings include
                                                                           Fig. 1-1 AC Leakage Test
   the spacing between the picture tube and the
   cabinet mask, excessively wide cabinet
                                                        6. Antenna Cold Check:
   ventilation slots, and improperly fitted back
                                                           With the unit's AC plug disconnected from the
   covers.
                                                           AC source, connect an electrical jumper across
                                                           the two AC prongs. Connect one lead of the
    If the measured resistance is less than 1.0
                                                           ohmmeter to an AC prong. Connect the other
    megohm or greater than 5.2 megohms, an
                                                           lead to the coaxial connector.
    abnormality exists that must be corrected
    before the unit is returned to the customer.
                                                        7. X-ray Limits:
                                                           The picture tube is especially designed to
4. Leakage Current Hot Check (Figure 1-1):
                                                           prohibit X-ray emissions. To ensure continued
   Warning: Do not use an isolation
                                                           X-ray protection, replace the picture tube only
   transformer during this test. Use a leakage-
                                                           with one that is the same type as the original.
   current tester or a metering system that
                                                           Carefully reinstall the picture tube shields and
   complies with American National Standards
                                                           mounting hardware; these also provide X-ray
   Institute (ANIS C101.1, Leakage Current for
                                                           protection.
   Appliances), and Underwriters Laboratories
   (UL Publication UL1410, 59.7).
                                                        8. High Voltage Limits:
                                                           High voltage must be measured each time
5. With the unit completely reassembled, plug
                                                           servicing is done on the B+, horizontal
   the AC line cord directly into the power
                                                           deflection or high voltage circuits.
   outlet. With the unit's AC switch first in the
                                                           Correct operation of the X-ray protection
   ON position and then OFF, measure the
                                                           circuits must be reconfirmed whenever they
   current between a known earth ground (metal
                                                           are serviced.
   water pipe, conduit, etc.) and all exposed
                                                            (X-ray protection circuits also may be called
   metal parts, including: antennas, handle
                                                           "horizontal disable" or "hold-down".)
   brackets, metal cabinets, screwheads and
   control shafts. The current measured should
                                                            Heed the high voltage limits. These include
   not exceed 0.5 milliamp. Reverse the power-
                                                            the X
