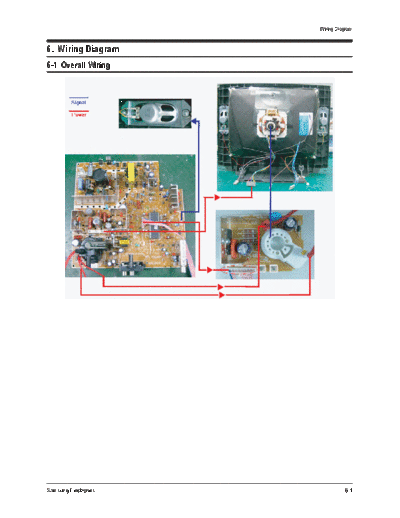

Image preview - the first page of the document
>> Download Diagrama cabos documenatation <<
Text preview - extract from the document
Wiring Diagram
6. WiringDiagram
6-1 OverallWiring
Samsung Electronics 6-1
Wiring Diagram
The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."
Use CRT BoardMain Board Power Code Speaker Wire
Code AA39-20620B AA96-20109B AA96-04766A
6-2 Samsung Electronics
Wiring Diagram
6-2 PinConnection
BK R+
MAIN
GK R-
CN501A RK CN602 GND
TO CRT TO EARPHONE
GND L+
12V L-
H/T
200V
B+5V
R+
CN601 R-
TO SPK
CN702 L+
AV R
GND
GND
GND
GND
AV L
AV
TO AV L-
T
U
N
E
R
CRT
BK
GK CN501
RK
TO MAIN
GND
12V
H/T
200V
B+5V
Samsung Electronics 6-3
Wiring Diagram
6-2-1 MainBoardConnectorPin
CN501A CN602
CRT Board connection EARPHONE connection
Pin No. Pin Name Pin No. Pin Name
1 B 1 R+
2 G 2 R-
3 R 3 GND
4 GND 4 L+
5 12V 5 L-
6 GND
7 HEATER
8 200V CN601
TO SPK
9 B+5V
Pin No. Pin Name
1 R+
2 R-
CN701
3 L+
Side-AV connection
4 L-
Pin No. Pin Name
1 AV Video In
2 GND
CN501
3 AV L In CRT Board connection
4 GND Pin No. Pin Name
5 AV R In 1 BK
6 GND 2 GK
3 RK
4 GND
5 12V
6 H/T
7 200V
8 B+5V
6-4 Samsung Electronics
Wiring Diagram
6-2-2 Connectorrole
Loc. No. Description
CN501 Main Board and CRT Board connect
CN602 Main Board and Side-AV to E-Phone connect
CN701 Main Board and Side-AV connect
CN601 Main Board and Speaker connect
