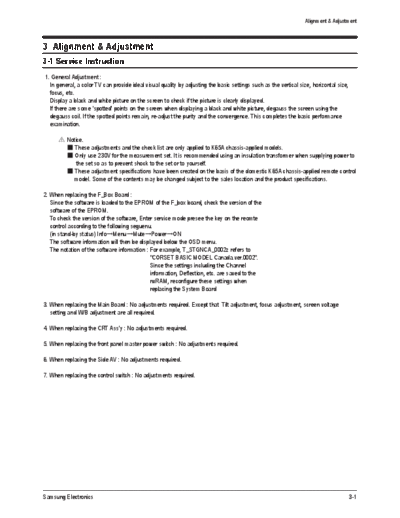

Image preview - the first page of the document
>> Download TV+SAMSUNG+CL32Z40HM+Chasís+K65A documenatation <<Text preview - extract from the document Alignment & Adjustment
3. Alignment & Adjustment
3-1 Service Instruction
1. General Adjustment :
In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,
focus, etc.
Display a black and white picture on the screen to check if the picture is clearly displayed.
If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the
degauss coil. If the spotted points remain, re-adjust the purity and the convergence. This completes the basic performance
examination.
Notice.
These adjustments and the check list are only applied to K65A chassis-applied models.
Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to
the set so as to prevent shock to the set or to yourself.
These adjustment specifications have been created on the basis of the domestic K65A chassis-applied remote control
model. Some of the contents may be changed subject to the sales location and the product specifications.
2. When replacing the F_Box Board :
Since the software is loaded to the EPROM of the F_box board, check the version of the
software of the EPROM.
To check the version of the software, Enter service mode presee the key on the reomte
control according to the following seguenu.
(in stand-by status) InfoMenuMutePowerON
The software information will then be displayed below the OSD menu.
The notation of the software information : For example, T_STGNCA_0002z refers to
"CORSET BASIC MODEL Canada.ver.0002".
Since the settings including the Channel
information, Deflection, etc. are saved to the
nvRAM, reconfigure these settings when
replacing the System Board
3. When replacing the Main Board : No adjustments required. Except that Tilt adjustment, focus adjustment, screen voltage
setting and W/B adjustment are all required.
4. When replacing the CRT Ass'y : No adjustments required.
5. When replacing the front panel master power switch : No adjustments required.
6. When replacing the Side AV : No adjustments required.
7. When replacing the control switch : No adjustments required.
Samsung Electronics 3-1
Alignment & Adjustment
3-2 How to Access Service Mode
1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)
Info Menu Mute Power On
When failing to enter Service Mode, repeat the procedure above.
2. The initial screen of Service Mode.
1. Deflection
2. 480p/576p
3. 720p/1080i
4. 4:3 offset--Vixlm
5. Video Adjust1
6. Video Adjust2
7. Video Adjust3
8. Video Adjust4
9. Video Adjust5
10. Video Adjust6
11. Video Adjust7
12. Video Adjust8
13. Option1 (14 1A 29 82)
14. Option2
15. YC Delay
16. EEPROM
17. Bus Stop
18. checksum 0000
19. RESET
T_STGNCA-0002z 06-06-05
3. Functions of the Keys within Service Mode
MENU Show all menus
/ Move the cursor to select an item.
/ Adjust the selected configuration value
3-2 Samsung Electronics
Alignment & Adjustment
3-3 Factory Data The underlined are items applied during the service adjustment. None of the others should be adjusted.
1. DEFLECTION : NTSC
32" 29"
No item intial Remark
Data Data
0 V Amp 44 44 44 Adjust
1 V Shift 25 25 25 Adjust
2 H EW 41 41 41 Adjust
3 H Shift 41 41 41 Adjust
4 V Linearity 6 6 6 Adjust
5 Upper Linearity 0 0 0 FIX
6 Lower Linearity 1 1 1 FIX
7 V SC 52 2 2 FIX
8 H Parabola 38 38 38 Adjust
9 Upper Corner 37 37 37 Adjust
10 Lower Corner 36 36 36 Adjust
11 H Trapezium 33 33 33 Adjust
12 Bow 32 32 32 Adjust
13 Angle 29 29 29 Adjust
14 V Position 32 32 32 FIX
15 UP-UCG (Up Corner Semi Control) 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) 220 0 0 FIX
2. DEFLECTION : PAL offset
32" 29"
No item intial Remark
Data Data
0 V Amp 0-1 -1 -1 Adjust
1 V Shift 06 6 6 Adjust
2 H EW 05 -5 -5 Adjust
3 H Shift 0 0 0 Adjust
4 V Linearity 0 0 0 FIX
5 Upper Linearity 0 0 0 FIX
6 Lower Linearity 0 0 0 FIX
7 V SC 0 0 0 FIX
8 H Parabola 0 0 0 Adjust
9 Upper Corner 01 1 1 Adjust
10 Lower Corner 0 0 0 Adjust
11 H Trapezium 0-3 -3 -3 Adjust
12 Bow 0 0 0 Adjust
13 Angle 0 0 0 Adjust
14 V Position 0 0 0 FIX
15 UP-UCG(Up Corner Semi Control) 0 0 0 FIX
16 LO-UCG(Low Corner Semi Control) 0 0 0 FIX
17 UP-UCP(Up Corner posiotion Control) 0 0 0 FIX
18 LO-UCP(Low Corner posiotion Control) 0 0 0 FIX
Samsung Electronics 3-3
Alignment & Adjustment
3-4 Samsung Electronics
Alignment & Adjustment
3. DTV DEFLECTION OFFSET(480P)
32" 29"
No item intial Remark
Data Data
0 V Amp 0 0 0 Adjust
1 V Shift 0 0 0 Adjust
2 H EW 0-5 -5 -5 Adjust
3 H Shift 0 0 0 Adjust
4 V Linearity 0 0 0 Adjust
5 Upper Linearity 0 0 0 FIX
6 Lower Linearity 0 0 0 FIX
7 V SC 0 0 0 FIX
8 H Parabola 0 0 0 Adjust
9 Upper Corner 0 0 0 Adjust
10 Lower Corner 0 0 0 Adjust
11 H Trapezium 0 0 0 Adjust
12 Bow 0 0 0 Adjust
13 Angle 0 0 0 Adjust
14 V Position 0 0 0 FIX
15 UP-UCG (Up Corner Semi Control) 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) 0 0 0 FIX
4. DEFLECTION OFFSET(720P)
32" 29"
No item intial Remark
Data Data
0 V Amp 0 0 0 Adjust
1 V Shift 0 0 0 Adjust
2 H EW 0 0 0 Adjust
3 H Shift 0 0 0 Adjust
4 V Linearity 0 0 0 Adjust
5 Upper Linearity 0 0 0 FIX
6 Lower Linearity 0 0 0 FIX
7 V SC 0 0 0 FIX
8 H Parabola 0 0 0 Adjust
9 Upper Corner 0 0 0 Adjust
10 Lower Corner 0 0 0 Adjust
11 H Trapezium 0 0 0 Adjust
12 Bow 0 0 0 Adjust
13 Angle 0 0 0 Adjust
14 V Position 0 0 0 FIX
15 UP-UCG (Up Corner Semi Control) 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) 0 0 0 FIX
Samsung Electronics 3-5
Alignment & Adjustment
5. DEFLECTION OFFSET(1080I)
32" 29"
No item intial Remark
Data Data
0 V Amp -15 -15 -16 Adjust
1 V Shift -50 0 -7 Adjust
2 H EW 0-6 -6 -14 Adjust
3 H Shift 0-3 -3 1 Adjust
4 V Linearity 0 0 -1 Adjust
5 Upper Linearity 0 0 0 FIX
6 Lower Linearity 0 0 0 FIX
7 V SC 0 0 0 FIX
8 H Parabola -6 -6 1 Adjust
9 Upper Corner -3 -3 1 Adjust
10 Lower Corner -4-3 -3 -1 Adjust
11 H Trapezium 50 0 6 Adjust
12 Bow 0 0 1 Adjust
13 Angle 0 0 1 Adjust
14 V Position 0 0 0 FIX
15 UP-UCG (Up Corner Semi Control) 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) 0 0 0 FIX
6. 4:3 OFFSET_VIXLIM
32" 29"
No item intial Remark
Data Data
1 H Parabola 0 0 0 Adjust
2 Upper Corner 0 0 0 Adjust
3 Lower Corner 0 0 0 Adjust
4 Angle 0 0 0 Adjust
5 Bow 0 0 0 Adjust
6 H Shift 0 0 0 Adjust
7 H Parabola NT 0 0 0 Adjust
8 Upper Corner NT 0 0 0 Adjust
9 Lower Corner NT 0 0 0 Adjust
10 Angle NT 0 0 0 Adjust
11 Bow NT 0 0 0 Adjust
12 H Shift 0 0 0 Adjust
3-6 Samsung Electronics
Alignment & Adjustment
7. VIDEO ADJUST 1 : Common
32" 29"
No item intial Remark
Data Data
0 R CutOff 20 20 20 Adjust
1 G CutOff 20 20 20 FIX
2 B CutOff 20 20 20 Adjust
3 R Drive 32 32 32 Adjust
4 G Drive 32 32 32 FIX
5 B Drive 32 32 32 Adjust
6 Sub Bright 25 25 25 Adjust
7 Sub Contrast 9 9 9 Adjust
8 Bright VCTP 140 140 140 FIX
9 Contrast VCTP 30 30 30 FIX
10 SAT-VCTP 11 11 11 FIX
11 Tint VCTP 10 10 10 FIX
12 SC_RGB_BRTADJ 128 128 128 FIX
13 SC_RGB_CONADJ 45 45 45 FIX
14 SC_RGB_USATADJ 52 52 52 FIX
15 SC_RGB_VSATADJ 52 52 52 FIX
16 RGB24_BRTADJ 16 16 16 FIX
17 RGB24_CONADJ 28 28 28 FIX
18 RGB24_ USATADJ 30 30 30 FIX
19 RGB24_ VSATADJ 30 30 30 FIX
20 RGB24_BR_HD 16 16 16 FIX
21 RGB24_CO_HD 28 28 28 FIX
22 RGB24_ USA_HD 30 30 30 FIX
23 RGB24_ VSA_HD 30 30 30 FIX
24 SAT-VP_NTSC 1123 23 23 FIX
8. VIDEO ADJUST 2 : Common
32" 29"
No item intial Remark
Data Data
0 ABL Mode 3 3 3 FIX
1 Gamma 0 0 0 FIX
2 ABL TH 3 3 3 FIX
3 AKB Time 15 15 15 FIX
4 S - ABL 3 3 3 FIX
5 P - ABL 7 7 7 FIX
6 VSU 0 0 0 FIX
7 LNA EXE 3 3 3 FIX
8 H_EHT comp 05 5 2 FIX
9 V_EHT comp 5 5 5 FIX
10 PIN EHT comp 2 2 2 FIX
11 AFC EHT comp 0 0 0 FIX
12 Sync Phase 0 0 0 FIX
13 Sync Phase (480) 1 1 1 FIX
14 Sync Phase (576P) 0 0 0 FIX
15 Sync Phase (720P) 1 1 1 FIX
16 Sync Phase (1080) 0 0 0 FIX
Samsung Electronics 3-7
Alignment & Adjustment
9. VIDEO ADJUST 3 : Common
32" 29"
No item intial Remark
Data Data
0 TNR Enable 1 1 1 FIX
1 TNR Chroma 11 11 11 FIX
2 TNR Luma 11 11 11 FIX
3 LTI Enable 1 1 1 FIX
4 LTI Gain 15 15 15 FIX
5 LTI Gain x2 1 1 1 FIX
6 LTI Coring 2 2 2 FIX
7 Lmix gain 3 3 3 FIX
8 Lmix offset 13 13 13 FIX
9 Peak Center Freq 3 3 3 FIX
10 Peaking Coring 2 2 2 FIX
11 CTI BW 1 1 1 FIX
12 CTI LP 1 1 1 FIX
13 CTI Gain 5 5 5 FIX
14 CTI Coring 2 2 2 FIX
15 V Peaking 3 3 3 FIX
16 V Peak Coring gain 0 0 0 FIX
17 V Peak high gain 0 0 0 FIX
18 V Peak coring high 0 0 0 FIX
19 IF Comp Filter 4 4 4 FIX
20 DHYAPRESC 2 2 2 FIX
21 DHCAPRESC 2 2 2 FIX
22 Neg Peaking 11 11 11 FIX
23 DCE Gain 45 45 45 FIX
24 CORBP 0 0 0 FIX
3-8 Samsung Electronics
Alignment & Adjustment
10. VIDEO ADJUST 4 : Common
32" 29"
No item intial Remark
Data Data
0 SVM RW 2 2 2 FIX
1 SVM Delay 0 0 0 FIX
2 SVM Coring 2 2 2 FIX
3 SVM Gain 45 45 45 FIX
4 SVM C_Gain 0 0 0 FIX
5 OSD Contrast 30 30 30 FIX
6 OSD Bright 127 127 127 FIX
7 TTX Contrast 17 17 17 FIX
8 TTX Bright 127 127 127 FIX
9 Melody Volume 10 10 10 FIX
10 VCR Mode Cnt 30 3 3 FIX
11 SLLTHD 2 0 0 FIX
12 SLLTHDV 3 6 6 FIX
13 THRSEL 0 0 0 FIX
14 LPCDEL 0 0 0 FIX
15 Pilot High 13 13 13 FIX
16 Pilot Low 7 7 7 FIX
17 VCTP_FECA 2 0 0 FIX
Samsung Electronics 3-9
Alignment & Adjustment
11. Video Adjust5 PAL:RF
32" 29"
No item intial Remark
Data Data
0 HORWIDTHP_H 5 5 5 FIX
1 HORWIDTHP_L 50 50 50 FIX
2 VERIWDTHP_H 1 1 1 FIX
3 VERIWDTHP_L 26 26 26 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 65 65 65 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 29 29 29 FIX
8 NAPPLIP_H 2 2 2 FIX
9 NAPPLIP_L 94 94 94 FIX
10 NALPFIP_H 0 0 0 FIX
11 NALPFIP_L 18 18 18 FIX
12 HSCPOSC_H 8 8 8 FIX
13 HSCPOSC_L 70 70 70 FIX
14 VSCPOSC_H 31 31 31 FIX
15 VSCPOSC_L 100 100 100 FIX
16 HORWIDTH_M_H 5 5 5 FIX
17 HORWIDTH_M_L 50 50 50 FIX
18 VERWIDTH_M_H 1 1 1 FIX
19 VERWIDTH_M_L 39 39 39 FIX
20 HORPOS_M_H 1 1 1 FIX
21 HORPOS_M_L 60 60 60 FIX
22 VERPOS_M_H 0 0 0 FIX
23 VERPOS_M_L 23 23 23 FIX
24 VSCPRESC_H 0 0 0 FIX
25 VSCPRESC_L 0 0 0 FIX
26 SD_BRTADJ 128 128 128 FIX
27 SD_CONADJ 32 32 32 FIX
28 SD_USATADJ 32 32 32 FIX
29 SD_VSATADJ 32 32 32 FIX
3-10 Samsung Electronics
Alignment & Adjustment
12. Video Adjust5 NTSC : RF
32" 29"
No item intial Remark
Data Data
0 HORWIDTHP_H 5 5 5 FIX
1 HORWIDTHP_L 5070 70 70 FIX
2 VERIWDTHP_H 1 1 1 FIX
3 VERIWDTHP_L 235 235 235 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 60 60 60 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 30 30 30 FIX
8 NAPPLIP_H 2 2 2 FIX
9 NAPPLIP_L 18 18 18 FIX
10 NALPFIP_H 0 0 0 FIX
11 NALPFIP_L 10 10 10 FIX
12 HSCPOSC_H 8 8 8 FIX
13 HSCPOSC_L 55135 135 135 FIX
14 VSCPOSC_H Micom 1615 15 15 FIX
15 VSCPOSC_L Micom 081 81 81 FIX
16 HORWIDTH_M_H 5 5 5 FIX
17 HORWIDTH_M_L 5070 70 70 FIX
18 VERWIDTH_M_H 2 2 2 FIX
19 VERWIDTH_M_L 5 5 5 FIX
20 HORPOS_M_H 1 1 1 FIX
21 HORPOS_M_L 3060 60 60 FIX
22 VERPOS_M_H 0 0 0 FIX
23 VERPOS_M_L 15 15 10 FIX
24 VSCPRESC_H Micom 0 0 0 FIX
25 VSCPRESC_L 0 0 0 FIX
26 SD_BRTADJ 128 128 128 FIX
27 SD_CONADJ 32 32 32 FIX
28 SD_USATADJ 32 32 32 FIX
29 SD_VSATADJ 32 32 32 FIX
Samsung Electronics 3-11
Alignment & Adjustment
13. Video Adjust5 (480i)
32" 29"
No item intial Remark
Data Data
0 HORWIDTHP_H 5 5 5 FIX
1 HORWIDTHP_L 48 48 48 FIX
2 VERIWDTHP_H 1 1 1 FIX
3 VERIWDTHP_L 246 246 246 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 6040 40 40 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 21 21 21 FIX
8 NAPPLIP_H 1 1 1 FIX
9 NAPPLIP_L 101 101 101 FIX
10 NALPFIP_H 0 0 0 FIX
11 NALPFIP_L 16 16 16 FIX
12 HSCPOSC_H 8 8 8 FIX
13 HSCPOSC_L 148240 240 240 FIX
14 VSCPOSC_H 16 16 16 FIX
15 VSCPOSC_L 0 0 0 FIX
16 HORWIDTH_M_H 5 5 5 FIX
17 HORWIDTH_M_L 48 48 48 FIX
18 VERWIDTH_M_H 1 1 1 FIX
19 VERWIDTH_M_L 241 241 241 FIX
20 HORPOS_M_H 1 1 1 FIX
21 HORPOS_M_L 4180 80 80 FIX
22 VERPOS_M_H 0 0 0 FIX
23 VERPOS_M_L 31 31 24 FIX
24 VSCPRESC_H 0 0 0 FIX
25 VSCPRESC_L 0 0 0 FIX
26 SD_BRTADJ 146 146 146 FIX
27 SD_CONADJ 45 45 45 FIX
28 SD_USATADJ 52 52 52 FIX
29 SD_VSATADJ 52 52 FIX
3-12 Samsung Electronics
Alignment & Adjustment
14. Video Adjust6 480P : Comp
32" 29"
No item intial Remark
Data Data
0 HORWIDTHP_H 5 5 5 FIX
1 HORWIDTHP_L 80105 105 125 FIX
2 VERWIDTHP_H 1 1 1 FIX
3 VERWIDTHP_L 226 226 226 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 54 54 104 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 26 26 26 FIX
8 DHSCPRESC_H 11 11 11 FIX
9 DHSCPRESC_L 100 100 100 FIX
10 DNAPPLIP_H 1 1 1 FIX
11 DNAPPLIP_L 11 11 11 FIX
12 DVOFPOSC 128 128 128 FIX
13 VERPOS_S 6 6 6 FIX
14 VEROFFS_S 0 0 0 FIX
15 HORPOS_S_H 1 1 1 FIX
16 HORPOS_S_L 41 41 41 FIX
17 HPULLINMODE 0 0 0 FIX
18 DVSCPOSC_HI 64 64 64 FIX
19 DVSCPOSC_LO_H 131 131 131 FIX
20 DVSCPOSC_LO_L 17 17 17 FIX
21 DHSCPOSC_HI 14 14 14 FIX
22 DHSCPOSC_LO 255 255 255 FIX
23 HD_BRTADJ 145 145 145 FIX
24 HD_CONADJ 45 45 45 FIX
25 HD_USATADJ 52 52 52 FIX
26 HD_VSATADJ 52 52 52 FIX
Samsung Electronics 3-13
Alignment & Adjustment
15. Video Adjust6 720P/60 : Comp
32" 29"
No item intial Remark
Data Data
0 HORWIDTHP_H 5 5 5 FIX
1 HORWIDTHP_L 225 225 225 FIX
2 VERWIDTHP_H 2 2 2 FIX
3 VERWIDTHP_L 16 16 16 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 53 53 53 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 26 26 26 FIX
8 DHSCPRESC_H 3 3 2 FIX
9 DHSCPRESC_L 175 175 240 FIX
10 DNAPPLIP_H 0 0 0 FIX
11 DNAPPLIP_L 214 214 214 FIX
12 DVOFPOSC 128 128 128 FIX
13 VERPOS_S 20 20 24 FIX
14 VEROFFS_S 0 0 1 FIX
15 HORPOS_S_H 0 0 0 FIX
16 HORPOS_S_L 245 245 225 FIX
17 HPULLINMODE 1 1 1 FIX
18 DVSCPOSC_HI 85 85 85 FIX
19 DVSCPOSC_LO_H 90 90 90 FIX
20 DVSCPOSC_LO_L 255 255 255 FIX
21 DHSCPOSC_HI 14 14 14 FIX
22 DHSCPOSC_LO 162 162 162 FIX
23 HD_BRTADJ 142 142 142 FIX
24 HD_CONADJ 50 50 50 FIX
25 HD_USATADJ 50 50 50 FIX
26 HD_VSATADJ 50 50 50 FIX
3-14 Samsung Electronics
Alignment & Adjustment
16. Video Adjust6 1080i/60_Comp
32" 29"
No item intial Remark
Data Data
0 HORWIDTHP_H 5 5 6 FIX
1 HORWIDTHP_L 30 30 30 FIX
2 VERWIDTHP_H 2 2 2 FIX
3 VERWIDTHP_L 17 17 17 FIX
4 HORPOSP_H 0 0 0 FIX
5 HORPOSP_L 180 180 180 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 26 26 26 FIX
8 DHSCPRESC_H 14 14 13 FIX
9 DHSCPRESC_L 100 100 100 FIX
10 DNAPPLIP_H 0 0 0 FIX
11 DNAPPLIP_L 100140 140 100 FIX
12 DVOFPOSC 128 128 128 FIX
13 VERPOS_S 6 6 6 FIX
14 VEROFFS_S 0 0 0 FIX
15 HORPOS_S_H 0 0 0 FIX
16 HORPOS_S_L 190195 195 170 FIX
17 HPULLINMODE 1 1 1 FIX
18 DVSCPOSC_HI 64 64 64 FIX
19 DVSCPOSC_LO_H 0 0 0 FIX
20 DVSCPOSC_LO_L 183 183 183 FIX
21 DHSCPOSC_HI 14 14 14 FIX
22 DHSCPOSC_LO 66 66 66 FIX
23 HD_BRTADJ 143 143 143 FIX
24 HD_CONADJ 49 49 49 FIX
25 HD_USATADJ 50 50 50 FIX
26 HD_VSATADJ 50 50 50 FIX
Samsung Electronics 3-15
Alignment & Adjustment
17. VIDEO ADJUST 7(color tone setting)
32" 29"
No item intial Remark
Data Data
0 R drive offset Warm2 8 8 8 FIX
1 B drive offset Warm2 -9 -9 -9 FIX
2 R cutoff offset Warm2 6 6 6 FIX
3 B cutoff offset Warm2 -11 -11 -11 FIX
4 R drive offset Warm1 4 4 4 FIX
5 B drive offset Warm1 -3 -3 -3 FIX
6 R cutoff offset Warm1 4 4 4 FIX
7 B cutoff offset Warm1 -3 -3 -3 FIX
8 R drive offset Normal 0 0 0 FIX
9 B drive offset Normal 0 0 0 FIX
10 R cutoff offset Normal 0 0 0 FIX
11 B cutoff offset Normal 0 0 0 FIX
12 R drive offset Cool 1 -5 -5 -5 FIX
13 B drive offset Cool 1 4 4 4 FIX
14 R cutoff offset Cool 1 0 0 0 FIX
15 B cutoff offset Cool 1 6 6 6 FIX
16 R drive offset Cool 2 -2 -2 -2 FIX
17 B drive offset Cool 2 6 6 6 FIX
18 R cutoff offset Cool 2 0 0 0 FIX
19 B cutoff offset Cool 2 9 9 9 FIX
3-16 Samsung Electronics
Alignment & Adjustment
18. VIDEO ADJUST 8
32" 29"
No item intial Remark
Data Data
0 LTI Gain NTSC 15 15 15 FIX
1 Peak_f0_NTSC 3 3 3 FIX
2 Peak_cor_NTSC 2 2 2 FIX
3 CTI_gain_NTSC 5 5 5 FIX
4 Lmix gain_NTSC 3 3 3 FIX
5 Lmix offset_NT 13 13 13 FIX
6 LTI Gain AV 15 15 15 FIX
7 Peak_f0_AV 3 3 3 FIX
8 Peak_cor_AV 2 2 2 FIX
9 CTI_gain_AV 5 5 5 FIX
10 Lmix gain_AV 3 3 3 FIX
11 Lmix offset_AV 13 13 13 FIX
12 LTI Gain SD 15 15 15 FIX
13 Peak_f0_SD 3 3 3 FIX
14 Peak_cor_SD 2 2 2 FIX
15 CTI_gain_SD 1 1 1 FIX
16 Lmix gain_SD 3 3 3 FIX
17 Lmix offset_SD 13 13 13 FIX
18 LTI Gain HD 15 15 15 FIX
19 Peak_f0_ HD 3 3 3 FIX
20 Peak_cor_ HD 2 2 2 FIX
21 CTI_gain_ HD 5 5 5 FIX
22 Lmix gain_ HD 3 3 3 FIX
23 Lmix offset_ HD 13 13 13 FIX
19.YC Delay
32" 29"
No item intial Remark
Data Data
0 N.YC(AV) Delay 0 0 0 FIX
1 P.M.YC(AV) Delay 0 0 0 FIX
2 P.N.YC(AV) Delay 0 0 0 FIX
3 N.M.YC Delay 02 2 2 FIX
4 P.M.YC Delay 0 0 0 FIX
5 P.N.YC Delay 0 0 0 FIX
6 SD_YFDEL 60 60 60 FIX
7 SD_UVDEL 60 60 60 FIX
8 RGB Y_Delay 118 118 118 FIX
9 RGB UV_Delay 118 118 118 FIX
10 HD_DELB 0 0 0 FIX
11 HD_DELG 0 0 0 FIX
12 HD_DELR 0 0 0 FIX
Samsung Electronics 3-17
Alignment & Adjustment
20. EEPROM
32" 29"
No item Range intial Remark
Data Data
0 System 1 1 1 FIX
1 System_480 2 2 2 FIX
2 System_1080 3 3 3 FIX
3 Dynamic Contrast 100 100 100 FIX
4 Dynamic Brightness 40 40 40 FIX
5 Dynamic Shapness 65 65 65 FIX
6 Dynamic Color 50 50 50 FIX
7 Dynamic Tint 50 50 50 FIX
8 Dynamic Color Tone 2 2 2 FIX
9 Standard Contrast 70 70 70 FIX
10 Standard Brightness 50 50 50 FIX
11 Standard Shapness 50 50 50 FIX
12 Standard Color 45 45 45 FIX
13 Standard Tint 50 50 50 FIX
14 Standard Color Tone 2 2 2 FIX
15 Movie Contrast 50 50 50 FIX
16 Movie Brightness 50 50 50 FIX
17 Movie Shapness 40 40 40 FIX
18 Movie Color 40 40 40 FIX
19 Movie Tint 50 50 50 FIX
20 Movie Color Tone 4 4 4 FIX
21 Left _Blank 17 17 17 FIX
22 Right_Blank 25 25 25 FIX
23 Left Blanking (480) 25 25 25 FIX
24 Right Blanking (480) 25 25 25 FIX
25 Left Blanking (720) 44 44 44 FIX
26 Right Blanking (720) 25 25 25 FIX
27 Left Blanking (1080) 44 44 44 FIX
28 Right Blanking (1080) 25 25 25 FIX
29 RGB Tint 0 0 0 FIX
30 DVD Tint 0 0 0 FIX
31 Bypass Deint 0 0 0 FIX
32 SLMCSW 1 1 1 FIX
33 DCE Gain 30 30 30 FIX
34 TTX V-Position 41 41 41 FIX
35 TTX H-Position 222 222 222 FIX
36 255 255 255 FIX
37~63 VIDEO ADJUST6 1080I 50 No Touch FIX
64 TTX_Bow offset -1 -1 -1 FIX
65 TTX_H_Para offset -1 -1 -1 FIX
66 TTX_Up corner offset -1 -1 -1 FIX
67 TTX_Low corner offset -1 -1 -1 FIX
68 SECAM Dr 1 1 1 FIX
69 SECAM Db 2 2 2 FIX
70 70~71 not available- No Touch FIX
72 PIP-Threshold 15 15 15 FIX
3-18 Samsung Electronics
Alignment & Adjustment
32" 29"
No item Range intial Remark
Data Data
73 73~76 not available- No Touch
77 PORT4_STR 1 1 1 FIX
78 RF color sens 255 255 255 FIX
79 AV color sens 255 255 255 FIX
80 R drive offset 1080P 0 0 0 FIX
81 G drive offset 1080P 0 0 0 FIX
82 R cutoff offset 1080P 7 7 7 FIX
83 G cutoff offset 1080P 6 6 6 FIX
84 R drive offset 1080i 0 0 0 FIX
85 G drive offset 1080i 0 0 0 FIX
86 R cutoff offset 1080i 7 7 7 FIX
87 G cutoff offset 1080i 6 6 6 FIX
88 R drive offset 720P-60HZ 0 0 0 FIX
89 G drive offset 720P-60HZ 0 0 0 FIX
90 R cutoff offset 720P-60HZ 7 7 7 FIX
91 G cutoff offset 720P-60HZ 6 6 6 FIX
92 R drive offset 720P-50HZ 0 0 0 FIX
93 G drive offset 720P-50HZ 0 0 0 FIX
94 R cutoff offset 720P-50HZ 7 7 7 FIX
95 G cutoff offset 720P-50HZ 6 6 6 FIX
96 R drive offset 480P 0 0 0 FIX
97 G drive offset 480P 0 0 0 FIX
98 R cutoff offset 480P 0 0 0 FIX
99 G cutoff offset 480P 0 0 0 FIX
100 R drive offset 576P 0 0 0 FIX
101 G drive offset 576P 0 0 0 FIX
102 R cutoff offset 576P 0 0 0 FIX
103 G cutoff offset 576P 0 0 0 FIX
104 R drive offset 480i 0 0 0 FIX
105 G drive offset 480i 0 0 0 FIX
106 R cutoff offset 480i 0 0 0 FIX
107 G cutoff offset 480i 0 0 0 FIX
108 R drive offset 576i 0 0 0 FIX
109 G drive offset 576i 0 0 0 FIX
110 R cutoff offset 576i 0 0 0 FIX
111 G cutoff offset 576i 0 0 0 FIX
112 H_EHT comp_720p 1 1 1 FIX
113 V_EHT comp_720p 5 5 5 FIX
114 PIN EHT comp_720p 1 1 1 FIX
115 ABL TH_1080i 3 3 3 FIX
116 Color On_NTSC 2 2 2 FIX
117 Color Killer Threshold_NTSC 210 210 210 FIX
118 ACC Limitation_NTSC 16 16 16 FIX
119 Color Killer Threshold_AV 230 230 230 FIX
~ 120~146 VIDEO ADJUST6 720P50 No Touch
~ 148~166 NTSC DEFLECTION No Touch
Samsung Electronics 3-19
Alignment & Adjustment
32" 29"
No item Range intial Remark
Data Data
~ 168~186 480P DEFLECTION No Touch
~ 187~205 576P DEFLECTION No Touch
~ 206~224 720P DEFLECTION No Touch
~ 225~243 1080I DEFLECTION No Touch
244 PIP CONT 128 128 128 FIX
245 PIP-Bright 245 245 245 FIX
246 PIP-SCURVE 1 1 1 FIX
247 PIP-CTI 2 2 2 FIX
248 PIP-Sharp 0 0 0 FIX
249 PIP-Tint 0 0 0 FIX
250 No Touch
251 255 255 255 FIX
252 255 255 255 FIX
253 0 0 0 FIX
254 0 0 0 FIX
255 HD_P-ABL 9 9 9 FIX
3-20 Samsung Electronics
Alignment & Adjustment
3-4 Service Adjustment
3-4-1 Adjusting the Picture Size
Since the K65A chassis has the deflection settings data within the Factory Data, the picture size has to be adjusted when
replacing the System Board or the Deflection Board, according to the following procedures.
Display the Lion pattern. Press "Info Menu Mute Power On"
using the remote control and enter Factory Mode.
Enter Deflection Mode. Adjust the V-AMP, V-SHIFT, H-AMP and H-SHIFT items so
that the width becomes 5 and the height becomes 4.
Samsung Electronics 3-21
Alignment & Adjustment
3-4-2 Adjusting the Picture Straight Lines
Display the Cross Hatch pattern.
Adjust settings other than V-AMP, V-SHIFT, H-AMP and H-SHIFT so that straight lines are displayed without curves.
Adjust BOW and the Angle settings so that the center line Adjust the H-Parabola and H-Trapezium settings so that
becomes a straight line. the left and right lines become straight.
Adjust the Upper Corner and the Low Corner settings so that Adjust the V-Linearity and V-SC settings so that the
the end of the lines become straight. intervals of the horizontal lines become uniform.
When the adjustments are complete, display the Lion pattern and check that the picture size has not been changed.
If there is no change, finish the adjustments.
3-22 Samsung Electronics
Alignment & Adjustment
3-5 Replacements & Calibration
3-5-1 Adjusting the Focus
Since the K65A chassis has a built-in dynamic focus circuit, take care when adjusting the focus. When the CRT PCB, FBT or
CRT has been replaced, the focus has to be adjusted according to the following procedures.
1. Display the CROSS Hatch pattern.
2. Set the Screen Adjustment to "View as Standard".
3. Turn the Static Focus VR clockwise to the maximum position.
(End of clockwise direction)
4. Turn the Dynamic Focus VR counter clockwise to the maximum position.
(End of counter clockwise direction)
5. Slowly turn the Static Focus VR counter clockwise so that the center vertical line
is the most clearly displayed.
6. Slowly turn the Dynamic Focus VR clockwise so that the 2nd line is the most clearly H
displayed.
V
1
2
3
7. Check the entire screen focus and repeat steps 3 to 6, if necessary.
Samsung Electronics 3-23
Alignment & Adjustment
3-5-2 Adjusting the Screen Voltage
1. Select "Info Menu Mute Power On" to enter Service Mode.
2. Initialize all settings to the values appropriate to the corresponding model.
3. Display the Toshiba pattern.
4. Using an Oscilloscope, measure the size of RK, BK and GK to the
Pedestal Level.
5. Adjust the Screen VR of FEB so that the highest point of the Pedestal Level is 190V. (29" : 180V)
Screen Voltage Measurement Data
No Item Data Required Adjustment
The Highest Voltage among RK, GK and
1 Screen Voltage Screen Voltage
BK 170Vp-p-3V
3-24 Samsung Electronics
Alignment & Adjustment
3-5-3 Adjusting the White Balance
1. Initialize all settings to the values appropriate to the corresponding model.
2. Select "Info Menu Mute Power On" to enter Service Mode.
3. Initialize all settings to the values appropriate to the corresponding model.
4. Display the Toshiba pattern and adjust the White Balance using CA100 with the coordinates of the corresponding model.
5. Enter Video Adjust1 of Service Mode. Adjust Low/Light.
- Adjust Sub Bright to set Y.
- Adjust B Cutoff to set y.
- Adjust R Cutoff to set x.
6. Enter Video Adjust1 of Service Mode. Adjust High/Light.
- Adjust Sub Contrast to set Y.
- Adjust B Drive to set y.
- Adjust R Drive to set x.
7. Check Low/Light and readjust it if its value has been changed.
8. If you have readjusted Low/Light, readjust High/Light until the two values are identical to the coordinates of the corresponding
model.
White Balance Standard Data
No Item Data Required Adjustment
White x:282
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
