Exploded View & Part List
5. Exploded View & Part List

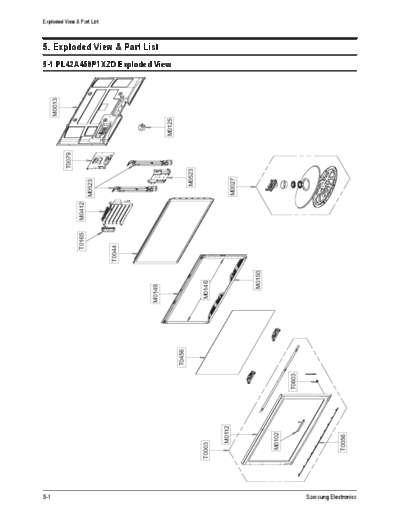

5-1 PL42A450P1XZD Exploded View
M0013
M0125
T0079
M0523
M0027
M0523
M0412
T0165
T0044
M0150
M0146
M0149
T0456
T0603
M0112
M0102
T0056
T0003
5-1 Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
M0013 BN96-06771E ASSY COVER P-REAR 42P450,PCM,0.5,BKM-P70 1 S.A
M0027 BN96-05835A ASSY STAND P-BASE -,42Q9/42C9,-,ABS,SF-0 1 S.A
M0102 BN96-04802A ASSY BLU P Bordeaux Plus,BACK LIGHT UNIT 1 S.A
M0112 BN63-04217G COVER-FRONT 42P450,ABS+PMMA,HB,BK27,S/ M 1 S.N.A
M0125 BN96-07190A ASSY INLET P Pyrope,350mm,IG-N06BES1,250 1 S.A
M0146 BN96-06750B ASSY BRACKET P-FILTER SIDE P410 42Inch,S 2 S.N.A
M0149 BN96-06749A ASSY BRACKET P-FILTER TOP P450 42Inch,SA 1 S.N.A
M0150 BN96-06751B ASSY BRACKET P-FILTER BOTTOM 42P410,EO,S 1 S.N.A
M0412 BN96-06697A ASSY BRACKET P-PCB Spinel 50,,SECC,T0.6, 1 S.N.A
M0523 BN96-06753A ASSY BRACKET P-SUPPORT STAND P410 42Inch 1 S.N.A
M0523 BN96-06756A ASSY BRACKET P-WALL P410 42Inch,SECC T1. 2 S.A
T0003 BN96-06769J ASSY COVER P-FRONT 42P450,ABS+PMMA,HB,BK 1 S.A
T0044 BN96-07669A ASSY PDP MODULE P PL42AB003A,42HD W3,3D 1 S.A
T0056 BN63-04212A COVER-DECORATION 450 , 42",ABS,HB,GRAY(G 1 S.N.A
T0079 BN94-01747F ASSY PCB MISC-MAIN 42 INCH,PYROPE,LATIN 1 S.A
T0165 BN96-06696A ASSY COVER P-AV Spinel 50,58" 1 S.A
T0456 BN67-00206A GLASS-EMI FILTER 42 C9, without AR,Sputt 1 S.A
T0603 BN64-00628A WINDOW-RMC 50P9,PC,VIOLET 1 S.N.A
Samsung Electronics 5-2
5-3
M0013
T0079
T0165 M0412
T0152
Exploded View & Part List
T0044
M0149
5-2 PL50A450P1XZD Exploded View
M0125
T0456
M0523
T0003 M0146
M0112
M0027
M0150
M0150
M0102
T0603
T0056
Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
M0013 BN96-06772H ASSY COVER P-REAR 50P450,PCM,0.5,BKM-P70 1 S.A
M0027 BN96-04714B ASSY STAND P-BASE -,C9/Q9,-,ABS HB SF-05 1 S.A
M0102 BN96-04802A ASSY BLU P Bordeaux Plus,BACK LIGHT UNIT 1 S.A
M0112 BN63-04222G COVER-FRONT 50P450,ABS+PMMA,-,-,-,HB,BK2 1 S.N.A
M0125 BN96-07190A ASSY INLET P Pyrope,350mm,IG-N06BES1,250 1 S.A
M0146 BN96-06692B ASSY BRACKET P-FILTER SIDE Spinel 50",SE 2 S.N.A
M0149 BN96-06690A ASSY BRACKET P-FILTER TOP P450 50inch,SA 1 S.N.A
M0150 BN96-06694B ASSY BRACKET P-FILTER BOTTOM 50P450,EO,S 1 S.N.A
M0150 BN96-06689A ASSY BRACKET P-SUPPORT FILTER Spinel 50" 1 S.N.A
M0412 BN96-06697A ASSY BRACKET P-PCB Spinel 50,,SECC,T0.6, 1 S.N.A
M0523 BN96-06753A ASSY BRACKET P-SUPPORT STAND P410 42Inch 1 S.N.A
T0003 BN96-06770J ASSY COVER P-FRONT 50P450,ABS+PMMA,HB,BK 1 S.A
T0044 BN96-07673A ASSY PDP MODULE P PL50HB001A,50HD W3,3D 1 S.A
T0056 BN63-04215A COVER-DECORATION 450 , 50",ABS,HB,GRAY(G 1 S.N.A
T0079 BN94-01747D ASSY PCB MISC-MAIN PL50A450P1X*,LATIN,PY 1 S.A
T0152 BN96-06773A ASSY BRACKET P-WALL RIGHT P450 50Inch,,S 2 S.A
T0165 BN96-06696A ASSY COVER P-AV Spinel 50,58" 1 S.A
T0456 BN67-00196A GLASS-FILTER EMI 50" W2A, without AR,Spu 1 S.A
T0603 BN64-00628A WINDOW-RMC 50P9,PC,VIOLET 1 S.N.A
Samsung Electronics 5-4
Exploded View & Part List
5-3 PL42A450P1XZD Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-06771E ASSY COVER P-REAR 42P450,PCM,0.5,BKM-P70 1
M0027 BN96-05835A ASSY STAND P-BASE -,42Q9/42C9,-,ABS,SF-0 1
M0102 BN96-04802A ASSY BLU P Bordeaux Plus,BACK LIGHT UNIT 1
M0154 BN96-06760A ASSY PDP P-Y-MAIN BUFFER PL42AX030A,42HD 1
M2893 BN39-00802C LEAD CONNECTOR HPT4264H,UL1617#22,24P/24 1
M2893 BN39-00807C LEAD CONNECTOR FPT5084/SPD-50P9,UL1007#2 1
M2893 BN39-00914C LEAD CONNECTOR FPT5884/SPD-58P9,UL1007#2 1
T0003 BN96-06769J ASSY COVER P-FRONT 42P450,ABS+PMMA,HB,BK 1
T0037 BN96-06761A ASSY PDP P-LOGIC MAIN PL42AX030A,42HD W3 1
T0038 BN96-06762A ASSY PDP P-ADDRESS E-BUFFER PL42AX030A,4 1
T0039 BN96-06763A ASSY PDP P-ADDRESS F-BUFFER PL42AX030A,4 1
T0044 BN96-07669A ASSY PDP MODULE P PL42AB003A,42HD W3,3D 1
T0045 BN96-06757A ASSY PDP P-X-MAIN BOARD PL42AX030A,42HD 1
T0045 BN96-06758A ASSY PDP P-X-MAIN BUFFER PL42AX030A,42HD 1
T0079 BN94-01747F ASSY PCB MISC-MAIN 42 INCH,PYROPE,LATIN 1
T0262 BN96-06759A ASSY PDP P-Y-MAIN BOARD PL42AX030A,42HD 1
T0764 BN44-00206A SMPS-PDP TV W3 PDP SMPS,SEM,AC/DC,406.6W 1
5-5 Samsung Electronics
Exploded View & Part List
5-4 PL50A450P1XZD Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-06772H ASSY COVER P-REAR 50P450,PCM,0.5,BKM-P70 1
M0027 BN96-04714B ASSY STAND P-BASE -,C9/Q9,-,ABS HB SF-05 1
M2893 BN39-00802S LEAD CONNECTOR LILY2 50",UL1007#26,24p/2 1
M2893 BN39-00807C LEAD CONNECTOR FPT5084/SPD-50P9,UL1007#2 1
M2893 BN39-00914D LEAD CONNECTOR FPT5884/SPD-58P9,UL1007#2 1
T0003 BN96-06770J ASSY COVER P-FRONT 50P450,ABS+PMMA,HB,BK 1
T0037 BN96-06766A ASSY PDP P-LOGIC MAIN PL50HW031A,50HD W3 1
T0044 BN96-07673A ASSY PDP MODULE P PL50HB001A,50HD W3,3D 1
T0045 BN96-06764A ASSY PDP P-X-MAIN BOARD PL50HW031A,50HD 1
T0079 BN94-01747D ASSY PCB MISC-MAIN PL50A450P1X*,LATIN,PY 1
T0262 BN96-06765A ASSY PDP P-Y-MAIN BOARD PL50HW031A,50HD 1
T0764 BN44-00207A SMPS-PDP TV W3 PDP SMPS,SEM,AC/DC,486.6W 1
Samsung Electronics 5-6
MEMO
5-7 Samsung Electronics
