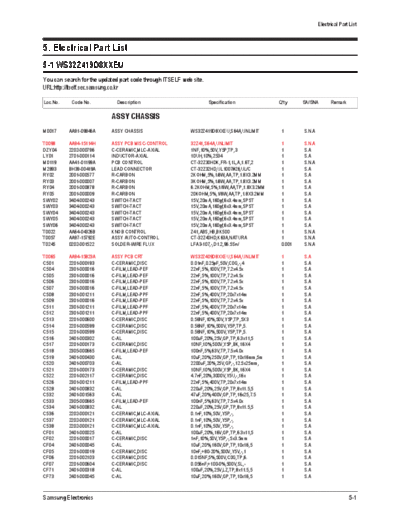

Image preview - the first page of the document
>> Download 20060428102249265_s64a_p_eplit_5_196 documenatation <<
Text preview - extract from the document
Electrical Part List
5. Electrical Part List
5-1 WS32Z419D8XXEU
You can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
ASSY CHASSIS
M0017 AA91-09846A ASSY CHASSIS WS32Z419D8XXEU,S64A,UNLIMIT 1 S.N.A
T0098 AA94-15114H ASSY PCB MISC-CONTROL 32Z41,S64A,UNLIMIT 1 S.N.A
DZY04 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
LY01 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
M0119 AA41-01199A PCB CONTROL CT-32Z30HDK,FR-1,1L,A,1.6T,2 1 S.N.A
M2893 BH39-00419A LEAD CONNECTOR CT-32Z32HD,UL1007#26,UL/C 1 S.A
RY02 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY03 2001-000007 R-CARBON 3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY04 2001-000878 R-CARBON 6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY05 2001-000009 R-CARBON 20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
SWY02 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
SWY03 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
SWY04 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
SWY05 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
SWY06 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0022 AA64-04326B KNOB CONTROL Z41,ABS,HB,BK500 1 S.N.A
T0057 AA97-15792E ASSY AUTO-CONTROL CT-32Z40HD,K63A,NATURA 1 S.N.A
T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.001 S.N.A
T0065 AA94-15823A ASSY PCB CRT WS32Z409D8XXEU,S64A,UNLIMIT 1 S.A
C501 2201-000193 C-CERAMIC,DISC 0.01nF,0.25pF,50V,C0G,-,4 1 S.A
C504 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C505 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C506 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C507 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C508 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C509 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C511 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C512 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C513 2201-000600 C-CERAMIC,DISC 0.56NF,10%,50V,Y5P,TP,5X3 1 S.A
C514 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C515 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C516 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A
C517 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A
C518 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C519 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C520 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A
C521 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A
C522 2201-002117 C-CERAMIC,DISC 4.7nF,20%,3000V,Y5U,-,16x 1 S.A
C526 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C528 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A
C532 2401-001563 C-AL 47uF,20%,400V,GP,TP,16x25,7.5 1 S.A
C533 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C534 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A
C536 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C537 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C538 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
CF01 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 1 S.A
CF02 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,-,5x3.5mm 1 S.A
CF04 2401-000045 C-AL 10uF,20%,160V,GP,TP,10x16,5 1 S.A
CF05 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,-,1 1 S.A
CF06 2201-002103 C-CERAMIC,DISC 0.015NF,5%,500V,C0G,TP,6. 1 S.A
CF07 2201-000604 C-CERAMIC,DISC 0.056nF,+100-0%,500V,SL,- 1 S.A
CF71 2401-000318 C-AL 100uF,20%,25V,LZ,TP,8x11.5,5 1 S.A
CF73 2401-000045 C-AL 10uF,20%,160V,GP,TP,10x16,5 1 S.A
Samsung Electronics 5-1
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CF74 2401-000287 C-AL 100uF,20%,16V,WT,TP,6.3x11,5 1 S.A
CF75 2401-000287 C-AL 100uF,20%,16V,WT,TP,6.3x11,5 1 S.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
CNC03 3711-001084 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A
CNC04 3711-003241 HEADER-BOARD TO CABLE BOX,14P,1R,2.5MM,S 1 S.A
D501 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D502 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A
D504 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D509 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D510 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D511 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D512 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D513 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D514 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
DF08 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
DU410 1201-000010 IC-OP AMP 2030,PENTAWATT,5P,-,SINGLE,-,C 1 S.A
DZ501 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ502 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ503 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ504 0403-000698 DIODE-ZENER TZP12A,5%,1000mW,DO-41,TP 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A
FN1 3711-002643 HEADER-BOARD TO CABLE BOX,4P,1R,2.5mm,ST 1 S.A
FV1 3711-002642 HEADER-BOARD TO CABLE BOX,3P,1R,2.5mm,ST 1 S.A
GT501 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT502 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT503 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT504 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT505 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT506 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
IC063 AA13-00111A IC HYBRID STK396-130,WT-32A20HD,12,105C, 1 S.A
IC501 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A
IC502 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A
IC503 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A
IC504 BH99-00038E ASSY HEAT/SINK TDA2030,AMP,HERCULES,BH62 1 S.N.A
IC506 0502-000006 TR-POWER KSC1507,NPN,15W,TO-220,TP,120- 1 S.A
L501 2701-001040 INDUCTOR-AXIAL 10UH,10%,4514 1 S.A
L502 2701-000178 INDUCTOR-AXIAL 33UH,10%,3070 1 S.A
LF03 2701-000112 INDUCTOR-AXIAL 100UH,10%,3070 1 S.A
LX085 AA27-90001B COIL-SPARK,GAP S-23,1.5KV,-,-,-,-,-,-,-, 1 S.A
M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 1 S.N.A
M0144 BH61-00004A SPRING ETC-TR CDA,CDB,SUS304,-,-,-,-,-,T 1 S.N.A
M2893 AA39-00380C LEAD CONNECTOR WS32Z409D,UL1185#26,14PIN 1 S.A
M2893 BP39-00055D LEAD CONNECTOR V18C,UL1007#26,UL/CSA,8P, 1 S.A
PCB AA41-01205A PCB CRT WS32Z40,FR-1,1L,A,1.6T,245X330,S 1 S.N.A
Q501 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q502 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q503 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q504 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q505 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
R501 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R502 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R504 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R505 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R506 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R507 2001-000472 R-CARBON 2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R508 2001-000995 R-CARBON 820OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R509 2008-000205 R-FUSIBLE(S) 10ohm,5%,1/2W,AF,TP,2.5x6.5 1 S.A
R510 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R511 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R512 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R513 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A
R514 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A
R515 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A
R519 2001-000397 R-CARBON 180KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R520 2001-000563 R-CARBON 27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R522 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
5-2 Samsung Electronics
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
R523 2001-000890 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R525 2002-001006 R-COMPOSITION 4.7Kohm,15%,1/2W,AA,TP,3.7 1 S.A
R527 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R528 2008-000205 R-FUSIBLE(S) 10ohm,5%,1/2W,AF,TP,2.5x6.5 1 S.A
R529 2008-000204 R-FUSIBLE(S) 0.22ohm,10%,1/2W,AF,TP,2.5x 1 S.A
R530 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R531 2001-000009 R-CARBON 20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R532 2004-001893 R-METAL(S) 22Kohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A
R533 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R534 2004-004097 R-METAL 1.6Kohm,2%,1/2W,AA,TP,2.4X6.4mm 1 S.A
R535 2001-001103 R-CARBON(S) 20KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R536 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R537 2001-001196 R-CARBON(S) 9.1KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R538 2001-001062 R-CARBON(S) 10MOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R540 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R541 2008-001053 R-FUSIBLE 22ohm,5%,1/2W,AF,TP,2.5x6.5mm 1 S.A
R554 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R555 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R556 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R559 2008-001110 R-FUSIBLE(S) 68ohm,5%,2W,AG,TP,3.9X12mm 1 S.A
R560 2001-000052 R-CARBON(S) 3.3KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R561 2001-001126 R-CARBON(S) 300OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R562 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R563 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R564 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R565 2001-001071 R-CARBON(S) 12KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R566 2001-001040 R-CARBON(S) 0.68OHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R567 2006-001081 R-CEMENT 82ohm,5%,5W,CJ,TP,14x10x27mm 1 S.A
R568 2006-001081 R-CEMENT 82ohm,5%,5W,CJ,TP,14x10x27mm 1 S.A
RF11 2001-001175 R-CARBON(S) 62OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
RF12 2003-001093 R-METAL OXIDE(S) 12Kohm,5%,2W,AF,TP,3.9x 1 S.A
RF13 2008-000292 R-FUSIBLE(S) 3.3ohm,5%,2W,AF,TP,3.9x10mm 1 S.A
RF20 2003-001042 R-METAL OXIDE(S) 5.6Kohm,5%,2W,AF,TP,3.9 1 S.A
RF21 2003-001042 R-METAL OXIDE(S) 5.6Kohm,5%,2W,AF,TP,3.9 1 S.A
RF22 2003-000995 R-METAL OXIDE(S) 3.3Kohm,5%,2W,AF,TP,3.9 1 S.A
RF35 2003-001024 R-METAL OXIDE(S) 150ohm,5%,2W,AF,TP,3.9x 1 S.A
T0074 1201-001131 IC-VIDEO AMP 6111,SIP,9P,-,SINGLE,-,PLAS 1 S.A
T0081 BH62-00041A HEAT SINK-TR PN17LT,A1050S,T1.0,50,23,WH 1 S.N.A
T0087 1203-000243 IC-POSI.FIXED REG. 7812,TO-220,3P,-,PLAS 1 S.A
T0100 AA97-16540A ASSY AUTO-CRT WS32Z409D8XXEU,S64A,UNLIMI 1 S.N.A
T0175 AA62-00147A HEAT SINK-PS K62A,A1050,T2.0,35mm,40mm,W 1 S.N.A
T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.01 S.N.A
T0245 AA39-20010D LEAD CONNECTOR-ASSY ,1P,400,YFH800-01,S, 1 S.A
T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.N.A
T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.N.A
T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.N.A
V999S 3704-001194 SOCKET-CRT 8P+SEN,29PI,22.5PI,NI+SN,- 1 S.A
T0091 AA94-15824A ASSY PCB MISC-A/V SIDE WS32Z409D8XXEU,S6 1 S.A
C701 2202-000279 C-CERAMIC,MLC-AXIAL 47pF,5%,50V,SL,TP,3. 1 S.A
C702 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C703 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C704 2202-000279 C-CERAMIC,MLC-AXIAL 47pF,5%,50V,SL,TP,3. 1 S.A
DZ701 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ702 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ703 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ704 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ705 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ706 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ707 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
JA701 3722-001164 JACK-PIN 3P,SN,WH:YE:RE,STRAIGHT 1 S.A
JK01 3722-000544 JACK-VHS 4P,AG,BLK,STRAIGHT 1 S.A
L701 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L702 2701-000168 INDUCTOR-AXIAL 3.3UH,5%,2534 1 S.A
L703 2701-000168 INDUCTOR-AXIAL 3.3UH,5%,2534 1 S.A
L704 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
M2893 AA39-00381A LEAD CONNECTOR CS29M6SPNX/BWT,UL1185#26, 1 S.A
R701 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
Samsung Electronics 5-3
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
R702 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
T0091 AA41-01211A PCB-SIDE A/V WS32Z40,FR-1,1,A,1.6T,330X2 1 S.N.A
T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.001 S.N.A
T0569 AA97-16541A ASSY AUTO-A/V SIDE WS32Z409D8XXEU,S64A,U 1 S.N.A
M0014 AA94-15817C ASSY PCB MAIN WS32Z419D8XXEU,S64A,UNLIMI 1 S.A
C101 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A
C102 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C103 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C104 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C105 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C106 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
C107 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C108 2401-002144 C-AL 47uF,20%,16V,GP,TP,5x11,5 1 S.A
C109 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C110 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C302 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A
C303 2201-000132 C-CERAMIC,DISC 0.1NF,10%,500V,Y5P,TP,6.5 1 S.A
C304 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A
C306 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A
C307 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A
C308 2305-000411 C-FILM,LEAD-PEF 470nF,5%,50V,TP,7.3x4.8x 1 S.A
C401 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C402 2401-002231 C-AL 470uF,20%,50V,WT,TP,13x20mm,5m 1 S.A
C403 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C404 2401-001838 C-AL 470uF,20%,25V,WT,TP,10x16,5 1 S.A
C405 2401-000038 C-AL 470uF,20%,25V,GP,TP,10x12.5mm, 1 S.A
C406 2303-000163 C-FILM,LEAD-PPF 2.2nF,5%,800V,TP,15x13x8 1 S.A
C407 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A
C408 2301-001083 C-FILM,LEAD-PPF 27nF,5%,400V,TP,20x7.5x1 1 S.A
C409 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C411 2301-000160 C-FILM,LEAD-PEF 12nF,5%,50V,TP,11.0x6.0x 1 S.A
C412 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C414 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm 1 S.A
C415 2303-000002 C-FILM,LEAD-PPF 8.2nF,0.05,400V,TP,19x18 1 S.A
C416 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C417 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C418 2401-002459 C-AL 220uF,20%,25V,LZ,TP,10x16,5 1 S.A
C419 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A
C420 2301-000213 C-FILM,LEAD-PEF 220nF,5%,250V,TP,21.5x11 1 S.A
C421 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C422 2401-000040 C-AL 47UF,20%,250V,WT,TP,12.5X25MM,5 1 S.A
C423 2301-001257 C-FILM,LEAD 640nF,5%,400V,BK,26x14.5x24, 1 S.A
C424 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C425 2301-001774 C-FILM,LEAD 130nF,5%,400V,TP,18.0X13.5X7 1 S.A
C426 2306-000166 C-FILM,LEAD-PPF 220nF,5%,400V,BK,26x17x9 1 S.A
C433 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C448 2401-000787 C-AL 220uF,20%,160V,GP,BK,16x31.5mm,7.5 1 S.A
C601 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A
C602 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A
C603 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A
C604 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A
C607 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A
C608 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A
C609 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C610 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A
C615 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C616 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C619 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C621 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C628 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C629 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C630 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C634 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C640 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A
C642 2401-001998 C-AL 1000uF,20%,25V,GP,TP,10x20,5mm 1 S.A
C648 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C801 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A
5-4 Samsung Electronics
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
C802 2401-000822 C-AL 220uF,20%,200V,WT,BK,22x35,10 1 S.A
C803 2401-002227 C-AL 330uF,20%,450V,GP,BK,35x45,10 1 S.A
C804 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C805 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C806 2306-000112 C-FILM,LEAD-PPF 100nF,20%,250V,BK,-,15mm 1 S.A
C807 2301-001435 C-FILM,LEAD-PPF 1.5nF,5%,1.2kV,TP,15x8x1 1 S.A
C808 2401-001561 C-AL 47uF,20%,35V,WT,TP,8x11.5,5 1 S.A
C809 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A
C810 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A
C811 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A
C812 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A
C813 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A
C814 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C815 2201-000406 C-CERAMIC,DISC 0.27NF,10%,2KV,Y5P,TP,6.3 1 S.A
C816 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C817 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C818 2301-001194 C-FILM,LEAD-PPF 470nF,5%,250V,TP,18x16x8 1 S.A
C819 2201-000374 C-CERAMIC,DISC 0.22NF,5%,50V,C0G,TP,10.5 1 S.A
C820 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A
C821 2301-000356 C-FILM,LEAD-PEF 47nF,5%,50V,TP,7.5x4.0x6 1 S.A
C822 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C823 2401-000142 C-AL 1000uF,20%,16V,WT,TP,10x20,5 1 S.A
C825 2401-000038 C-AL 470uF,20%,25V,GP,TP,10x12.5mm, 1 S.A
C826 2201-000332 C-CERAMIC,DISC 2.2nF,20%,250V,Y5U,-,9x4m 1 S.A
C838 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A
C839 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C840 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C841 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A
C842 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C843 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C901 2401-002144 C-AL 47uF,20%,16V,GP,TP,5x11,5 1 S.A
C902 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
CA701 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA702 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CA703 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA704 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CA705 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA706 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA707 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA709 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA710 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA711 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA712 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA713 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA714 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA715 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA801 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA802 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CA803 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA804 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CA805 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CA806 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA807 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA811 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA812 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA813 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA815 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA816 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA817 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA818 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA819 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA820 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA821 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA822 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA823 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA824 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA825 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA827 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
Samsung Electronics 5-5
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CA829 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA830 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA831 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA834 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA835 2409-001049 C-ORGANIC 47UF,20%,6.3V,FX,TP,5X5.9MM,- 1 S.A
CA836 2409-001049 C-ORGANIC 47UF,20%,6.3V,FX,TP,5X5.9MM,- 1 S.A
CA839 2409-001065 C-ORGANIC 82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A
CA840 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A
CA841 2203-000405 C-CER,CHIP 0.18nF,5%,50V,C0G,1608 1 S.A
CA842 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A
CA843 2203-000715 C-CER,CHIP 3.3nF,10%,50V,X7R,1608 1 S.A
CA845 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA846 2402-001158 C-AL,SMD 1UF,20%,50V,WT,TP,4X5.2MM 1 S.A
CA847 2409-001114 C-POLYMER ,CHIP 220UF,20%,10V,LR,TP,7343 1 S.A
CA848 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA849 2409-001049 C-ORGANIC 47UF,20%,6.3V,FX,TP,5X5.9MM,- 1 S.A
CA850 2402-000173 C-AL,SMD 4.7uF,20%,35V,GP,TP,4.3x4.3x5.4 1 S.A
CA851 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA901 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA902 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A
CD901 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CD902 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD903 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CD904 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD905 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD906 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CD907 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD908 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD909 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A
CD910 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD911 2402-001238 C-AL,SMD 1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A
CD912 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD913 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD914 2402-001165 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 1 S.A
CD915 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CD916 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CD917 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CD918 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD919 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CD920 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD921 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD922 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD923 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD924 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD925 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD927 2301-001664 C-FILM,LEAD-OTHER 100nF,3%,50V,TP,20x16x 1 S.A
CD928 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CD930 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CD931 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD932 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD933 2402-001165 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 1 S.A
CD934 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CD935 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD936 2203-001034 C-CER,CHIP 5.6nF,10%,50V,X7R,1608 1 S.A
CD939 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD940 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD941 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD942 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD943 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD944 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,1608 1 S.A
CD945 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD946 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD947 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD948 2203-006170 C-CER,CHIP 220nF,10%,16V,X7R,1608 1 S.A
CD949 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A
CD950 2203-000975 C-CER,CHIP 47nF,10%,25V,X7R,TP,1608,- 1 S.A
CD951 2402-001129 C-AL,SMD 47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A
CD952 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
5-6 Samsung Electronics
Electrical Part List
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CD953 2203-006170 C-CER,CHIP 220nF,10%,16V,X7R,1608 1 S.A
CD954 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A
CD955 2203-006333 C-CER,CHIP 10000nF,20%,16V,X5R,TP,3216 1 S.A
CD956 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A
CD958 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD959 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A
CD960 2301-001664 C-FILM,LEAD-OTHER 100nF,3%,50V,TP,20x16x 1 S.A
CF01 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CF02 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CF03 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CF05 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CF06 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CF07 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A
CF08 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A
CF09 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A
CF10 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A
CF11 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A
CF12 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A
CH001 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH002 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH003 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH004 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH005 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH006 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH007 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH008 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH009 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH010 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH011 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A
CH012 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A
CH013 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH014 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH015 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A
CH016 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH017 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH018 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH019 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH020 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH021 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH022 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH023 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH024 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH025 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH026 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH027 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH028 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH029 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH030 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH031 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH032 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH033 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH034 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH035 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH036 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A
CH037 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A
CH038 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A
CH039 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A
CH040 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A
CH041 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A
CH042 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A
CH043 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CH044 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CIS05 0202-001477 SOLDER-CREAM LST309-M,-,D20~45◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
