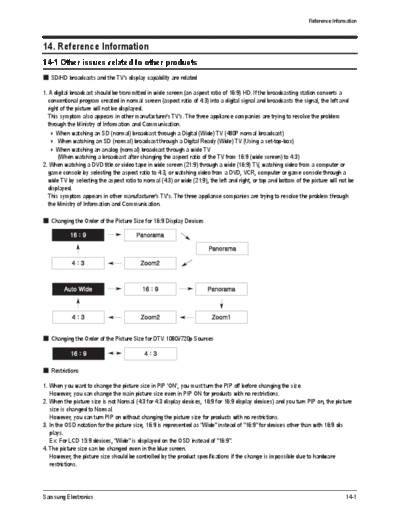

Image preview - the first page of the document
>> Download 20060428102249265_s64a_p_infor_14_193 documenatation <<
Text preview - extract from the document
Reference Information
14. Reference Information
14-1 Other issues related to other products
SD/HD broadcasts and the TV's display capability are related
1. A digital broadcast should be transmitted in wide screen (an aspect ratio of 16:9) HD. If the broadcasting station converts a
conventional program created in normal screen (aspect ratio of 4:3) into a digital signal and broadcasts the signal, the left and
right of the picture will not be displayed.
This symptom also appears in other manufacturer's TV's. The three appliance companies are trying to resolve the problem
through the Ministry of Information and Communication.
When watching an SD (normal) broadcast through a Digital (Wide) TV (480P normal broadcast)
When watching an SD (normal) broadcast through a Digital Ready (Wide) TV (Using a set-top-box)
When watching an analog (normal) broadcast through a wide TV
(When watching a broadcast after changing the aspect ratio of the TV from 16:9 (wide screen) to 4:3)
2. When watching a DVD title or video tape in wide screen (21:9) through a wide (16:9) TV, watching video from a computer or
game console by selecting the aspect ratio to 4:3, or watching video from a DVD, VCR, computer or game console through a
wide TV by selecting the aspect ratio to normal (4:3) or wide (21:9), the left and right, or top and bottom of the picture will not be
displayed.
This symptom appears in other manufacturer's TV's. The three appliance companies are trying to resolve the problem through
the Ministry of Information and Communication.
Changing the Order of the Picture Size for 16:9 Display Devices
Changing the Order of the Picture Size for DTV 1080i/720p Sources
Restrictions
1. When you want to change the picture size in PIP 'ON', you must turn the PIP off before changing the size.
However, you can change the main picture size even in PIP ON for products with no restrictions.
2. When the picture size is not Normal (4:3 for 4:3 display devices, 16:9 for 16:9 display devices) and you turn PIP on, the picture
size is changed to Normal.
However, you can turn PIP on without changing the picture size for products with no restrictions.
3. In the OSD notation for the picture size, 16:9 is represented as "Wide" instead of "16:9" for devices other than with 16:9 dis
plays.
Ex: For LCD 15:9 devices, "Wide" is displayed on the OSD instead of "16:9".
4. The picture size can be changed even in the blue screen.
However, the picture size should be controlled by the product specifications if the change is impossible due to hardware
restrictions.
Samsung Electronics 14-1
Reference Information
14-2 Technical Terms
Analog Broadcast Mono
Analog Broadcast is a television broadcasting signal transmit- A type of audio interface that transmits audio signals through a
ted according to the NTSC standard. single channel.
Through a mono interface, it is hard to experience stereophonic
Anynet sound and sound is played only by one speaker.
Anynet is an AV network system that enables the easy-to-use
AV interface for users by controlling connected AV devices Reception Sensitivity Amplification
through the Anynet menu when AV devices of Samsung A signal amplification technique that amplifies weak broadcast-
Electronics are connected. ing signals by applying satellite technology to provide a better
visual quality even for users in regions where only weak broad-
ANTENNA Terminal casting signals are available.
A port to connect the TV aerial using a coaxial cable. It is gen-
erally used to watch public broadcast programs. Satellite Broadcast
Satellite Broadcast transmits programs via satellite so that the
Audio Multimix broadcast is viable in all areas at a high visual and sound quali-
Audio Multimix provides 2 languages for audio when broadcast- ty. It provides approximately 100 channels including public
ing a foreign movie, drama, news, etc. You can select and lis- broadcast channels. To view satellite broadcast, you have to
ten to one of the supported languages or you can select and install an additional receiver.
listen to both languages simultaneously.
S-VIDEO Terminal
Cable Broadcast This is called super video. S-Video is a type of video signal
Cable Broadcast transmits programs via cable instead of radio which has the video luminance and color signals separated in
wave. To view a cable broadcast, you need to subscribe to your order to provide a better visual quality.
local cable broadcast service provider and install an additional
receiver. Stereo
A type of audio interface that transmits audio signals through 2
Component Terminal (Green, Blue, Red) channels.
The Component Port separately transmits the luminance signal Stereo transmits audio signals for the right and left channels so
and provides the best quality of all video connection types. that you can experience stereophonic sound, and the sound is
played with 2 speakers.
Digital Broadcast
Digital Broadcast is a television broadcasting signal digitized Tuner
and transmitted according to the United States' terrestrial digital A device that enables selecting a specific frequency for a chan-
broadcast standard, or ATSC. nel on a TV or radio.
DVD (Digital Versatile Disc) VHF/UHF
DVD is a large capacity media that can save multimedia con- VHF refers to TV channels 2 to 13, and UHF refers to TV chan-
tent such as video, game, audio applications, etc. using MPEG- nels 14 to 69.
2 video compression technology on a CD-sized disc.
Video/Audio Terminal
English Caption You may experience poor visual and audio quality when watch-
A function that shows English caption or text information includ- ing a video tape on channel 3 or 4 through the antenna cable.
ed in the broadcasting signal or video tape. You can use this You can experience better visual and audio quality connecting
function to study English by watching AFKN or CC marked the TV and VCR through the Video/Audio ports. The video port
video tapes. is distinguished by the color yellow, and the audio ports are dis-
tinguished by the white (left) and red colors (right).
External Source
External Input is connecting video devices such as a VCR, Wired Broadcast
camcorder, DTV receiver, DVD, etc. as a video source. Satellite Broadcast refers to movie, entertainment and educa-
tional programs transmitted by the broadcasting station in a
HDMI (High Definition Multimedia Interface) hotel or school.
An interface into which the digital signals as well as the high
quality image data can be connected with one cable. There is
no need to compress the bit rate.
14-2 Samsung Electronics
