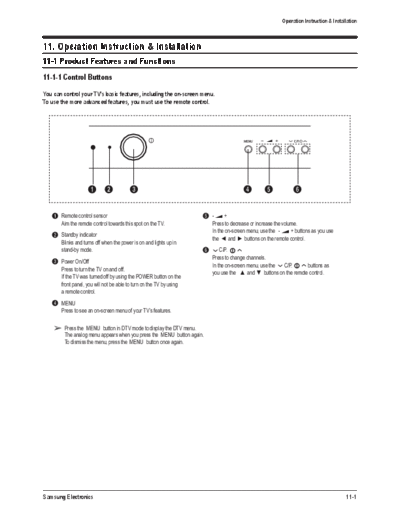

Image preview - the first page of the document
>> Download 20060428102249265_s64a_p_opera_11_138 documenatation <<
Text preview - extract from the document
Operation Instruction & Installation
11. Operation Instruction & Installation
11-1 Product Features and Functions
11-1-1 Control Buttons
You can control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
Remote control sensor - +
Aim the remote control towards this spot on the TV. Press to decrease or increase the volume.
In the on-screen menu, use the - + buttons as you use
Standby indicator
the and buttons on the remote control.
Blinks and turns off when the power is on and lights up in
stand-by mode. C/P.
Press to change channels.
Power On/Off
In the on-screen menu, use the C/P. buttons as
Press to turn the TV on and off.
you use the and buttons on the remote control.
If the TV was turned off by using the POWER button on the
front panel, you will not be able to turn on the TV by using
a remote control.
MENU
Press to see an on-screen menu of your TV's features.
Press the MENU button in DTV mode to display the DTV menu.
The analog menu appears when you press the MENU button again.
To dismiss the menu, press the MENU button once again.
Samsung Electronics 11-1
Operation Instruction & Installation
11-1-2 Side Panel Jacks
You can use the side panel jacks to connect an A/V component that is used only occasionally, such as a camcorder or video game.
S-VIDEO INPUT
Connect a S-video signal from a camcorder or video game.
or
VIDEO INPUT
Used to connect a video signal from a camcorder or video
game.
AUDIO INPUT
Connect the audio signals from a camcorder or video game.
11-1-3 Connection Jacks (Rear)
Use the rear panel jacks to connect an A/V component that will be connected continuously, such as a VCR or a DVD player.
Because there are three sets of input jacks, you can connect three different A/V components (i.e., a VCR and a DVD, 2 VCRs,
etc.)
Please insert the
card as shown
Inserting the CI (Common Interface) card
If you want to watch the scrambled channel,
insert the CI card into the "COMMON
INTERFACE" slot.
or
Cable Television Network
11-2 Samsung Electronics
Operation Instruction & Installation
Connecting to an Aerial or Cable Television Network
Connect the aerial or network input cable to the 75 coaxial socket.
To view television channels correctly, a signal must be received by the set from one of the sources: an outdoor aerial, cable
television network, or satellite network. If you are using an indoor aerial, you may need to adjust it when tuning your television
until you obtain a picture that is both sharp and clear.
Connecting to the COMPONENT Input
Connect component video cables to component connector ( Y, PB , P R ) on the rear of your television and the other ends to
corresponding component video out connectors on the DTV receiver or DVD player.
The Y, P B and P R connectors on your component devices (DTV receiver or DVD player) are sometimes labeled Y, B-Y and R-Y
or Y, Cb and Cr.
Connect RCA audio cables to AUDIO (L/R) IN on the rear of your television and the other ends to corresponding audio out
connectors on the DTV receiver or DVD player.
Connecting to the SCART Input/Output
Connect SCART cable to an appropriate external A/V device such as a VCR, DVD player, decoder, satellite receiver, video game
device, or video disc player.
- The EXT1 (RGB) connector is used for equipment with an RGB output, such as a video game device or video disc player.
- The EXT2 (AV) connector is used for the audio/video output of current television programme.
Input/Output Specification
Input Output
Connector
Video Audio(L/R) S-Video RGB Video Audio(L/R)
EXT 1 O O X O O O
EXT 2 O O X X O O
Connecting to the HDMI
Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and
digital TVs).
No additional Audio connection is needed for an HDMI to HDMI connection.
What is HDMI?
"High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels
of digital audio (5.1 channels).
The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The
difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy
Protection) coding feature installed, and supports multi - channel digital audio.
You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the AUDIO (L/R) connector on DVI for
sound output.
When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has
been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture
distortion, image breakup or no picture.
Supported modes for DVI or HDMI Component
480i 480p 576i 576p 720p 1080i-50Hz 1080i-60Hz
HDMI-50Hz X X X O O O X
HDMI-60Hz X O X X O X O
Component O O O O O O O
Do not attempt to connect the HDMI connector to a PC or Laptop Graphics Card.
(This will result in a blank screen being displayed)
COMMON INTERFACE
PCMCIA Slot supports the DVB Common Interface (DVB-CI) standard. This connection is provided for future expansion of your
Samsung DTV set allowing the installation of DVB-CI compatible peripherals, for example a DVB-CI module to support pay TV
services. The availability of DVB-CI peripherals varies country by country. Please contact your retailer for information about the
availability of DVB-CI peripherals in your region.
Samsung Electronics 11-3
Operation Instruction & Installation
11-1-4 Remote Control
You can use the remote control up to about 23 feet from the TV. When using the remote, always point it directly at the TV.
You can also use your remote control to operate your VCR, DVD, Cable box, and Samsung Set-top Boxes.
Television stand-by Picture size selection
Direct channel selection Digital subtitle display
One/Two-digit channel selection Sound mode selection
Switch between TV and DTV Still picture
mode selection
Channel control Teletext Functions
Volume increase Exit from the teletext display
Temporary sound switch-off Teletext index
Volume decrease Teletext page hold
Menu display Teletext size selection
Move to the required menu Teletext mode selection (LIST/
option / Adjust an option value FLOF)
respectively
Teletext sub-page
Electronic Program Guide (EPG)
display Teletext next page
EPG Display/ favourite channel Teletext previous page
edition Teletext cancel
Picture effect selection Teletext reveal
Picture menu display Teletext store
Sound effect selection Teletext display / Mix both
Sound menu display Pressing TEXT/MIX selects
Teletext, Double, or Mix mode in
External input selection sequence.
Switch repeatedly between the Fastext topic selection
last two channels displayed
Automatic switch-off
DTV Menu Display
Next channel
Previous channel
Exit from any display
Change confirmation
Information display
11-4 Samsung Electronics
