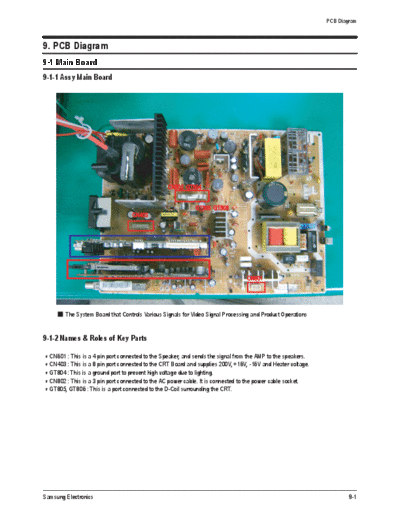

                                                                                                            PCB Diagram



9. PCB Diagram
9-1 Main Board
9-1-1 Assy Main Board




                                                 CN802 GT804


                                                            GT805 GT806
                                   CN403




                                                                                CN601




      The System Board that Controls Various Signals for Video Signal Processing and Product Operations


9-1-2 Names & Roles of Key Parts

CN601 : This is a 4 pin port connected to the Speaker, and sends the signal from the AMP to the speakers.
CN403 : This is a 8 pin port connected to the CRT Board and supplies 200V, +16V, -16V and Heater voltage.
GT804 : This is a ground port to prevent high voltage due to lighting.
CN802 : This is a 3 pin port connected to the AC power cable. It is connected to the power cable socket.
GT805, GT806 : This is a port connected to the D-Coil surrounding the CRT.




Samsung Electronics                                                                                                 9-1
PCB Diagram


9-1-3 Main Board Connector Pin

CN401                            CN601
Connected to the CRT Board       Connected to the Speaker Port
 PIN No.      Pin Name            PIN No.      Pin Name
      1         200V                 1            R+
      2         NC                   2             R-
      3        Heater                3             L+
      4         GND                  4             L-
      5        -16.5V
      6        +16.5V
      7         GND
      8         NC




9-2                                                              Samsung Electronics
                                                                                                                    PCB Diagram


9-2 Feature Box Board
9-2-1 Assy Feature Box Board




                                                                                            CN05

                                                                                            CN03




     This controls the path of the electron beams from the CRT electron guns using the deflection coil.


9-2-2 Names & Roles of Key Parts

* CN07 : This is a 14 pin port connected to the CRT Assy's, and outputs final R/G/B signals to the CRT Ass'y.
         In addition, it outputs the Tilt, VM, and Power signals for the CRT Drive.
* CN05 : This is a 4 pin port connected to the Control Ass'y, and receives TV/Video, Menu, Ch Up/Down and Vol -/+ signals.
* CN03 : This is a 8 pin port connected to the Side AV, and receives S-Video2 and AV4 external inputs.




Samsung Electronics                                                                                                          9-3
PCB Diagram


9-2-3 Feature Box Board Connector Pin

CN07                             CN05                             CN03
Connected to the CRT Ass'y       Connected to the Control Ass'y   Connected to the Side AV Port
 PIN No.      Pin Name            PIN No.       Pin Name           PIN No.       Pin Name
      1         AKB                  1            GND                 1          SV-C-IN
      2         GND                  2            KEY-1               2          SV-C-ID
      3        B-OUT                 3             NC                 3         F-CVBS IN
      4         GND                  4            KEY-2               4            GND
      5        G-OUT                                                  5          FAV-L-IN
      6         GND                                                   6            GND
      7        R-OUT                                                  7          FAV-R-IN
      8         GND                                                   8            GND
      9        12V_A
      10        SVM
      11       POWER
      12        TILT
      13        SVM
      14        GND




9-4                                                                                Samsung Electronics
                                                                                                                 PCB Diagram


9-3 CRT Board
9-3-1 Assy CRT Board




                                                                             FN1




     CRT Drive
     This supplies the final R/G/B signal from the F-Box and the CRT deflection signal to the CRT


9-3-2 Names & Roles of Key Parts

* GT501, GT502, GT505, GT506 : This is a port connected to the TBC-Wire and plays the role of CRT ground.
* GT503, GT504 : This is a port for countermeasures against compulsory discharges and is connected to the Main Board.
* CNC04 : This is a port to receive the R/G/B output signals from the Feature Box.
* CNC02 : This is a port that receives power for the CRT and AMP from the Main Board.
* FV1 : A port to connect the VM signal to the DY Ass'y.
* FN1 : A port to connect signals to the Tilt Coil and is regured for the screen slant adjustment.




Samsung Electronics                                                                                                      9-5
PCB Diagram


9-3-3 CRT Board Connector Pin

CNC04                                            CNC02
Connected to R/G/B signal from the Feature Box   Connects the power from the Main Board
 PIN No.       Pin Name                           PIN No.        Pin Name
      1          AKB                                 1             200V
      2          GND                                 2              NC
      3         B-OUT                                3             Heater
      4          GND                                 4              GND
      5         G-OUT                                5             -16.5V
      6          GND                                 6             +16.5V
      7         R-OUT                                7              GND
      8          GND                                 8              NC
      9         12V_A
      10         SVM
      11       POWER
      12         TILT
      13         SVM
      14         GND



FV1                                              FN1
Connected the VM signal to the DY Ass'y          Connects the signal to the Tilt Coil
 PIN No.       Pin Name                           PIN No.        Pin Name
      1          VM                                  1              GND
      2          NC                                  2              GND
      3          VM                                  3              TILT
                                                     4              TILT




9-6                                                                                       Samsung Electronics
