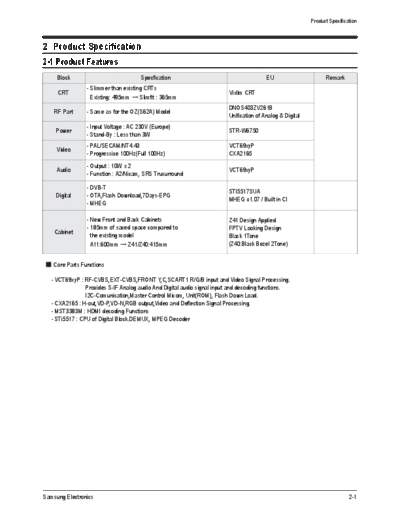

Image preview - the first page of the document
>> Download 20060428102249265_s64a_p_spec_2_195 documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Features
Block Specfication EU Remark
- Slimmer than existing CRTs
CRT Vixlim CRT
Existing: 495mm Slimfit : 365mm
DNOS403ZV261B
RF Part - Same as for the OZ(S62A) Model
Unification of Analog & Digital
- Input Voltage : AC 230V (Europe)
Power STR-W6750
- Stand-By : Less than 3W
- PAL/SECAM/NT4.43 VCT69xyP
Video
- Progressive 100Hz(Full 100Hz) CXA2165
- Output : 10W x 2
Audio VCT69xyP
- Function : A2/Nicam, SRS Trusurround
- DVB-T
STI5517SUA
Digital - OTA,Flash Download,7Days-EPG
MHEG v1.07 / Built in CI
- MHEG
- New Front and Back Cabinets Z41 Design Applied
- 185mm of saved space compared to FPTV Looking Design
Cabinet
the existing model Black 1Tone
A11:600mm Z41/Z40:415mm (Z40:Black Bezel 2Tone)
Core Parts Functions
- VCT69xyP : RF-CVBS,EXT-CVBS,FRONT Y,C,SCART1 R/G/B input and Video Signal Processing.
Provides S-IF Analog audio And Digital audio signal input and decoding functions.
I2C-Comunication,Master Control Micom, Unit(ROM), Flash Down Load.
- CXA2165 : H-out,VD-P,VD-N,RGB output,Video and Deflection Signal Processing.
- MST3383M : HDMI decoding Functions
- STi5517 : CPU of Digital Block.DEMUX, MPEG Decoder
Samsung Electronics 2-1
Product Specification
2-2 Key Features
Model WS32Z419D/WS32Z408D
Voltage AC230V
Frequency of Operation 50/60 Hz
Dimensions(mm) 910 X 415 X 570 mm
Weight(Kg) 53.2 Kg
H/W Configuration
- Slimfit(Low Depth) CRT adopted
- Progressive 100Hz (Full 100Hz)
- HD Ready(Option):720P,1080i
- DVB-T
S/W Configuration
- VCTP 1 Chip UART communication.
- Output Format identification embodiment by input signal that use Scaler
- Multi Systems PAL/SECAM
- ATS,Auto Wide,Pre Channel, On/Off Timer,Zoom,Blue Screen
- HDMI Algorithm
- Multi Systems : PAL/SECAM/NT4.43
- SCAN : Progressive Scan (Full 100Hz)
- AKB (Auto Kinetic Bias)
- Still Picture, Digital Noise Reduction
- Auto Wide
- Black Level expansion,CTI,VM,Dynamic Focus
Sound
- System : A2/Niacam Stereo, SRS Trusurround
- Output : 10Wx2
- Speaker : 2EA
- AVL, Melody, Auto Stereo, Auto Mute, Equalize
In/Out Terminals
- Side : 1 CVBS Input, 1 S-Video Input, Sound L/R
- Rear : 2 Scart, 1 CI-Slot, 1 Tuner.
Options - 1 Component(480i/480p/576i/576p/720p/1080i 50Hz/60Hz)
1 HDMI(480p/576p/720p/1080i 50Hz,60Hz)
Remocon : TM86
Power Supply
- Europe(230V), CIS(160V- 300V)
Power Supply and Power Comsumption
- Input : AC 230V
- Max Power : 180W / Stand by : Less than 3W
2-2 Samsung Electronics
Product Specification
2-3 Specifications Analysis
Model WS-32M204D WS-32Z419D WS-32Z408D
Chassis S59B S64A S64A
Design
Product Type FLAT CRT Slim Fit CRT Slim Fit CRT
Digital Display SD SD SD
Basic
Screen Size 32 Inch 32 Inch 32 Inch
Aspect Ratio 16:9 16:9 16:9
Progressive Scan - O O
Digital Comb Filter - 4H 4H
Screen Pitch 0.68 0.73 0.73
Visual Quality AKB O O O
Digital Noise Reduction O O
DNIe - - -
3:2 Pull Down Support -
Base/Treble/Balance
Equalizer 5 Band 5 Band
AVL O O
Audio
Surround SRS-Trusurround SRS-Trusurround
Speaker System Direct Direct
Speaker Output 10W + 10W 10W + 10W
Dual Screen Function - - -
Double Screen - - -
Function TTX
Still Picture O O
Auto Jack Recognition - - -
Antenna In Rear : 1 Rear : 1 Rear : 1
Rear : 2 SCART Rear : 2 SCART Rear : 2 SCART
External In
Side : 1 CVBS Side : 1 CVBS Side : 1 CVBS
S-Video Side : 1 Side : 1 Side : 1
Y/Pb/Pr - Rear : 1 -
Ports PC - - -
DVI - - -
HDMI - Rear : 1 -
Digital Audio Out - - -
Video Out Rear : 1 Rear : 1 Rear : 1
Audio Out Rear : 1 - -
Samsung Electronics 2-3
Product Specification
2-4 Accessories
Accessories Item Item code Remark
Remote Control AA59-00379A
AAA Alkaline Battery (2) 4301-000121
Supplied Accessories
Owner's Instructions AA68-03776A Samsung Service center
Warranty Card BN68-00514B
Registration Card AA68-03575A
Safety Guide Manual AA68-03242E
Video Cable /
-
Audio Cable
Component Cable -
Accessories that can be
purchased additionally
S-Video Cable -
Internal shopping mall
Antenna Cable -
HDMI Cable -
HDMI/DVI Cable -
2-4 Samsung Electronics
