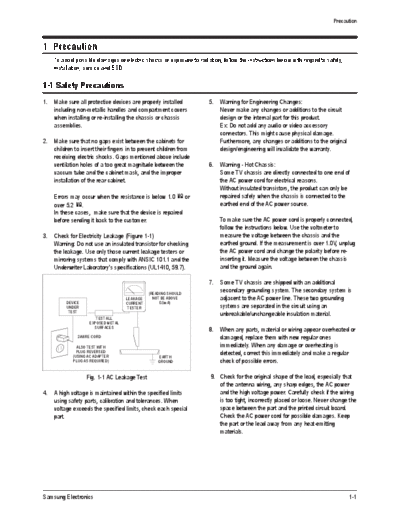

Image preview - the first page of the document
>> Download SAMSUNG WS32Z30HP WS32Z40HT CW29Z308T S63B documenatation <<
Text preview - extract from the document
Precaution
1. Precaution
To avoid possible damages or electric shocks or exposure to radiation, follow the instructions below with regard to safety,
installation, service and ESD..
1-1 Safety Precautions
1. Make sure all protective devices are properly installed 5. Warning for Engineering Changes:
including non-metallic handles and compartment covers Never make any changes or additions to the circuit
when installing or re-installing the chassis or chassis design or the internal part for this product.
assemblies. Ex: Do not add any audio or video accessory
connectors. This might cause physical damage.
2. Make sure that no gaps exist between the cabinets for Furthermore, any changes or additions to the original
children to insert their fingers in to prevent children from design/engineering will invalidate the warranty.
receiving electric shocks. Gaps mentioned above include
ventilation holes of a too great magnitude between the 6. Warning - Hot Chassis:
vaccum tube and the cabinet mask, and the improper Some TV chassis are directly connected to one end of
installation of the rear cabinet. the AC power cord for electrical reasons.
Without insulated transistors, the product can only be
Errors may occur when the resistance is below 1.0 or repaired safely when the chassis is connected to the
over 5.2 . earthed end of the AC power source.
In these cases, make sure that the device is repaired
before sending it back to the customer. To make sure the AC power cord is properly connected,
follow the instructions below. Use the voltmeter to
3. Check for Electricity Leakage (Figure 1-1) measure the voltage between the chassis and the
Warning: Do not use an insulated transistor for checking earthed ground. If the measurement is over 1.0V, unplug
the leakage. Use only those current leakage testers or the AC power cord and change the polarity before re-
mirroring systems that comply with ANSIC 101.1 and the inserting it. Measure the voltage between the chassis
Underwriter Laboratory's specifications (UL1410, 59.7). and the ground again.
7. Some TV chassis are shipped with an additional
(READING SHOULD
secondary grounding system. The secondary system is
LEAKAGE NOT BE ABOVE adjacent to the AC power line. These two grounding
DEVICE CURRENT 0.5mA)
UNDER TESTER systems are separated in the circuit using an
TEST
unbreakable/unchangeable insulation material.
TEST ALL
EXPOSED METAL
SURFACES
8. When any parts, material or wiring appear overheated or
2-WIRE CORD damaged, replace them with new regular ones
ALSO TEST WITH immediately. When any damage or overheating is
PLUG REVERSED
(USING AC ADAPTER
detected, correct this immediately and make a regular
EARTH
PLUG AS REQUIRED) GROUND check of possible errors.
Fig. 1-1 AC Leakage Test 9. Check for the original shape of the lead, especially that
of the antenna wiring, any sharp edges, the AC power
4. A high voltage is maintained within the specified limits and the high voltage power. Carefully check if the wiring
using safety parts, calibration and tolerances. When is too tight, incorrectly placed or loose. Never change the
voltage exceeds the specified limits, check each special space between the part and the printed circuit board.
part. Check the AC power cord for possible damages. Keep
the part or the lead away from any heat-emitting
materials.
Samsung Electronics 1-1
Precaution
10. Safety Indication:
Some electrical circuits or device related materials
require special attention to their safety features, which
cannot be viewed by the naked eye. If an original part is
replaced with another irregular one, the safety or
protective features will be lost even if the new one has a
higher voltage or more watts.
Critical safety parts should be bracketed with ( ! ).
Use only regular parts for replacements (in particular,
flame resistance and dielectric strength specifications).
Irregular parts or materials may cause electric shock or
fire.
1-2 Samsung Electronics
Precaution
1-2 Servicing Precautions
Warning 1: First carefully read the "Safety Instruction" in this service manual.
When there is a conflict between the service and the safety instructions, follow the safety instruction at all times.
Warning 2: Any electrolytic capacitor with the wrong polarity will explode.
1. The service instructions are printed on the cabinet, and 6. Insulation Check Process: Unplug the power cord from
should be followed by any service personnel. the AC source and turn the switch on. Connect the insu-
lating resistance meter (500v) to the AC plug blade.
2. Make sure to unplug the AC power cord from the power
source before starting any repairs. The insulating resistance between the blade of the AC
(a) Remove or re-install parts or assemblies. plug and that of the conductive material should be more
(b) Disconnect the electric plug or connector, if any. than 1 .
(c) Connect the test part in parallel with the electrolytic
capacitor. 7. Any B+ interlock should not be damaged.
If the metal heat sink is not properly installed, no
3. Some parts are placed at a higher position than the connection to the AC power should be made.
printed board. Insulated tubes or tapes are used for this
purpose. The internal wiring is clamped using buckles to 8. Make sure the grounding lead of the tester is connected
avoid contact with heat emitting parts. These parts are to the chassis ground before connecting to the positive
installed back to their original position. lead. The ground lead of the tester should be removed
last.
4. After the repair, make sure to check if the screws, parts
or cables are properly installed. Make sure no damage is 9. Beware of risks of any current leakage coming into
caused to the repaired part and its surroundings. contact with the high-capacity capacitor.
5. Check for insulation between the blade of the AC plug 10. The sharp edges of the metal material may cause
and that of any conductive materials (i.e. the metal physical damage, so ensure wearing protective gloves
panel, input terminal, earphone jack, etc). during the repair.
Samsung Electronics 1-3
Precaution
1-3 Static Electricity Precautions
1. Some semi-conductive ("solid state") devices are 6. Use only anti-static solder removal devices.
vulnerable to static electricity. These devices are known Most solder removal devices do not support an
as ESD. ESD includes the integrated circuit and the field anti-static feature. A solder removal device without an
effect transistor. To avoid any materials damage from anti-static feature can store enough static electricity to
electrostatic shock, follow the instructions described cause damage to the ESD.
below.
7. Do not remove the ESD from the protective box until the
2. Remove any static electricity from your body by replacement is ready. Most ESD replacements are
connecting the earth ground before handling any covered with lead, which will cause a short to the entire
semi-conductive parts or ass'ys. Alternatively, wear a unit due to the conductive foam, aluminum foil or other
dischargeable wrist-belt. conductive materials.
(Make sure to remove any static electricity before
connecting the power source - this is a safety instruction 8. Remove the protective material from the ESD
for avoiding electric shock) replacement lead immediately after connecting it to the
chassis or circuit ass'y.
3. Remove the ESD ass'y and place it on a conductive
surface such as aluminum foil to prevent accumulating 9. Take extreme caution in handling any uncovered ESD
static electricity. replacements. Actions such as brushing clothes or lifting
your leg from the carpet floor can generate enough static
4. Do not use any Freon-based chemicals. electricity to damage the ESD.
Such chemicals will generate static electricity that
causes damage to the ESD.
5. Use only grounded-tip irons for soldering purposes.
CAUTION
These servicing instructions are for use by
qualified service personnel only.
To reduce the risk of electric shock do not
perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.
1-4 Samsung Electronics
Precaution
1-4 Installation Precautions
1. For safety reasons, more than two people are required 6. Keep the antenna far away from any high-voltage cables
for carrying the product.. and install it firmly. Contacting the high-voltage cable or
the antenna falling over may cause fire or electric shock.
2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or electric 7. When connecting the RF antenna, check for a DTV
shock. receiving system and install a separate DTV reception
antenna for areas with no DTV signal.
3. Do not place the projector in areas with poor ventilation
such as a bookshelf or closet. The increased internal 8. Check the basics of the screen test.
temperature may cause fire. - Image position/size, Tilt adjustment
4. Bend the external antenna cable when connecting it to
the product. This is a measure to protect it from being
exposed to moisture. Otherwise, it may cause a fire or
electric shock.
5. Make sure to turn the power off and unplug the power
cord from the outlet before removing the product. Also
check the antenna cable or the external connectors if
they are fully unplugged. Damage to the cord may cause
fire or electric shock.
Samsung Electronics 1-5
MEMO
1-6 Samsung Electronics
Product Specification
2. Product Specification
2-1 Product Features
Block Specfication EU East asia/CIS Remark
- Slimmer than existing CRTs
CRT Vixlim CRT Vixlim CRT
Existing: 495mm Slimfit : 365mm
RF Part - Same as for the OZ(S62A) Model TMQZ2-402A, PAL-CW TMQZ2-401A, PAL-CS
- Input Voltage : AC 160~300V
Power STR-X6750 STR-X6750
- Stand-By : Less than 3W
- PAL/SECAM/NT4.43/NT3.58 VCT69xyP VCT69xyP
Video
- Progressive 100Hz(Full 100Hz) CXA2165 CXA2165
- Output : 10W x 2
Audio VCT69xyP VCT69xyP
- Function : SRS-TRUSURROUND
- New Front and Back Cabinets Z30 Design Applied Z30(OZ) Design Applied
- 184mm of saved space compared to FPTV Looking Design FPTV Looking Design
Cabinet
the existing model Black Bezel 2Tone Black Bezel 2Tone
A11:580mm Z40:396mm Color Design Color Design
Core Parts Functions
- VCT69xyP : RF-CVBS,EXT-CVBS,FRONT Y,C,SCART1 R/G/B input and Video Signal Processing.
Provides S-IF Analog audio And Digital audio signal input and decoding functions.
I2C-Comunication,Master Control Micom, Rom Micom
- CXA2165 : H-out,VD-P,VD-N,RGB output,Video and Deflection Signal Processing.
- MST3383M : HDMI decoding Functions
- TW9906 : PIP Processor
Samsung Electronics 2-1
Product Specification
2-2 Key Features
WS32Z40 / CW29Z40 WS32Z40 / CW29Z40 / CS29Z40
Model
(Europe) WS32Z30 / CW29Z30 (CIS)
Voltage AC230V 160~300V
Frequency of Operation 50/60 Hz 50/60 Hz
934X399X568 (32") 934X399X568 (32")
Dimensions(mm)
796X421X593 (29") 796X421X593 (29")
54.5Kg (32") 54.5Kg (32")
Weight
43.0Kg (29") 43.0Kg (29")
H/W Configuration
- Slimfit(Low Depth) CRT adopted
- Progressive 100Hz (Full 100Hz)
S/W Configuration
- Multi System PAL/SECAM(CIS Option:NTSC4.43/NTSC3.58)
- ATS, Auto Wide, Pre Channel, On/Off Timer, Zoom, Blue Screen
- System
Video : PAL/SECAM/ NTSC3.58(CIS Option)
Sound : B/G, D/K, I, L/L', M(CIS Option)
- Black Level expansion, CTI, VM, Dynamic focus
- AKB(Auto kinetic Bias)
- Still picture, Digital Noise reduction
- PIP (2Tuner) : Option
- Auto Wide
Sound
- System : A2+Niacam Stereo, SRS Trusurround
- Output : 10W+10W
- Speaker : 2EA
- AVL, Melody, Auto Stereo, Auto Mute, Equalize
In/Out Terminals
- Side : 1 CVBS Input, 1 S-Video Input, Sound L/R
- Rear : 2 Scart, 1 Component(480i/480P/576i/576P/720P/1080i/1080P 50Hz/60Hz), 1 HDMI Input(Option)
Remocon : TM86
Power Supply
- Europe(230V), CIS(160V- 300V)
Power Consumption
- Stand-by : 3W
- Max Power : 180W
2-2 Samsung Electronics
Product Specification
2-3 Specifications Analysis
Model WS32Z30/CW29Z30 CW-29Z338T
Chassis S62B S63B
Design
Product Type Slimfit CRT Slimfit CRT
Digital Display - -
Basic
Screen Size 32 / 29 inch 29 inch
Aspect Ratio 16:9 / 4:3 4:3
Digital Comb Filter - O
Screen Pitch 0.73 0.73
AKB O O
Visual Quality
Digital Noise Reduction O O
DNIe - -
3:2 Pull Down Support - -
Base/Treble/Balance - -
Equalizer 5 Band 5 Band
AVL O O
Audio
Surround SRS-WOW SRS-TRUSURROUND
Speaker System Direct Direct
Speaker Output 10W + 10W 10W + 10W
Dual Screen Function - -
Double Screen - -
Function TTX 10page/200page(Option) 750page(Option)
Still Picture O O
Auto Jack Recognition - -
Antenna In Rear : 1 Rear : 1
External In Rear:2, Side:1 Rear:2, Side:1
S-Video Side : 1 Side : 1
Y/Pb/Pr - Rear : 1
PC - -
Ports
DVI - -
HDMI - -
Digital Audio Out - -
Video Out Rear : 1 Rear : 1
Audio Out - -
Samsung Electronics 2-3
Product Specification
2-4 Accessories
Accessories Item Item code Remark
Remote Control AA59-00382A
Batteries 4301-000121
Supplied Accessories
Owner's Instructions AA68-03784A Samsung Service center
Warranty Card BN68-00514D
Registration Card AA68-03575D
Safety Guide Manual AA68-03242E
Video Cable
-
Audio Cable
Component Cable(RCA) -
Accessories that can be
purchased additionally
Antenna Cable - Internet shopping mall
HDMI Cable -
HDMI/DVI Cable -
2-4 Samsung Electronics
Alignment & Adjustment
3. Alignment & Adjustment
3-1 Service Instruction
1. General Adjustment :
In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,
focus, etc.
Display a black and white picture on the screen to check if the picture is clearly displayed.
If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the
degauss coil. If the spotted points remain, re-adjust the purity and the convergence. This completes the basic performance
examination.
Notice.
These adjustments and the check list are only applied to S63A chassis-applied models.
Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to
the set so as to prevent shock to the set or to yourself.
These adjustment specifications have been created on the basis of the domestic S63A chassis-applied remote control
model. Some of the contents may be changed subject to the sales location and the product specifications.
2. When replacing the F_Box Board :
Since the software is loaded to the EPROM of the F_box board, check the version of the
software of the EPROM.
To check the version of the software, Enter service mode presee the key on the reomte
control according to the following seguenu.
(in stand-by status) InfoMenuMutePowerON
The software information will then be displayed below the OSD menu.
The notation of the software information : For example, T_SHPEU_1009 refers to
"CORSET BASIC MODEL Europe. ver.1009".
Since the settings including the Channel
information, Deflection, etc. are saved to the
nvRAM, reconfigure these settings when
replacing the System Board
3. When replacing the Main Board : No adjustments required. Except that Tilt adjustment, focus adjustment, screen voltage
setting and W/B adjustment are all required.
4. When replacing the CRT Ass'y : No adjustments required.
5. When replacing the front panel master power switch : No adjustments required.
6. When replacing the Side AV : No adjustments required.
7. When replacing the control switch : No adjustments required.
Samsung Electronics 3-1
Alignment & Adjustment
3-2 How to Access Service Mode
1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)
Info Menu Mute Power On
When failing to enter Service Mode, repeat the procedure above.
2. The initial screen of Service Mode.
< Europe>
1. Deflection
2. 480p/576p
3. 720p/1080i
4. 4:3 offset--Vixlm
5. Video Adkust1
6. Video Adkust2
7. Video Adkust3
8. Video Adkust4
9. Video Adkust5
10. Video Adkust6
11. Video Adkust7
12. Video Adkust8
13. OPTION (55 OB 00)
14. YC Delay
15. EEPROM
16. Bus Stop
17. checksum 0000
18. RESET
3. Functions of the Keys within Service Mode
MENU Show all menus
/ Move the cursor to select an item.
/ Adjust the selected configuration value
3-2 Samsung Electronics
Alignment & Adjustment
3-3 Factory Data
Europe
1. DEFLECTION(PAL)
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 V Amp 0~63 30 30 34 Adjust
1 V Shift 0~63 26 26 27 Adjust
2 H EW 0~63 30 30 21 Adjust
3 H Shift 0~63 36 36 42 Adjust
4 V Linearity 0~15 6 6 6 FIX
5 Upper Linearity 0~15 0 0 0 FIX
6 Lower Linearity 0~15 1 1 1 FIX
7 V SC 0~15 3 3 4 FIX
8 H Parabola 0~63 32 32 48 Adjust
9 Upper Corner 0~63 37 37 38 Adjust
10 Lower Corner 0~63 34 34 35 Adjust
11 H Trapezium 0~63 40 40 37 Adjust
12 Bow 0~63 32 32 34 Adjust
13 Angle 0~63 30 30 28 Adjust
14 V Position 0~63 32 32 32 FIX
15 H Parablar_Pal(Offset) 0~63 0 0 0 FIX
16 Upper Corner_Pal(Offset) 0~63 0 0 0 FIX
17 Lower Corner_Pal(Offset) 0~63 0 0 0 FIX
18 Bow(Offset) 0~63 0 0 0 FIX
2. DEFLECTION(NTSC)
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 V Amp 0~63 -4 -6 -4 -6 Adjust
1 V Shift 0~63 -3 -3 -3 Adjust
2 H EW 0~63 0 -2 0 -2 Adjust
3 H Shift 0~63 -3 0 -3 0 Adjust
4 V Linearity 0~15 0 0 0 Adjust
5 Upper Linearity 0~15 0 0 0 FIX
6 Lower Linearity 0~15 0 0 0 FIX
7 V SC 0~15 0 0 0 FIX
8 H Parabola 0~63 0 0 0 Adjust
9 Upper Corner 0~63 0 0 0 Adjust
10 Lower Corner 0~63 0 0 0 Adjust
11 H Trapezium 0~63 4 4 4 Adjust
12 Bow 0~63 0 0 0 Adjust
13 Angle 0~63 0 0 0 Adjust
14 V Position 0~63 0 0 0 FIX
15 H Parablar_Pal(Offset) 0~63 0 0 0 FIX
16 Upper Corner_Pal(Offset) 0~63 0 0 0 FIX
17 Lower Corner_Pal(Offset) 0~63 0 0 0 FIX
18 Bow(Offset) 0~63 0 0 0 FIX
Samsung Electronics 3-3
Alignment & Adjustment
3-4 Samsung Electronics
Alignment & Adjustment
3. DTV DEFLECTION OFFSET(480P)
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 V Amp -63~63 2 2 0 Adjust
1 V Shift -63~63 0 0 0 Adjust
2 H EW -63~63 0 0 0 Adjust
3 H Shift -63~63 0 0 0 Adjust
4 V Linearity -15~15 0 0 0 Adjust
5 Upper Linearity -15~15 0 0 0 FIX
6 Lower Linearity -15~15 0 0 0 FIX
7 V SC -15~15 0 0 0 FIX
8 H Parabola -63~63 0 0 0 Adjust
9 Upper Corner -63~63 0 0 0 Adjust
10 Lower Corner -63~63 0 0 0 Adjust
11 H Trapezium -63~63 0 0 0 Adjust
12 Bow -63~63 0 0 0 Adjust
13 Angle -63~63 0 0 0 Adjust
14 V Position -63~63 0 0 0 FIX
15 UP-UCG (Up Corner Semi Control) -3~3 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) -3~3 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) -3~3 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) -3~3 0 0 0 FIX
4. DTV DEFLECTION OFFSET(576P)
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 V Amp -63~63 6 6 6 Adjust
1 V Shift -63~63 -4 -4 -4 Adjust
2 H EW -63~63 0 0 0 Adjust
3 H Shift -63~63 0 0 0 Adjust
4 V Linearity -15~15 0 0 0 Adjust
5 Upper Linearity -15~15 0 0 0 FIX
6 Lower Linearity -15~15 0 0 0 FIX
7 V SC -15~15 0 0 0 FIX
8 H Parabola -63~63 0 0 0 Adjust
9 Upper Corner -63~63 0 0 0 Adjust
10 Lower Corner -63~63 0 0 0 Adjust
11 H Trapezium -63~63 3 3 8 Adjust
12 Bow -63~63 0 0 0 Adjust
13 Angle -63~63 0 0 0 Adjust
14 V Position -63~63 0 0 0 FIX
15 UP-UCG (Up Corner Semi Control) -3~3 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) -3~3 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) -3~3 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) -3~3 0 0 0 FIX
Samsung Electronics 3-5
Alignment & Adjustment
5. DEFLECTION OFFSET(720P)
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 V Amp 0~63 0 0 0 Adjust
1 V Shift 0~63 0 0 0 Adjust
2 H EW 0~63 0 0 0 Adjust
3 H Shift 0~63 0 0 0 Adjust
4 V Linearity 0~15 0 0 0 Adjust
5 Upper Linearity 0~15 0 0 0 FIX
6 Lower Linearity 0~15 0 0 0 FIX
7 V SC 0~15 0 0 0 FIX
8 H Parabola 0~63 0 0 0 Adjust
9 Upper Corner 0~63 0 0 0 Adjust
10 Lower Corner 0~63 0 0 0 Adjust
11 H Trapezium 0~63 0 0 0 Adjust
12 Bow 0~63 0 0 0 Adjust
13 Angle 0~63 0 0 0 Adjust
14 V Position 0~63 0 0 0 FIX
15 UP-UCG (Up Corner Semi Control) 0~3 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) 0~3 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) 0~3 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) 0~3 0 0 0 FIX
6. DEFLECTION OFFSET(1080I)
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 V Amp 0~63 -15 -15 -15 Adjust
1 V Shift 0~63 -5 -5 -5 Adjust
2 H EW 0~63 4 4 4 Adjust
3 H Shift 0~63 -3 -3 -3 Adjust
4 V Linearity 0~15 0 0 0 Adjust
5 Upper Linearity 0~15 0 0 0 FIX
6 Lower Linearity 0~15 0 0 0 FIX
7 V SC 0~15 0 0 0 FIX
8 H Parabola 0~63 0 0 0 Adjust
9 Upper Corner 0~63 0 0 0 Adjust
10 Lower Corner 0~63 0 0 0 Adjust
11 H Trapezium 0~63 5 5 5 Adjust
12 Bow 0~63 0 0 0 Adjust
13 Angle 0~63 0 0 0 Adjust
14 V Position 0~63 0 0 0 FIX
15 UP-UCG (Up Corner Semi Control) 0~3 0 0 0 FIX
16 LO-UCG (Low Corner Semi Control) 0~3 0 0 0 FIX
17 UP-UCP (Up Corner posiotion Control) 0~3 0 0 0 FIX
18 LO-UCP (Low Corner posiotion Control) 0~3 0 0 0 FIX
3-6 Samsung Electronics
Alignment & Adjustment
7. 4:3 OFFSET_VIXLIM
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
1 H Parabola -20~20 0 0 0 Adjust
2 Upper Corner -20~20 0 0 0 Adjust
3 Lower Corner -20~20 0 0 0 Adjust
4 Bow -20~20 0 0 0 Adjust
5 Angle -20~20 0 0 0 Adjust
6 H Shift -20~20 0 0 0 Adjust
7 H Parabola NT -20~20 0 0 0 Adjust
8 Upper Corner NT -20~20 0 0 0 Adjust
9 Lower Corner NT -20~20 0 0 0 Adjust
10 Bow NT -20~20 0 0 0 Adjust
11 Angle NT -20~20 0 0 0 Adjust
12 H Shift -20~20 0 0 0 Adjust
8. VIDEO ADJUST 1
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 R CutOff 0~63 20 20 20 Adjust
1 G CutOff 0~63 20 20 20 FIX
2 B CutOff 0~63 20 20 20 Adjust
3 R Drive 0~63 32 32 32 Adjust
4 G Drive 0~63 32 32 32 FIX
5 B Drive 0~63 32 32 32 Adjust
6 Sub Bright 0~63 15 15 15 Adjust
7 Sub Contrast 0~15 9 9 9 Adjust
8 Bright VCTP 0~256 140 140 140 FIX
9 Contrast VCTP 0 ~ 63 28 28 30 30 FIX
10 SAT-VCTP 0 ~ 63 23 15 11 11 FIX
11 Tint VCTP 0 ~ 23 10 10 10 FIX
12 SC_RGB_ BRTADJ -128 ~ 127 128 128 128 FIX
13 SC_RGB_ CONADJ 0 ~ 63 45 45 45 FIX
14 SC_RGB_ USATADJ 0 ~ 63 42 42 32 32 FIX
15 SC_RGB_ VSATADJ 0 ~ 63 42 42 32 32 FIX
16 RGB24_BRTADJ 0~255 14 16 14 14 FIX
17 RGB24_CONADJ 0 ~ 63 30 30 30 FIX
18 RGB24_ USATADJ 0 ~ 63 30 32 30 30 FIX
19 RGB24_ VSATADJ 0 ~ 63 30 32 30 30 FIX
20 RGB24_BR_HD 0~255 0 16 14 14 FIX
21 RGB24_CO_HD 0 ~ 63 30 30 30 FIX
22 RGB24_ USA_HD 0 ~ 63 30 32 30 30 FIX
23 RGB24_ VSA_HD 0 ~ 63 30 32 30 30 FIX
Samsung Electronics 3-7
Alignment & Adjustment
9. VIDEO ADJUST 2
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 ABL Mode 0~03 3 3 3 FIX
1 Gamma 0~03 0 0 2 FIX
2 ABL TH 0~15 14 14 3 FIX
3 AKB Time 0~31 15 15 15 FIX
4 S - ABL 3 3 3 FIX
5 P - ABL 6 96 9 FIX
6 VSU 0 0 0 FIX
7 LNA EXE 0~4 3 3 3 FIX
8 H_EHT comp 0~15 3 3 3 FIX
9 V_EHT comp 0~15 5 5 5 FIX
10 PIN EHT comp 0~07 3 23 3 FIX
11 AFC EHT comp 0~07 0 0 0 FIX
12 Sync Phase 0~1 0 0 0 FIX
13 Sync Phase (480) 0~1 1 1 1 FIX
14 Sync Phase (576P) 0~1 0 0 0 FIX
15 Sync Phase (720P) 0~1 1 1 1 FIX
16 Sync Phase (1080) 0~1 0 0 0 FIX
10. VIDEO ADJUST 3
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 TNR Enable 0~1 1 1 1 FIX
1 TNR Chroma 0 ~ 15 10 11 10 FIX
2 TNR Luma 0 ~ 15 11 11 7 FIX
3 LTI Enable 0~1 1 1 1 FIX
4 LTI Gain 0 ~ 15 15 15 15 FIX
5 LTI Gain x2 0~1 1 1 1 FIX
6 LTI Coring 0~7 2 32 3 FIX
7 Lmix gain 3 3 3 FIX
8 Lmix offset 0 ~ 31 13 12 13 13 FIX
9 Peak Center Freq 0~3 3 3 3 FIX
10 Peaking Coring 0 ~ 31 2 2 2 FIX
11 CTI BW 0~1 4 14 4 FIX
12 CTI LP 0~1 1 1 1 FIX
13 CTI Gain 0 ~ 15 5 5 5 FIX
14 CTI Coring 0 ~ 15 2 32 2 FIX
15 V Peaking 0 ~ 15 3 23 3 FIX
16 V Peak Coring gain 0~7 0 0 0 FIX
17 V Peak high gain 0~15 0 0 0 FIX
18 V Peak coring high 0~15 0 0 0 FIX
19 IF Comp Filter 0~7 4 4 4 FIX
20 DHYAPRESC 0~3 2 2 2 FIX
21 DHCAPRESC 0~3 2 2 2 FIX
22 Neg Peaking 0 ~ 15 11 11 11 FIX
23 DCE Gain 0~255 45 45 45 FIX
24 CORBP 0~1 0 0 0 FIX
3-8 Samsung Electronics
Alignment & Adjustment
11. VIDEO ADJUST 4
WS32Z30/40 (32") CW29Z30/40 (29")
No item Range intial Remark
Data Data
0 SVM RW 0~7 2 2 2 FIX
1 SVM Delay 0~7 0 0 0 FIX
2 SVM Coring 0 ~ 15 2 2 2 FIX
3 SVM Gain 0 ~ 63 45 45 45 FIX
4 SVM C_Gain 0~3 0 0 0 FIX
5 OSD Contrast 0 ~ 127 30 30 30 FIX
6 OSD Bright -512 ~ 511 127 127 127 FIX
7 TTX Contrast 0 ~ 127 17 17 17 FIX
8 TTX Bright ` 127 127 127 FIX
9 Melody Volume 0 ~ 127 10 10 10 FIX
10 VCR Mode Cnt 30 30 30 FIX
11 SLLTHD 2 2 2 FIX
12 SLLTHDV 3 3 3 FIX
13 THRSEL 0 0 0 FIX
14 LPCDEL 0 0 0 FIX
15 Pilot High 13 13 13 FIX
16 Pilot Low 7 7 7 FIX
17 AM_Prescale 22 22 22 FIX
Samsung Electronics 3-9
Alignment & Adjustment
12. Video Adjust5 (60i/100i)
PAL_RF WS32Z30/40 (32") CW29Z30/40 (29")
No item Range Remark
Initial Data Data
0 HORWIDTHP_H 5 5 5
1 HORWIDTHP_L 50 50 50 FIX
2 VERIWDTHP_H 1 1 1 FIX
3 VERIWDTHP_L 26 26 26 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 65 65 65 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 29 29 29 FIX
8 NAPPLIP_H 2 2 2 FIX
9 NAPPLIP_L 94 94 94 FIX
10 NALPFIP_H 0 0 0 FIX
11 NALPFIP_L 18 18 18 FIX
12 HSCPOSC_H 8 8 8 FIX
13 HSCPOSC_L 70 70 70 FIX
14 VSCPOSC_H 31 31 31 FIX
15 VSCPOSC_L 100 100 100 FIX
16 HORWIDTH_M_H 5 5 5 FIX
17 HORWIDTH_M_L 50 50 50 FIX
18 VERWIDTH_M_H 1 1 1 FIX
19 VERWIDTH_M_L 39 39 39 FIX
20 HORPOS_M_H 1 1 1 FIX
21 HORPOS_M_L 60 60 60 FIX
22 VERPOS_M_H 0 0 0 FIX
23 VERPOS_M_L 23 23 23 FIX
24 VSCPRESC_H 0 0 0 FIX
25 VSCPRESC_L 0 0 0 FIX
26 SD_BRTADJ 128 128 128 FIX
27 SD_CONADJ 32 32 32 FIX
28 SD_USATADJ 32 32 32 FIX
29 SD_VSATADJ 32 32 32 FIX
3-10 Samsung Electronics
Alignment & Adjustment
13. Video Adjust5 (NTSC)
NTSC WS32Z30/40 (32") CW29Z30/40 (29")
No item Range Remark
Initial Data Data
0 HORWIDTHP_H 5 5 5
1 HORWIDTHP_L 75 75 75 FIX
2 VERIWDTHP_H 1 1 1 FIX
3 VERIWDTHP_L 235 235 235 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 50 50 50 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 30 30 30 FIX
8 NAPPLIP_H 2 2 2 FIX
9 NAPPLIP_L 18 18 18 FIX
10 NALPFIP_H 0 0 0 FIX
11 NALPFIP_L 10 10 10 FIX
12 HSCPOSC_H 8 8 8 FIX
13 HSCPOSC_L 45 45 45 FIX
14 VSCPOSC_H 12 12 12 FIX
15 VSCPOSC_L 20 20 80 20 FIX
16 HORWIDTH_M_H 5 5 5 FIX
17 HORWIDTH_M_L 88 88 88 FIX
18 VERWIDTH_M_H 2 2 2 FIX
19 VERWIDTH_M_L 5 5 5 FIX
20 HORPOS_M_H 1 1 1 FIX
21 HORPOS_M_L 30 30 30 FIX
22 VERPOS_M_H 0 0 0 FIX
23 VERPOS_M_L 10 10 15 10 FIX
24 VSCPRESC_H 4 4 4 FIX
25 VSCPRESC_L 0 0 0 FIX
26 SD_BRTADJ 128 128 128 FIX
27 SD_CONADJ 32 32 32 FIX
28 SD_USATADJ 32 32 32 FIX
29 SD_VSATADJ 32 32 32 FIX
Samsung Electronics 3-11
Alignment & Adjustment
14. Video Adjust5 (576i)
576i 576i_32" 576i_29"
No item Range Remark
Initial Data Data
0 HORWIDTHP_H 5 5 5
1 HORWIDTHP_L 50 50 50 FIX
2 VERIWDTHP_H 1 1 1 FIX
3 VERIWDTHP_L 30 30 30 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 65 65 65 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 26 26 26 FIX
8 NAPPLIP_H 1 1 1 FIX
9 NAPPLIP_L 176 176 176 FIX
10 NALPFIP_H 0 0 0 FIX
11 NALPFIP_L 16 16 16 FIX
12 HSCPOSC_H 8 8 8 FIX
13 HSCPOSC_L 125 125 125 FIX
14 VSCPOSC_H 31 31 31 FIX
15 VSCPOSC_L 100 100 100 FIX
16 HORWIDTH_M_H 5 5 5 FIX
17 HORWIDTH_M_L 50 50 50 FIX
18 VERWIDTH_M_H 1 1 1 FIX
19 VERWIDTH_M_L 38 38 38 FIX
20 HORPOS_M_H 1 1 1 FIX
21 HORPOS_M_L 55 55 55 FIX
22 VERPOS_M_H 0 0 0 FIX
23 VERPOS_M_L 23 23 23 FIX
24 VSCPRESC_H 0 0 0 FIX
25 VSCPRESC_L 0 0 0 FIX
26 SD_BRTADJ 146 145 145
27 SD_CONADJ 46 45 45
28 SD_USATADJ 32 52 52
29 SD_VSATADJ 32 54 54
3-12 Samsung Electronics
Alignment & Adjustment
15. Video Adjust5 (480i)
480i 480i_32" 480i_29"
No item Range Remark
Initial Data Data
0 HORWIDTHP_H 5 5 5
1 HORWIDTHP_L 48 48 48 FIX
2 VERIWDTHP_H 1 1 1 FIX
3 VERIWDTHP_L 246 246 246 FIX
4 HORPOSP_H 1 1 1 FIX
5 HORPOSP_L 60 60 60 FIX
6 VERPOSP_H 0 0 0 FIX
7 VERPOSP_L 21 21 21 FIX
8 NAPPLIP_H 1 1 1 FIX
9 NAPPLIP_L 101 101 101 FIX
10 NALPFIP_H 0 0 0 FIX
11 NALPFIP_L 16 16 16 FIX
12 HSCPOSC_H 8 8 8 FIX
13 HSCPOSC_L 125 125 125 FIX
14 VSCPOSC_H 12 12 12 FIX
15 VSCPOSC_L 0 0 0 FIX
16 HORWIDTH_M_H 5 5 5 FIX
17 HORWIDTH_M_L 48 48 48 FIX
18 VERWIDTH_M_H 1 1 1 FIX
19 VERWIDTH_M_L 241 241 241 FIX
20 HORPOS_M_H 1 1 1 FIX
21 HORPOS_M_L 41 41 41 FIX
22 VERPOS_M_H 0 0 0 FIX
23 VERPOS_M_L 24 24 24 FIX
24 VSCPRESC_H 4 4 4 FIX
25 VSCPRESC_L 0 0 0 FIX
26 SD_BRTADJ 146 146 146 FIX
27 SD_CONADJ 45 46 45 45 FIX
28 SD_USATADJ 52 32 52 52 FIX
29 SD_VSATADJ 52 32 52 52 FIX
Samsung Electronics 3-13
Alignment & Adjustment
16. Video Adjust6 (comp_HD)
480P_HD 480P_HD_32" 480P_HD_29"
No item Range ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
