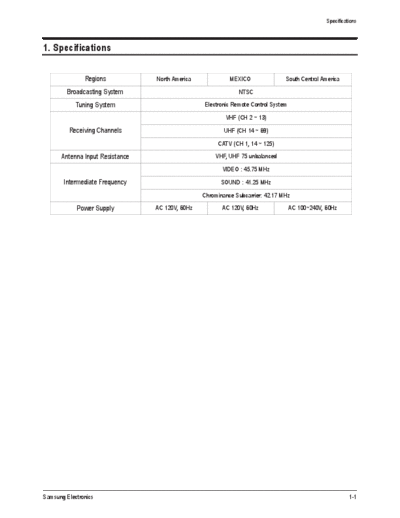

Image preview - the first page of the document
>> Download 02_PRODUCT_SPECIFICATION documenatation <<
Text preview - extract from the document
Specifications
1. Specifications
Regions North America MEXICO South Central America
Broadcasting System NTSC
Tuning System Electronic Remote Control System
VHF (CH 2 ~ 13)
Receiving Channels UHF (CH 14 ~ 69)
CATV (CH 1, 14 ~ 125)
Antenna Input Resistance VHF, UHF 75 unbalanced
VIDEO : 45.75 MHz
Intermediate Frequency SOUND : 41.25 MHz
Chrominance Subcarrier: 42.17 MHz
Power Supply AC 120V, 60Hz AC 120V, 60Hz AC 100~240V, 60Hz
Samsung Electronics 1-1
MEMO
1-2 Samsung Electronics
