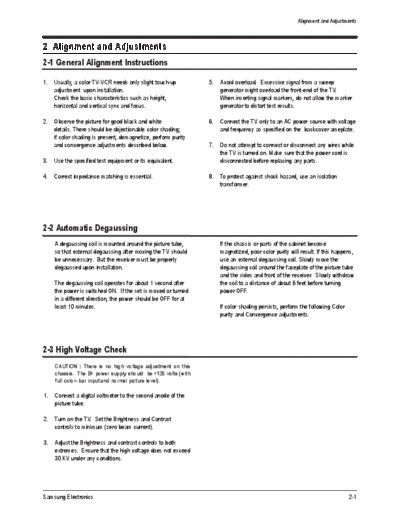

Image preview - the first page of the document
>> Download 03_ALIGNMENT_&_ADJUSTMENT documenatation <<
Text preview - extract from the document
Alignment and Adjustments
2. Alignment and Adjustments
2-1 General Alignment Instructions
1. Usually, a color TV-VCR needs only slight touch-up 5. Avoid overload. Excessive signal from a sweep
adjustment upon installation. generator might overload the front-end of the TV.
Check the basic characteristics such as height, When inserting signal markers, do not allow the marker
horizontal and vertical sync and focus. generator to distort test results.
2. Observe the picture for good black and white 6. Connect the TV only to an AC power source with voltage
details. There should be objectionable color shading; and frequency as specified on the backcover ameplate.
if color shading is present, demagnetize, perform purity
and convergence adjustments described below. 7. Do not attempt to connect or disconnect any wires while
the TV is turned on. Make sure that the power cord is
3. Use the specified test equipment or its equivalent. disconnected before replacing any parts.
4. Correct impedance matching is essential. 8. To protect against shock hazard, use an isolation
transformer.
2-2 Automatic Degaussing
A degaussing coil is mounted around the picture tube, If the chassis or parts of the cabinet become
so that external degaussing after moving the TV should magnetized, poor color purity will result. If this happens,
be unnecessary. But the receiver must be properly use an external degaussing coil. Slowly move the
degaussed upon installation. degaussing coil around the faceplate of the picture tube
and the sides and front of the receiver. Slowly withdraw
The degaussing coil operates for about 1 second after the coil to a distance of about 6 feet before turning
the power is switched ON. If the set is moved or turned power OFF.
in a different direction, the power should be OFF for at
least 10 minutes. If color shading persists, perform the following Color
purity and Convergence adjustments.
2-3 High Voltage Check
CAUTION : There is no high voltage adjustment on this
chassis. The B+ power supply should be +135 volts (with
full color- bar input and normal picture level).
1. Connect a digital voltmeter to the second anode of the
picture tube.
2. Turn on the TV. Set the Brightness and Contrast
controls to minimum (zero beam current).
3. Adjust the Brightness and contrast controls to both
extremes. Ensure that the high voltage does not exceed
30 KV under any conditions.
Samsung Electronics 2-1
Alignment and Adjustments
2-4 FOCUS Adjustment
1. Iput a black and white signal.
2. Adjust the tuning control for the clearest picture.
3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.
2-5 Factory Adjustment
2-5-1 Service Mode
1. To enter the "Service Mode", Press the remote-control keys in this sequence :
- If you do not have Factory remote-control
PICTURE OFF MUTE 1 8 2 PICTURE ON
- If you have Factory remote-control
PICTURE ON DISPLAY ( ) FACTORY
2-5-2 Factoy Mode OSD
2-5-2(A) ADJUST
Service
Deflection
Video Adujst 1
Video Adujst 2
Video Adujst 3
OPTION
YC DELAY
TEST PATTERN
EEPROM
BUS STOP
CHCKSUM
RESET
G2 ADJUST
2-2 Samsung Electronics
Alignment and Adjustments
2-6 Functions of Each Port in Service Mode
DEFLECTION (NT 60Hz)
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
V Amp ADJ 28 28 9 9 9 28 31
V Shift ADJ -30 -30 -20 -20 -20 -30 -28
H EW ADJ -2 -2 40 40 40 -2 14
H Shift ADJ 130 130 123 123 123 130 146
V Linearity ADJ -8 -8 -8 -8 -8 -8 -4
V SC FIX 43 43 43 43 43 43 43
H Parabola ADJ 67 67 60 60 60 63 7
Upper Corner ADJ 1 1 -2 -2 -2 1 8
Lower Corner ADJ -10 -10 -13 -13 -13 -10 -4
Upper Corner6 FIX -7 -7 -7 -7 -7 -7 -7
Lower Corner6 FIX 8 8 8 8 8 8 8
H Trapezium ADJ 9 9 8 8 8 9 4
Bow ADJ 3 3 -1 -1 -1 3 3
Angle ADJ 0 0 0 0 0 0 0
EHT Time FIX 20 20 20 20 20 20 20
EHT Threshold FIX 1 1 1 1 1 1 1
EHT Vertical FIX -12 -12 -12 -12 -12 -12 -12
EHT Horizontal FIX 77 77 77 77 77 77 77
EHT Vertical2 FIX -10 -10 -10 -10 -10 -10 -10
EHT Horizontal2 FIX 8 8 8 8 8 8 17
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
V Amp ADJ 28 28 31
V Shift ADJ -30 -30 -28
H EW ADJ -2 -2 14
H Shift ADJ 130 130 146
V Linearity ADJ -8 -8 -6
V SC FIX 43 43 34
H Parabola ADJ 67 67 7
Upper Corner ADJ 1 1 8
Lower Corner ADJ -10 -10 -4
Upper Corner6 FIX -7 -7 -7
Lower Corner6 FIX 8 8 8
H Trapezium ADJ 9 9 4
Bow ADJ 3 3 3
Angle ADJ 0 0 0
EHT Time FIX 20 20 30
EHT Threshold FIX 1 1 10
EHT Vertical FIX 2 -12 0
EHT Horizontal FIX 30 77 0
EHT Vertical2 FIX -17 -10 -50
EHT Horizontal2 FIX 7 8 0
Samsung Electronics 2-3
Alignment and Adjustments
DEFLECTION (PAL 50Hz)
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
V Amp ADJ 4 0 0 0 0 0 0
V Shift ADJ -6 -6 -6 -6 -6 -6 -6
H EW ADJ 0 0 0 0 0 0 0
H Shift ADJ -16 -12 -12 -12 -12 -12 -12
V Linearity ADJ 0 3 3 3 3 3 3
V SC FIX 0 0 0 0 0 0 0
H Parabola ADJ 0 0 0 0 0 0 0
Upper Corner ADJ 0 0 0 0 0 0 0
Lower Corner ADJ 0 0 0 0 0 0 0
Upper Corner6 ADJ 0 0 0 0 0 0 0
Lower Corner6 ADJ 0 0 0 0 0 0 0
H Trapezium ADJ 0 0 0 0 0 0 0
Bow FIX 0 0 0 0 0 0 0
Angle FIX 0 0 0 0 0 0 0
EHT Time FIX 20 20 20 20 20 20 20
EHT Threshold FIX 1 1 1 1 1 1 1
EHT Vertical FIX -12 -12 -12 -12 -12 -12 -12
EHT Horizontal FIX 77 77 77 77 77 77 77
EHT Vertical2 FIX -10 -10 -10 -10 -10 -10 -10
EHT Horizontal2 FIX 8 8 8 8 8 8 8
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
V Amp ADJ 4 4 4
V Shift ADJ -6 -6 -6
H EW ADJ 0 0 0
H Shift ADJ -16 -16 -16
V Linearity ADJ 0 0 0
V SC FIX 0 0 0
H Parabola ADJ 0 0 0
Upper Corner ADJ 0 0 0
Lower Corner ADJ 0 0 0
Upper Corner6 ADJ 0 0 0
Lower Corner6 ADJ 0 0 0
H Trapezium ADJ 0 0 0
Bow FIX 0 0 0
Angle FIX 0 0 0
EHT Time FIX 20 20 30
EHT Threshold FIX 1 1 10
EHT Vertical FIX 2 -12 0
EHT Horizontal FIX 30 77 0
EHT Vertical2 FIX -17 -10 -50
EHT Horizontal2 FIX 7 8 0
2-4 Samsung Electronics
Alignment and Adjustments
Video Adjust 1
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
R Cutoff ADJ 127 127 127 127 127 127 127
G Cutoff FIX 127 127 127 127 127 127 127
B Cutoff ADJ 127 127 127 127 127 127 127
R Drive ADJ 127 127 127 127 127 127 127
G Drive FIX 127 127 127 127 127 127 127
B Drive ADJ 127 127 127 127 127 127 127
Sub Bright ADJ 60 60 60 60 60 60 60
Sub Contrast ADJ 49 49 49 49 49 49 49
Sub Color FIX 0 0 0 0 0 0 0
Sub Tint FIX 46 46 46 46 46 46 46
AKB Option FIX 1 1 1 1 1 1 1
BCL Threshold FIX 24 24 21 21 21 24 20
BCL Gain FIX 200 200 240 240 240 200 240
BCL Time FIX 100 100 230 230 230 100 230
Sub Sharpness FIX 10 10 15 15 15 10 15
Pilot Low FIX 25 25 25 25 25 25 25
Pilot High FIX 45 45 45 45 45 45 45
V-Mute(x100ms) FIX 3 3 3 3 3 3 3
BCL TCUP FIX 65 - 65 65 65 65 65
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
R Cutoff ADJ 127 127 127
G Cutoff FIX 127 127 127
B Cutoff ADJ 127 127 127
R Drive ADJ 127 127 127
G Drive FIX 127 127 127
B Drive ADJ 127 127 127
Sub Bright ADJ 60 60 60
Sub Contrast ADJ 49 49 49
Sub Color FIX 0 0 0
Sub Tint FIX 46 46 46
AKB Option FIX 1 1 1
BCL Threshold FIX 28 24 21
BCL Gain FIX 200 200 200
BCL Time FIX 100 100 100
Sub Sharpness FIX 10 10 10
Pilot Low FIX 25 25 25
Pilot High FIX 45 45 45
V-Mute(x100ms) FIX 3 3 3
BCL TCUP FIX 65 65 65
Samsung Electronics 2-5
Alignment and Adjustments
Video Adjust 2
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
VSU FIX 2 2 2 2 2 2 2
Melody Volume FIX 5 5 5 5 5 5 5
HB Start FIX 159 159 159 159 159 159 159
HB Stop FIX 149 149 149 149 149 149 149
RF AGC FIX 1 1 1 1 1 1 1
VM Gain FIX 7 7 0 0 0 6 0
VM Delay FIX 7 7 4 4 4 4 4
V Peaking FIX 12 12 12 12 12 12 12
BLE Tilt FIX 7 7 7 7 7 7 7
BLE Gain FIX 2 2 2 2 2 1 2
BLE Mode FIX 2 2 2 2 2 2 2
BLE Break FIX 1 1 1 1 1 1 1
CTI Gain FIX 1 1 1 1 10 10 1
CTI Coring FIX 15 15 15 15 5 5 15
LTI Gain FIX 15 15 15 15 15 15 15
D-EHT Time FIX 5 5 5 5 5 5 6
DCT Ratio FIX 50 50 50 50 50 50 50
VSP COMB FIX 3 3 3 3 3 3 3
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
VSU FIX 2 2 2
Melody Volume FIX 5 5 5
HB Start FIX 159 159 159
HB Stop FIX 149 149 120
RF AGC FIX 1 1 1
VM Gain FIX 7 7 7
VM Delay FIX 7 7 7
V Peaking FIX 12 12 12
BLE Tilt FIX 7 7 7
BLE Gain FIX 2 2 2
BLE Mode FIX 2 2 2
BLE Break FIX 1 1 1
CTI Gain FIX 1 1 1
CTI Coring FIX 15 15 15
LTI Gain FIX 15 15 15
D-EHT Time FIX 5 5 5
DCT Ratio FIX 50 50 50
VSP COMB FIX 3 3 3
2-6 Samsung Electronics
Alignment and Adjustments
Video Adjust 3
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
NR Off Value FIX 3 3 3 3 3 3 3
Gamma Mode FIX 1 1 1 1 1 1 1
Gamma Correction FIX 50 50 60 60 60 30 50
BST StartPoint FIX 145 145 145 145 145 145 145
BST Gain(B) FIX 50 50 50 50 50 50 50
DPWL Gain FIX 80 80 80 80 80 80 80
DPWL Start FIX 155 155 155 155 155 155 155
PIP Contrast FIX 15 15 10 10 10 10 15
PIP Tint FIX 63 63 63 63 63 63 63
PIP Color FIX 5 5 7 7 7 7 5
PIP PAL V.Pos FIX 24 24 24 24 24 24 24
PIP NTSC V.Pos FIX 23 23 23 23 23 23 23
PIP H.Pos FIX 39 39 39 39 39 39 39
PIP R Cutoff FIX 2 2 4 4 4 4 2
PIP B Cutoff FIX 1 1 5 5 5 5 1
PIP R Drive FIX 170 170 168 168 168 168 170
PIP B Drive FIX 190 190 212 212 212 212 190
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
NR Off Value FIX 3 3 3
Gamma Mode FIX 1 1 1
Gamma Correction FIX 50 50 50
BST StartPoint FIX 145 145 145
BST Gain(B) FIX 50 50 50
DPWL Gain FIX 80 80 80
DPWL Start FIX 155 155 155
PIP Contrast FIX 15 15 15
PIP Tint FIX 63 63 63
PIP Color FIX 5 5 5
PIP PAL V.Pos FIX 24 24 24
PIP NTSC V.Pos FIX 23 23 23
PIP H.Pos FIX 39 39 39
PIP R Cutoff FIX 2 2 2
PIP B Cutoff FIX 1 1 1
PIP R Drive FIX 170 170 170
PIP B Drive FIX 190 190 190
Samsung Electronics 2-7
Alignment and Adjustments
YC DELAY
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
PAL Delay FIX 0 0 0 0 0 0 0
SECAM Delay FIX -2 -2 -2 -2 -2 -2 -2
NTSC Delay FIX -3 -3 -3 -3 -3 -3 -3
PAL(AV) Delay FIX -1 -1 -1 -1 -1 -1 -1
SECAM(AV) Delay FIX -3 -3 -3 -3 -3 -3 -3
NTSC(AV) Delay FIX -4 -4 -4 -4 -4 -4 -4
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
PAL Delay FIX 0 0 0
SECAM Delay FIX -2 -2 -2
NTSC Delay FIX -3 -3 -3
PAL(AV) Delay FIX -1 -1 -1
SECAM(AV) Delay FIX -3 -3 -3
NTSC(AV) Delay FIX 0 0 0
Test Pattern
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
Test Pattern FIX 0 0 0 0 0 0 0
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
Test Pattern FIX 0 0 0
2-8 Samsung Electronics
Alignment and Adjustments
Option Byte
TXP2734FXXAA TXP2728X/XAC CL29M16
CL29M21 CT25M20MQUX CT21T20MQUX
Item TXP2730FXXAA TXP2434FXXAA TXP2730FXXAC CL29K5 CL25M6 CL21S8
CL29T21 XTC XTC
TXP2730S/XAA TXP2734FXXAC CL29M5
1.System CT-N CT-N CT-N CL CL CL CL CL CL
2.Sound Stereo Stereo Stereo Stereo Stereo Stereo Stereo Stereo Stereo
2.ACS - - - - - - - - -
3.AV Jack 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+DVD 2RCA+DVD
4.Tilt On Off On On On Off Off Off Off
5.Vchip USA USA USA+CANADA Off Off Off Off Off Off
6.Caption On On On On On On On On On
7.PIP Off Off Off Off 2-Tuner Off Off Off Off
8.LNA Off Off Off Off ON Off Off Off Off
9.Auto On Off Off Off Off Off Off Off Off Off
10.StandBy LED Off Off Off Off Off Off Off Off Off
11.A/V Multi - - - - - - - - -
11.Philippines Off Off Off Off Off Off On Off ON
12.Osd Language English English English English English English English English English
13.FM Radio Off Off Off Off Off Off Off Off Off
14.Antenna Disp Off Off Off Off Off Off Off Off Off
15.Hi-Deviation Off Off Off Off Off Off Off Off Off
16.Plug & Plat On On On On On On On On On
17.DNIe Jr Off Off Off Off On Off On Off On
18.Volume Curve Small Small Small Small Small Small Small Small Small
19.Color Matrix Japan Japan Japan Japan Japan Japan Japan Japan Japan
20.PWM/Parabola Parabola Parabola Parabola Parabola Parabola Parabola Parabola Parabola Parabola
21.Hotel mode - - - - - - - - -
22. Child Lock - - - - - - - - -
23. Air/Cable On - - - - - - - - -
Brazil
CL21T21 CT29K10MQUX CT29M20MQUX CT29M16MQUX Brazil Brazil Brazil
Item CL34Z6P
CL21M21 XTW XTC XTC CL29M21 CL21M21 CL21N11
CL29Z6P
1.System CL CT-N CL CL CL CL CL CL
2.Sound Stereo - Stereo Stereo
2.ACS - ON - - Off Off Off Off
3.AV Jack 2RCA+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+S+DVD 2RCA+DVD 2RCA+DVD
4.Tilt Off On On On On On Off Off
5.Vchip Off Off Off Off Off Off Off Off
6.Caption On On On On On On On On
7.PIP 1-Tuner Off Off Off 2-Tuner Off 1-Tuner Off
8.LNA 0ff Off Off Off ON Off Off Off
9.Auto On Off ON Off Off Off Off Off Off
10.StandBy LED Off ON Off Off Off Off Off Off
11.A/V Multi - - - - - - - -
11.Philippines Off Off ON ON Off Off Off Off
12.Osd Language English English English English English English English English
13.FM Radio Off Off Off Off Off Off Off Off
14.Antenna Disp Off Off Off Off Off Off Off Off
15.Hi-Deviation off Off Off Off Off Off Off Off
16.Plug & Plat On On On On On On On On
17.DNIe Jr On Off On Off On On On On
18.Volume Curve Small Small Small Small Small Small Small Small
19.Color Matrix Japan Japan Japan Japan Japan Japan Japan Japan
20.PWM/Parabola Parabola Parabola Parabola Parabola Parabola Parabola Parabola Parabola
21.Hotel mode - - - - Off Off Off Off
22. Child Lock - - - - On On On On
23. Air/Cable On - - - - On On On On
Samsung Electronics 2-9
Alignment and Adjustments
G2 Adjust
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
Read Cut -
Read Dri -
IBRM FIX 175 175 190 190 190 175 175
WDRM FIX 75 75 75 75 75 75 75
CDL FIX 255 255 255 255 255 255 255
COLR G B FIX 105 / 105 / 105 105 / 105 / 105 105 / 105 / 105 105 / 105 / 105 105 / 105 / 105 105 / 105 / 105 105 / 105 / 105
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
Read Cut -
Read Dri -
IBRM FIX 175 175 175
WDRM FIX 75 75 75
CDL FIX 255 255 255
COLR G B FIX 105 / 105 / 105 105 / 105 / 105 105 / 105 / 105
White Balance
CL29T21 TXP2734FX CL21S8
CL29M21 CL25M6 TXP2728FX CL21T21
CT29K10MQUXXTW CT25M20MQUXXTC TXP2434FX
Item Remark CT29M20MQUXXTC CL25M5 TXP2730FX CL21M21
CT29M16MQUXXTC TXP2730S CT21T20MQUXXTC
29" SDI MST 29" SDI MST 25" SDI MST 25" SDI MST 25" SDI MST 29" SDI MST 21" SDI MST
H - 275/275/37 275/275/37 275/275/45 275/275/45 295/295/45 295/295/37 275/275/55
L - 265/265/2.0 265/265/2.0 265/265/2.5 265/265/2.5 295/295/2.5 295/295/2.0 265/265/2.5
Brazil Brazil
Brazil
CL29Z6P CL21M21
Item Remark CL34Z6P
CL29M21 CL21N11
34" TSB(USA) MTPD 29" SDI MST 29" SDI MST
H - 275/275/37 275/275/37 275/275/55
L - 265/265/2.0 265/265/2.0 265/265/2.5
2-10 Samsung Electronics
Alignment and Adjustments
EEPROM
25", 29" 21", 25", 29" 21", 29" 29" 21", 29", 34"
No Factory Control Remark MIN MAX
America South Central XTC XTW XAZ
0 Dynamic Contrast FIX 0 255 100 100 100 100 100
1 Dynamic Brightness FIX 0 255 45 45 45 45 45
2 Dynamic Sharpness FIX 0 255 75 80 80 80 50
3 Dynamic Color FIX 0 255 38 43 43 43 40
4 Dynamic Tint FIX 0 255 50 50 50 50 50
5 Standard Contrast FIX 0 255 82 80 80 80 80
6 Standard Brightness FIX 0 255 45 45 45 45 45
7 Standard Sharpness FIX 0 255 50 50 50 50 50
8 Standard Color FIX 0 255 45 43 43 43 40
9 Standard Tint FIX 0 255 50 50 50 50 50
10 Movie Contrast FIX 0 255 50 50 50 50 50
11 Movie Brightness FIX 0 255 55 55 55 55 55
12 Movie Sharpness FIX 0 255 25 25 25 25 25
13 Movie Color FIX 0 255 40 40 40 40 40
14 Movie Tint FIX 0 255 50 50 50 50 50
15
16
17
18
19 DVD SUB TINT FIX 0 1 15 15 15 15
20 16:9 V-SHIFT FIX 0 100 15 15 15 15 15
21 16:9 PARAVOLA FIX 0 100 5 5 5 5 5
22 PIP BRIGHTNESS FIX 0 15 0 0 0 0 0
23 Double TTX Contrast FIX 255 255 255 255 255
24 TTX V Position FIX 0 255 255 255 255 255 255
25 TTX H Position FIX 0 255 255 255 255 255 255
26 TTX Contrast FIX 0 255 255 255 255 255 255
27 TTX Brightness FIX 0 255 255 255 255 255 255
28 OSD Contrast FIX 0 255 90 90 90 90 90
29 OSD Brightness FIX 0 255 13 13 13 13 13
30 Double TTX H Position FIX 0 255 255 255 255 255 255
31 Standard Equ100(Std BASS) FIX 0 8 50 50 50 50 50
32 Standard Equ300(Std TREBLE) FIX 0 13 50 50 50 50 50
33 Standard Equ1K(Music BASS) FIX 0 14 85 85 85 85 85
34 Standard Equ3K(Music TREBLE) FIX 0 13 70 70 70 70 70
35 Standard 10K(Movie BASS) FIX 0 12 95 95 95 95 95
36 Music Equ100(Movie TREBLE) FIX 0 18 50 50 50 50 50
37 Music Equ300(Speech BASS) FIX 0 14 40 40 40 40 40
38 Music Equ1K(Speech TREBLE) FIX 0 11 50 50 50 50 50
39 Music Equ3K FIX 0 14 255 255 255 255 255
40 Music 10K FIX 0 18 255 255 255 255 255
41 Movie Equ100 FIX 0 22 255 255 255 255 255
42 Movie Equ300 FIX 0 15 255 255 255 255 255
43 Movie Equ1K FIX 0 11 255 255 255 255 255
44 Movie Equ3K FIX 0 12 255 255 255 255 255
Samsung Electronics 2-11
Alignment and Adjustments
25", 29" 21", 25", 29" 21", 29" 29" 21", 29", 34"
No Factory Control Remark MIN MAX
America South Central XTC XTW XAZ
45 Movie 10K FIX 0 13 255 255 255 255 255
46 Speech Equ100 FIX 0 6 255 255 255 255 255
47 Speech Equ300 FIX 0 11 255 255 255 255 255
48 Speech Equ1K FIX 0 14 255 255 255 255 255
49 Speech Equ3K FIX 0 13 255 255 255 255 255
50 Speech 10K FIX 0 11 255 255 255 255 255
51 Brightness(RGB/DVD) FIX 0 255 6 6 6 6 6
52 Contrast(RGB/DVD) FIX 0 63 35 35 35 35 35
53 U Saturation(RGB/DVD) FIX 0 63 44 44 44 44 44
54 V saturation(RGB/DVD) FIX 0 63 43 43 43 43 43
55 V/FBL Delay FIX 0 255 85 85 85 85 85
56 CrCb Delay FIX 0 255 84 84 84 84 84
57 d/w h-position FIX 0 255 255 255 255 255 255
58 d/w -blanking 1 FIX 0 255 255 255 255 255 255
59 d/w -blanking 2 FIX 0 255 255 255 255 255 255
60 PIP G CUTOFF FIX 0 255 4 1 4 4 1
61 PIP G DRIVE FIX 0 255 170 170 170 170 170
62 OSD/PIP BRIGHT BALANCE FIX 0 31 31 31 31 31 31
63 PIP BRIGHT OFFSET FIX 0 255 85 210 85 85 205
64 MDB_STRENGTH FIX 0 127 68 68 68 68 68
65 MDB_HARMONIC FIX 0 127 37 37 37 37 37
66 MDB_HP FIX 0 30 9 9 9 9 9
67 MDB_LP FIX 0 30 11 11 11 11 11
68 MDB_LIM FIX 0 255 252 252 252 252 252
69 MDB_CUTOFF FIX 0 40 12 12 12 12 12
70 EHT POSITION 1 FIX 0 255 5 5 5 5 5
71 EHT POSITION 2 FIX 0 255 249 249 249 249 249
72 3.4CH SLLTHD (TV-NO NOISE) FIX 0 3 1 1 1 2 2
73 other CH SLLTHD (TV-NO NOISE) FIX 0 3 1 1 1 2 2
74 LNA Operating Point FIX 0 255 166 166 166 166 166
75 SLLTHDV(TV NO NOISE) FIX 0 6 0 0 0 6 7
76 LNA Default FIX 0 1 0 0 0 0 0
77 LNA SWITCH FIX 0 1 0 0 0 0 0
78 LMIXOFS FIX 0 13 13 13 13 13 13
79 CR_AMP_TH Setting FIX 0 255 - - - 16 -
79 H-OUTDEL FIX 0 255 72 72 72 74
80 H-OUTDEL FIX 0 255 - - - 72 -
80 CR-P Initial FIX 0 7 4 4 4 3
81 CR-I Initial FIX 0 7 3 3 3 255 2
82 DRX_CR_AMP_TH FIX 0 255 32 32 32 255 48
83 Over Modulation Return Counter FIX 0 255 100 100 100 255 100
84 VCR Mode Counter FIX 0 255 5 5 5 255 5
VID_AMP_HEAD_BS
85 FIX 0 255 40 40 40 255 40
(In the modulation)
2-12 Samsung Electronics
Alignment and Adjustments
25", 29" 21", 25", 29" 21", 29" 29" 21", 29", 34"
No Factory Control Remark MIN MAX
America South Central XTC XTW XAZ
86 CR_P (In the Over Modulation) FIX 0 7 4 4 4 255 2
THRSEL
87 FIX 0 1 0 0 0 255 1
(picture shaking when weak signal)
88 SLLTHDVP FIX 0 1 1 1 1 255 0
89 SLLTHD_CATV FIX 0 7 255 255 255 255 1
Samsung Electronics 2-13
Alignment and Adjustments
2-7 Screen Change (I2C Bus Geometric Adjustment)
1 V SHIFT 6 H TRAPIZIUM
2 V AMP 7 H PARABOLA
3 V SLOPE 8 H Symmetry
4 V SC 9 H Corner
5 H-EW 10 H SHIFT
2-14 Samsung Electronics
Alignment and Adjustments
2-8 Pin Connections and Short Descriptions
Connection
Pin No. Pin Name Type Short Description
(If not used)
1 GND SUPPLY OBL Ground Platform
2 VSUP5.0BE SUPPLY OBL Supply Voltage Analog Video Back-end, 5.0 V
3 TEST IN GND Test Input, reserved for Test
4 VERT + OUT GND Differential Vertical Sawtooth Output
5 VERT - OUT GND Differential Vertical Sawtooth Output
6 EW OUT GND Vertical Parabola Output
7 RSW2 OUT LV Range Switch 2 Output
8 RSW1 OUT LV Range Switch 1 Output
9 SENSE IN GND Sense ADC Input
10 GNDM IN GND Reference Ground for Sense ADC
11 FBIN IN GND Fast Blank Input, Back-end
12 RIN IN GND Analog Red Input, Back-end
13 GIN IN GND Analog Green Input, Back-end
14 BIN IN GND Analog Blue Input, Back-end
15 SVMOUT OUT VSUP5.0BE Scan Velocity Modulation Output
16 ROUT OUT VSUP5.0BE Analog Red Output
17 GOUT OUT VSUP5.0BE Analog Green Output
18 BOUT OUT VSUP5.0BE Analog Blue Output
19 VRD OBL Reference Voltage for RGB DACs
20 XREF OBL Reference Current for RGB DACs
21 VSUP3.3BE SUPPLY OBL Supply Voltage Analog Video Back-end, 3.3 V
22 GND SUPPLY OBL Ground Platform
23 GND SUPPLY OBL Ground Platform
24 VSUP3.3IO SUPPLY OBL Supply Voltage I/O Ports, 3.3 V (main and standby supply)
25 VSUP3.3DAC SUPPLY OBL Supply Voltage Video DACs, 3.3 V
26 GNDDAC SUPPLY OBL Ground Video DACs
27 SAFETY IN GND Safety Input
28 HFLB IN HOUT Horizontal Flyback Input
29 HOUT OUT LV Horizontal Drive Output
30 VPROT IN GND Vertical Protection Input
PWMV OUT LV PWM Vertical Output
DFVBL OUT LV Dynamic Focus Vertical Blanking Output
31 SDA IN/OUT OBL I2C Bus Data Input/Output
Samsung Electronics 2-15
Alignment and Adjustments
Connection
Pin No. Pin Name Type Short Description
(If not used)
32 SCL IN/OUT OBL I2C Bus Clock Input/Output
33 P21 IN/OUT LV Port 2, Bit 1 Input/Output
34 P20 IN/OUT LV Port 2, Bit 0 Input/Output
35 P17 IN/OUT LV Port 1, Bit 7 Input/Output
36 P16 IN/OUT LV Port 1, Bit 6 Input/Output
37 P15 IN/OUT LV Port 1, Bit 5 Input/Output
38 P14 IN/OUT LV Port 1, Bit 4 Input/Output
39 P13 IN/OUT LV Port 1, Bit 3 Input/Output
40 P12 IN/OUT LV Port 1, Bit 2 Input/Output
41 P11 IN/OUT LV Port 1, Bit 1 Input/Output
42 P10 IN/OUT LV Port 1, Bit 0 Input/Output
43 VSUP3.3FE SUPPLY OBL Supply Voltage Analog Video Front-end, 3.3 V
(main and standby supply)
44 GND SUPPLY OBL Ground Platform
45 GND SUPPLY OBL Ground Platform
46 VSUP1.8FE SUPPLY OBL Supply Voltage Analog Video Front-end, 1.8 V
(main and standby supply)
47 VOUT3 OUT LV Analog Video 3 Output
48 VOUT2 OUT LV Analog Video 2 Output
49 VOUT1 OUT LV Analog Video 1 Output
50 VIN1 IN GND Analog Video 1 Input
51 VIN2 IN GND Analog Video 2 Input
52 VIN3 IN GND Analog Video 3 Input
53 VIN4 IN GND Analog Video 4 Input
54 VIN5 IN GND Analog Video 5 Input
55 VIN6 IN GND Analog Video 6 Input
56 VIN7 IN GND Analog Video 7 Input
57 VIN8 IN GND Analog Video 8 Input
58 VIN9 IN GND Analog Video 9 Input
59 VIN10 IN GND Analog Video 10 Input
60 VIN11 IN GND Analog Video 11 Input
61 P23 IN/OUT LV Port 2, Bit 3 Input/Output
62 P22 IN/OUT LV Port 2, Bit 2 Input/Output
63 XTAL2 OUT OBL Analog Crystal Output
64 XTAL1 IN OBL Analog Crystal Input
2-16 Samsung Electronics
Alignment and Adjustments
Connection
Pin No. Pin Name Type Short Description
(If not used)
65 VSUP1.8DIG SUPPLY OBL Supply Voltage Digital Core, 1.8 V (main and standby supply)
66 GND SUPPLY OBL Ground Platform
67 GND SUPPLY OBL Ground Platform
68 VSUP3.3DIG SUPPLY OBL Supply Voltage Digital Core, 3.3 V
69 VSUP5.0IF SUPPLY OBL Supply Voltage IF ADC, 5.0 V
70 VSUP5.0FE SUPPLY OBL Supply Voltage Analog IF Front-end, 5.0 V
71 RESETQ IN/OUT OBL Reset Input/Output
72 IFIN+ IN VREF IF Differential IF Input
73 IFIN- IN VREF IF Differential IF Input
74 VREFIF OBL Reference Voltage, IF ADC
75 TAGC OUT LV Tuner AGC Output
76 AIN1R/ IN/ GND Analog Audio 1 Input, Right
SIF OUT Analog 2nd Sound IF Output
77 AIN1L IN GND Analog Audio 1 Input, Left
78 AIN2◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
