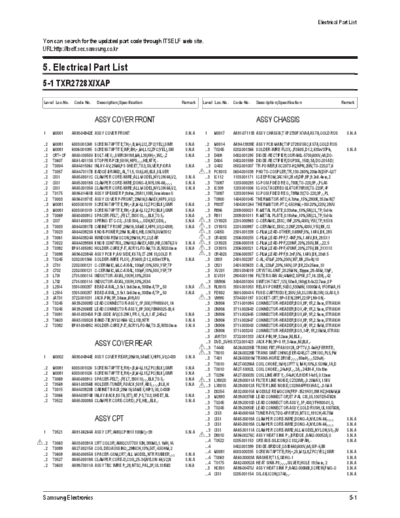

Image preview - the first page of the document
>> Download 05_ELECTRICAL_PART_LIST documenatation <<
Text preview - extract from the document
Electrical Part List
Yon can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
5. Electrical Part List
5-1 TXR2728X/XAP
Level Loc.No. Code No. Description;Specification Remark Level Loc.No. Code No. Description;Specification Remark
ASSY COVER FRONT ASSY CHASSIS
1 M0001 AA90-04942E ASSY COVER FRONT S.N.A 1 M0017 AA91-07111B ASSY CHASSIS;TXP2730FX/XAA,KS7A,GOLD RUS S.N.A
..2 M0081 6003-001268 SCREW-TAPTITE;TH,+,B,M4,L12,ZPC(YEL),SWR S.N.A ..2 M0014 AA94-13939E ASSY PCB MAIN;TXP2728X/XAC,KS7A,GOLD RUS
..2 M0081 6006-001095 SCREW-TAPTITE;WP,BH,+,M4,L12,ZPC(YEL),SW S.N.A ...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
..2 CRT+CF AA60-10050V BOLT-HEX;-,SWRCH18A,M6,L30,HH,+,WC,-,Z S.N.A ...3 D408 0402-001295 DIODE-RECTIFIER;GUR460L-5700,600V,4A,DO-
..2 T0607 AA61-40113A STOPPER-PCB;501H,HIPS,-,-,HB,NTR,- ...3 D404 0402-001599 DIODE-RECTIFIER;DGP30L,1500,3A,DO-201AD(
..2 T0004 AA64-01506J INLAY-AV;25M6,PS SHEET,T0.3,SILVER,P/GRA S.N.A ...3 Q402 0502-001007 TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6
..2 T0057 AA64-70117B BADGE-BRAND;,AL,T1.5,10.6,L65,BLK,SILVER ...3 PC801S 0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
..2 CIS1 AA65-00011C CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A ...3 IC112 1103-001171 IC-EEPROM;24C161,2Kx8,DIP,8P,9.2x6.4mm,2
..2 CIS1 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A ...3 T0087 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
..2 CIS1 AA65-30105A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A ...3 IC309 1203-001006 IC-VOLTAGEREGULATOR78R05,TO-220F,4P
..2 T0175 AA96-01461B ASSY SPEAKER P;8ohm,28A11,10W,Semidome S ...3 T0087 1203-001944 IC-POSI.FIXED REG.;78RM33,TO-220,3P,-,PL
..2 T0003 AA96-01971E ASSY COVER P-FRONT;29M16,SAMEX,HIPS,V0,G ...3 T0900 1404-001045 THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T
...3 M0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR S.N.A ...3 P803T 1404-001264 THERMISTOR-PTC;4.5OHM,+30/-20%,220V,290V
...3 M0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR S.N.A ...3 R896 2009-000021 R-METAL PLATE;0.33ohm,10%,5W,CL,TP,5x14x
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A ...3 R811 2009-001011 R-METAL PLATE;0.18ohm,10%,5W,CL,TP,5x14x
...3 CIS7 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, S.N.A ...3 CY802S 2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
...3 T0003 AA64-03817B CABINET FRONT;29M16,SAMEX,HIPS,V0,G4309, S.N.A ...3 CY801S 2201-000987 C-CERAMIC,DISC;2.2NF,20%,400V,Y5U,BK,12.
...3 T0023 AA64-03823A KNOB-POWER;29M16,ABS,HB,G3676,SVM3012 ...3 C405S 2301-001338 C-FILM,LEAD-OTHER;0.68NF,5%,1.6KV,BK,28X
...3 T0061 AA64-03824A WINDOW-REMOCON;29M16,PC,CLEAR ...3 CR403S 2306-000255 C-FILM,LEAD-PPF;7.4NF,3%,1.6KV,BK,28.5X1
...3 T0022 AA64-03958A KNOB CONTROL;29M16,SAMEX,ABS,HB,G3676,SV S.N.A ...3 CX802S 2306-000318 C-FILM,LEAD-PPF;220NF,20%,250V,BK,-,22.5
...3 T0382 BP61-00509C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm S.N.A ...3 CX801S 2306-000321 C-FILM,LEAD-PPF;470NF,20%,275V,BK,31X11X
..2 T0098 AA96-02084A ASSY PCB P;A/V SIDE,KS7A,CT-29K10,GOLD R ...3 CR402S 2306-000357 C-FILM,LEAD-PPF;8.2nF,5%,1.6KV,BK,20x9.5
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A ...3 C803 2401-002287 C-AL;470uF,20%,200V,WT,BK,25x40,10
...3 C701 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ...3 C821 2401-003633 C-AL;220uF,20%,160V,GP,BK,22x25mm,10
...3 C702 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ...3 XV201 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
...3 L701 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534 ...3 ICV101 2904-001196 FILTER-SAW AV;44MHZ,SIP5K,ST,16.2DB,-,42
...3 L702 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534 ...3 SW906 3404-001004 SWITCH-TACT;12V,50mA,160gf,8.4x22.7mm,SP
...3 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ...3 RL801S 3501-001053 RELAY-POWER;5VDC,530MW,10000MA,1FORMA,15
...3 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ...3 FD802 3601-000414 FUSE-CARTRIDGE;250V,5A,SLOW-BLOW,GLASS,5
...3 JA701 3722-001031 JACK-PIN;3P,3.6mm,#18,AU ...3 V999S 3704-001197 SOCKET-CRT;8P+SEN,29PI,22.5PI,NI+SN,-
...3 T0245 AA39-20009D LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,16 ...3 CN906 3711-001084 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
...3 T0245 AA39-20068E LEAD CONNECTOR-ASSY;,8P,500,YBNH025-08,6 ...3 CN906 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
...3 T0091 AA41-00345A PCB-SIDE A/V;CS29K1,FR-1,1L,A,1.6T,245x2 S.N.A ...3 CN906 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
...3 T0603 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A ...3 CN906 3711-002647 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
..2 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm S.N.A ...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
...3 CN906 3711-003241 CONNECTOR-HEADER;BOX,14P,1R,2.5MM,STRAIG
...3 JAR701 3722-001333 JACK-PIN;9P,3.2mm,NI,BLK,-
ASSY COVER REAR ...3
...3
DVD_SVHS3722-001423 JACK-PIN;3P+S1P,3.4mm,NI,BLK,-
T444S AA26-00205B TRANS FBT;FFA61012K,CPTTV,3.4mH,FERRITE,
...3 T801S AA26-00228B TRANS SWITCHING;EER4245,CT-29K10G,PL5,PM
1 M0002 AA90-04944E ASSY COVER REAR;29M16,SAMEX,HIPS,V0,G430 S.N.A ...3 T401 AA26-50001M TRANS-HORIZ.DRIVE;-,-,-,80mH,-,-,520uH,-
...3 T0010 AA27-00286A COIL CHOKE;1MH,CPTTV,1MH,10%,0.5OHM,1A,D
..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A ...3 T0010 AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m
..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A ...3 T0296 AA27-30003S COIL LINEARITY;-,54uH,YL81DR14x15,0.12mm
..2 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A ...3 LX802S AA29-00011A FILTER LINE NOISE;CZ32W8,-,0.20MAX,1.5KV
..2 T0569 AA61-00356B HOLDER-TUNER,F/JACK;501F,ABS,-,-,-,BLK,H S.N.A ...3 LX801S AA29-00012A FILTER LINE NOISE;CS29A6PF8X/HAC,-,0.1MA
..2 T0015 AA64-03820B CABINET BACK;29M16,SAMEX,HIPS,V0,G4309 ...3 D0254 AA32-00015A MODULE REMOCON;FRP-3521H31,38KHZ,940MM,M
..2 T0066 AA64-03974B INLAY-BACK;KS7A,(ET),NT,PS,T0.3,SHEET,BL S.N.A ...3 M2893 AA39-00376B LEAD CONNECTOR;ET-PAL CIS,UL1007/2547#26
..2 T0522 AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,- S.N.A ...3 T0245 AA39-20010D LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
...3 T0245 AA39-20050E LEAD CONNECTOR-ASSY;GOLD RUSH,UL1007#26,
...3 CIS3 AA40-00016A TUNER-F/S;TDQ-6F/13F2S,NTSC,181CH,45.75M
ASSY CPT ...3 CIS1 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
...3 CIS1 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
...3 CIS1 AA65-30111A CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,W S.N.A
1 T0521 AA91-06264A ASSY CPT;A68QCP891X100(M),+38 S.N.A
...3 D801S AA96-00276C ASSY HEAT SINK P;-,BRIDGE ,AA62-00052A,G S.N.A
....4 T0522 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A
..2 T0063 AA03-00391A CRT COLOR;A68QCU770X 53N,380MG,1.1MH,14.
....4 0402-001399 DIODE-BRIDGE;GSIB660,600V,6A,SIP-4,BK
..2 T0089 AA27-00215A COIL DEGAUSSING;,29INCH,10%,50T,4.5OHM,2
....4 M0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A
..2 T0609 AA60-00055A SPACER-GUM,CRT;ALL MODEL,NTR RUBBER,-,-, S.N.A
....4 T0063 AA60-30003A WASHER;T1.5,SBHG-1 S.N.A
..2 T0527 AA65-00019A CLAMPER CORE-D,COIL;25-34,NYLON 66,V2,N S.N.A
....4 T0175 AA62-00052A HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2 S.N.A
..2 T0603 AA98-70011A ASSY TBC WIRE P;,29,NTSC,PAL,2P,UL1015#2 S.N.A
...3 HC801 AA96-00475J ASSY HEAT SINK P;AA62-00066B,SCREW,FMG-G S.N.A
....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A
Samsung Electronics 5-1
Electrical Part List
Level Loc.No. Code No. Description;Specification Remark Level Loc.No. Code No. Description;Specification Remark
....4 0402-001230 DIODE-RECTIFIER;FMG-G2CS,1000V,3A,DO-41, ....4 DZ811 0403-000700 DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP
....4 0402-001374 DIODE-RECTIFIER;FFPF06U20S,200V,6A,TO-22 ....4 DZ812 0403-000700 DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP
....4 IC309 1203-001006 IC-VOLTAGEREGULATOR78R05,TO-220F,4P ....4 DZ242 0403-000714 DIODE-ZENER;MTZJ3.3B,3.32-3.53V,500MW,DO
....4 T0087 1203-001543 IC-POSI.FIXED REG.;78R33,TO-220,4P,400MI ....4 DZV201 0403-000714 DIODE-ZENER;MTZJ3.3B,3.32-3.53V,500MW,DO
....4 M0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A ....4 DZR01S 0403-000718 DIODE-ZENER;MTZJ6.8B,6.52-6.79V,500MW,DO
....4 T0098 AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00 S.N.A ....4 DZ603 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
...3 IC301 AA96-00623F ASSY HEAT SINK P;LA78045,SCREW,AA62-0005 S.N.A ....4 DZ701 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A ....4 DZ702 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
....4 T0088 1204-002183 IC-VERTICAL PROCESSO;LA78045,TO220,7P,15 ....4 DZ703 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
....4 M0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A ....4 DZ813 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
....4 T0175 AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-, S.N.A ....4 DZV01 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
...3 Q801 AA96-00624G ASSY HEAT SINK P;SCREW,AA62-00057B,FQP63 S.N.A ....4 DZV02 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A ....4 DZV204 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
....4 Q409 0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM, ....4 DZV205 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO
....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A ....4 DZ550 0403-000734 DIODE-ZENER;TZP15B,14.7-16.5V,1000MW,DO-
....4 T0175 AA62-00057B HEAT SINK-PS;CT-29K12P,A1050S,1.0,41,60, S.N.A ....4 DZ501 0403-001211 DIODE-ZENER;MTZJ12B,11.8-12.3V,500MW,DO-
...3 Q401 AA96-00624J ASSY HEAT SINK P;SCREW,AA62-00057A,C5936 S.N.A ....4 DZ502 0403-001211 DIODE-ZENER;MTZJ12B,11.8-12.3V,500MW,DO-
....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A ....4 DZ503 0403-001211 DIODE-ZENER;MTZJ12B,11.8-12.3V,500MW,DO-
....4 H/S 0502-001264 TR-POWER;2SC5936,NPN,40000mW,TOP-3E,ST,5 ....4 DZ303 0403-001221 DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A ....4 DZ814 0403-001320 DIODE-ZENER;MTZJ6.2C,6.16-6.4V,500MW,DO-
....4 T0105 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A ....4 DZV202 0403-001320 DIODE-ZENER;MTZJ6.2C,6.16-6.4V,500MW,DO-
....4 T0175 AA62-00057A HEAT SINK-PS;-,-,T1.0,-,41*20*60,D2,-,-, S.N.A ....4 DZV203 0403-001320 DIODE-ZENER;MTZJ6.2C,6.16-6.4V,500MW,DO-
...3 LDV901 AA96-01710A ASSY MISC P-LED GUIDE S.N.A ....4 DZ815 0403-001321 DIODE-ZENER;MTZJ6.8C,6.7-6.97V,500MW,DO-
...3 IC602 AA96-02124B ASSY HEAT SINK P;AA62-30182G,SCREW,TDA72 S.N.A ....4 DZ301 0403-001329 DIODE-ZENER;MTZJ24B,22.75-23.73V,500MW,D
....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A ....4 DZ302 0403-001329 DIODE-ZENER;MTZJ24B,22.75-23.73V,500MW,D
....4 T0085 1201-002121 IC-AUDIO AMP;TDA7266SA,CLIPWATT,15P,19.8 ....4 DZ305 0403-001329 DIODE-ZENER;MTZJ24B,22.75-23.73V,500MW,D
....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A ....4 QV207 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92,
....4 T0607 AA61-01390A BRACKET-IC;CT-29A20HR,SECC,T1.0 S.N.A ....4 QV905 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92,
....4 T0066 AA62-30182G HEAT SINK-ES;CT-29A20HR,A6063S,T2.0,26.2 S.N.A ....4 Q501 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
...3 T0066 AA96-20129A ASSY POWER CORD;-,EP2/YES,H/C300,ME301P, ....4 QR01S 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
....4 T0268 AA39-10007Y CBF-POWER CORD;-,EP2/YES,SPT-2 18AWGx2C, ....4 QV203 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
....4 T0010 AA61-20284A HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002 S.N.A ....4 QV204 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
...3 IC501 AA96-50311N ASSY HEAT SINK P;AA62-30175D,TDA6109JF,S S.N.A ....4 QV205 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
....4 T0074 1201-002114 IC-VIDEO AMP;TDA6109JF,SDIP,9P,18.5mm,-, ....4 QV272 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
....4 M0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A ....4 Q802 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO-
....4 T0175 AA62-30175D HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2 S.N.A ....4 Q805 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
...3 IC801S AA96-50371K ASSY HEAT SINK P;AA62-30181H,SCREW,STR-X S.N.A ....4 Q806 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A ....4 QR02S 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A ....4 QV202 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 IC063 AA13-00112A IC HYBRID;STR-X6750B,CS29M6PF,7,-20 to + ....4 QV206 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 T0066 AA62-30181H HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,50MM,- S.N.A ....4 QV273 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
...3 M0014 AA97-14752E ASSY AUTO-MAIN;TXP2728X/XAC,KS7A,GOLD RU S.N.A ....4 QV901 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 D814 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 QV902 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 DR02S 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 QV951 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 DV201 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
....4 DV202 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
....4 DV203 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m
....4 DV901 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 IC012 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
....4 DV951 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 IC202 1203-001943 IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC
....4 DV952 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 VP801S 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
....4 DZ403 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 VX801S 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
....4 DZ816 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T ....4 RV940 2001-000003 R-CARBON;330OHM,5%,1/8W,AA,TP,
....4 D804 0401-000006 DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T ....4 RV272 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
....4 D805 0401-000006 DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T ....4 RV275 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
....4 D402 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP ....4 R306 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
....4 D403 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP ....4 R405 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
....4 D808 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP ....4 R807 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
....4 D812 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP ....4 R562 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
....4 D504 0402-000254 DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP ....4 R817 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
....4 DR01S 0402-000254 DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP ....4 RR07S 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
....4 D813 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L ....4 RV202 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D405 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T ....4 RV222 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D401 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC ....4 RV258 2001-000252 R-CARBON;1.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D406 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP ....4 R563 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D303 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T ....4 R565 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D407 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T ....4 R806 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D501 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T ....4 R836A 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D502 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T ....4 RV107 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D503 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T ....4 LV902 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D803 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T ....4 LV903 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 D806 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T ....4 R104 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 DZ905 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ....4 R107 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 DZV101 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ....4 R501 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 DZV200 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ....4 R504 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 DZV901 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ....4 R505 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 DZV902 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ....4 R609 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 DZ306 0403-000700 DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP ....4 R619 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
5-2 Samsung Electronics
Electrical Part List
Level Loc.No. Code No. Description;Specification Remark Level Loc.No. Code No. Description;Specification Remark
....4 RL909 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV702 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV112 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV703 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV113 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV704 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV234 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV705 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV920 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV927 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV923 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV928 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV925 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV106 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV929 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R942 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 RV930 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R567 2001-001040 R-CARBON(S);0.68OHM,5%,1/2W,AA,TP,2.4X6.
....4 RVL910 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R514 2001-001062 R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
....4 R309S 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R402 2001-001070 R-CARBON(S);120OHM,5%,1/2W,AA,TP,2.4X6.4
....4 R568 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R566 2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4
....4 R620 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R832 2001-001079 R-CARBON(S);15OHM,5%,1/2W,AA,TP,2.4X6.4M
....4 R838 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R805 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
....4 R941 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R820 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
....4 RV201 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R417 2001-001099 R-CARBON(S);2.7KOHM,5%,1/2W,AA,TP,2.4X6.
....4 RV905 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV218 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
....4 RV951 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R404 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
....4 RV952 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R415 2001-001115 R-CARBON(S);27KOHM,5%,1/2W,AA,TP,2.4X6.4
....4 RV274 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R564 2001-001126 R-CARBON(S);300OHM,5%,1/2W,AA,TP,2.4X6.4
....4 RV208 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R818 2001-001131 R-CARBON(S);33KOHM,5%,1/2W,AA,TP,2.4X6.4
....4 RV209 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R314 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4
....4 RV210 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R895 2001-001152 R-CARBON(S);47KOHM,5%,1/2W,AA,TP,2.4X6.4
....4 RV220 2001-000376 R-CARBON;15OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 L406 2001-001168 R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.
....4 RR06S 2001-000397 R-CARBON;180KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R401 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M
....4 R553 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R501H 2002-001008 R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
....4 R607 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R502H 2002-001008 R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
....4 R608 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R511 2002-001008 R-COMPOSITION;1.8Kohm,10%,1/2W,AA,TP,3.7
....4 R621 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RX801S 2002-001010 R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x
....4 R622 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RY801S 2002-001012 R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
....4 R944 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R426 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
....4 RR09S 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R804 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
....4 RR10S 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R830 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
....4 RV225 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R831 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12
....4 RV252 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R309 2003-001018 R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
....4 RV902 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R423 2003-001042 R-METAL OXIDE(S);5.6Kohm,5%,2W,AF,TP,3.9
....4 RV906 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R310 2003-002037 R-METAL OXIDE(S);270ohm,5%,2W,AF,TP,3.9x
....4 RV922 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R407 2003-002151 R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM
....4 R550 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R420 2004-000412 R-METAL;18Kohm,1%,1/4W,AA,TP,2.4x6.4mm
....4 RV232 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV917 2004-000531 R-METAL;20Kohm,1%,1/2W,AA,TP,2.3x6.5mm
....4 RV233 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV914 2004-000680 R-METAL;2Kohm,1%,1/8W,AA,TP,1.8x3.2mm
....4 RV941 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV909 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
....4 R812 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV915 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
....4 R939 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R411 2004-000947 R-METAL;43Kohm,1%,1/4W,AA,TP,2.4x6.4mm
....4 RV219 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV916 2004-001126 R-METAL;6.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
....4 RV207 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV911 2004-001382 R-METAL(S);13Kohm,1%,1/2W,AA,TP,2.4x6.4m
....4 RV211 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV912 2004-001382 R-METAL(S);13Kohm,1%,1/2W,AA,TP,2.4x6.4m
....4 RV223 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R416 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
....4 RV256 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R305 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4
....4 RV224 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R816 2004-001891 R-METAL(S);133Kohm,1%,1/2W,AA,TP,2.5x6.5
....4 RV205 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R821 2004-001891 R-METAL(S);133Kohm,1%,1/2W,AA,TP,2.5x6.5
....4 RV273 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RR05S 2004-001893 R-METAL(S);22Kohm,1%,1/2W,AA,TP,2.5x6.5m
....4 RV213 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R819 2004-001983 R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
....4 RV215 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV212 2004-002187 R-METAL;619ohm,1%,1/8W,AA,TP,1.8x3.2mm
....4 RV217 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV214 2004-002187 R-METAL;619ohm,1%,1/8W,AA,TP,1.8x3.2mm
....4 R833 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV216 2004-002187 R-METAL;619ohm,1%,1/8W,AA,TP,1.8x3.2mm
....4 R841 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RV913 2004-004045 R-METAL(S);390ohm,1%,1/2W,AA,TP,2.5x6.5m
....4 RV105 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RR03S 2004-004092 R-METAL(S);52.6Kohm,1%,1/2W,AA,TP,2.5x6.
....4 RV221 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RR04S 2004-004970 R-METAL;62Kohm,1%,1/8W,AA,TP,1.8x3.2mm
....4 RV903 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R315 2004-005054 R-METAL(S);39KOHM,1%,1/2W,AA,TP,2.4X6.4M
....4 RV904 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R560 2008-000205 R-FUSIBLE(S);10ohm,5%,1/2W,AF,TP,2.5x6.5
....4 RV907 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R834 2008-000205 R-FUSIBLE(S);10ohm,5%,1/2W,AF,TP,2.5x6.5
....4 RV908 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R809B 2008-000206 R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
....4 RV924 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R829 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
....4 RV926 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R413 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
....4 R551 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R414 2008-000264 R-FUSIBLE(S);1ohm,5%,1W,AF,TP,3.9x10mm
....4 RR02S 2001-000766 R-CARBON;43KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 RR01S 2008-000264 R-FUSIBLE(S);1ohm,5%,1W,AF,TP,3.9x10mm
....4 RV276 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R825 2008-000284 R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
....4 RR08S 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R827 2008-000284 R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M
....4 RV901 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R837 2008-000290 R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm
....4 RV108 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R898 2008-000290 R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm
....4 RV109 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R303 2008-001013 R-FUSIBLE(S);1.2ohm,5%,2W,AF,TP,3.9x10mm
....4 RV110 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R304 2008-001015 R-FUSIBLE(S);1.5ohm,5%,2W,AF,TP,3.9x10mm
....4 RV111 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R516 2008-001015 R-FUSIBLE(S);1.5ohm,5%,2W,AF,TP,3.9x10mm
....4 RV271 2001-000869 R-CARBON;56OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R418 2008-001023 R-FUSIBLE(S);3.3ohm,5%,1/2W,AF,TP,2.5x6.
....4 RV934 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R561 2008-001053 R-FUSIBLE;22ohm,5%,1/2W,AF,TP,2.5x6.5mm
....4 RV701 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM ....4 R828 2008-001138 R-FUSIBLE;2.4OHM,5%,1W,AF,TP,3.9X10MM
Samsung Electronics 5-3
Electrical Part List
Level Loc.No. Code No. Description;Specification Remark Level Loc.No. Code No. Description;Specification Remark
....4 FD801A 2008-001160 R-PICO FUSIBLE;20mohm,20%,1W,AA,TP,2.3x6 ....4 CV911 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
....4 FD802S 2008-001163 R-PICO FUSIBLE;10mohm,20%,1W,AA,TP,2.3x6 ....4 C552 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 C424 2201-000132 C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5 ....4 C620 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 C302 2201-000192 C-CERAMIC,DISC;0.01NF,0.25PF,500V,C0G,TP ....4 CR04S 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 C823 2201-000291 C-CERAMIC,DISC;1NF,10%,500V,Y5P,TP,7.5X3 ....4 CV104 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 C804 2201-000332 C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4 ....4 CV212 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 C805 2201-000332 C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4 ....4 CV213 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 C828 2201-000374 C-CERAMIC,DISC;0.22NF,5%,50V,C0G,TP,10.5 ....4 CV260 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 CV253 2201-000389 C-CERAMIC,DISC;0.022NF,5%,50V,C0G,TP,5X3 ....4 CV912 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 CV254 2201-000389 C-CERAMIC,DISC;0.022NF,5%,50V,C0G,TP,5X3 ....4 CV914 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x
....4 C408 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5. ....4 C400 2305-001037 C-FILM,LEAD-PEF;330nF,5%,63V,TP,7.5x5.5x
....4 C411 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5. ....4 C850 2305-001037 C-FILM,LEAD-PEF;330nF,5%,63V,TP,7.5x5.5x
....4 C413 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5. ....4 CV101 2306-000122 C-FILM,LEAD-PPF;100nF,5%,50V,TP,7.3x4.0x
....4 C818 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5. ....4 CV272 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5
....4 C888 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5. ....4 C815 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
....4 C403 2201-000599 C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5. ....4 CV901 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5
....4 C845 2201-000599 C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5. ....4 C303 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5
....4 C508 2201-000723 C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5 ....4 C304 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,
....4 CV913 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ....4 C506 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
....4 CV915 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ....4 C507 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m
....4 CV198 2202-000216 C-CERAMIC,MLC-AXIAL;0.027NF,5%,50V,SL,TP ....4 CR02S 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
....4 CV199 2202-000216 C-CERAMIC,MLC-AXIAL;0.027NF,5%,50V,SL,TP ....4 CR03S 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
....4 C607 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C617 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm
....4 C608 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C808 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm
....4 C627 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C826 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2
....4 C629 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 CV222 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2
....4 C638 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C551 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
....4 C642 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C553 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
....4 C644 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 CV602 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5
....4 CV643 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C409 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5
....4 CV701 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C813 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5
....4 CV702 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T ....4 C412 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
....4 C101S 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. ....4 C612 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5
....4 C102S 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. ....4 C613 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5
....4 CV271 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3. ....4 CV603 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5
....4 CV201 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 CV604 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5
....4 CV203 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 CV605 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5
....4 CV205 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 CV606 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5
....4 CV210 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 CV607 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5
....4 CV219 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 CV608 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5
....4 CV256 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 C621 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
....4 CV257 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 C812 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5
....4 CV259 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 CV214 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5
....4 CV262B 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 CV903 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5
....4 CV612 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 C814 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
....4 CV902 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 C825 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
....4 CV904 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 C817 2401-002215 C-AL;2200uF,20%,25V,WT,TP,13x25,5
....4 CV908 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 C819 2401-002215 C-AL;2200uF,20%,25V,WT,TP,13x25,5
....4 RV999 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3 ....4 C407 2401-002268 C-AL;2.2uF,20%,250V,LZ,TP,8X11,5
....4 CV207 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP ....4 C410 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5
....4 CV208 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP ....4 CV102 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5
....4 CV209 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP ....4 C829 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5
....4 CV920 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP ....4 C402 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5
....4 CV111A 2202-002009 C-CERAMIC,MLC-AXIAL;100NF,+80-20%,50V,Y5 ....4 CV202 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C420 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V ....4 CV204 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 CV601 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V ....4 CV206 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C843 2301-000192 C-FILM,LEAD-PEF;1nF,5%,50V,TP,5.3x10mm,5 ....4 CV218 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C610 2301-000224 C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1 ....4 CV231 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C611 2301-000224 C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1 ....4 CV255 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 CV223 2301-000224 C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1 ....4 CV258 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C301 2301-000342 C-FILM,LEAD-PEF;2.2nF,5%,50V,TP,7.4x3.9x ....4 CV261 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C844 2301-000356 C-FILM,LEAD-PEF;47nF,5%,50V,TP,7.5x4.0x6 ....4 CV611 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C107 2301-000383 C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm ....4 CV905 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 C401 2301-000383 C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm ....4 CV907 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 CV103 2301-000383 C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm ....4 CV909 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5
....4 CV110 2301-000383 C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm ....4 C108 2401-003578 C-AL;1000uF,20%,10V,GP,TP,8x20mm,5
....4 C807 2301-001342 C-FILM,LEAD-PPF;1.5nF,5%,800V,TP,15x6.5x ....4 CV918 2401-003578 C-AL;1000uF,20%,10V,GP,TP,8x20mm,5
....4 CR404S 2303-001001 C-FILM,LEAD-PPF;22nF,5%,630V,TP,18x14.5x ....4 LV101 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534
....4 C414A 2305-000237 C-FILM,LEAD-PEF;1uF,5%,63V,TP,7.5x15.5mm ....4 LV252A 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534
....4 C305 2305-000285 C-FILM,LEAD-PEF;220NF,5%,100V,TP,10.5X5. ....4 LV252B 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534
....4 C824 2305-000289 C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm ....4 RV101 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534
....4 CV211 2305-000289 C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm ....4 RV102 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534
....4 C308 2305-000411 C-FILM,LEAD-PEF;470nF,5%,50V,TP,7.3x4.8x ....4 LV204 2701-000115 INDUCTOR-AXIAL;10UH,10%,3070
....4 CV933 2305-000411 C-FILM,LEAD-PEF;470nF,5%,50V,TP,7.3x4.8x ....4 LV601 2701-000115 INDUCTOR-AXIAL;10UH,10%,3070
....4 CV934 2305-000411 C-FILM,LEAD-PEF;470nF,5%,50V,TP,7.3x4.8x ....4 L284 2701-000116 INDUCTOR-AXIAL;10UH,10%,4298
....4 CV935 2305-000411 C-FILM,LEAD-PEF;470nF,5%,50V,TP,7.3x4.8x ....4 LV251 2701-000116 INDUCTOR-AXIAL;10UH,10%,4298
....4 CV910 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm ....4 LV904 2701-000116 INDUCTOR-AXIAL;10UH,10%,4298
5-4 Samsung Electronics
Electrical Part List
Level Loc.No. Code No. Description;Specification Remark Level Loc.No. Code No. Description;Specification Remark
....4 L424 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534 ....4 EY817 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L825 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534 ....4 EY818 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV701 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534 ....4 EY819 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV702 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534 ....4 EY821 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV703 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534 ....4 EY822 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV201 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070 ....4 EY823 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV202 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070 ....4 EY824 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV203 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070 ....4 EY826 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV901 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070 ....4 EY827 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV905 2701-000158 INDUCTOR-AXIAL;22UH,10%,2534 ....4 EY828 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV205 2701-000159 INDUCTOR-AXIAL;22UH,10%,4298 ....4 EY829 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV704 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534 ....4 EY830 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV705 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534 ....4 EY831 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L607 2701-000177 INDUCTOR-AXIAL;33UH,10%,2534 ....4 EY832 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L608 2701-000177 INDUCTOR-AXIAL;33UH,10%,2534 ....4 EY833 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L705 2701-000177 INDUCTOR-AXIAL;33UH,10%,2534 ....4 EY834 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L706 2701-000177 INDUCTOR-AXIAL;33UH,10%,2534 ....4 EY835 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV206 2701-000184 INDUCTOR-AXIAL;4.7UH,10%,2534 ....4 EY836 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L303B 2701-001040 INDUCTOR-AXIAL;10UH,10%,4514 ....4 EY837 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 LV253 2702-001094 INDUCTOR-RADIAL;10uH,10%,4x6mm ....4 EY838 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,- ....4 EY839 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,- ....4 EY840 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY841 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY842 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY843 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY844 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY845 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY846 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY847 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY848 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY849 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY850 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY851 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A ....4 EY852 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 SW901 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP ....4 EY853 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 SW902 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP ....4 EY854 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 SW903 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP ....4 EY855 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 SW904 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP ....4 EY856 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 SW905 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP ....4 EY857 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 F801A 3602-000114 FUSE-HOLDER;-,-,30mohm ....4 EY858 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 F801B 3602-000114 FUSE-HOLDER;-,-,30mohm ....4 EY859 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL800 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY862 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL801 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY863 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL802 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY864 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL803 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY865 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL804 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY866 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL805 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY867 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL806 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY868 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL807 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY869 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL808 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY870 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL809 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY871 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL811 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY872 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL812 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY873 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL842 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY874 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL857 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY875 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EL868 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A ....4 EY876 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY600 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 EY877 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY601 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 EY878 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY602 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 EY879 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY603 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 EY880 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY800 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 EY881 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY801 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 EY882 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY802 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 EY883 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY803 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 CN909 AA37-00001A CONNECTOR-FBT FIX PIN;JM-3500,CPTTV,0.36
....4 EY804 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY805 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY806 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY807 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY808 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY809 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY810 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY811 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY812 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY813 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY814 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO
....4 EY815 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 DZ807 0403-000510 DIODE-ZENER;MTZJ6.2B,5.96-6.27V,500MW,DO
....4 EY816 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A ....4 R843 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
Samsung Electronics 5-5
Electrical Part List
Level Loc.No. Code No. Description;Specification Remark Level Loc.No. Code No. Description;Specification Remark
....4 R810 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.
....4 C809 2201-000558 C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,TP,5X3
....4 R802 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
....4 R803 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
....4 C846A 2401-003555 C-AL;3300uF,20%,25V,WT,TP,16x25,7.5
....4 EL501 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A
....4 EL502 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A
....4 F101 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
....4 C504 2301-001259 C-FILM,LEAD-PPF;100nF,5%,400V,TP,19x8x16
....4 C404A 2303-000331 C-FILM,LEAD-PPF;4.7nF,5%,630V,TP,19.5x12
....4 L503 2701-000154 INDUCTOR-AXIAL;220UH,10%,4298
....4 EY884 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 EY885 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A
....4 T0077 AA41-01024F PCB MAIN;29M16,FR-1,F,330x245,KS7A,1A S.N.A
....4 RV257 2001-000232 R-CARBON;1.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 C822 2401-003553 C-AL;100uF,20%,200V,LZ,TP,16x25,7.5
....4 RV230 2004-001402 R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,
....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,
....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,
....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,
....4 RV206 2004-001912 R-METAL;15Kohm,2%,1/8W,AA,TP,1.8x3.5mm
....4 R302 2004-005020 R-METAL(S);27.5KOHM,1%,1/2W,AA,TP,2.5X6.
...3 IC504 BH99-00007T ASSY HEAT/SINK;BH62-00007A,SCREW,TDA2030 S.N.A
....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A
....4 DU410 1201-000010 IC-OP AMP;2030,PENTAWATT,5P,-,SINGLE,-,C
....4 M0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A
....4 T0081 BH62-00007A HEAT SINK-TR;-,T1.0,L20*H30,CDA S.N.A
...3 M0018 AA97-15794A ASSY MICOM;,KS7A,GOLD RUSH,VCT4942_F1,T-
...3 GT301 AA60-40012F PIN-GT;4P,2.36PI,6/12/14mm,NYLON66,LOCKI S.N.A
...3 PD801S AA60-40012G PIN-GT;3P,2.36PI,10/5mm,NYLON66,LOCKING S.N.A
...3 CR406S 2306-000188 C-FILM,LEAD-PPF;330NF,5%,400V,BK,26X19.5
ASSY P/MATERIAL
1 M0113 AA92-08807A ASSY P/MATERIAL S.N.A
..2 T0214 AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X S.N.A
..2 T0524 AA69-01210A BAG PE;SHEET,32-36,W65,L63,FOAM,OEM. S.N.A
ASSY ACCESSORY
1 M0045 AA92-10391B ASSY ACCESSORY;KS7A;27,XAP S.N.A
..2 M0045 AA96-02788A ASSY ACCESSORY;KS7A,27,XAP S.N.A
...3 T0074 AA59-00325B REMOCON;TM76,K57A,39,G6148,NT,EX
...3 T0152 AA68-00987A CARD WARRANTY;-,-,W/P100,-,-,-,-,-,A4,1P S.N.A
...3 M/SAFETY AA68-03242B MANUAL-SAFETY GUIDE;TH-ENG,SAFETY GUIDE S.N.A
...3 T0511 AA68-03600A MANUAL USERS;KS7A,SPA,PANAMA,W/P100g,A/T S.N.A
...3 T0511 AA68-03637A MANUAL USERS;TXR2728,English,PANAMA,W/P8 S.N.A
...3 T0524 AA69-01195A BAG PE;CL29A6W8X,HDPET0.012,93/4X151/2 S.N.A
5-6 Samsung Electronics
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
