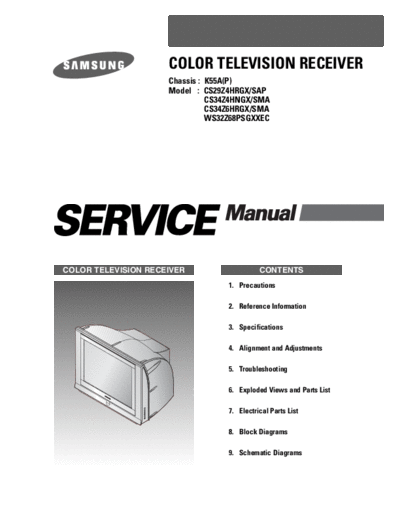

Image preview - the first page of the document
>> Download cs29z4hrgx__k55a_ documenatation <<
Text preview - extract from the document
COLOR TELEVISION RECEIVER
Chassis : K55A(P)
Model : CS29Z4HRGX/SAP
CS34Z4HNGX/SMA
CS34Z6HRGX/SMA
WS32Z68PSGXXEC
COLOR TELEVISION RECEIVER CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Alignment and Adjustments
5. Troubleshooting
6. Exploded Views and Parts List
7. Electrical Parts List
8. Block Diagrams
9. Schematic Diagrams
Precautions
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
(READING SHOULD
protective shields. LEAKAGE NOT BE ABOVE
DEVICE CURRENT 0.5mA)
UNDER TESTER
2. When reinstalling the chassis and its TEST
TEST ALL
assemblies, be sure to restore all protective EXPOSED METAL
devices, including: nonmetallic control knobs SURFACES
and compartment covers. 2-WIRE CORD
ALSO TEST WITH
3. Make sure that there are no cabinet openings PLUG REVERSED
(USING AC ADAPTER EARTH
through which people--particularly PLUG AS REQUIRED) GROUND
children--might insert fingers and contact
dangerous voltages. Such openings include
Fig. 1-1 AC Leakage Test
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
6. Antenna Cold Check:
ventilation slots, and improperly fitted back
With the unit's AC plug disconnected from the
covers.
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
If the measured resistance is less than 1.0
ohmmeter to an AC prong. Connect the other
megohm or greater than 5.2 megohms, an
lead to the coaxial connector.
abnormality exists that must be corrected
before the unit is returned to the customer.
7. X-ray Limits:
The picture tube is especially designed to
4. Leakage Current Hot Check (Figure 1-1):
prohibit X-ray emissions. To ensure continued
Warning: Do not use an isolation
X-ray protection, replace the picture tube only
transformer during this test. Use a leakage-
with one that is the same type as the original.
current tester or a metering system that
Carefully reinstall the picture tube shields and
complies with American National Standards
mounting hardware; these also provide X-ray
Institute (ANIS C101.1, Leakage Current for
protection.
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
8. High Voltage Limits:
High voltage must be measured each time
5. With the unit completely reassembled, plug
servicing is done on the B+, horizontal
the AC line cord directly into the power
deflection or high voltage circuits.
outlet. With the unit's AC switch first in the
Correct operation of the X-ray protection
ON position and then OFF, measure the
circuits must be reconfirmed whenever they
current between a known earth ground (metal
are serviced.
water pipe, conduit, etc.) and all exposed
(X-ray protection circuits also may be called
metal parts, including: antennas, handle
"horizontal disable" or "hold-down".)
brackets, metal cabinets, screwheads and
control shafts. The current measured should
Heed the high voltage limits. These include
not exceed 0.5 milliamp. Reverse the power-
the X◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
