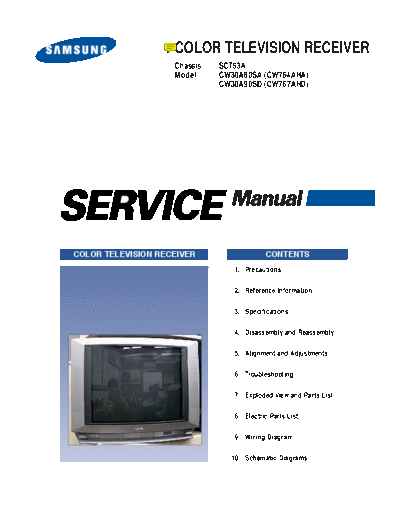

Image preview - the first page of the document
>> Download cw-30a90sd_197 documenatation <<
Text preview - extract from the document
COLOR TELEVISION RECEIVER
Chassis : SCT53A
Model : CW30A80SA (CW764AHA)
CW30A90SD (CW767AHD)
COLOR TELEVISION RECEIVER CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Disassembly and Reassembly
5. Alignment and Adjustments
6. Troubleshooting
7. Exploded View and Parts List
8. Electric Parts List
9. Wiring Diagram
10. Schematic Diagrams
Alignment and Adjustments
5. Alignment and Adjustments
5-1 General Alignment Instructions
1. Usually, a color TV-VCR needs only slight 5. Avoid overload. Excessive signal from a
touch-up adjustment upon installation. Check sweep generator might overload the front-end
the basic characteristics such as height, of the TV. When inserting signal markers, do
horizontal and vertical sync and focus. not allow the marker generator to distort test
results.
2. Observe the picture for good black and white
details. There should be objectionable color 6. Connect the TV only to an AC power source
shading; if color shading is present, with voltage and frequency as specified on the
demagnetize, perform purity and convergence backcover nameplate.
adjustments described below.
7. Do not attempt to connect or disconnect any
3. Use the specified test equipment or its wires while the TV is turned on. Make sure
equivalent. that the power cord is disconnected before
replacing any parts.
4. Correct impedance matching is essential.
8. To protect against shock hazard, use an
isolation transformer.
5-2 Automatic Degaussing
A degaussing coil is mounted around the If the chassis or parts of the cabinet become
picture tube, so that external degaussing after magnetized, poor color purity will result. If
moving the TV should be unnecessary. But this happens, use an external degaussing coil.
the receiver must be properly degaussed upon Slowly move the degaussing coil around the
installation. faceplate of the picture tube and the sides and
front of the receiver. Slowly withdraw the coil
The degaussing coil operates for about 1 to a distance of about 6 feet before turning
second after the power is switched ON. If the power OFF.
set is moved or turned in a different direction,
the power should be OFF for at least 10 If color shading persists, perform the
minutes. following Color purity and Convergence
adjustments.
5-3 High voltage Check
CAUTION: There is no high voltage adjustment on
this chassis. The B+ power supply should be +135
volts
(with full color- bar input and normal picture level).
1. Connect a digital voltmeter to the second
anode of the picture tube.
2. Turn on the TV. Set the Brightness and
Contrast controls to minimum (zero beam
current).
3. Adjust the Brightness and contrast controls to
both extremes. Ensure that the high voltage
does not exceed 32 KV under any conditions.
Samsung Electronics 5-1
Alignment and Adjustments
5-4 RF AGC Adjustment
1. Turn to the strongest local station.
2. Turn the AGC control fully clockwise (VR101, on the MAIN board).
3. Adjust the AGC control until noise(snow)disappears from the screen.
5-5 FOCUS Adjustment
1. Input a black and white signal.
2. Adjust the tuning control for clearest picture.
3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.
5-6 SCREEN Adjustment
1. Turn to the ACTIVE channel.
2. Adjust the VR screen for a normal picture is (no blooming or flyback line).
3. Adjust the SCREEN control for well defined scanning lines in the center area of the screen.
5-7 Purity Adjustment
1. Warm up the receiver for at least 20 minutes.
2. Plug in the CRT deflection yoke. Tighten the clamp screw.
3. Plug the convergence yoke into the CRT and set it as shown in Fig. 5-1.
4. Input a black and white signal.
5. Fully demagnetize the receiver by using an external degaussing coil.
6. Turn the CONTRAST and BRIGHTNESS controls to maximum.
7. Loosen the clamp screw holding the yoke.
Slide the yoke backward or forward to produce a vertical green belt. (Fig. 5-2)
8. Tighten the convergence yoke.
9. Slowly move the deflection yoke forward.
Adjust for the best overall green screen.
10. Temporarily tighten the deflection yoke.
11. Produce blue and red rasters by adjusting the -low-light controls. Check for good purity in each field.
12. Tighten the deflection yoke.
5-2 Samsung Electronics
Alignment and Adjustments
4 Pole Magnet 2 POLE
PURITY
6 Pole Magnet 2 Pole Magnet
Clamper
Screw AD
(VE
YOKE
CLAMP
SCREW
6 POLE
CONVERGENCE
4 POLE
CONVERGENCE
Fig. 5 - 1 Convergence Magnet Assembly
Vertical Green Belt
31m/m
Fig. 5 - 2 Center Convergence Adjustment
Samsung Electronics 5-3
Alignment and Adjustments
5-8 Center Convergence Adjustment
1. Warm up the receiver for at least 20 minutes. 5. Adjust two tabs of 6-pole magnets:
Superimpose the red and blue lines with the
2. Adjust the BRIGHTNESS and CONTRAST green. Adjusting the angle affects the vertical
controls for a well-defined picture. lines, and rotating both magnets affects the
horizontal lines.
3. Adjust the two tabs of the 4-pole magnets:
Change the angle between them. 6. Repeat adjustments 2~4, if necessary.
Superimpose the red and the blue vertical
lines in the center area of the screen. 7. Since the 4-pole and 6-pole magnets interact,
the dot movement is complex (Fig. 5-3).
4. Turn both tabs at the same time, keeping the
angle constant: Superimpose the red and blue
horizontal lines in the center of the screen.
BLUE RED RED/BLUE GREEN
BLUE RED/BLUE
RED GREEN
4-Pole Magnet Movement 6-Pole Magnet Movement
Fig 5-3 Center Convergence Adjustment
5-4 Samsung Electronics
Alignment and Adjustments
5-9 Service Mode
1. Enter th Factory Mode. Press the remote-control keys in this sequence:
PICTURE OFF PICTURE OFF
DISPLAY P.STD MUTE
(RED KEY) (RED KEY)
2. Use the channel and volume keys (up/down)to move the cursor. Select an alignment parameter.
Use the volume keys(up/down)to adjust the value. Adjustment must be done separately for PAL,
SECAM, NTSC color systems. (As soon as the TV receives a signal, it switches to the correct broadcast
standard.) After adjustments are completed, press the picture off key to exit the Service Mode.
Press digit keys directly to change channel number.
Video Adjustment p1 Deflection p1
w
w
w
w
00 Red Drive 031 00 P. V - Size +031
01 Blue Drive 031 01 P.VO - Shift +1
02 Green Drive 031 02 P.V - Lin +8
03 Red Cutoff 031 03 P.S - Correction 0
04 Blue Cutoff 031 04 Tilt +19
05 Green Cutoff 031 05 P. EW - Width +17
06 Sub Brightness 005 06 P. EW - Parabola -46
07 Sub Contrast 013 07 P. H - Shift -85
08 Sub Color 000 08 P. EW - Trapizium +40
09 Peak Drive Limit 063 09 P. EW - UpperCorner -2
10 P. YC Delay 010 10 P. EW - LowerCorner -2
11 Sub Tint 032 11 P. Hor - EHT -90
12 Gamma Correction 000 12 P. Ver - EHT -90
13 P. Bow -10
Option p1
Service Mode p1
w
00 EPG On
w
w
Video Adjustment
01 AV_LINK On Deflection
02 PAL Plus Off Option
03 12.8 : 9 (Q) On Reset
04 16 : 9 Wide Off
05 Dolby Prologic On
06 3D Sound Off
07 S - Audio Mute On
08 Blue Screen On
09 UHF Only Off
10 VGA Off
11 ATM ONE RUN On
Samsung Electronics 5-5
Troubleshooting
6. Troubleshooting
6-1 No Power
No Check Stand-by 5V Yes
on the Main Board
Check
No SDA1/SCL1 Yes
on the Micom
Module
Check HD
No Yes
Signal on the Feature
Box Module
Check/Replace
IC201 (TDA4780)
ICA01 (Auto-Plus)
Check/Replace Tuner
Q804, D824 MICOM Module Check/Replace
RL802, D805 AUDIO Module Q405, D407
IC803, D802 A/V Terminal Board Q400, Q402
D829 (TDA6920) Replace Q404
on the Power Board Feature Box Module Feature-Box Module on the Power Board
Samsung Electronics 6-1
Troubleshooting
6-2 No Picture
Yes Check IC101 (TDA9810) No
#10 (AGC), #12 (CVBS)
Check Feature
No Box Module M-Y/CVBS, Yes
H SYNC, HS2, Y, SC100 Check/Replace
IC101, Tuner
Replace
Feature Box Module
No Check IC201 (TDA4780) Yes
#14 (SC), #15 (ABL),
#19 (Cut off)
Check/Replace
Replace IC501, IC502, IC503
TDA4780 on the CRT Board.
6-2 Samsung Electronics
Troubleshooting
6-3 No Sound
Yes Check IC601, IC602 No
# 5 (MUTE)
No Check Audio Module Yes
MAIN-L, SUR, CENTER,
S-RESET, QSS-IN Check/Replace
Q602, Q603
Micom Module
IC601, IC602
Check/Replace
IC101
Micom Module
No Check IC604 Yes
Audio Module
#9, #14, #15
Check/Replace
Replace
IC604
IC601, IC602
MICOM Module
Samsung Electronics 6-3
Schematic Diagrams
10. Schematic Diagrams
10-1 MAIN 1
Samsung Electronics 12-1
Schematic Diagrams
10-2 MAIN 2
12-2 Samsung Electronics
Schematic Diagrams
10-3 POWER & DEFLECTION
Samsung Electronics 12-3
Schematic Diagrams
10-4 TTX, m-COM
12-4 Samsung Electronics
Schematic Diagrams
10-5 AUDIO MODULE
Samsung Electronics 12-5
Schematic Diagrams
10-6 AV TERMINAL
12-6 Samsung Electronics
Schematic Diagrams
10-7 CRT-DRIVE, SIDE-A/V, POWER-S/W, SNAP-IN
Samsung Electronics 12-7
Schematic Diagrams
10-8 PIP
12-8 Samsung Electronics
Schematic Diagrams
10-9 FEATURE BOX
Samsung Electronics 12-9
Electric Parts List
8. Electric Parts List
8-1 CW764AHDX/XEG, CW764AHDX/XEU AND CW764AHDX/XEC
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
C609 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
ASSY-PCB,MAIN(OPT) C610
C611
2401-000318 C-AL;100UF,20%,25V,LZ,TP,8X11.5,5
2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C612 2401-000192 C-AL;1000uF,20%,50V,GP,16*25mm,7.5m
* AA94-10109UASSY-PCB,MAIN(OPT);CW764AHDX/XEG,SCT53A, SEG C613 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6.
* AA94-10109V ASST-PCB,MAIN(OPT);CW762AHDX/XEU,SCT53A,U.K C614 2401-000192 C-AL;1000uF,20%,50V,GP,16*25mm,7.5m
* AA94-10109WASSY-PCB,MAIN(OPT);CW764AHDX/XEC,SCT53A, SECOSA C615 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6.
C616 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6.
C101 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m C617 2401-000192 C-AL;1000uF,20%,50V,GP,16*25mm,7.5m
C103 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m C618 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C104 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm C619 2401-000318 C-AL;100UF,20%,25V,LZ,TP,8X11.5,5
C105 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m C620 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C107 2305-000288 C-FILM,MPEF;220nF,5%,50V,TP,7.3x4.8x5.5m C621 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm
C108 2401-000667 C-AL;2.2uF,20%,50V,WT,TP,5*11,5mm C622 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm
C109 2401-001570 C-AL;47UF,20%,50V,WT,TP,10X20MM,5MM C623 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6.
C110 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,6.5*3 C624 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C111 2202-000796 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,3 C629 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C112 2401-000947 C-AL;22uF,20%,35V,GP,TP,5x11mm,- C633 2401-002265 C-AL;10uF,20%,50v,GP,TP,5X11mm,5mm
C114 2202-000796 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,3 C634 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C115 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,6.5*3 C635 2401-002265 C-AL;10uF,20%,50v,GP,TP,5X11mm,5mm
C116 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm C831 2401-002286 C-AL;470uF,20%,16V,WT,TP,10x12,5mm
C117 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V C832 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C118 2401-000947 C-AL;22uF,20%,35V,GP,TP,5x11mm,- C833 2401-003034 C-AL;220UF,20%,16V,WT,TP,8X11.5MM,5
C119 2401-000302 C-AL;100UF,20%,25V,GP,TP,6.3X11,5MM C834 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5mm
C120 2401-000302 C-AL;100UF,20%,25V,GP,TP,6.3X11,5MM C835 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C121 2401-001570 C-AL;47UF,20%,50V,WT,TP,10X20MM,5MM C836 2401-002286 C-AL;470uF,20%,16V,WT,TP,10x12,5mm
C264 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m C837 2401-002286 C-AL;470uF,20%,16V,WT,TP,10x12,5mm
C266 2201-000375 C-CERAMIC,DISC;220pF,5%,50V,RH,TP,9.5x3. C838 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C267 2201-000146 C-CERAMIC,DISC;100pF,5%,50V,SL,TP,5x3,5 C839 2401-003034 C-AL;220UF,20%,16V,WT,TP,8X11.5MM,5
C269 2201-000980 C-CERAMIC,DISC;30pF,5%,50V,CH,TP,5.0x3.0 C840 2401-003034 C-AL;220UF,20%,16V,WT,TP,8X11.5MM,5
C270 2201-000375 C-CERAMIC,DISC;220pF,5%,50V,RH,TP,9.5x3. C841 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C271 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm C851 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C272 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm C852 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C273 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm C862 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C274 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6. C863 2401-001397 C-AL;470uF,20%,25V,GP,10x16mm,5mm,T
C275 2301-000285 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5, C864 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C276 2301-000285 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5, C866 2401-002273 C-AL;220uF,20%,25V,HR,TP,10x20mm,5m
C277 2301-000285 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5, C870 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C278 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm CA02 2301-000271 C-FILM,PEF;470nF,5%,100V,-,16x10x24mm,10
C279 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm CA03 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6.
C280 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm CA04 2401-000287 C-AL;100uF,20%,16V,WT,TP,6x11mm,5mm
C281 2401-000302 C-AL;100UF,20%,25V,GP,TP,6.3X11,5MM CA05 2401-000287 C-AL;100uF,20%,16V,WT,TP,6x11mm,5mm
C282 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm CA06 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6.
C283 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM CA07 2201-000423 C-CERAMIC,DISC;27pF,5%,50V,NPO,TP,5x3,2.
C284 2305-000355 C-FILM,MPEF;330nF,5%,63V,TP,-,5mm CA08 2201-000423 C-CERAMIC,DISC;27pF,5%,50V,NPO,TP,5x3,2.
C285 2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm CA09 2201-000375 C-CERAMIC,DISC;220pF,5%,50V,RH,TP,9.5x3.
C286 2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm CA11 2201-000423 C-CERAMIC,DISC;27pF,5%,50V,NPO,TP,5x3,2.
C287 2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm CA12 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6.
C288 2201-000653 C-CERAMIC,DISC;68pF,5%,50V,SL,TP,4.0X3.5 CA13 2201-000234 C-CERAMIC,DISC;150pF,5%,50V,NPO,10x3.5mm
C289 2201-000146 C-CERAMIC,DISC;100pF,5%,50V,SL,TP,5x3,5 CA14 2401-000302 C-AL;100UF,20%,25V,GP,TP,6.3X11,5MM
C290 2201-000376 C-CERAMIC,DISC;220pF,5%,50V,SL,TP,4x4,5 CN07A 3711-002644 CONNECTOR-HEADER;BOX,5P,1R,2.5MM,STRAIGH
C291 2201-000265 C-CERAMIC,DISC;180pF,5%,50V,RH,TP,8x3,5 CN08A 3711-000900 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
C292 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 CN15 AA39-20499F LEAD CONNECTOR-ASSY;-,YBNH025-04,SMP025-
C293 2305-000355 C-FILM,MPEF;330nF,5%,63V,TP,-,5mm CN17 3711-000900 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH
C296 2201-000558 C-CERAMIC,DISC;470pF,10%,50V,Y5P,TP,5x3, CN501A 3711-003360 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
C297 2201-000146 C-CERAMIC,DISC;100pF,5%,50V,SL,TP,5x3,5 CN704A 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT,
C298 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm CN705A 3710-001208 CONNECTOR-SOCKET;32P,2R,2.54mm,STRAIGHT,
C299 2305-000355 C-FILM,MPEF;330nF,5%,63V,TP,-,5mm CN803A 3711-000654 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
C601 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm CN804A 3711-000654 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
C602 2301-000380 C-FILM,PEF;10nF,5%,50V,TP,6.5x3mm,5mm D-COIL AA27-20002QCOIL-DEGAUSSING;-,29,14OHM,70T,L3300,E
C603 2401-000192 C-AL;1000uF,20%,50V,GP,16*25mm,7.5m D101 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C604 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6. D103 0401-001024 DIODE-SWITCHING;BAW75,25V,300MA,DO-35,TP
C605 2401-000192 C-AL;1000uF,20%,50V,GP,16*25mm,7.5m D104 0401-001024 DIODE-SWITCHING;BAW75,25V,300MA,DO-35,TP
C606 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6. D271 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C607 2401-000192 C-AL;1000uF,20%,50V,GP,16*25mm,7.5m D272 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C608 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6. D273 0403-000654 DIODE-ZENER;MTZ12B,12V,11.44-12.03V,500m
Samsung Electronics 8-1
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
D601 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T R124 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
D602 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T R125 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
D603 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T R126 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
DL201 AA29-90003GFILTER-LC;-,D5121,LP,12MHz,TP R252 2001-000577 R-CARBON;2Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DZ101 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m R253 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DZ102 1203-000451 IC-VOLTAGE REGULATOR;33,TO-92,3P,-,PLAST R254 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DZ103 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m R255 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
DZ201 0403-000295 DIODE-ZENER;MTZ5.1B,5.1V,4.94-5.20V,500m R258 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
DZ203 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m R259 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
DZ205 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m R260 2001-000869 R-CARBON;56ohm,5%,1/8W,AA,TP,1.8x3.2mm
DZA02 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m R261 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
FI101 2904-000302 FILTER-SAW AV;38.90MHz,-,ST,13.9dB,PAL-B R262 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
FI102 2904-000301 FILTER-SAW AV;38.90MHz,SIP5K,ST,14.5dB,P R263 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
FI103 2903-000181 FILTER-CERAMIC;TR,5.5MHz,-,-,-,TP,TPS5.5 R264 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC101 1204-001276 IC-SOUND PROCESSOR;TDA9810T,DIP,24P,400M H/SINK R265 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
! IC201 1204-000464 IC-VIDEO PROCESS;TDA4780,DIP,28P,-,PLAST H/SINK R266 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC601 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1 H/SINK R267 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC602 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1 R268 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC604 0801-000961 IC-CMOS LOGIC;4053B,MUTIPLEXER,DIP,16P,3 H/SINK R269 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC802 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA H/SINK R270 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC803 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA R271 2001-000628 R-CARBON;300ohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC804 1203-000243 IC-POSI.FIXED REG.;7812A,TO-220,3P,-,PLA H/SINK R272 2001-000490 R-CARBON;200ohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC805 1203-000006 IC-POSI.FIXED REG.:7808,TO-220,3P,-,PLAS H/SINK R273 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
! IC806 1203-000298 IC-POSI.FIXED REG.;7809,TO-220,3P,-,PLAS R274 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
ICA01 AA13-10002HIC-ASIC;-,AUTO-PLUS,DIP,20P,SYNC-DECTO R275 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
ICA02 1202-000103 IC-VOLTAGE COMP.;393,DIP,8P,300MIL,DUAL, H/SINK R276 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
L101 AA26-10006GTRANS-IF;-,7mG,VIF,-,7mm,8pF,77.8MHz,ST R277 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
L103 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm R278 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
L104 2701-000101 INDUCTOR-AXIAL;1.2uH,10%,2.5x3.4mm R279 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L105 2701-000120 INDUCTOR-AXIAL;12uH,10%,2.5x3.4mm R280 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L106 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm R281 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L107 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm R282 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
L108 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm R283 2001-000645 R-CARBON;330Kohm,5%,1/8W,AA,TP,1.8x3.2m
L109 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R284 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L110 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R285 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L271 2701-001028 INDUCTOR-AXIAL;22uH,10%,14x4.5mm R286 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
L271 2701-000158 INDUCTOR-AXIAL;22uH,10%,2.5x3.4mm R287 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
L272 2701-000208 INDUCTOR-AXIAL;6.8uH,10%,2.5x3.4mm R288 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
L274 2701-000208 INDUCTOR-AXIAL;6.8uH,10%,2.5x3.4mm R289 2001-000009 R-CARBON;20Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L275 2701-000149 INDUCTOR-AXIAL;2.7uH,10%,2.5x3.4mm R291 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L276 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R292 2001-000004 R-CARBON;200Kohm,5%,1/8W,AA,TP,1.8x3.2m
L277 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R293 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L278 2701-000146 INDUCTOR-AXIAL;2.2uH,10%,2.5x3.4mm R294 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L279 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R295 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L280 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R296 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
L601 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R297 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
L602 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm R298 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
LA01 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm R299 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
LA02 2701-000156 INDUCTOR-AXIAL;220uH,5%,2.5x3.4mm R601 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
PIN-GT AA60-40014APIN-GT,ASSY;1P,-,-,AUTO ALL R602 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
Q101 0504-000137 TR-DIGITAL;KSR1202,PNP,300mW,10K-10K,TO- R603 2001-001146 R-CARBON(S):4.7ohm,5%,1/2W,AA,TP,2.4x6.4
Q102 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R604 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
Q104 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R605 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
Q105 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R606 2001-001146 R-CARBON(S):4.7ohm,5%,1/2W,AA,TP,2.4x6.4
Q220 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T R607 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
Q221 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R608 2001-000628 R-CARBON;300ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q223 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R609 2001-000628 R-CARBON;300ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q224 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T R610 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
Q225 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R611 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
Q226 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R612 2001-001146 R-CARBON(S):4.7ohm,5%,1/2W,AA,TP,2.4x6.4
Q602 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R613 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
Q603 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T R614 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
QA01 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R615 2001-001146 R-CARBON(S):4.7ohm,5%,1/2W,AA,TP,2.4x6.4
QA03 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T R616 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R101 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm R617 2001-000628 R-CARBON;300ohm,5%,1/8W,AA,TP,1.8x3.2mm
R102 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm R618 2001-000628 R-CARBON;300ohm,5%,1/8W,AA,TP,1.8x3.2mm
R105 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm R621 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R106 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm R622 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R107 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm R623 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R109 2001-000534 R-CARBON;240ohm,5%,1/8W,AA,TP,1.8x3.2mm R624 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
R110 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m R626 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R111 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm R629 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R113 2001-000109 R-CARBON(S);470ohm,5%,1/2W,AA,TP,2.4x6.4 R630 2001-001055 R-CARBON(S);1.8Kohm,5%,1/2W,AA,TP,2.4x6.
R116 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM R631 2001-000109 R-CARBON(S);470ohm,5%,1/2W,AA,TP,2.4x6.4
R121 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm RA02 2001-001112 R-CARBON(S);24Kohm,5%,1/2W,AA,TP,2.4x6.4
R122 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm RA03 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R123 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m RA04 2001-000577 R-CARBON;2Kohm,5%,1/8W,AA,TP,1.8x3.2mm
8-2 Samsung Electronics
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
RA06 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm C804 2401-002289 C-AL;470uF,20%,35V,WT,TP,10x20,5
RA07 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m C805 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x4,5m
RA08 2001-001197 R-CARBON(S);910ohm,5%,1/2W,AA,TP,2.4x6.4 C806 2303-000159 C-FILM,PPF;2.2nF,5%,1.6KV,BK,31x15.5x8.5
RA09 2001-000384 R-CARBON;160ohm,5%,1/8W,AA,TP,1.8x3.2mm C807 2306-000112 C-FILM,MPPF;100nF,20%,250V,BK,-,15mm
RA11 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm C808 2201-000954 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,7x1
RA12 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm C808A 2201-000954 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,7x1
RA13 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm C809 2401-002292 C-AL;47uF,20%,25V,WT,TP,8X11,5
RA15 2001-001086 R-CARBON(S);18Kohm,5%,1/2W,AA,TP,2.4x6.4 C810 2401-000611 C-AL;1UF,20%,50V,WT,TP,5X11MM,5MM
RA16 2001-001062 R-CARBON(S):10Mohm,5%,1/2W,AA,TP,2.4x6.4 C811 2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250VAC,Y5U,
RA17 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm C812 2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250VAC,Y5U,
RA18 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm C813 2401-003066 C-AL;10UF,20%,450V,GP,TP,13X20,5MM
RA20 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm C814 2401-002222 C-AL;220uF,20%,450V,WT,BK,30x40,10
RA21 2001-000761 R-CARBON;430ohm,5%,1/8W,AA,TP,1.8x3.2mm C816 2401-002262 C-AL;10uF,20%,160V,WT,TP,10x20,5
RA22 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm C817 2401-002459 C-AL;220UF,20%,25V,LZ,TP,10X16,5
RA24 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm C818 2201-000551 C-CERAMIC,DISC;470pF,10%,1KV,Y5P,TP,8x5,
RA25 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm C819 2401-002287 C-AL;470uF,20%,200V,WT,BK,25x40,10
TU01 AA40-10005P TUNER-B/S;TELE9-042A,PAL-B/G,TR,181 CH C820 2401-000822 C-AL;220uF,20%,200V,WT,BK,22x35mm,1
VR101 2103-000672 VR-SEMI;20Kohm,25%,1/5W,TOP C821 2201-000551 C-CERAMIC,DISC;470pF,10%,1KV,Y5P,TP,8x5,
VR102 2103-000672 VR-SEMI;20Kohm,25%,1/5W,TOP C822 2401-000737 C-AL;2200uF,20%,50V,GP,-,18x35.5,7.
XA01 2801-000992 CRYSTAL-UNIT;8.192MHZ,30PPM,28-AAM,15PF, C824 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C825 2401-002215 C-AL;2200uF,20%,25V,WT,TP,13x25,5mm
ASSY-ACCESSORY C826
C828
2401-002215 C-AL;2200uF,20%,25V,WT,TP,13x25,5mm
2401-002215 C-AL;2200uF,20%,25V,WT,TP,13x25,5mm
C829 2401-001397 C-AL;470uF,20%,25V,GP,10x16mm,5mm,T
USER/M AA68-11071AMANUAL-USERS;SCT53A,W/P 100(G),A4,ENG,-, C833 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
USER/M AA68-11105AMANUAL-USERS;SCT53A,GERMANY,TM49,A4,W/P C834 2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250VAC,Y5U,
C835 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
ASSY-CRT C836 2201-000551 C-CERAMIC,DISC;470pF,10%,1KV,Y5P,TP,8x5,
C837 2401-000737 C-AL;2200uF,20%,50V,GP,-,18x35.5,7.
! CRT
C838 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5mm,
AA03-10020X CRT-COLOR;-,A70QAZ761X002(DA),+500mG,29 SEG,UK
! CRT C839 2201-000551 C-CERAMIC,DISC;470pF,10%,1KV,Y5P,TP,8x5,
AA03-10020WCRT-COLOR;-,A70QAZ761X002(DA),+380mG,29 SECOSA
C840 2401-001515 C-AL;47uF,20%,16V,WT,TP,6x11mm,5mm
C842 2401-002211 C-AL;1000UF,20%,35V,LZ,TP,13X25,5
ASSY-POWER C843 2401-002289 C-AL;470uF,20%,35V,WT,TP,10x20,5
C844 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
* AA95-10009L ASSY-PCB,POWER;CW764AHD,SCT53A,29,230V, CN801 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAIG
CN803 3710-001141 CONNECTOR-SOCKET;12P,1R,2.5mm,STRAIGHT,S
C303 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5 CN804 3710-001141 CONNECTOR-SOCKET;12P,1R,2.5mm,STRAIGHT,S
C304 2305-000178 C-FILM,MPEF;10nF,5%,100V,TP,-,5mm D301 0402-000129 DIODE-RECTIFIER;1N4003,200V,1A,DO-41
C310 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6. D302 0402-000129 DIODE-RECTIFIER;1N4003,200V,1A,DO-41
C311 2305-000178 C-FILM,MPEF;10nF,5%,100V,TP,-,5mm D303 0402-000129 DIODE-RECTIFIER;1N4003,200V,1A,DO-41
C312 2301-000271 C-FILM,PEF;470nF,5%,100V,-,16x10x24mm,10 D401 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C315 2301-000201 C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm, D402 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C316 2202-000796 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,3 D403 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C317 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m D404 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
C318 2301-000530 C-FILM,PEF;100nF,5%,100V,TP,11.5x12.5x6. D405 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
C320 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm, D407 0402-001012 DIODE-RECTIFIER;FMP-3FU,1500V,5A,TO-3PF H/SINK
C321 2401-000230 C-AL;100uF,20%,100V,GP,TP,10x20mm,5 D408 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C401 2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5 D410 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
C402 2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5 D411 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
C407 2303-000186 C-FILM,PPF;22nF,5%,400V,BK,19.5x13.5x8,1 D414 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
C408 2303-000118 C-FILM,PPF;10nF,5%,1.6KV,BK,31x19.5x13,2 D415 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-
C409 2306-001017 C-FILM,MPPF;680NF,5%,400V,TP,26X14.5X24M D802 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
C410 2202-000796 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,3 D803 0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS
C411 2301-001143 C-FILM,PPF;56nF,5%,400V,TP,20x10x17,7.5 D804 0402-000243 DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201
C412 2306-001017 C-FILM,MPPF;680NF,5%,400V,TP,26X14.5X24M D805 0402-000103 DIODE-BRIDGE;D2SBA60,600V,1.5A,-,ST
C413 2306-000324 C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x D806 0402-000549 DIODE-BRIDGE;RBV606,600V,6A,-,BK H/SINK
C414 2401-003114 C-AL;4.7UF,20%,250V,WT,TP,10X16MM,5 D807 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
C415 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13, D808 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
C416 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m D810 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
C417 2401-003058 C-AL;100uF,20%,200V,WT,TP,16x25mm,7 D811 0403-000704 DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DO-
C420 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4 D812 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
C421 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4 D813 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
C422 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4 D814 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
C423 2401-001655 C-AL;680UF,20%,25V,GP,TP,10X20MM,5M D814A 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
C424 2401-002274 C-AL;220uF,20%,35V,WT,TP,10x12.5,5 D816 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
C425 2305-000470 C-FILM,MPEF;68nF,5%,100V,TP,-,5mm D817 0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F H/SINK
C426 2202-000109 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5 D818 AA96-50153C ASSY-H/S;-,-,AA62-30013D,FLM-G12S,-
C454 2201-000487 C-CERAMIC,DISC;33pF,5%,50V,SL,TP,5x3,5m D819 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
C455 2401-000360 C-AL;100UF,20%,50V,GP,TP,8X11MM,5MM D820 1405-000190 VARISTOR;240V,400A,7x4.5mm,TP
C456 2301-000264 C-FILM,PEF;4.7nF,5%,50V,TP,6.5X5.5X3.0X5 D821 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
C457 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m D823 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,- H/SINK
C458 2301-000175 C-FILM,PEF;15nF,5%,50V,TP,7.1x3.5x13mm,5 D824 0402-000129 DIODE-RECTIFIER;1N4003,200V,1A,DO-41
C459 2401-002285 C-AL;470uF,20%,100V,GP,TP,16x25,7.5 D825 0402-000129 DIODE-RECTIFIER;1N4003,200V,1A,DO-41
C801 2306-000321 C-FILM,MPPF;470nF,5%,250V,TP,-,22.5mm D826 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
C802 2306-000321 C-FILM,MPPF;470nF,5%,250V,TP,-,22.5mm D829 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
C803 2201-000315 C-CERAMIC,DISC;2.2nF,+80-20%,250VAC,Y5U, D830 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
Samsung Electronics 8-3
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
DZ301 0403-000660 DIODE-ZENER;MTZ22A,22V,20.15-21.2V,500mW R409 2003-000538 R-METAL OXIDE(S);1Kohm,5%,2W,AA,TP,4x12m
DZ302 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T R410 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
DZ304 0403-000656 DIODE-ZENER;MTZ15C,15V,14.35-15.09V,500m R411 2001-000066 R-CARBON(S);10Kohm,5%,1/2W,AA,TP,2.4x6.4
DZ305 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T R412 2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.
DZ306 0403-000660 DIODE-ZENER;MTZ22A,22V,20.15-21.2V,500mW R413 2001-001163 R-CARBON(S);560ohm,5%,1/2W,AA,TP,2.4x6.4
DZ801 0403-000662 DIODE-ZENER;MTZ3.0B,3.0V,3.01-3.22V,500m R414 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
DZ802 0403-000656 DIODE-ZENER;MTZ15C,15V,14.35-15.09V,500m R415 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
DZ822 0403-000658 DIODE-ZENER;MTZ18A,18V,16.22-17.06V,500m R416 2001-000066 R-CARBON(S);10Kohm,5%,1/2W,AA,TP,2.4x6.4
F805 3601-001086 FUSE-FERRULE;125V,5A,QUICK-ACTING,CERAMI R417 2001-001108 R-CARBON(S);22Kohm,5%,1/2W,AA,TP,2.4x6.4
! IC301 1204-000021 IC-VERTICAL PROCESSO;TDA8351,SIP,9P,960M H/SINK R418 2001-001112 R-CARBON(S);24Kohm,5%,1/2W,AA,TP,2.4x6.4
! IC403 1204-001178 IC-VIDEO SYSTEM;TDA8145,SOP,8P,300MIL,PL R420 2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.
! IC801 AA13-20002K IC-HYBRID;-,STR-S6709 LF953,SIP,9P,SMPS H/SINK R421 2001-001106 R-CARBON(S);220Kohm,5%,1/2W,AA,TP,2.4x6.
! IC803 1203-000640 IC-PWM CONTROLLER;210,DIP,8P,245MIL,PLAS R422 2001-001108 R-CARBON(S);22Kohm,5%,1/2W,AA,TP,2.4x6.4
! IC804 1203-000187 IC-POSI.ADJUST REG.;431,TO-92,3P,-,PLAST R423 2008-000189 R-FUSIBLE;0.47OHM,10%,2W,AA,TP,6X15.5MM
! IC805 0604-000117 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST R424 2008-001005 R-FUSIBLE;0.47ohm,10%,1W,AA,TP,4.7x11.7m
! IC806 1203-000274 IC-POSI.FIXED REG.;7805,TO-220,3P,-,PLAS R425 2008-001005 R-FUSIBLE;0.47ohm,10%,1W,AA,TP,4.7x11.7m
L301 AA27-40003GCOIL-HORIZ,WIDTH;-,90/260UH,SB-5SOS6*20, R426 2003-000538 R-METAL OXIDE(S);1Kohm,5%,2W,AA,TP,4x12m
L302 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400 R427 2003-000462 R-METAL OXIDE(S);10Kohm,5%,2W,AA,TP,4x12
L303 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400 R429 2004-000698 R-METAL;3.3KOHM,1%,1/4W,AA,TP,2.4X6.4M
L304 AA27-10002Z COIL-CHOKE;-,22UH,K,10,1400MA,T,22UH-K(S R430 2004-002016 R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
L401 AA27-10002V COIL-CHOKE;-,6.3MH,K,-,500MA,-,NY632K(50 R431 2004-002016 R-METAL(S);15Kohm,1%,1/2W,AA,TP,2.5x6.5m
L402 AA27-10002Z COIL-CHOKE;-,22UH,K,10,1400MA,T,22UH-K(S R432 2008-000179 R-FUSIBLE(S);10ohm,5%,1/2W,AA,TP,2.5x6.5
L404 AA27-30003F COIL-LINERITY;-,7.6uH,DR15x18,USTC 0.12x R434 2004-001403 R-METAL(S);7.5Kohm,1%,1/2W,AA,TP,2.4x6.4
L405 AA27-40001S COIL-HORIZ.WIDTH;-,110UH,SB-5S8202.6,PI0 R457 2003-000592 R-METAL OXIDE(S);22ohm,5%,2W,AF,TP,4x12m
L407 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,- R801 1404-000178 THERMISTOR-PTC;7ohm,20%,-,290V,25A,-,BK
L408 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,- R802 2002-000334 R-COMPOSITION;8.2Mohm,10%,1/2W,AA,TP,3.5
L409 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
R803 1404-001045 THERMISTOR-NTC;4.7OHM,15%,2900K,35.0MW,T
L801 AA29-30002F FILTER-LINE NOISE;-,6mH,2.45A,-,-
R804 2001-001116 R-CARBON(S);27ohm,5%,1/2W,AA,TP,2.4x6.4m
L802 AA29-30002F FILTER-LINE NOISE;-,6mH,2.45A,-,-
R805 2003-000462 R-METAL OXIDE(S);10Kohm,5%,2W,AA,TP,4x12
L803 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
L805 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400 R806 2003-000462 R-METAL OXIDE(S);10Kohm,5%,2W,AA,TP,4x12
L806 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400 R807 2003-000462 R-METAL OXIDE(S);10Kohm,5%,2W,AA,TP,4x12
L810 AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M R808 2001-001129 R-CARBON(S);330Kohm,5%,1/2W,AA,TP,2.4x6.
L812 AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M R809 2001-001129 R-CARBON(S);330Kohm,5%,1/2W,AA,TP,2.4x6.
L813 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400 R810 2009-001001 R-METAL PLATE;0.12OHM,10%,5W,CL,TP,5X14X
L815 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400 R811 2001-001117 R-CARBON(S);2Kohm,5%,1/2W,AA,TP,2.4x6.4m
L816 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,- R812 2001-001093 R-CARBON(S);2.2Kohm,5%,1/2W,AA,TP,2.4x6.
L817 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,- R813 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
L818 AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M R814 2006-001008 R-CEMENT;8.2OHM,5%,5W,CJ,TP,10.5X14X27M
L820 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400 R815 2001-001117 R-CARBON(S);2Kohm,5%,1/2W,AA,TP,2.4x6.4m
L821 AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24UH-K,10X10M R816 2001-001117 R-CARBON(S);2Kohm,5%,1/2W,AA,TP,2.4x6.4m
! Q400 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R817 2003-001090 R-METAL OXIDE(S);10Kohm,5%,2W,AF,TP,4x12
! Q402 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R820 2003-001093 R-METAL OXIDE(S);12Kohm,5%,2W,AF,TP,3.9x
! Q404 0505-001116 FET-SILICON;BUZ73A,N,200V,22A,0.6ohm,40W
! R821 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
Q405 0502-001062 TR-POWER;2SC5331,NPN,180W,TO-3P,ST,10-3 H/SINK
! Q801 0503-000153 TR-DARLINGTON;TIP102,NPN,2W,TO-220,TP,10 R822 2008-000189 R-FUSIBLE;0.47OHM,10%,2W,AA,TP,6X15.5MM
! Q802 0502-001074 TR-POWER;BDX53B,NPN,60W,TO-220,ST,750 H/SINK R826 2001-001054 R-CARBON(S);1.6Kohm,5%,1/2W,AA,TP,2.4x6.
! Q803 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L, R827 2001-000052 R-CARBON(S);3.3Kohm,5%,1/2W,AA,TP,2.4x6.
! Q804 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L, R828 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
! Q805 AA13-20004HIC-HYBRID;-,SE135N-LF12,TO220-LF12,3,ERR
R829 2008-000179 R-FUSIBLE(S);10ohm,5%,1/2W,AA,TP,2.5x6.5
R301 2001-001100 R-CARBON(S);2.7ohm,5%,1/2W,AA,TP,2.4x6.4
R302 2001-001053 R-CARBON(S);1.5ohm,5%,1/2W,AA,TP,2.4x6.4 R830 2001-001087 R-CARBON(S);18ohm,5%,1/2W,AA,TP,2.4x6.4m
R303 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m R831 2001-001165 R-CARBON(S);56ohm,5%,1/2W,AA,TP,2.4x6.4m
R304 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4 R832 2001-001122 R-CARBON(S);3.9Kohm,5%,1/2W,AA,TP,2.4x6.
R305 2001-001106 R-CARBON(S);220Kohm,5%,1/2W,AA,TP,2.4x6. R833 2001-001078 R-CARBON(S);15Kohm,5%,1/2W,AA,TP,2.4x6.4
R306 2003-000590 R-METAL OXIDE(S);22ohm,5%,2W,AA,TP,4x12m
R834 2001-000028 R-CARBON(S);100ohm,5%,1/2W,AA,TP,2.4x6.4
R307 2003-000590 R-METAL OXIDE(S);22ohm,5%,2W,AA,TP,4x12m
R308 2003-000455 R-METAL OXIDE(S);100ohm,5%,2W,AA,TP,4x12 R840 2001-001097 R-CARBON(S);2.4Kohm,5%,1/2W,AA,TP,2.4x6.
R309 1404-000187 THERMISTOR-NTC;4.7ohm,15%,2800K,27.2mW/C R841 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
R310 2003-000590 R-METAL OXIDE(S);22ohm,5%,2W,AA,TP,4x12m R842 2001-001106 R-CARBON(S);220Kohm,5%,1/2W,AA,TP,2.4x6.
R311 2003-000590 R-METAL OXIDE(S);22ohm,5%,2W,AA,TP,4x12m R844 2001-000085 R-CARBON(S);100Kohm,5%,1/2W,AA,TP,2.4x6.
R312 2001-000020 R-CARBON(S);22ohm,5%,1/2W,AA,TP,2.4x6.4m
R845 2001-001112 R-CARBON(S);24Kohm,5%,1/2W,AA,TP,2.4x6.4
R321 2001-001053 R-CARBON(S);1.5ohm,5%,1/2W,AA,TP,2.4x6.4
R322 2001-001131 R-CARBON(S);33Kohm,5%,1/2W,AA,TP,2.4x6.4 RL801 3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
R323 2001-001131 R-CARBON(S);33Kohm,5%,1/2W,AA,TP,2.4x6.4 RL802 3501-001053 RELAY-POWER;5VDC,530MW,10A,1FORMA,15MS,5
R324 2001-001131 R-CARBON(S);33Kohm,5%,1/2W,AA,TP,2.4x6.4 T301 AA26-70001T TRANS-PLUSE;-,1.1mH,105uH,-,17x26,BK
R325 2001-001093 R-CARBON(S);2.2Kohm,5%,1/2W,AA,TP,2.4x6. T402 AA26-90002C TRANS-DUMMY;-,3.5MH,EER2834,130/1200,BK
R326 2001-001139 R-CARBON(S);39Kohm,5%,1/2W,AA,TP,2.4x6.4 T403 AA26-50001S TRANS-HORIZ DRIVE;-,6.0mH,44uH,1.5uH,EI2
R327 2001-000016 R-CARBON(S);1ohm,5%,1/2W,AA,TP,2.4x6.4mm
R401 2006-000323 R-CEMENT;56ohm,5%,5W,CB,BK,9.5x13.5x26. T444 AA26-30004S TRANS-FLYBACK;-,FCZ-29A007(S),29,135V
R402 2001-001168 R-CARBON(S);6.8Kohm,5%,1/2W,AA,TP,2.4x6. T801 AA26-20006X TRANS-SWITCHING;-,160~260V,130/30/24/8/1
R403 2001-001108 R-CARBON(S);22Kohm,5%,1/2W,AA,TP,2.4x6.4
R404 2001-001045 R-CARBON(S);1.2Kohm,5%,1/2W,AA,TP,2.4x6. T802 AA26-20004M TRANS-SWITCHING;-,90~260V,KS,EE2118,7.92
R405 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R406 2001-001122 R-CARBON(S);3.9Kohm,5%,1/2W,AA,TP,2.4x6.
R407 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R408 2006-000317 R-CEMENT;33ohm,5%,5W,CH,BK,9.5x27x9.5mm
8-4 Samsung Electronics
Electric Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
LF02 2702-000160 INDUCTOR-RADIAL;4.7uH,10%,6x6.4mm
LF03 2701-000112 INDUCTOR-AXIAL;100uH,10%,2.8x7mm
ASSY-PCB,CRT LF04 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
QF02 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
QF03 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
* AA95-20008L ASSY-PCB,CRT;-,SCT53A,29,EUROPE,-
QF04 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
QF06 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
C501 2201-002031 C-CERAMIC,DISC;5PF,0.25PF,50V,NPO,TP,5X3
QF07 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L,
C502 2201-000436 C-CERAMIC,DISC;2pF,0.3pF,50V,SL,TP,5x3.5
QF08 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
C504 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
QF09 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60 H/SINK
C505 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
QF10 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60 H/SINK
C506 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
R501 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
C507 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
R502 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
C509 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
R503 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
C510 2305-000308 C-FILM,MPEF;22nF,5%,250V,-,14.5x6.0x9.5m
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
