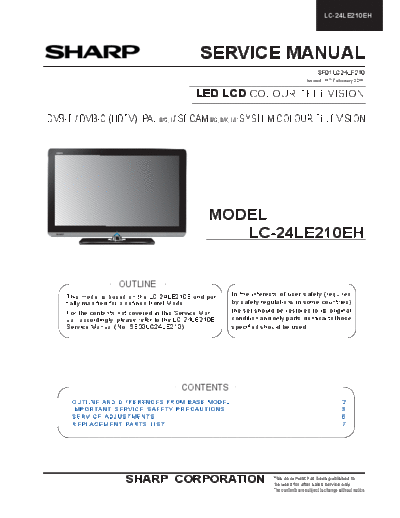

Image preview - the first page of the document



>> Download Sharp_LC-24LE210EH_[SM] documenatation <<

Text preview - extract from the document

                                                                                                               LC-24LE210EH




                                                        SERVICE MANUAL
                                                                                                            SE01LC24LE210
                                                                                                      Issued: 11th February 2011


                                                      LED LCD COLOUR TELEVISION

DVB-T / DVB-C (HDTV), PAL B/G, I / SECAM B/G, D/K, L/L' SYSTEM COLOUR TELEVISION




                                                            MODEL
                                                               LC-24LE210EH


                        OUTLINE
    This model is based on the LC-24LE210E and par-                 In the interests of user safety (required
    tially modified for a defined Hotel Mode.                       by safety regulations in some countries)
    For the contents not covered in this Service Man-               the set should be restored to its original
    ual, accordingly, please refer to the LC-24LE210E               condition and only parts identical to those
    Service Manual (No. SE00LC24LE210).                             specified should be used.




                                                 CONTENTS
      OUTLINE AND DIFFERENCES FROM BASE MODEL .........................................................                  2
      IMPORTANT SERVICE SAFETY PRECAUTIONS......................................................                         3
      SERVICE ADJUSTMENTS .....................................................................................          6
      REPLACEMENT PARTS LIST ..................................................................................          7




                           SHARP CORPORATION                                        This document has been published to
                                                                                     be used for after sales service only.
                                                                                    The contents are subject to change without notice.
                                                        1
LC-24LE210EH


                           OUTLINE AND DIFFERENCES FROM BASE MODEL
  OUTLINE
  This model is based on the LC-24LE210E and partially modified for a defined Hotel Mode. This Hotel mode only works
  in case some signal appears through HDMI 1 terminal. In this condition the functionality of Remote Control is limited.
  For the contents not covered in this Service Manual, accordingly, please refer to the LC-24LE210E Service Manual
  (No. SE00LC24LE210).



  DIFFERENCES FROM BASE MODEL

  1. The only change for this derivative model is the specific software version ("24LE210EHE_v1.0_PANEL_CMI_BOARD_
     N1" or upper.)
  2. In case IC1007 is replaced, proceed to update the software to the above detailed.

   Ref. No.                Description              LC-24LE210E        LC-24LE210EH                   Note
   PRINTED WIRING BOARDS ASSEMBLIES
      -       MAIN / LED Unit Set                 DSETUF639WE06       DSETUF639WE11             Software changed
   CABINET & MECHANICAL PARTS
      -       Labels set                          DLAB-D014WE01        DLAB-D871WE01            Labels set changed




                                                            2
                                                                                                            LC-24LE210EH


                          IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualified service technicians who are thoroughly familiar with all
safety checks and the servicing guidelines which follow:

WARNING
1. For continued safety, no modification of any circuit should be attempted.
2. Disconnect AC power before servicing.


          CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF
          FIRE REPLACE ONLY WITH SAME TYPE F101 (T2.5AH / 250V)




BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:
1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the
chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and
compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.
3. To be sure that no shock hazard exists, check for leakage current in the following manner.
