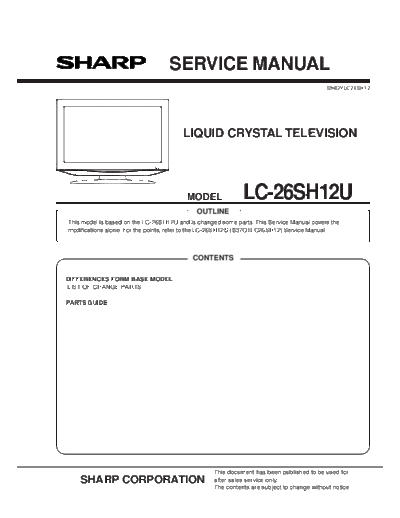

Image preview - the first page of the document
![Sharp_LC-26SH12U_FINAL_SUPP_2_[SM]](/pics/5c26fa00aa188.gif)
>> Download Sharp_LC-26SH12U_FINAL_SUPP_2_[SM] documenatation <<
Text preview - extract from the document
SERVICE MANUAL
S98OYLC26SH12
LIQUID CRYSTAL TELEVISION
MODEL LC-26SH12U
OUTLINE
This model is based on the LC-26SH12U and is changed some parts. This Service Manual covers the
modifications alone. For the points, refer to the LC-26SH12U (S37O1LC26SH12) Service Manual.
CONTENTS
DIFFERENCES FORM BASE MODEL
LIST OF CHANGE PARTS
PARTS GUIDE
This document has been published to be used for
SHARP CORPORATION after sales service only.
The contents are subject to change without notice.
DIFFERENCES FROM BASE MODEL
LIST OF CHANGE PARTS
REF. No. DESCRIPTION OLD PARTS NEW PARTS NOTE
MECHANICAL PARTS
104 STAND ASS'Y 7A7040029A 7A7040029B Parts change
104B ANGLE STAND 761WSB0054 761WSA0465 Parts change
PARTS GUIDE
LIQUID CRYSTAL TELEVISION
MODEL LC-26SH12U
CONTENTS
MECHANICAL REPLACEMENT PARTS LIST ..................................................................... K1-1
CAUTION: SINCE THESE PARTS MARKED BY ! ARE CRITICAL FOR SAFETY,USE ONES DESCRIBED IN
PARTS LIST ONLY.
This document has been published to be used for
SHARP CORPORATION after sales service only.
The contents are subject to change without notice.
MECHANICAL REPLACEMENT PARTS LIST
REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION
101 7A7010282A FRONT CABI ASS'Y 201 8110630A0U SCREW TAP TITE(P) BRAZIER 3x10
101A 701WPJ1487 CABINET FRONT 202 810A14080U SCREW WASHER(A) M4x8
101B 702WNB0003 SHEET SPEAKER 203 810213080S SCREW PAN M3x8
101C 713WPA0415 GLASS LED 204 810223040S SCREW BIND M3x4
101D 7235270040 BADGE BRAND 205 810763080U SCREW TAP TITE(S) BRAZIER 3x8
101E 800WQ00124 FELT SHEET 206 810923080S SCREW TAP TITE(B) BIND 3x8
101F 800WQ00125 FELT SHEET 207 810923080U SCREW TAP TITE(B) BIND 3x8
101G 800WQ00127 FELT SHEET 208 8110230B5S SCREW TAP TITE(P) BIND 3x25
209 8117540A0U SCREW TAPPING(B0) TRUSS 4x10
102 7A7020122A BACK CABI ASS'Y
102A 702WPA1291 CABINET BACK 210 8109I30A0U SCREW TAP TITE(B) WH7 3x10
102B 706WPA0027 COVER CONNECTOR 211 811063080U SCREW TAP TITE(P) BRAZIER 3x8
102C 800WQ0A113 FELT SHEET 212 8171130A0U SCREW TAP TITE(B) WASHER12 3x10
103 7A7640006A FRAME STAND ASS'Y --- 7230008287 SHEET BARCODE
103A 704WPA0081 HOLDER STAND --- 774WPA0011 HOLDER CORD
103B 761WEA0035 FRAME STAND --- 791WHA0125 PACKING SACK
103C 761WPA0470 COVER FRAME STAND --- 791WHA0126 PACKING SACK
--- 791WHA0130 LAMIFILM BAG
104 7A7040029B STAND ASS'Y --- 792WHA0716 PACKAGE STAND TOP
104A 704WPB0039 STAND --- 792WHA0717 PACKAGE STAND BOTTOM
104B 761WSA0465 ANGLE STAND --- 792WHA0718 PACKAGE TOP
104C 800WFA0120 CUSHION LEG --- 792WHA0719 PACKAGE BOTTOM
--- 793WCD1810 GIFT BOX
105 761WSA0459 SHIELD IC --- 89001122A2 SCREW
106 752WSA0640 SHIELD DIGITAL --- 890CCOR001 CLEANING CLOTH PACK
107 761WSA0480 ANGLE MAIN --- A31B01G975 INSTRUCTION BOOK KIT
108 761WSA0485 COVER LCD --- J31B0131A INSTRUCTION BOOK(E/F/S
109 761WSB0055 PLATE JACK --- J3Y00417A REGISTRATION CARD(SH
--- JB5ND200 POLYBAG INSTRUCTION(R
110 711WPD0729 PLATE BUTTON
111 7220001236 SHEET SERIAL
112 800WR00084 DAMPER SPEAKER
113 7230008289 SHEET JACK
114 7230008313 POP LABEL
115 7235270044 SHEET RATING
116 735WPB0360 BUTTON FRAME
117 761WPA0473 HOLDER SPEAKER-L
118 761WPA0474 HOLDER SPEAKER-R
119 761WPA0477 COVER HINGE
120 761WPA0478 HOLDER PANEL
121 761WSA0466 ANGLE HINGE
122 899RFC21V0 HOLDER CORD
123 761WSA0537 ANGLE PANEL
124 743WKA0058 SPRING EARTH
125 800WFA0056 CUSHION 25x50xT4
126 8965TS101B CUSHION W10/H6/L15
127 8965TS1210 CUSHION W10/H12/L10
128 7240001126 SHEET PC
129 800WQ00127 FELT SHEET
130 800WB0A017 FIBER WASHER
K1-1
