LC-26SD1E/RU, LC-32SD1E/RU
CHAPTER 4. REMOVING OF MAJOR PARTS
LC-26SD1E
                                Service                                                                  Manual

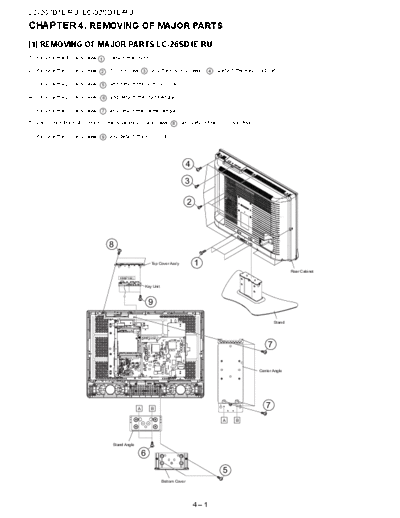

[1] REMOVING OF MAJOR PARTS LC-26SD1E/RU
1. Remove the 4 lock screws 1 . Detach the Stand.

2. Remove the 3 lock screws 2 . 1 lock screw 3            and the 9 lock screws           4 . Detach the Rear Cabinet.


3. Remove the 2 lock screws 5     and detach the Bottom Cover.

4. Remove the 2 lock screws   6   and detach the Stand Angle.

5. Remove the 5 lock screws 7 and detach the Center Angle.

6. Disconnect the KM connector. Remove the 2 lock screws 8                  and detach the Top Cover Ass'y.

7. Remove the 3 lock screws 9 and detach the KEY Unit.




                                                                                4
                                                                             3

                                                                                2




                                  8

                                                          Top Cover Ass'y           1
                                                                                                                              Rear Cabinet
                                      KM(P169)

                                                      Key Unit



                                                         9

                                                                                                                      Stand


                                                     KM(P2302)

                                                                                                                  7


                                                                                                              Center Angle




                                                 A        B                                                       7
                                                                                               A     B




                                   Stand Angle

                                                     6

                                                                                               5
                                                                 Bottom Cover




                                                                                    4
