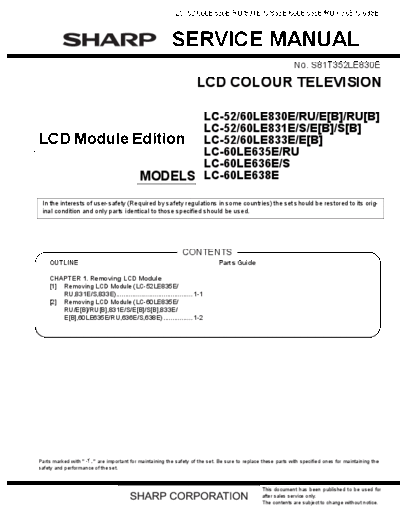

Image preview - the first page of the document



>> Download Sharp_LC-52LE830E_LC-60LE830E_LC-52LE831E_LC-60LE831E_LC-52LE833E_LC-60LE833E_LC-60LE635E_LC-60LE636E_LC-60LE638E_LCM_Only_[SM] documenatation <<

Text preview - extract from the document

TopPage
                                                           LC-52/60LE830E,RU/831E,S/833E/60LE635E/RU,636E/S,638E



                                                         SERVICE MANUAL
                                                                                                              No. S81T352LE830E

                                                                    LCD COLOUR TELEVISION

                   LC-52/60LE830E/RU/E[B]/RU[B]
                   LC-52/60LE831E/S/E[B]/S[B]
LCD Module Edition LC-52/60LE833E/E[B]
                   LC-60LE635E/RU
                   LC-60LE636E/S
            MODELS LC-60LE638E
 In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
 inal condition and only parts identical to those specified should be used.




                                                              CONTENTS
    OUTLINE                                                                   Parts Guide

    CHAPTER 1. Removing LCD Module
    [1] Removing LCD Module (LC-52LE835E/
        RU,831E/S,833E).......................................... 1-1
                                                         .
    [2] Removing LCD Module (LC-60LE835E/
        RU/E[B]/RU[B],831E/S/E[B]/S[B],833E/
        E[B],60LE635E/RU,636E/S,638E) ................ 1-2
                                                         .




Parts marked with "   " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.



                                                                                                This document has been published to be used for
                                                                                                after sales service only.
                                                                                                The contents are subject to change without notice.
LC-52/60LE830E,RU/831E,S/833E/60LE635E/RU,636E/S,638E
LC52LE830E
OUTLINE                                               Service Manual
