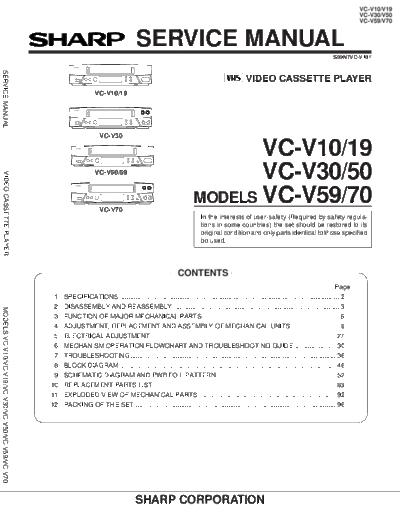

Image preview - the first page of the document
VC-V10_19_30_50_59_70


>> Download VC-V10_19_30_50_59_70 documenatation <<

Text preview - extract from the document
                                                                                                                                                                                                      VC-V10/V19
                                                                                                                                                                                                        VC-V10/V19
                                                                                                                                                                                                      VC-V30/V50
                                                                                                                                                                                                        VC-V30/V50
                                                                                                                                                                                                      VC-V59/V70
                                                                                                                                                                                                        VC-V59/V70


                                                                                           SERVICE MANUAL
                                                                                                                                                                                          S99N7VC-V10//
                                                             SHARP
SERVICE MANUAL




                                                                                                                                                VIDEO CASSETTE PLAYER
                                                                       VC-V10/19

                                                             SHARP




                                                                          VC-V30
                                                               SHARP



                                                                                                                              VC-V10/19
                                                                       VC-V50/59
                                                                                                                              VC-V30/50
  VIDEO CASSETTE PLAYER




                                                               SHARP




                                                                                                                       MODELS VC-V59/70
                                                                          VC-V70
                                                                                                                           In the interests of user-safety (Required by safety regula-
                                                                                                                           tions in some countries) the set should be restored to its
                                                                                                                           original condition and only parts identical to those specified
                                                                                                                           be used.




                                                                                                               CONTENTS
                                                                                                                                                                                              Page
                                                    1.   SPECIFICATIONS ......................................................................................................................... 2
                                                    2.   DISASSEMBLY AND REASSEMBLY ............................................................................................ 3
MODELS VC-V10/VC-V19/VC-V30/VC-V50/VC-V59/VC-V70




                                                    3.   FUNCTION OF MAJOR MECHANICAL PARTS ........................................................................... 6
                                                    4.   ADJUSTMENT, REPLACEMENT AND ASSEMBLY OF MECHANICAL UNITS .......................... 8
                                                    5.   ELECTRICAL ADJUSTMENT ...................................................................................................... 27
                                                    6.   MECHANISM OPERATION FLOWCHART AND TROUBLESHOOTING GUIDE ...................... 30
                                                    7.   TROUBLESHOOTING ................................................................................................................. 36
                                                    8.   BLOCK DIAGRAM ....................................................................................................................... 46
                                                    9.   SCHEMATIC DIAGRAM AND PWB FOIL PATTERN .................................................................. 52
                                                   10.   REPLACEMENT PARTS LIST .................................................................................................... 83
                                                   11.   EXPLODED VIEW OF MECHANICAL PARTS ............................................................................ 92
                                                   12.   PACKING OF THE SET .............................................................................................................. 96




                                                                                           SHARP CORPORATION
                                                                                                                         1
VC-V10/V19
VC-V30/V50
VC-V59/V70
                                 PRECAUTIONS IN PART REPLACEMENT
   When servicing the unit with power on, be careful to the section marked white all over.
   This is the primary power circuit which is live.
   When checking the soldering side in the tape travel mode, make sure first that the tape has been loaded and then turn over
   the PWB with due care to the primary power circuit.
   Make readjustment, if needed after replacement of part, with the mechanism and its PWB in position in the main frame.

   (1) Start and end sensors: D804 and D803
       Insert the sensor's projection deep into the upper hole of the holder (LHLDZ1962AJ00). Referring to the PWB, fix the
       sensors tight enough.

   (2) Photocoupler RH-FX0007GEZZ: IC901
       Refer to the symbol on the PWB and the anode marking of the part.

   (3) Cam switches A and B (RH-PX0253GEZZ): D807 and D806
       Adjust the notch of the part to the white marker of the symbol on the PWB. Do not allow any looseness.

   (4) Take-up and supply sensors (RH-PX0252GEZZ): D801 and D802
       Be careful not to confuse the setting direction of the parts in reference to the symbols on the PWB. Do not allow any
       looseness.

   (5) Diode bridge (RH-DX0083GEZZ): D901
       Adjust the + marking of the part to the symbol's cathode marking on the PWB.

   1. SPECIFICATIONS
                                Format: VHS PAL/MESECAM/NTSC standard(VC-V10/30/50/70)
                                        VHS PAL/MESECAM/SECAM/NTSC standard(VC-V19/59)
            Recording/Playback system: Rotary, slant azimuth two head LP helical scan system(VC-V10/30/50/70)
                                        Rotary, slant azimuth two head helical scan system(VC-V19/59)
                   Video signal system: PAL/MESECAM 4.43Hz colour or monochrome signals : 625 lines
                                        (VC-V10/30/50/70)
                                        PAL/MESECAM/SECAM colour or monochrome signals : 625 lines
                                        (VC-V19/59)
                                        NTSC 3.58Hz colour or monochrome signals : 525 lines
       Maximum Recording/playback time: 240 min with E-240 tape at SP mode
                                        480 min with E-240 tape at EP mode(VC-V10/30/50/70)
                                        480 min with T-160 tape at LP mode(VC-V10/30/50/70)
                            Tape width: 12.7 mm
                           Tape speed: 23.39 mm/sec. (PAL/MESECAM)
                                        33.35 mm/sec. (NTSC)
                              Antenna: 75 ohm unbalanced
                      RF output signal: UHF channel E30
