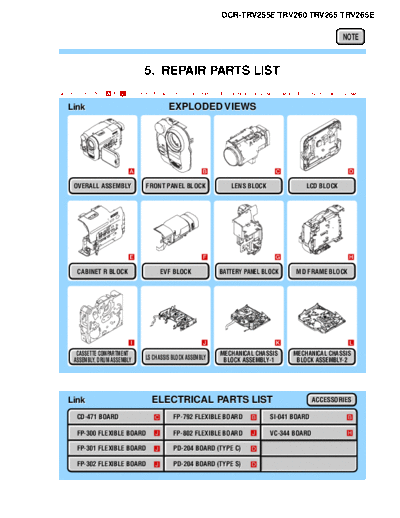

Image preview - the first page of the document
>> Download CAMARA SONY DCR - TRV 260 parts documenatation <<Text preview - extract from the document DCR-TRV255E/TRV260/TRV265/TRV265E
NOTE
5. REPAIR PARTS LIST
NOTE: Characters A to L of the electrical parts list indicate location of exploded views in which the desired part is shown.
Link EXPLODED VIEWS
A B C D
OVERALL ASSEMBLY FRONT PANEL BLOCK LENS BLOCK LCD BLOCK
E F G H
CABINET R BLOCK EVF BLOCK BATTERY PANEL BLOCK MD FRAME BLOCK
I J K L
CASSETTE COMPARTMENT MECHANICAL CHASSIS MECHANICAL CHASSIS
ASSEMBLY, DRUM ASSEMBLY LS CHASSIS BLOCK ASSEMBLY BLOCK ASSEMBLY-1 BLOCK ASSEMBLY-2
Link ELECTRICAL PARTS LIST ACCESSORIES
CD-471 BOARD C FP-792 FLEXIBLE BOARD B SI-041 BOARD B
FP-300 FLEXIBLE BOARD J FP-802 FLEXIBLE BOARD J VC-344 BOARD H
FP-301 FLEXIBLE BOARD J PD-204 BOARD (TYPE C) D
FP-302 FLEXIBLE BOARD J PD-204 BOARD (TYPE S) D
DCR-TRV255E/TRV260/TRV265/TRV265E
5. REPAIR PARTS LIST
NOTE:
