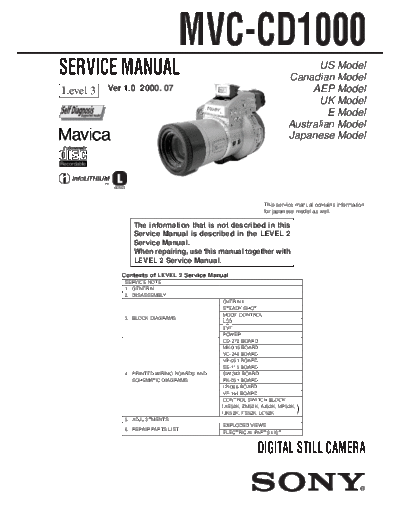

Image preview - the first page of the document
>> Download CAMARA SONY MVC - CD 1000 Level 3 documenatation <<Text preview - extract from the document MVC-CD1000
SERVICE MANUAL US Model
Canadian Model
Level 3 Ver 1.0 2000. 07 AEP Model
UK Model
E Model
Australian Model
Japanese Model
This service manual contains information
for japanese model as well.
The information that is not described in this
Service Manual is described in the LEVEL 2
Service Manual.
When repairing, use this manual together with
LEVEL 2 Service Manual.
Contents of LEVEL 2 Service Manual
SERVICE NOTE
1. GENERAL
2. DISASSEMBLY
OVERALL
STEADY SHOT
MODE CONTROL
3. BLOCK DIAGRAMS
LCD
EVF
POWER
CD-272 BOARD
MK-015 BOARD
VC-246 BOARD
VP-051 BOARD
SE-115 BOARD
4. PRINTED WIRING BOARDS AND SW-342 BOARD
SCHEMATIC DIAGRAMS PK-051 BOARD
LB-066 BOARD
VF-144 BOARD
CONTROL SWITCH BLOCK
AE52K, ZM52K, AJ52K, MP52K,
(JK52K, FS52K, LC52K )
5. ADJUSTMENTS
EXPLODED VIEWS
6. REPAIR PARTS LIST
ELECTRICAL PARTS LIST
DIGITAL STILL CAMERA
TABLE OF CONTENTS
2. DISASSEMBLY
