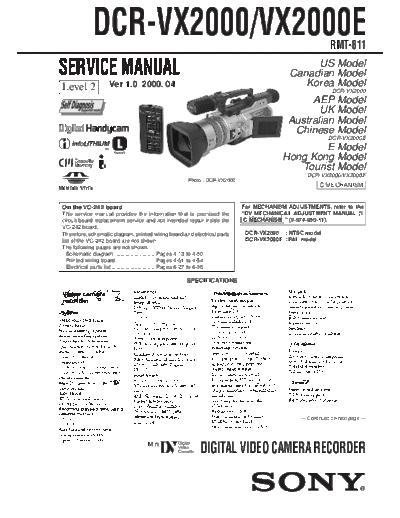

Image preview - the first page of the document
>> Download SONY DCR-VX2000_VX2000E v.1_level2 documenatation <<
Text preview - extract from the document
DCR-VX2000/VX2000E RMT-811
SERVICE MANUAL US Model
Canadian Model
Level 2 Ver 1.0 2000. 04 Korea Model
DCR-VX2000
AEP Model
UK Model
Australian Model
Chinese Model
DCR-VX2000E
E Model
Hong Kong Model
Tourist Model
DCR-VX2000/VX2000E
Photo : DCR-VX2000
C MECHANISM
On the VC-242 board For MECHANISM ADJUSTMENTS, refer to the
This service manual provides the information that is premised the "DV MECHANICAL ADJUSTMENT MANUAL
circuit board replacement service and not intended repair inside the C MECHANISM " (9-974-050-11).
VC-242 board.
Therefore, schematic diagram, printed wiring board and electrical parts DCR-VX2000 : NTSC model
list of the VC-242 board are not shown. DCR-VX2000E : PAL model
The following pages are not shown.
Schematic diagram .......................... Pages 4-13 to 4-50
Printed wiring board ......................... Pages 4-51 to 4-54
Electrical parts list ............................ Pages 6-27 to 6-36
SPECIFICATIONS
-- Continued on next page --
DIGITAL VIDEO CAMERA RECORDER
