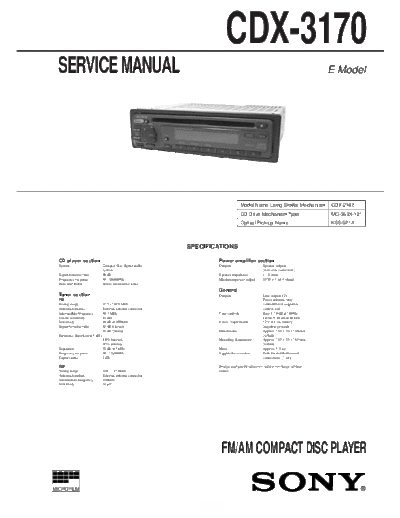

Image preview - the first page of the document
SONY CDX-3170


>> Download SONY CDX-3170 documenatation <<

Text preview - extract from the document
                                                                          CDX-3170
 SERVICE MANUAL                                                                                                                 E Model




                                                                                      Model Name Using Similar Mechanism        CDX-2180
                                                                                      CD Drive Mechanism Type                   MG-363X-121
                                                                                      Optical Pick-up Name                      KSS-521A



                                                              SPECIFICATIONS

  CD player section                                                   Power amplifier section
  System                         Compact disc digital audio           Outputs                      Speaker outputs
                                 system                                                            (sure seal connectors)
  Signal-to-noise ratio          90 dB                                Speaker impedance            4 - 8 ohms
  Frequency response             10 - 20,000 Hz                       Maximum power output         35 W
