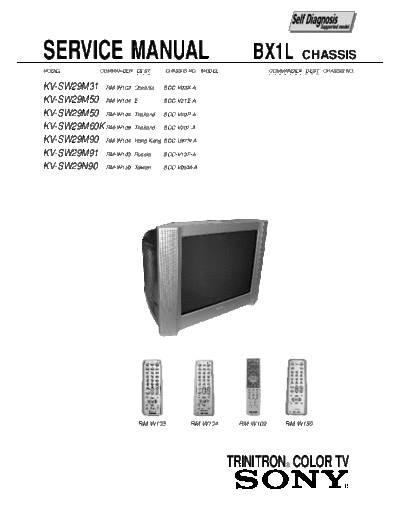

Image preview - the first page of the document



>> Download KV-SW29M60K_for tharuaele documenatation <<

Text preview - extract from the document

SERVICE MANUAL                                          BX1L             CHASSIS
MODEL         COMMANDER DEST.   CHASSIS NO. MODEL              COMMANDER DEST. CHASSIS NO.


KV-SW29M31 RM-W103 Oceania SCC-V03K-A
KV-SW29M50 RM-W104 E         SCC-V21E-A

KV-SW29M50 RM-W104 Thailand SCC-V20P-A
KV-SW29M60K RM-W109 Thailand SCC-V20L-A
KV-SW29M90 RM-W104 Hong Kong SCC-U97N-A
KV-SW29M91 RM-W103 Russia SCC-V13F-A
KV-SW29N90 RM-W150 Taiwan SCC-V05M-A




                         RM-W103        RM-W104      RM-W109        RM-W150




                                                    TRINITRON COLOR TV
