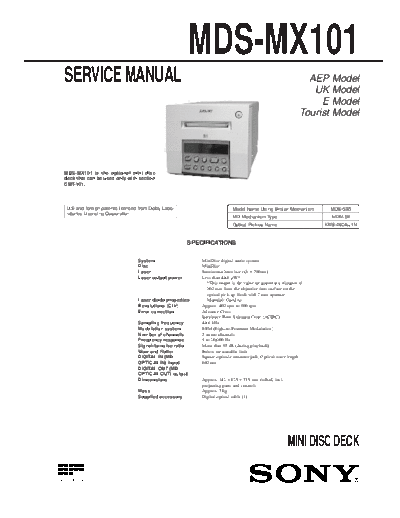

SERVICE MANUAL AEP Model
UK Model
E Model
Tourist Model
MDS-MX101 is the optional mini disc
deck that can be used only with section
CMT-101.
U.S and foreign patents licensed from Dolby Labo- Model Name Using Similar Mechanism MDS-S38
ratories Licensing Corporation.
MD Mechanism Type MDM-3B
Optical Pick-up Name KMS-260A/J1N
SPECIFICATIONS
System MiniDisc digital audio system
Disc MiniDisc
Laser Semicondu2ctor laser ( = 780nm)
Laser output power Less than 44.6
