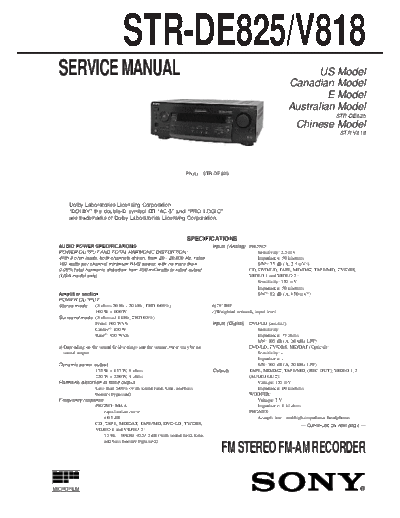

Image preview - the first page of the document
>> Download Sony STR-DE825_V818 documenatation <<
Text preview - extract from the document
STR-DE825/V818
SERVICE MANUAL US Model
Canadian Model
E Model
Australian Model
STR-DE825
Chinese Model
STR-V818
Photo : STR-DE825
Dolby Laboratories Licensing Corporation.
"DOLBY" the double-D symbol a "AC-3" and "PRO LOGIC"
are trademarks of Dolby Laboratories Licensing Corporation.
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS Inputs (Analog) PHONO:
POWER OUTPUT AND TOTAL HARMONIC DISTORTION: Sensitivity: 2.5 mV
With 8 ohm loads, both channels driven, from 20 - 20,000 Hz; rated Impedance: 50 kilohms
100 watts per channel minimum RMS power, with no more than S/Nb): 75 dB (A, 2.5 mVc))
0.09% total harmonic distortion from 250 milliwatts to rated output CD, DVD/LD, TAPE, MD/DAT, TAPE/MD, TV/DBS,
(USA model only). VIDEO 1 and VIDEO 2 :
Sensitivity: 150 mV
Impedance: 50 kilohms
Amplifier section S/Nb): 82 dB (A, 150 mVc))
POWER OUTPUT
Stereo mode (8 ohms 20 Hz - 20 kHz, THD 0.09%) b)78' IHF
100 W + 100 W c) Weighted network, input level
Surround mode (8 ohms at 1 kHz, THD 0.8%)
Front: 100 W/ch Inputs (Digital) DVD/LD (coaxial):
Centera): 100 W Sensitivity: -
Reara): 100 W/ch Impedance: 75 ohms
S/N: 100 dB (A, 20 kHz LPF)
a) Depending on the sound field settings and the source, there may be no DVD/LD, TV/DBS, MD/DAT (Optical):
sound output. Sensitivity: -
Impedance: -
Dynamic power output S/N: 100 dB (A, 20 kHz LPF)
155 W + 155 W, 8 ohms Outputs TAPE, MD/DAT, TAPE/MD, (REC OUT); VIDEO 1, 2
220 W + 220 W, 4 ohms (AUDIO OUT):
Harmonic distortion at rated output Voltage: 150 mV
Less than 0.09% (with sound field, tone, and bass Impedance: 10 kilohms
booster bypassed) WOOFER:
Frequency response Voltage: 2 V
PHONO: RIAA Impedance: 1 kilohms
equalization curve PHONES:
